How can I check if this coil will fit my existing hydraulic valve?

You'll need to measure your old coil to be sure. This replacement coil is designed for a threaded cartridge valve and has an inner hole diameter of 13mm and a height of 37mm. If your valve stem and old coil match these dimensions, it should fit.

I see options for AC220V and DC24V, how do I choose?

You must match the voltage to your system's power supply exactly. Check the label on your old coil or the equipment's schematic to see if it needs AC (alternating current) or DC (direct current) and the specific voltage, like 24V or 220V. Using the wrong voltage will destroy the coil.

What does the solenoid coil actually do?

The coil is an electromagnet. When your system sends power to it, the coil creates a magnetic field that moves a plunger inside the valve body. This action opens or closes a passage to control the flow of hydraulic fluid.

Valve Solenoid Coil | 13mm Inner Hole | 37mm Height | DC24V

Name: Valve Solenoid Coil | 13mm Inner Hole | 37mm Height | DC24V
Brand: Compel
SKU: HYDR-00354
Price: 9.95 USD
Availability: InStock
Rating: 5 (3 reviews)

Stock #:CMP-04552

SKU:HYDR-00354

Valve Solenoid Coil | 13mm Inner Hole | 37mm Height | DC24V - Image 1

1 / 5

$9.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

ColorSelect an option

Quantity

Valve Solenoid Coil | 13mm Inner Hole | 37mm Height | DC24V

$9.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

How can I check if this coil will fit my existing hydraulic valve?: You'll need to measure your old coil to be sure. This replacement coil is designed for a threaded cartridge valve and has an inner hole diameter of 13mm and a height of 37mm. If your valve stem and old coil match these dimensions, it should fit.

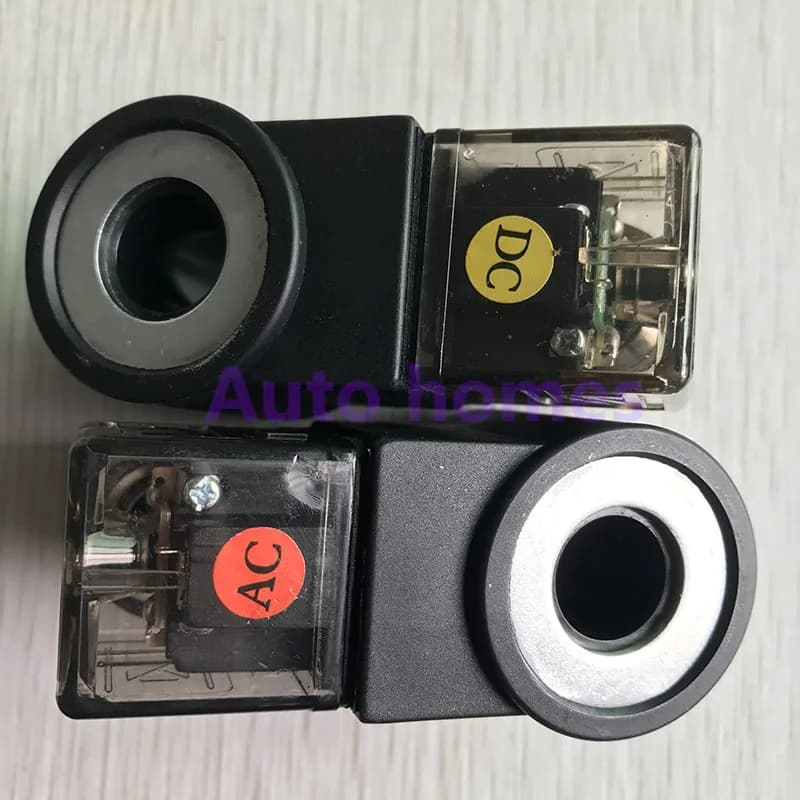

I see options for AC220V and DC24V, how do I choose?: You must match the voltage to your system's power supply exactly. Check the label on your old coil or the equipment's schematic to see if it needs AC (alternating current) or DC (direct current) and the specific voltage, like 24V or 220V. Using the wrong voltage will destroy the coil.
What does the solenoid coil actually do?: The coil is an electromagnet. When your system sends power to it, the coil creates a magnetic field that moves a plunger inside the valve body. This action opens or closes a passage to control the flow of hydraulic fluid.

Hydraulic Valves spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

TUYA WiFi/ZigBee MCB Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Remote Control Switch

4.9

$45.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

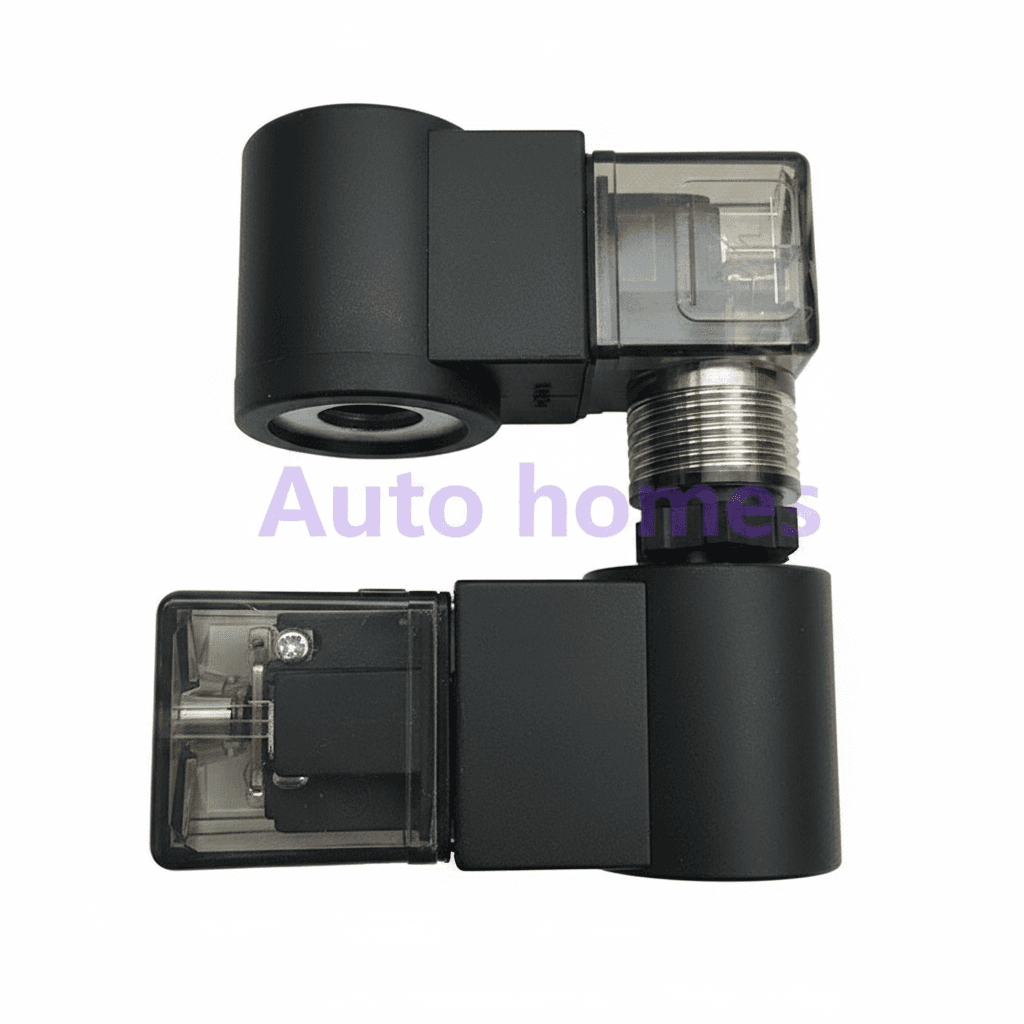

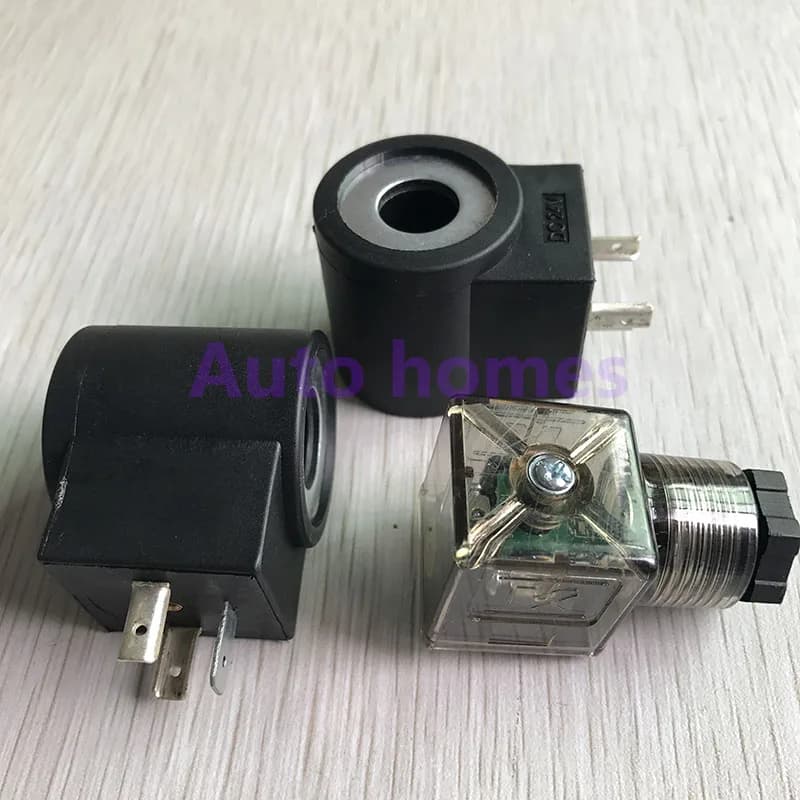

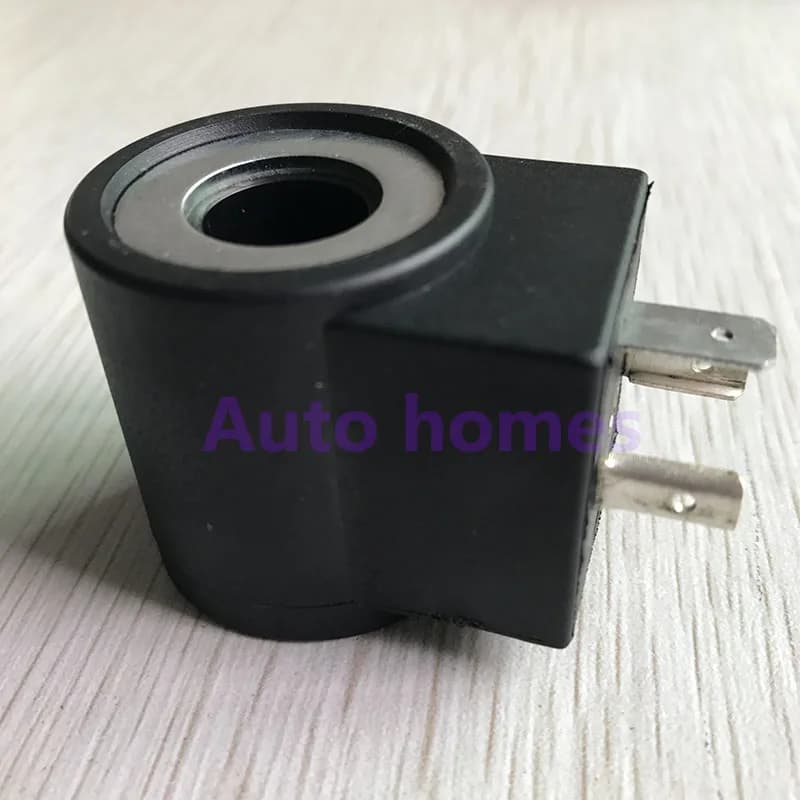

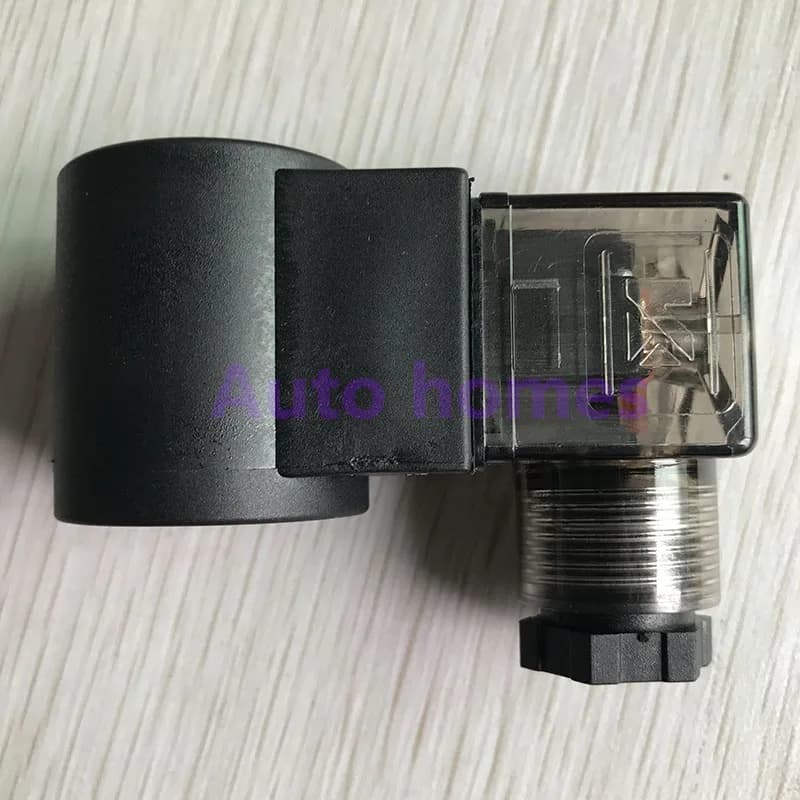

This hydraulic solenoid valve coil is a direct replacement part for controlling a threaded hydraulic cartridge valve. It acts as an electromagnet; when powered, it moves the valve's spool to open or close fluid pathways, allowing electronic signals to control your hydraulic system. Features and Benefits - Specific Fit (13mm Hole, 37mm Height) - These precise dimensions ensure a proper fit on your existing cartridge valve stem for correct operation and heat transfer. - Multiple Voltage Options - Available in common voltages like DC24V and AC220V, letting you match the right replacement coil to your equipment's electrical system. - DIN Connector Interface - Features a standard electrical connection, making the process of replacing a hydraulic solenoid valve coil straightforward without splicing wires. - Encapsulated Winding Design - The copper windings are sealed in thermoplastic resin, protecting them from moisture, vibration, and fluid to prevent short circuits. Applications - Industrial Machinery - A common hydraulic valve coil replacement for directional control valves on manufacturing equipment, presses, and assembly lines. - Mobile Equipment - Used in the hydraulic systems of construction vehicles, agricultural machinery like tractors, and lifting equipment such as forklifts. - System Repair - The part for troubleshooting hydraulic solenoid valve coil issues like burnout or failure to actuate, restoring function to a hydraulic circuit.
