What sort of job would I use a foot pedal valve for?

This valve lets you control a pneumatic cylinder with your foot, which keeps your hands free to guide or hold a workpiece. It's often used on equipment like air-powered clamps, small presses, and other workshop machinery.

What does 'two position, five links' mean for my setup?

This describes a 5-port, 2-position valve, also known as a 5/2 valve. It's made to control a double-acting cylinder, using one position to send air to extend the cylinder and the other position to retract it.

Does the pedal lock down or does it spring back up?

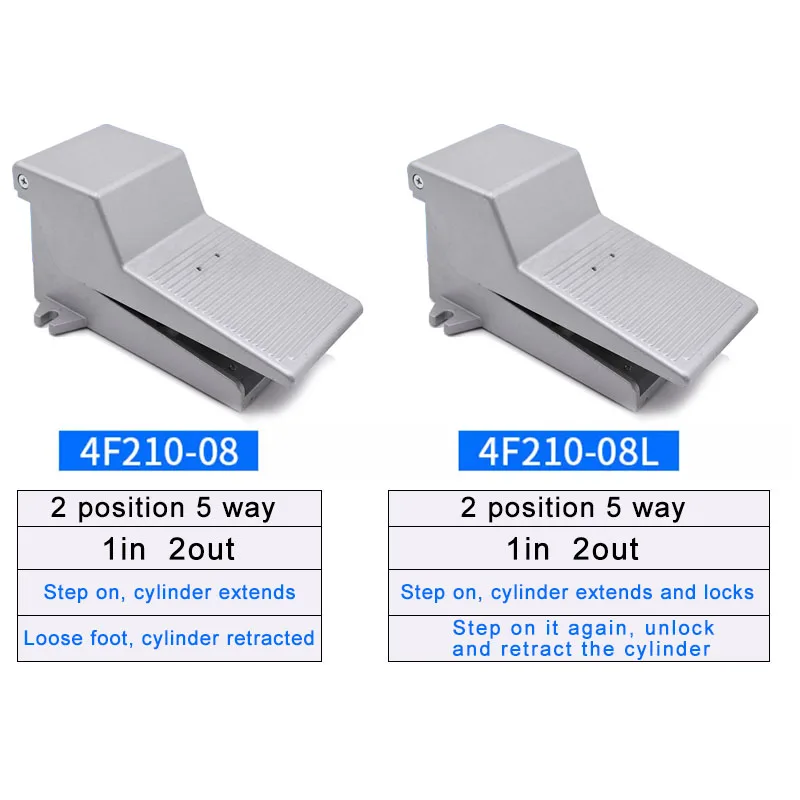

It depends on the model you select. The locking version (model 4F210-08L) stays in position after you press it and only returns when you press it a second time. The standard spring-return models spring back as soon as you lift your foot.

Valve Foot Pedal | 5-Port 2-Position Control | 4F210-08L Switch

Name: Valve Foot Pedal | 5-Port 2-Position Control | 4F210-08L Switch
Brand: Compel
SKU: HYDR-00352
Price: 34.95 USD
Availability: InStock
Rating: 5 (21 reviews)

Stock #:CMP-04550

SKU:HYDR-00352

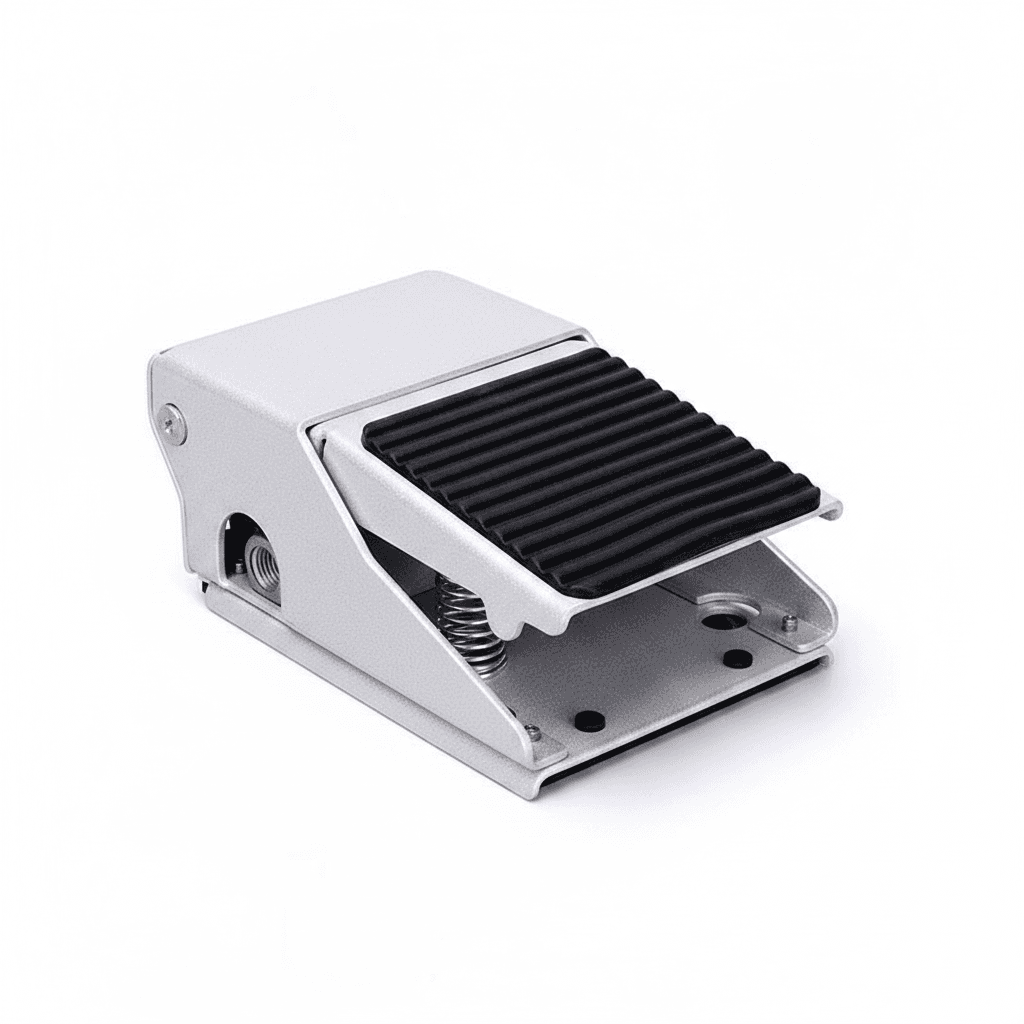

Valve Foot Pedal | 5-Port 2-Position Control | 4F210-08L Switch - Image 1

1 / 6

$34.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

ColorSelect an option

SpecificationSelect an option

Quantity

Valve Foot Pedal | 5-Port 2-Position Control | 4F210-08L Switch

$34.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What sort of job would I use a foot pedal valve for?: This valve lets you control a pneumatic cylinder with your foot, which keeps your hands free to guide or hold a workpiece. It's often used on equipment like air-powered clamps, small presses, and other workshop machinery.
What does 'two position, five links' mean for my setup?: This describes a 5-port, 2-position valve, also known as a 5/2 valve. It's made to control a double-acting cylinder, using one position to send air to extend the cylinder and the other position to retract it.
Does the pedal lock down or does it spring back up?: It depends on the model you select. The locking version (model 4F210-08L) stays in position after you press it and only returns when you press it a second time. The standard spring-return models spring back as soon as you lift your foot.

Hydraulic Valves spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

TUYA WiFi/ZigBee MCB Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Remote Control Switch

4.9

$45.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

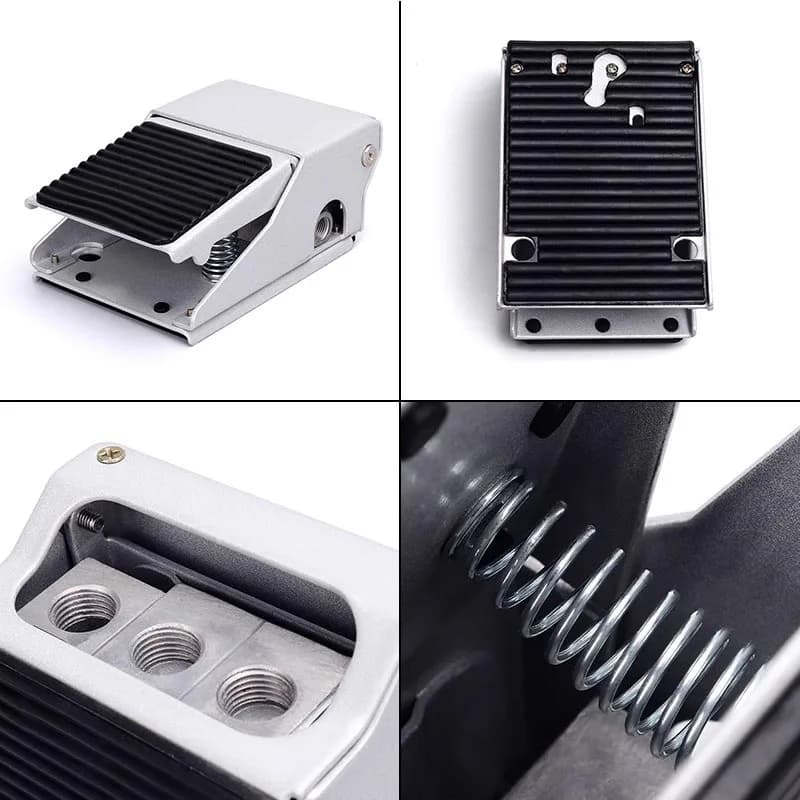

This pneumatic foot pedal valve gives you hands-free control for air-powered machines. It works like a hydraulic valve does for fluid systems. This foot-operated switch sends air to run pneumatic cylinders and tools. It lets you hold materials with both hands while you work. Features and Benefits - Hands-free use - You press the valve with your foot. This leaves your hands free to handle the work. It makes work safer and more exact. - Latching or momentary models - Pick a latching model for continuous use. Or choose a momentary switch for short, controlled blasts of air. - Aluminum alloy build - The body is made from solid aluminum alloy. It holds up well in industrial places. - Standard 1/4 inch NPT ports - These ports connect easily to most standard air hoses and pneumatic parts. Applications - Moving pneumatic clamps or presses for metalworking and woodworking. - Controlling how air cylinders move forward and back on an assembly line. - Running pneumatic tools like riveters or sanders in repair shops.

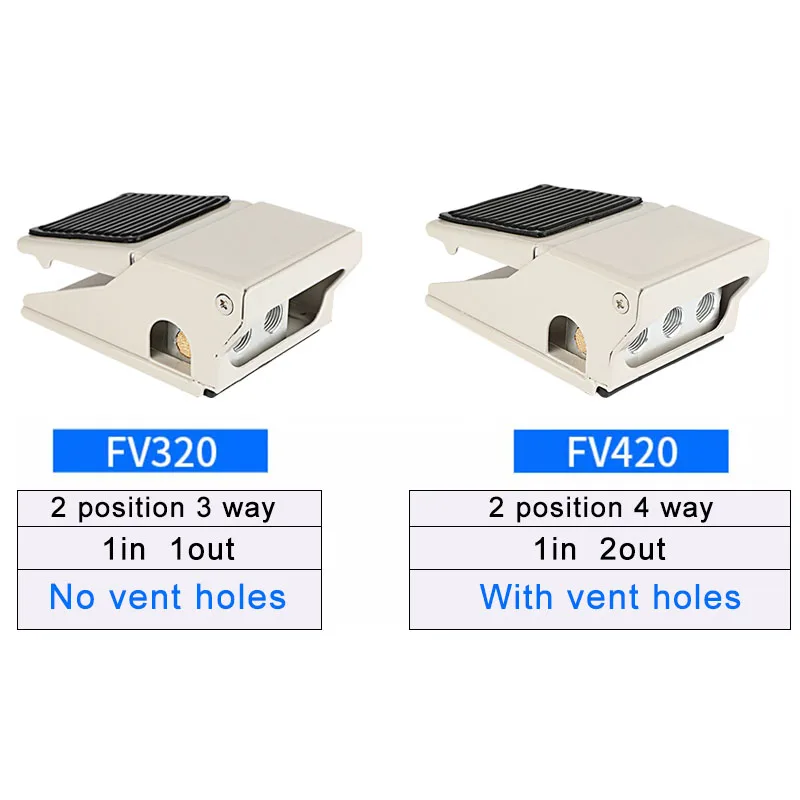

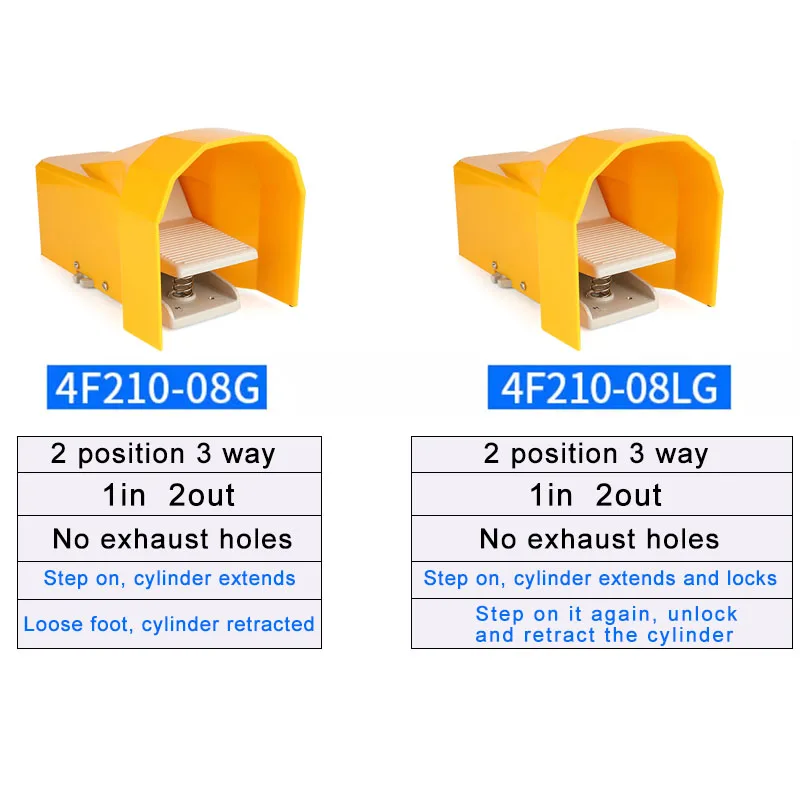

Links: Five Links. Model: 4F210-08L, FV320, FV420, 4F210-08G. Motivity Type: Pneumatic. Operation: Cylinder Control. Position: Two Position. Type: Foot Pedal Valve. Port Size: 1/4 inch (G1/4 or NPT1/4, common for 4F210-08). Body Material: Aluminum Alloy. Seal Material: NBR (Nitrile Butadiene Rubber). Operating Pressure Range: 0.15-0.8 MPa (22-116 psi). Operating Temperature Range: -5 to 60°C (23-140°F). Fluid Compatibility: Filtered Compressed Air. Actuation Method: Foot Pedal. Control Type: Cylinder Control. Effective Area: 16mm² (CV=0.89) (typical for 4F210-08). Exhaust Type: Pilot Exhaust. High-Concerned Chemical Exposure: None. Model Numbers: 4F210-08L, FV320, FV420, 4F210-08G. Mounting Type: Floor Mount. Product Type: Pneumatic Foot Pedal Valve. Valve Function: Two Position, Five Links (5/2 Way). Q: What are the specs for the 4F210-08L model, like port size and pressure range? A: The 4F210-08L has 1/4-inch inlet, outlet, and exhaust ports. It's designed to operate with air pressure from 0.15 to 0.8 MPa, or about 22 to 116 PSI.. Q: What are the specs for the 4F210-08L model, like port size and pressure range? A: The 4F210-08L has 1/4-inch inlet, outlet, and exhaust ports. It's designed to operate with air pressure from 0.15 to 0.8 MPa, or about 22 to 116 PSI.. Q: What are the specs for the 4F210-08L model, like port size and pressure range? A: The 4F210-08L has 1/4-inch inlet, outlet, and exhaust ports. It's designed to operate with air pressure from 0.15 to 0.8 MPa, or about 22 to 116 PSI.. Q: What is the valve body made of? Can it hold up in a workshop environment? A: The main body is cast from an aluminum alloy, and it includes a protective guard over the pedal. It's built to withstand direct foot operation and the typical conditions you'd find in a garage or industrial setting.. Q: What is the valve body made of? Can it hold up in a workshop environment? A: The main body is cast from an aluminum alloy, and it includes a protective guard over the pedal. It's built to withstand direct foot operation and the typical conditions you'd find in a garage or industrial setting.. Q: What is the valve body made of? Can it hold up in a workshop environment? A: The main body is cast from an aluminum alloy, and it includes a protective guard over the pedal. It's built to withstand direct foot operation and the typical conditions you'd find in a garage or industrial setting.. Q: Is this a type of hydraulic valve, or is it strictly for pneumatic systems? A: This is a pneumatic valve, designed specifically for controlling air flow to cylinders. While it functions similarly to a foot-operated hydraulic valve, it uses compressed air instead of oil and is not interchangeable.. Q: Is this a type of hydraulic valve, or is it strictly for pneumatic systems? A: This is a pneumatic valve, designed specifically for controlling air flow to cylinders. While it functions similarly to a foot-operated hydraulic valve, it uses compressed air instead of oil and is not interchangeable.. Q: Is this a type of hydraulic valve, or is it strictly for pneumatic systems? A: This is a pneumatic valve, designed specifically for controlling air flow to cylinders. While it functions similarly to a foot-operated hydraulic valve, it uses compressed air instead of oil and is not interchangeable.. Q: How many cycles is the foot pedal expected to last? A: These valves are built for a long service life, typically rated for over a million cycles under normal use. If you encounter any problems with its function, please reach out to us for support.. Q: How many cycles is the foot pedal expected to last? A: These valves are built for a long service life, typically rated for over a million cycles under normal use. If you encounter any problems with its function, please reach out to us for support.. Q: How many cycles is the foot pedal expected to last? A: These valves are built for a long service life, typically rated for over a million cycles under normal use. If you encounter any problems with its function, please reach out to us for support.. Q: What does 'two position, five links' mean for controlling a cylinder? A: It means the valve has two states: pedal up and pedal down. The five links, or ports, allow it to control a double-acting cylinder, extending it when you press the pedal and retracting it when you release it.. Q: What does 'two position, five links' mean for controlling a cylinder? A: It means the valve has two states: pedal up and pedal down. The five links, or ports, allow it to control a double-acting cylinder, extending it when you press the pedal and retracting it when you release it.. Q: What does 'two position, five links' mean for controlling a cylinder? A: It means the valve has two states: pedal up and pedal down. The five links, or ports, allow it to control a double-acting cylinder, extending it when you press the pedal and retracting it when you release it..
