Engineered for heavy-duty lifting in confined spaces, the SucceBuy 2.5 Ton Hydraulic Toe Jack delivers exceptional performance with a 5-ton top lift capacity. Its low 0.8-inch toe height allows you to slide under machinery and structural beams where conventional jacks won't fit, providing a powerful 13.4-inch maximum lift for demanding industrial and workshop tasks. Features and Benefits

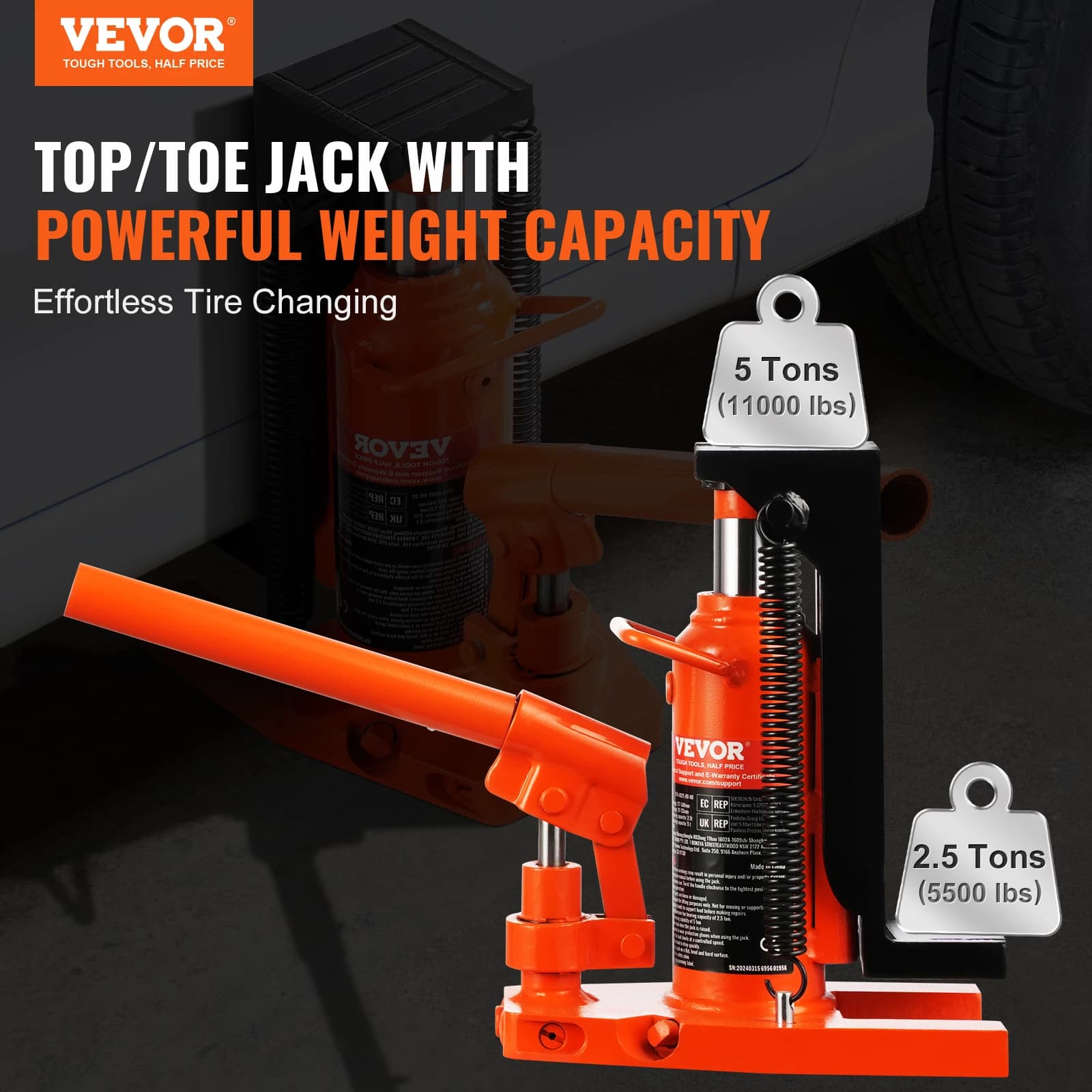

- 2.5 Ton On-Toe / 5 Ton Top Lift Capacity - Provides versatile lifting power for both initial heavy lifts and precise positioning at full height.
- Ultra-Low 0.8-Inch Toe Height - Enables access under low-clearance equipment, machinery skids, and structural beams without extensive preparation.

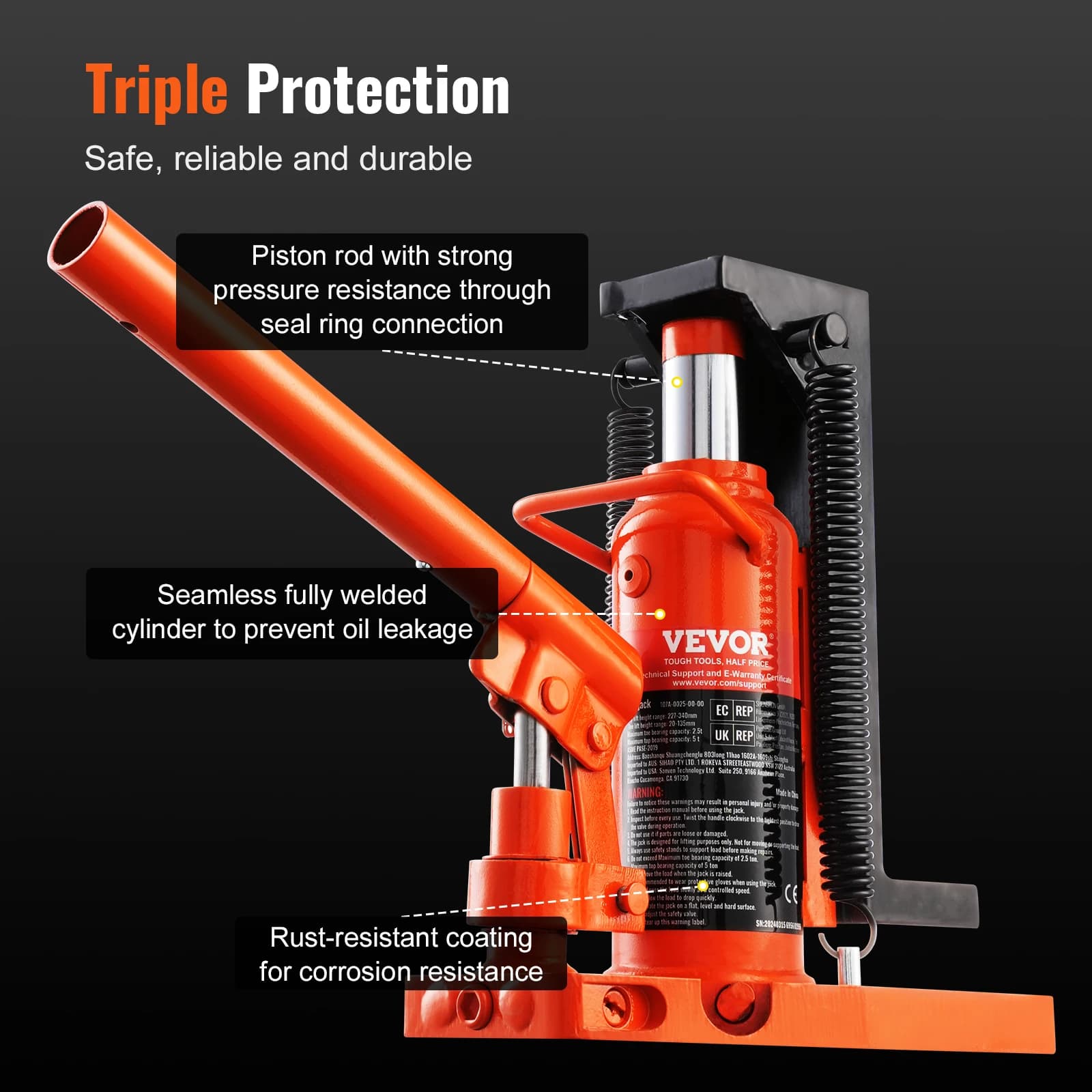

- Durable Forged Steel Construction - Ensures long-term reliability and safety under maximum load during critical lifting operations.
- Precision Hydraulic Pump Mechanism - Delivers smooth, controlled lifting and lowering for accurate placement of heavy loads.

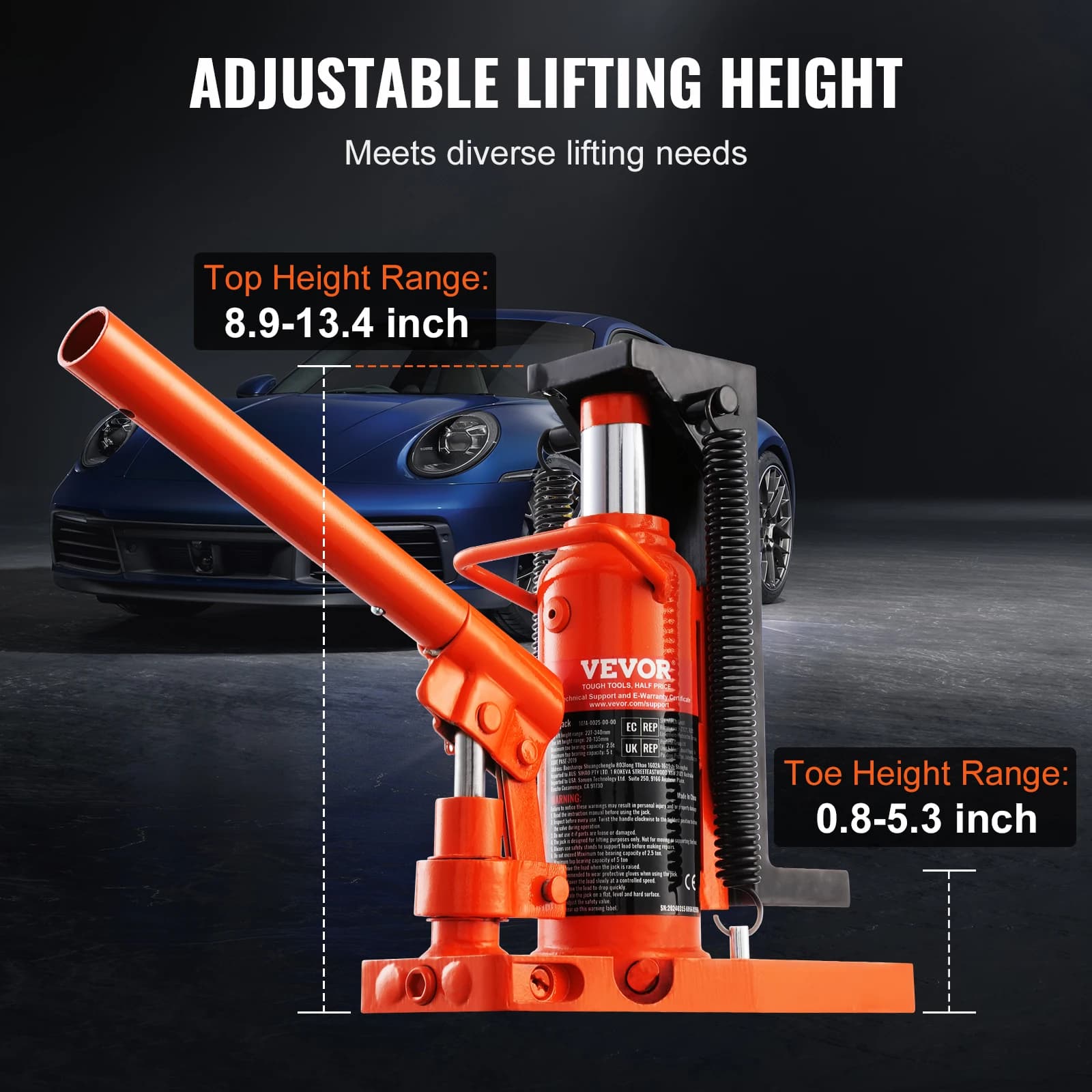

- Wide 8.9 to 13.4-Inch Lift Range - Offers substantial vertical travel to safely raise equipment for maintenance, installation, or transport. Applications
- Industrial Machinery Maintenance - Ideal for positioning, leveling, and installing heavy machine tools, presses, and generators in manufacturing facilities.
- Construction and Steel Erection - Perfect for lifting structural steel beams, prefabricated walls, and concrete forms into place on job sites.
- Agricultural and Fleet Repair - Essential for servicing heavy farm implements, truck axles, and industrial equipment in field or shop environments.
- Workshop and Fabrication Tasks - Provides the stable, high-capacity lift needed for welding projects, assembly work, and equipment relocation. Note
An excellent choice for DIY enthusiasts and professionals who demand reliable, high-capacity lifting performance without the premium brand price tag. Always consult the operator's manual and adhere to all safety protocols for hydraulic jack use.
Lifting Capacity (Toe): 2.5 Ton (2500 kg). Lifting Capacity (Top): 5 Ton (5000 kg). Certification: CE. Model: SucceBuy. Product Name: Hydraulic Toe Jack. Toe Height (Maximum): 5.3 in (135 mm). Toe Height (Minimum): 0.8 in (20 mm). Top Lift Height (Maximum): 13.4 in (340 mm). Top Lift Height (Minimum): 8.9 in (226 mm). Maximum Saddle Height: 13.4 in (340 mm). Maximum Toe Height: 5.3 in (135 mm). Minimum Saddle Height: 8.9 in (226 mm). Minimum Toe Height: 0.8 in (20 mm). Stroke Length: 4.5 in (114 mm). Net Weight (Approximate): 15-20 kg (33-44 lbs). Base Plate Material: Forged Steel. Pump Housing Material: Cast Iron or High-Grade Steel. Ram/Saddle Material: Hardened Chromium Steel. Lift Capacity (On Saddle/Top): 5 Ton (5000 kg / 11000 lbs). Lift Capacity (On Toe): 2.5 Ton (2500 kg / 5500 lbs). Operating Fluid: Hydraulic Oil (ISO VG 15 or equivalent). Safety Certification: CE (Conforms to EU safety standards). Handle Type: Detachable, T-bar. Hydraulic System Type: Single-acting plunger pump. Product Type: Hydraulic Toe Jack. Release Mechanism: Screw-type release valve. Seal Type: Nitrile Rubber (NBR) O-rings. Q: What are the exact lifting height specifications for the SucceBuy 2.5 Ton Hydraulic Toe Jack? A: The SucceBuy Toe Jack has a toe lift range from 0.8 inches to 5.3 inches. The top lift capacity, when the load is shifted to the saddle, reaches up to 13.4 inches, providing versatile lifting for low-clearance applications.. Q: How durable is the construction of this SucceBuy hydraulic toe jack for professional use? A: Built for demanding environments, this toe jack features a robust hydraulic system and heavy-duty steel construction. Its CE certification indicates it meets recognized safety and performance standards for industrial equipment.. Q: Can this 2.5-ton toe jack be used for lifting machinery or heavy equipment on uneven surfaces? A: Yes, the hydraulic toe jack is specifically designed for lifting heavy machinery, industrial equipment, and structural components from a low initial height. Its toe design is ideal for situations where a standard floor jack cannot fit underneath the load.. Q: Does the SucceBuy hydraulic toe jack come with any warranty or guarantee? A: While specific warranty terms should be confirmed with the seller at the time of purchase, products like this are typically backed by a standard manufacturer's warranty covering defects in materials and workmanship.. Q: Is the SucceBuy 2.5 Ton Toe Jack a good value compared to other brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with a solid 2.5-ton toe lift and 5-ton top lift capacity..
