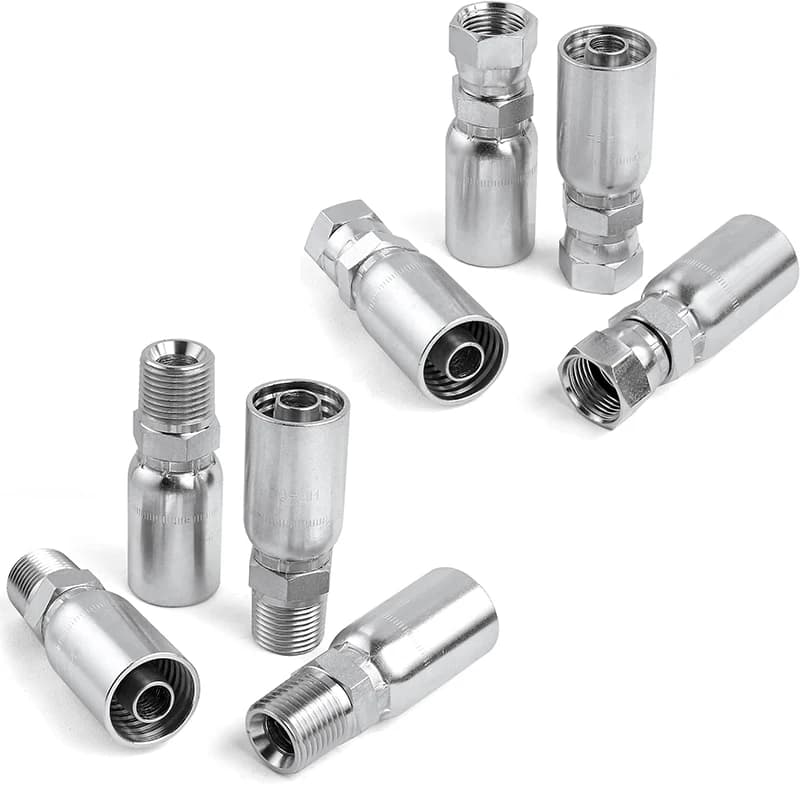

Engineered for reliable high-pressure fluid transfer, these 3/8 hydraulic hose crimp fittings provide a secure, leak-free connection. Available in 3/8 Hose x 3/8 JIC 37° Female Swivel or 3/8 Hose x 3/8 NPT Male configurations, they ensure compatibility and durability in demanding systems. Features and Benefits
- 37-Degree JIC Flare Swivel Design - Allows for easy alignment during installation, reducing stress on the hose assembly and preventing leaks
- Precision-Machined NPT Threads - Ensures a tight, pressure-sealing fit with standard pipe thread ports for reliable performance
- Durable Carbon Steel Construction - Provides excellent strength and corrosion resistance for long service life in harsh environments
- Smooth Bore Interior - Minimizes flow restriction and pressure drop, maintaining optimal hydraulic system efficiency
- Professional-Grade Crimp Compatibility - Designed for use with standard hydraulic crimping equipment to create permanent, high-integrity hose assemblies Applications

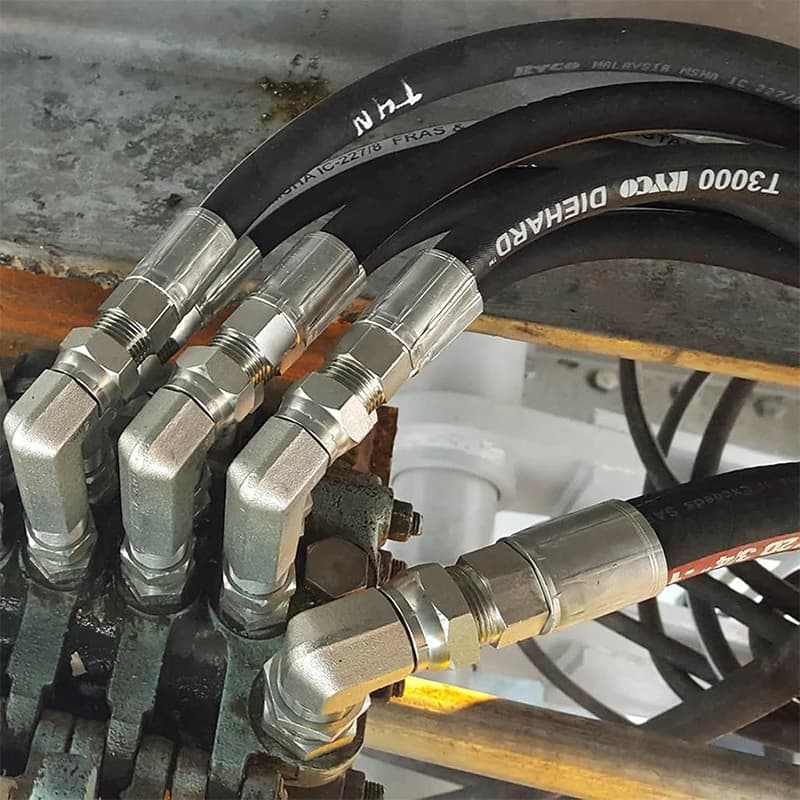

- Hydraulic Tool and Equipment Repair - Ideal for rebuilding hoses on log splitters, compactors, and power units
- Agricultural and Construction Machinery - Suitable for maintaining hydraulic lines on tractors, loaders, and excavators
- Industrial Fluid Power Systems - Used in manufacturing and processing equipment requiring reliable hydraulic connections
- Mobile Hydraulic Applications - Perfect for utility vehicles, dump trailers, and other mobile equipment with hydraulic functions

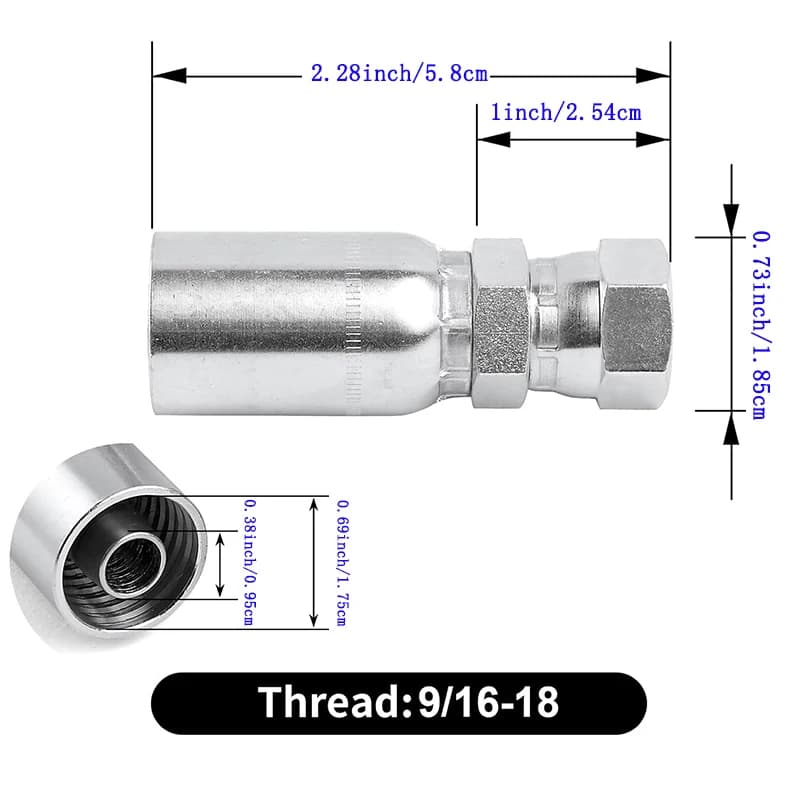

Thread 1 Size: 9.5 mm (3/8"). Thread 2 Size: 9.5 mm (3/8"). Material: Carbon Steel. Burst Pressure: 165.5 MPa (24000 psi). Connection Type: Crimp. Finish: Zinc Plated. Hose Inner Diameter: 9.5 mm (3/8"). Seal Type: Metal-to-metal (JIC), Tapered Thread (NPT). Temperature Range: -40°C to 121°C (-40°F to 250°F). Thread 1 Type: JIC 37° Female Swivel. Thread 2 Type: NPT Male. Working Pressure: 41.4 MPa (6000 psi). Hose Size (Inner Diameter): 3/8 inch. Material (Body): Carbon Steel (typical, may be plated). Material (Swivel Nut - JIC): Carbon Steel with bearing surface. Temperature Range: -40°F to 250°F (-40°C to 121°C) (typical for standard seals). Compatibility: Compatible with SAE 100R2AT and similar 2-wire braid hydraulic hose. Thread Standard: SAE J514 / ISO 8434-2 (JIC), ANSI/ASME B1.20.1 (NPT). Working Pressure (Standard): 3000 PSI (minimum, typical for standard fittings). Application: Hydraulic fluid power systems. Burst Pressure: 12000 PSI (minimum, typical 4:1 safety factor). Product Type: Hydraulic Hose Crimp Fitting. Reusability: Single-use (crimped assembly). Sealing Method (JIC): 37-degree flared metal-to-metal seat. Sealing Method (NPT): Tapered thread with sealant. Surface Finish: Zinc Plated (typical for corrosion resistance). Swivel Action (JIC): 360-degree rotation. Thread Type (Option 1): 3/8 JIC 37° Female Swivel. Thread Type (Option 2): 3/8 NPT Male. Q: What are the exact specifications for these 3/8 hydraulic hose crimp fittings? A: These fittings are designed for 3/8-inch inner diameter hydraulic hose. They are available in two configurations: a 3/8 JIC 37-degree female swivel fitting or a 3/8 NPT male fitting. Please consult the product images for detailed dimensional drawings.. Q: How durable are these 3/8 hydraulic hose fittings for regular use? A: These fittings are manufactured from high-strength carbon steel and feature a precision crimp design for a secure, leak-resistant connection. They are built to withstand the high pressures and demanding conditions typical of hydraulic systems, offering reliable durability.. Q: Can I use the 3/8 NPT male fitting to connect to a JIC port? A: No, the 3/8 NPT male fitting is designed for National Pipe Taper (NPT) threaded ports. To connect to a JIC 37-degree flare port, you must select the 3/8 JIC 37-degree female swivel fitting version of this product for a proper, leak-free seal.. Q: Does this hydraulic hose fitting come with any warranty or guarantee? A: Yes, this product is backed by a standard manufacturer's warranty against defects in materials and workmanship. This ensures you receive a quality component that meets performance expectations for your hydraulic assembly needs.. Q: Is this 3/8 hydraulic hose crimp fitting a good value compared to other options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in hydraulic applications, providing a cost-effective solution for hose assemblies..
