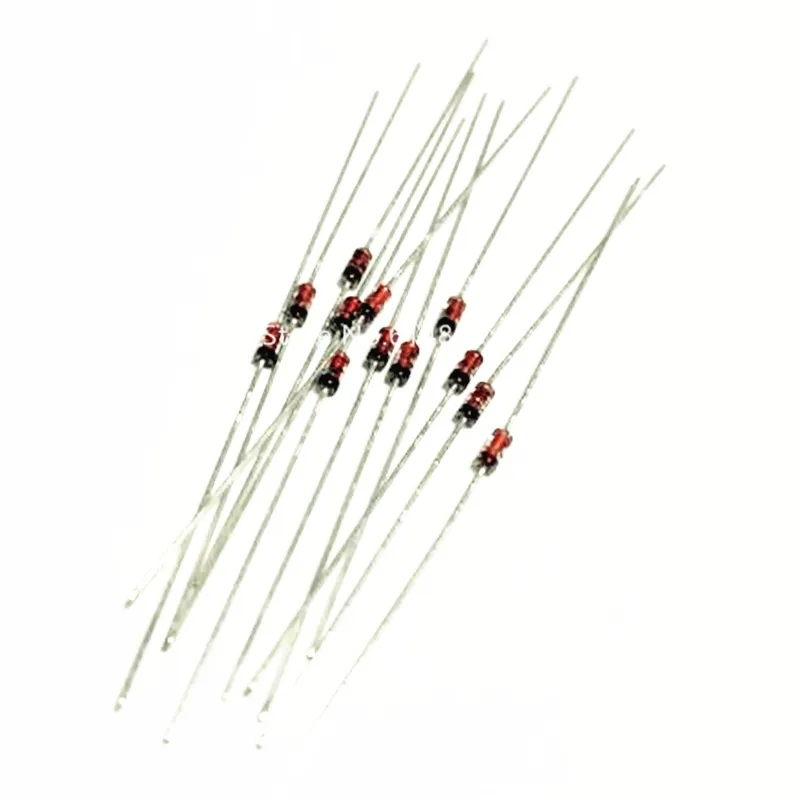

High-Speed Switching Diodes Kit | 50-Piece Set | 1N4148, 1N60P, BAT85, DB3

This 50-piece assortment of 1N4148 high-speed switching diodes delivers fast 4ns switching times and low forward voltage drop for efficient circuit performance. The set includes versatile diodes like the 1N60P Schottky and DB3/DB4 trigger diodes, providing reliable signal rectification, clipping, and voltage regulation in a wide range of electronic projects. Features and Benefits - High-Speed 1N4148 Diodes - Feature a 4ns reverse recovery time for precise signal switching and fast digital logic applications. - Low Forward Voltage - The 1N4148's typical 0.62V Vf minimizes power loss and heat generation for more efficient circuit designs. - Assorted Diode Types - Includes Schottky (1N60P, BAT85) and trigger (DB3, DB4) diodes for specialized rectification and voltage clamping tasks. - DO-35 Package - Standard glass package is easy to handle, solder, and ideal for prototyping boards and permanent installations. - Bulk 50-Pack Quantity - Provides ample components for multiple projects, repairs, or experimentation without frequent reordering. Applications - Prototyping and Breadboarding - Essential for building and testing rectifier circuits, voltage clippers, and protection circuits on solderless boards. - Signal Demodulation and Clipping - Use the 1N4148's fast switching to shape waveforms, demodulate signals, or create logic gates in audio and RF circuits. - Power Supply and Protection - Employ Schottky diodes for low-dropout rectification or use diodes for flyback protection on relays and motors. - Trigger and Snubber Circuits - Utilize the DB3/DB4 diacs for triggering TRIACs in light dimmers or constructing snubber networks.
