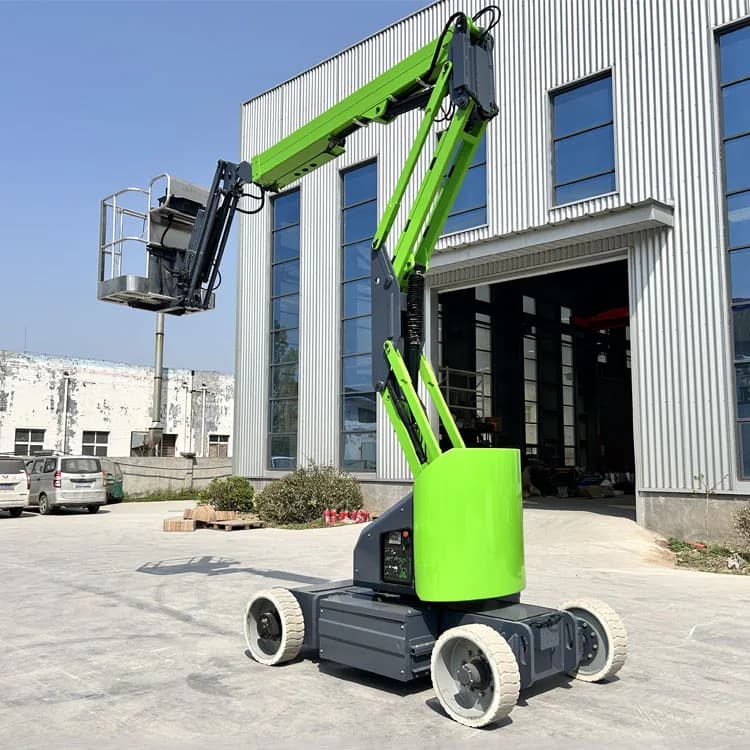

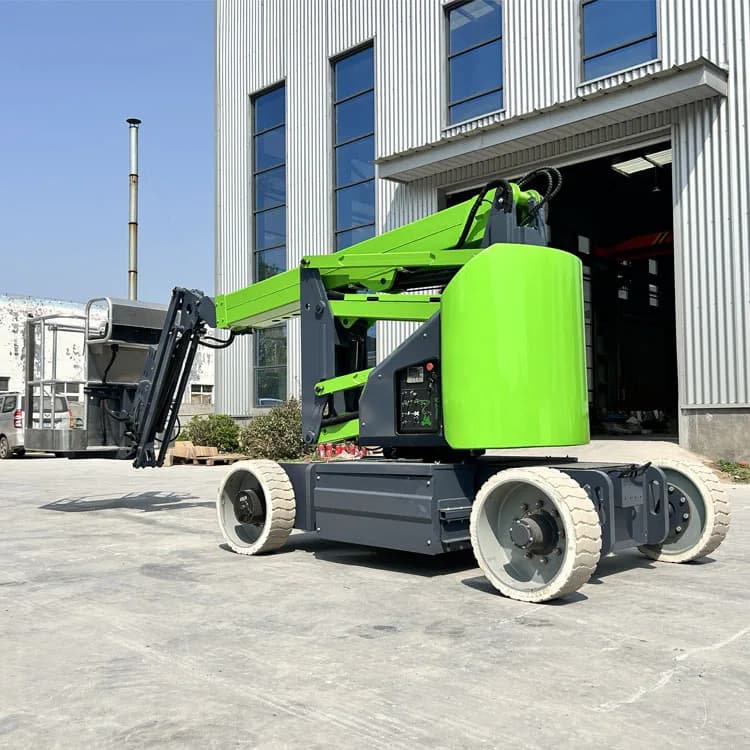

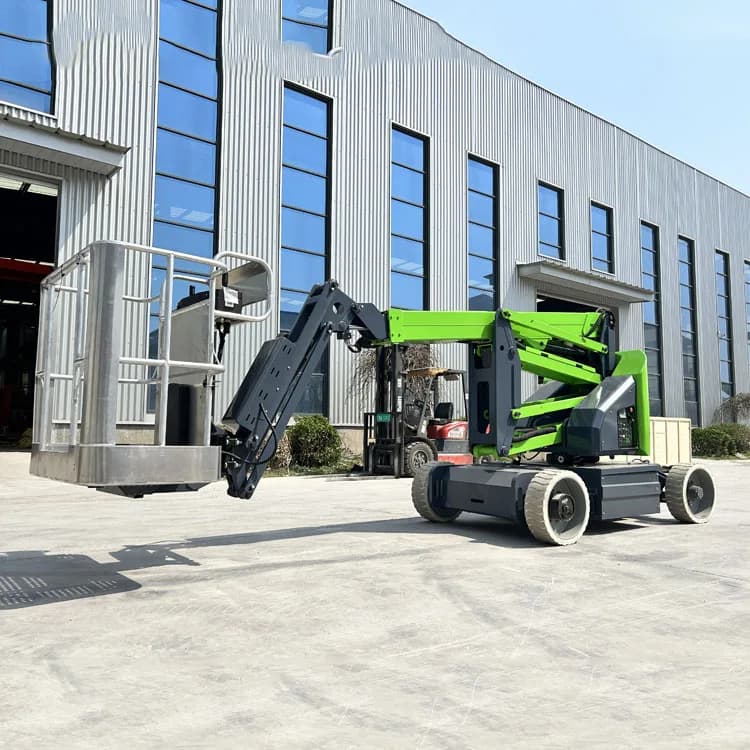

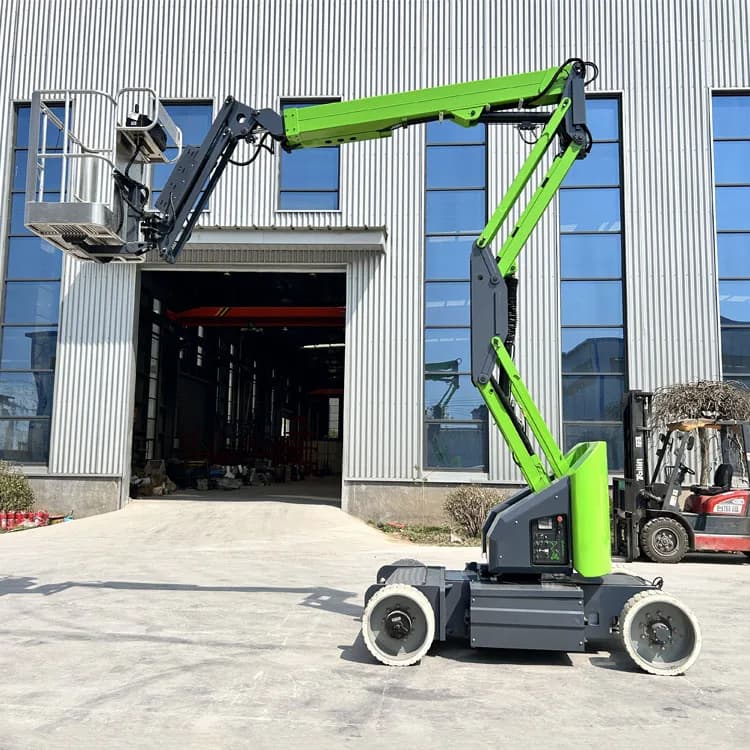

Conquer elevated tasks with precision and power using this 20M Heavy Duty Diesel Articulating Boom Lift. Its 20-meter working height and 360-degree continuous rotation provide exceptional reach and maneuverability on demanding industrial sites. The robust diesel engine delivers reliable, all-day power for continuous operation, while the articulating jib offers precise positioning in complex environments. Features and Benefits
- 20-meter working height with 360-degree rotation - Achieve maximum vertical and horizontal reach for comprehensive site coverage and access to difficult areas.
- Heavy-duty diesel engine - Ensures dependable, high-torque performance for extended shifts and operation in remote locations without electrical dependency.
- Industrial-grade steel construction with articulating boom - Provides superior durability and stability, allowing the platform to articulate over and around obstacles with pinpoint accuracy.
- Integrated platform controls and safety harness anchor - Enables safe, operator-controlled positioning from the work platform with a secure attachment point for fall protection.
- Large, non-slip work platform with high load capacity - Offers a stable and spacious area for personnel, tools, and materials, increasing on-site productivity and safety. Applications
- Industrial maintenance and installation - Ideal for servicing high ceilings, ductwork, lighting, and machinery in factories, warehouses, and processing plants.
- Construction and steel erection - Provides safe, elevated access for welding, bolting, and inspection tasks on structural frameworks and building exteriors.
- Signage and facade work - Enables precise installation, maintenance, and cleaning of large signs, windows, and building cladding at significant heights.
- Municipal and utility projects - Perfect for tree trimming near power lines, street light maintenance, and other infrastructure work requiring extended, articulated reach.
Platform Dimensions: 2.4 m x 0.8 m. Weight: 6500 kg. Platform Capacity: 227 kg. Fuel Tank Capacity: 45 L. Engine Power: 24.8 kW. Power Source: 12 V DC. Drive Speed: 3.2 km/h. Engine Type: Diesel. Gradeability: 25%. Ground Controls: Proportional joystick. Horizontal Reach: 12.5 m. Inspection: Video outgoing-inspection provided. Maximum Working Height: 20 m. Outrigger Span: 4.2 m. Platform Controls: Proportional joystick. Platform Height: 18.5 m. Rotation: 360° continuous. Safety Harness: Included. Stowed Height: 2.1 m. Stowed Length: 7.6 m. Stowed Width: 2.5 m. Maximum Platform Height: 20 meters (65.6 feet). Platform Dimensions: Minimum 0.91m x 2.44m (3ft x 8ft). Stowed Dimensions (LxWxH): Approximately 7.9m x 2.44m x 2.3m (26ft x 8ft x 7.5ft). Working Height: Approximately 20 meters (65.6 feet). Power Source: Diesel Engine. Lifting Capacity: 227 kg (500 lbs) minimum. Compliance: Meets ANSI A92.20, CSA B354.7, and applicable CE standards. Boom Articulation: Multi-section articulating boom. Drive System: Four-wheel drive (4x4) with oscillating axles. Emergency Descent: Battery-powered or manual pump backup system. Engine Type: Industrial-grade, liquid-cooled diesel. Fall Protection: Integrated anchor point for full-body safety harness. Horizontal Reach: Approximately 11.5 meters (37.7 feet). Insulation: Non-insulated (non dielectric) platform. Maximum Gradeability: Minimum 30%. Noise Level: Meets standard industrial equipment noise regulations. Outriggers: Hydraulic outriggers with automatic leveling system. Platform Controls: Proportional joystick controls with ground override. Platform Entry: Spring-assisted guardrail with toe guard. Platform Rotation: Continuous 360-degree rotation. Product Type: Diesel Articulating Boom Lift (Aerial Work Platform). Safety System: Load sensing system with automatic shutdown. Tires: Pneumatic, non-marking tires. Q: What are the key specifications and dimensions of this 20M diesel boom lift? A: This is a heavy-duty articulating boom lift with a maximum working height of 20 meters. It is powered by a diesel engine and includes an industrial-grade platform and a safety harness as standard equipment for operator security.. Q: How durable is this industrial-grade aerial work platform for daily use? A: Built as heavy-duty lifting equipment, it is designed for rigorous industrial applications. The robust construction and diesel powertrain ensure reliable performance and longevity in demanding work environments.. Q: Can this articulating boom lift be used for outdoor construction and maintenance? A: Yes, the diesel-powered engine makes this aerial work platform ideal for outdoor use where electrical power is unavailable. Its articulating boom provides excellent reach and maneuverability around obstacles on construction sites.. Q: Does this lifting equipment come with a warranty or guarantee? A: The product listing indicates that video outgoing-inspection is provided, which is a quality assurance measure. For specific warranty terms and duration, please contact the seller directly for the latest policy details.. Q: Is this 20M boom lift a good value compared to other options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with key features like a diesel engine and included safety harness..
