What voltages is this remote compatible with? I need one for a 380V system.?

Yes, this remote system is available for a 380V AC setup. We also stock versions for 12V DC, 24V DC, 36V AC, 110V AC, and 220V AC, so you can select the one that matches your hoist's power supply.

What's the maximum distance I can operate the hoist from with this remote?

You can operate this remote from at least 50 metres away, up to a maximum of 100 metres in clear conditions. This gives you plenty of room to stand clear of the load for safety.

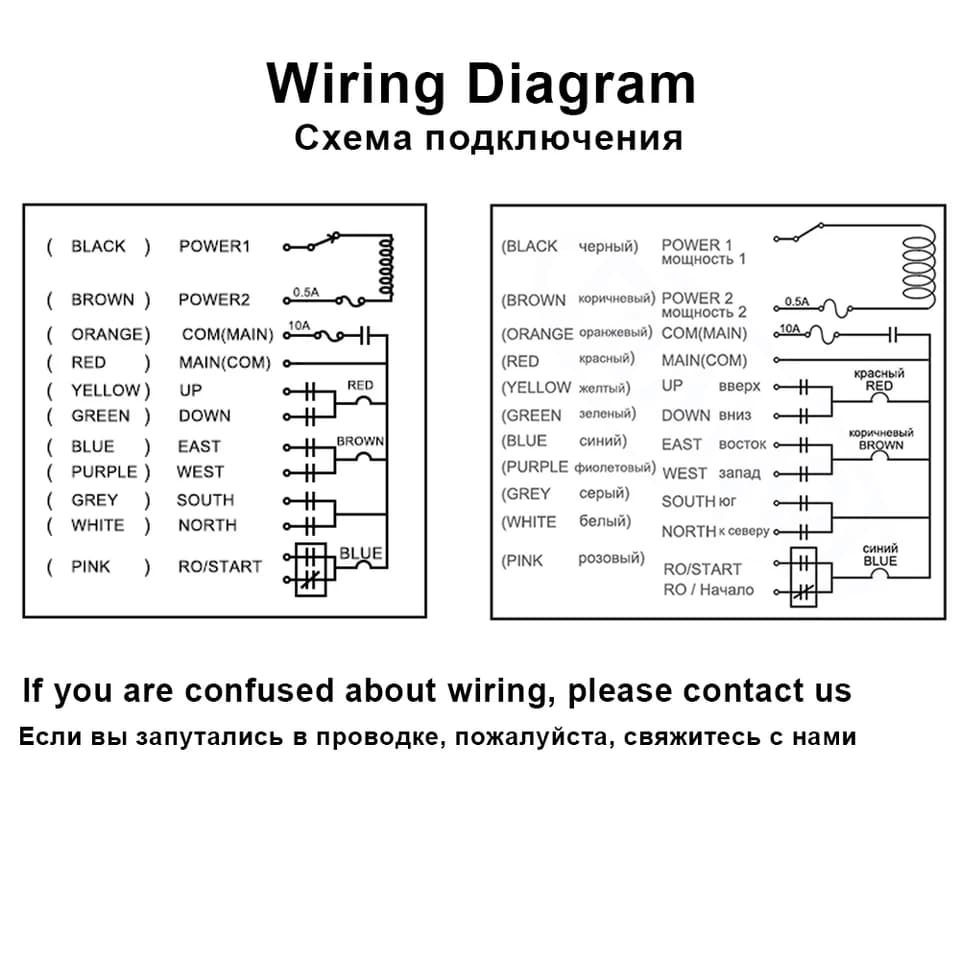

What comes in the box and how does it wire into my existing hoist?

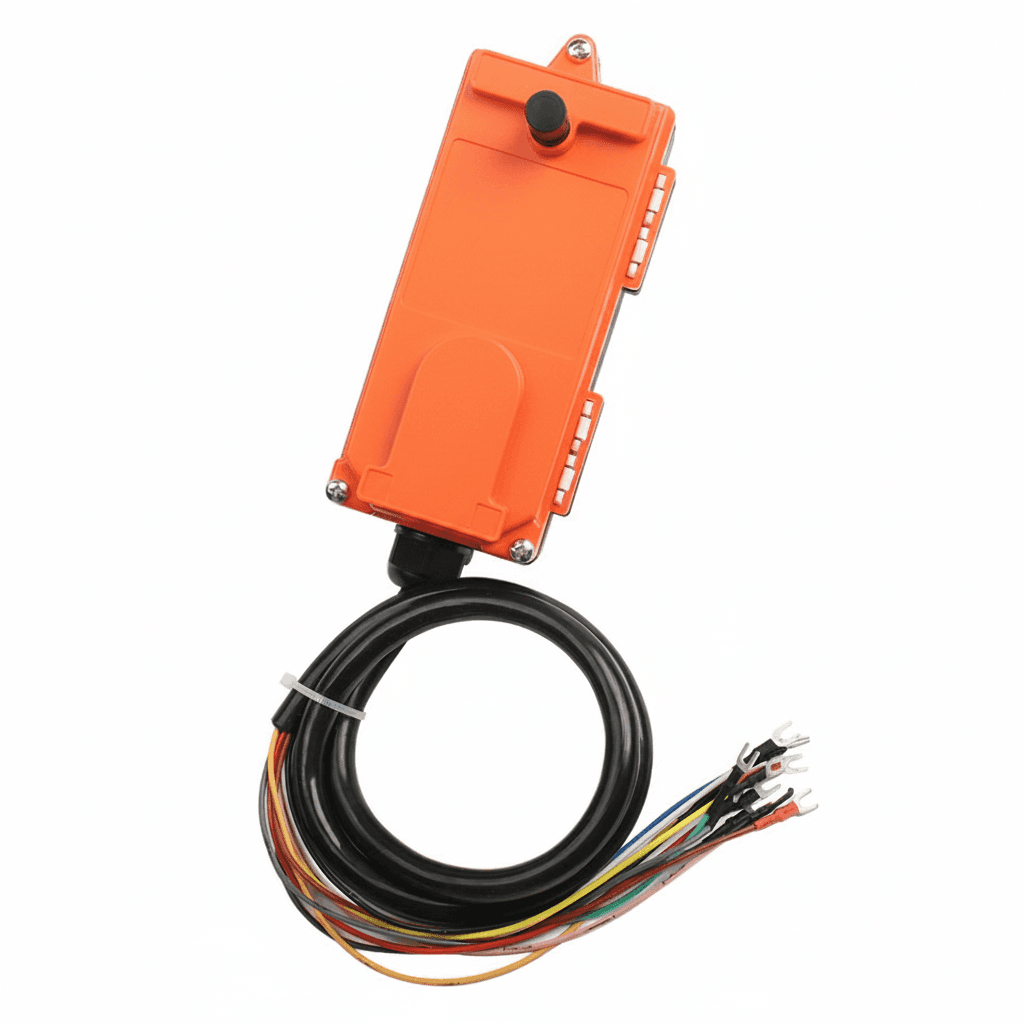

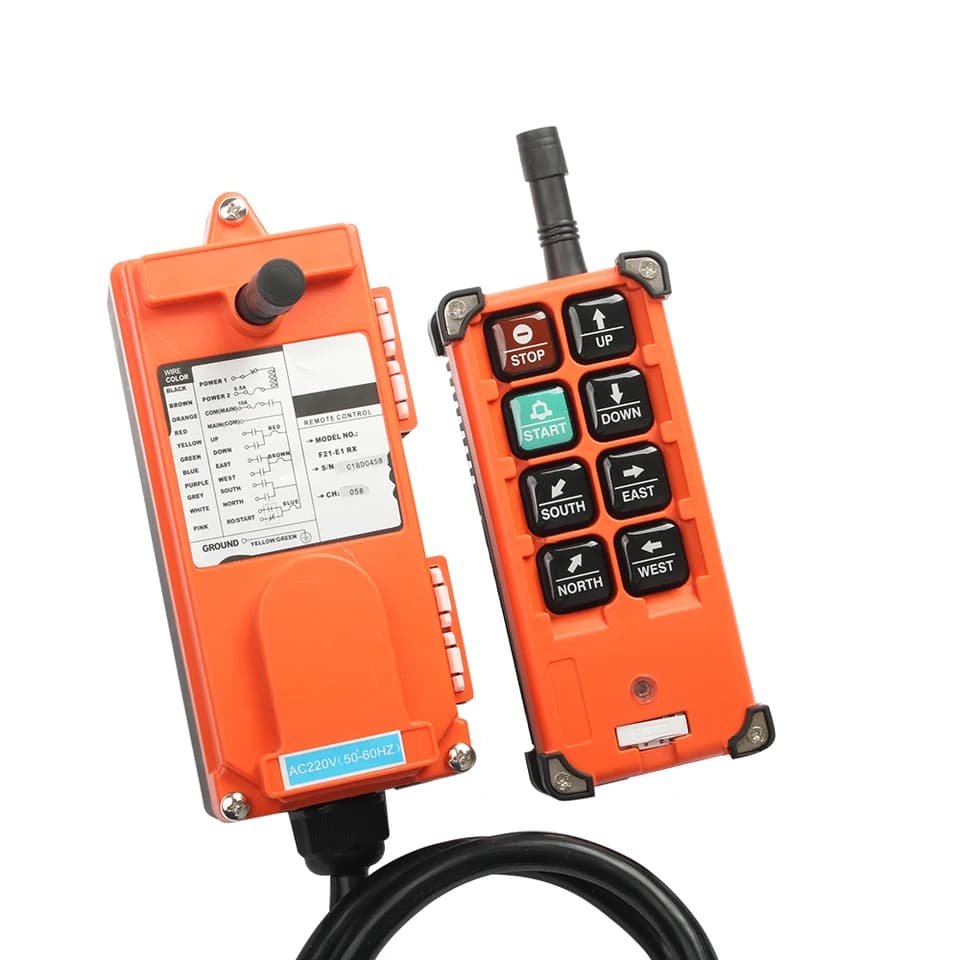

The kit includes one handheld transmitter and one receiver unit. The receiver wires into your hoist's control box, but we always recommend having the installation handled by a qualified electrician.

for Engine Crane | Industrial Hoist Control | F21-E1B 12V-380V

Name: for Engine Crane | Industrial Hoist Control | F21-E1B 12V-380V
Brand: Compel
SKU: SHOP-00002
Price: 32.95 USD
Availability: InStock
Rating: 5 (36 reviews)

Stock #:CMP-04591

SKU:SHOP-00002

for Engine Crane | Industrial Hoist Control | F21-E1B 12V-380V - Image 1

1 / 6

$32.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

ColorSelect an option

VoltageSelect an option

Ships FromSelect an option

StandardSelect an option

Quantity

for Engine Crane | Industrial Hoist Control | F21-E1B 12V-380V

$32.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What voltages is this remote compatible with? I need one for a 380V system.?: Yes, this remote system is available for a 380V AC setup. We also stock versions for 12V DC, 24V DC, 36V AC, 110V AC, and 220V AC, so you can select the one that matches your hoist's power supply.
What's the maximum distance I can operate the hoist from with this remote?: You can operate this remote from at least 50 metres away, up to a maximum of 100 metres in clear conditions. This gives you plenty of room to stand clear of the load for safety.
What comes in the box and how does it wire into my existing hoist?: The kit includes one handheld transmitter and one receiver unit. The receiver wires into your hoist's control box, but we always recommend having the installation handled by a qualified electrician.

Shop Cranes spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

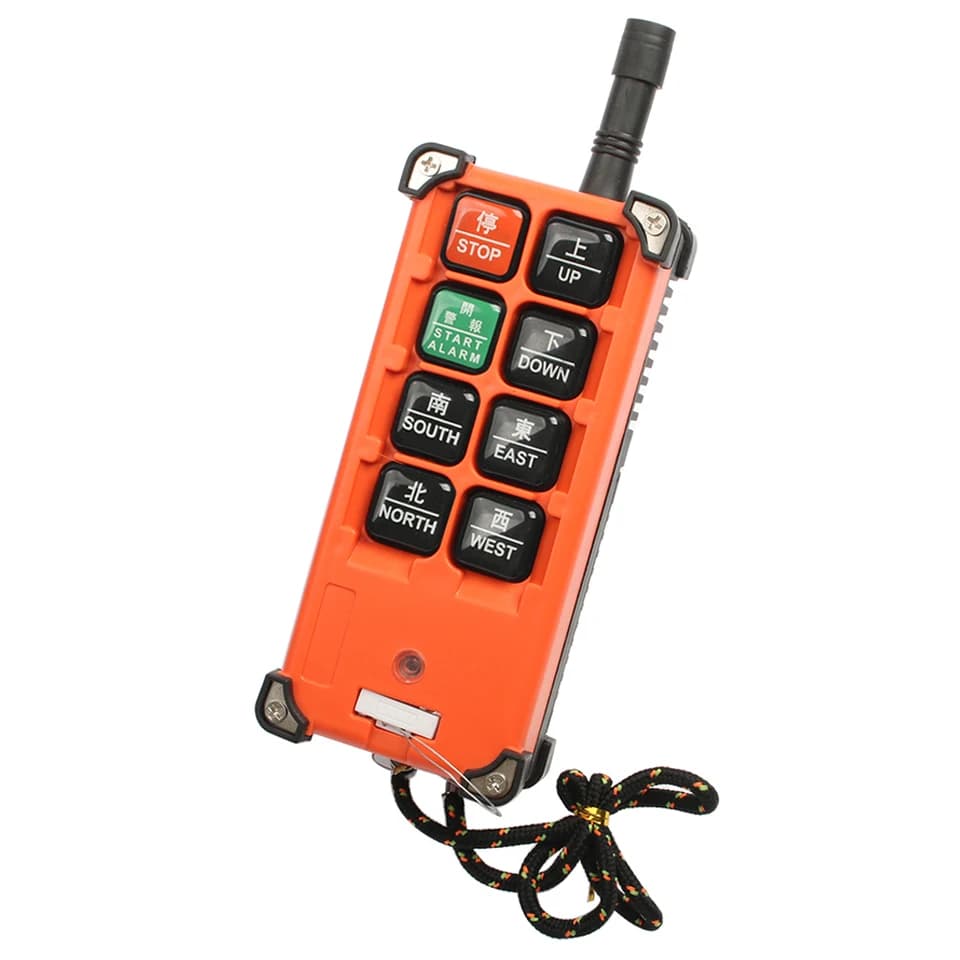

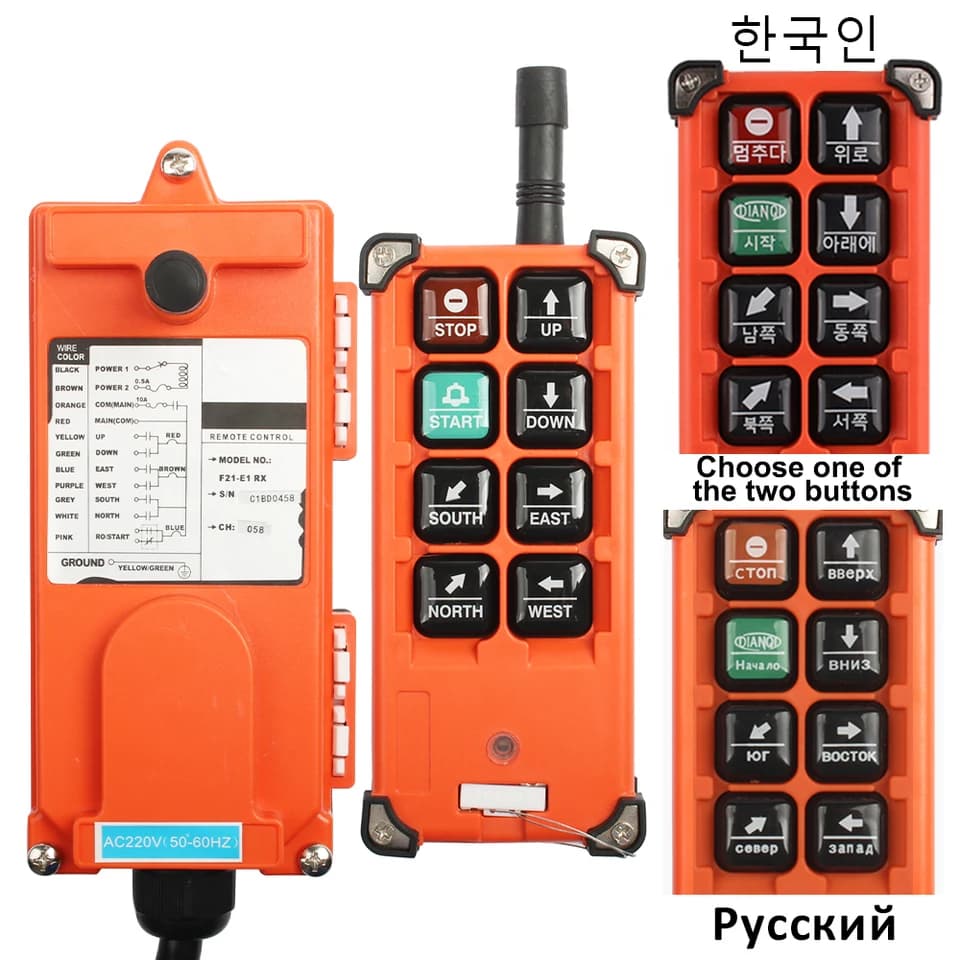

This industrial remote control switch lets you operate equipment like an engine crane, hoist, or winch from up to 100 meters away. The kit comes with one transmitter and one receiver. It gives you a safe way to run machinery without being tied down by cables. Features and Benefits - Works with many voltages (12V-380V) - Connects directly to different industrial power systems, including 12V, 24V, 110V, 220V, and 380V. - 100-meter operating range - Lets you control equipment from a safe distance. You get a better view of the work area and stay clear of moving parts. - Eight single-speed buttons - Provides simple control for functions like up/down and forward/reverse. This makes operating your electric hoist easy. - IP65-rated housing - The case protects the inside parts from dust and water spray. It works well in tough industrial and outdoor settings. Applications - Warehouse Operations - Control overhead cranes to move inventory or manage loading docks. Operators can move around more freely. - Construction Sites - Run concrete pumps, tower cranes, or lift platforms from the best viewing spot. - Automotive Shops - Use with a hoist remote control system to lift vehicles or pull engines precisely.

Voltage: 110V, 220V, 380V, 12V, 24V. Application: Hoist, Crane, Lift. Model: F21-E1B. Product Type: Industrial Remote Control. Receiver Quantity: 1. Transmitter Quantity: 1. Material (Housing): Industrial Grade Reinforced Nylon / Alloy. EU LVD Voltage Compliance: High voltage: Above 50Vac or 75Vdc. Operating Voltage (Receiver): 220V, 380V, 110V, 12V, 24V AC/DC (selectable). Transmitter Power Supply: DC 3V (2 x AA batteries, not included). Frequency Range: 433 MHz. Output Contact Capacity: 8A (AC 250V). Safety Features: Emergency Stop Button, Low Battery Indicator. Operating Temperature: -35°C to +80°C. Application: Hoist, Crane, Lift, Conveyor, Engine Crane. Chemical Concern: None. Control Distance: Up to 100 meters (328 feet). Model: F21-E1B. Number of Buttons: 6 (5 single-speed buttons + 1 START/STOP button). Product Type: Industrial Remote Control System. Protection Class: IP65 (Dustproof and Waterproof). Q: What's the effective control distance for this remote? A: You can operate your equipment from up to 100 meters away in an open area. It uses a specific frequency band to ensure a stable connection and avoid interference with other devices.. Q: What's the effective control distance for this remote? A: You can operate your equipment from up to 100 meters away in an open area. It uses a specific frequency band to ensure a stable connection and avoid interference with other devices.. Q: What's the effective control distance for this remote? A: You can operate your equipment from up to 100 meters away in an open area. It uses a specific frequency band to ensure a stable connection and avoid interference with other devices.. Q: How well does this unit hold up in a dusty workshop environment? A: The housing is made from fiberglass-reinforced nylon, so it's built to handle job site conditions. It has an IP65 rating, meaning it's protected from dust ingress and low-pressure water spray from any direction.. Q: How well does this unit hold up in a dusty workshop environment? A: The housing is made from fiberglass-reinforced nylon, so it's built to handle job site conditions. It has an IP65 rating, meaning it's protected from dust ingress and low-pressure water spray from any direction.. Q: How well does this unit hold up in a dusty workshop environment? A: The housing is made from fiberglass-reinforced nylon, so it's built to handle job site conditions. It has an IP65 rating, meaning it's protected from dust ingress and low-pressure water spray from any direction.. Q: Can I wire this remote to my shop's 110V engine crane? A: Yes, it's compatible with a very wide range of voltages. You can connect the receiver to AC systems like 110V, 220V, and 380V, or DC systems like 12V and 24V, making it suitable for almost any engine crane or hoist.. Q: Can I wire this remote to my shop's 110V engine crane? A: Yes, it's compatible with a very wide range of voltages. You can connect the receiver to AC systems like 110V, 220V, and 380V, or DC systems like 12V and 24V, making it suitable for almost any engine crane or hoist.. Q: Can I wire this remote to my shop's 110V engine crane? A: Yes, it's compatible with a very wide range of voltages. You can connect the receiver to AC systems like 110V, 220V, and 380V, or DC systems like 12V and 24V, making it suitable for almost any engine crane or hoist.. Q: What happens if the transmitter is damaged or lost? A: Each remote set has a unique security code to prevent accidental operation from other units. You can purchase a new transmitter and easily reprogram it to sync with your existing receiver.. Q: What happens if the transmitter is damaged or lost? A: Each remote set has a unique security code to prevent accidental operation from other units. You can purchase a new transmitter and easily reprogram it to sync with your existing receiver.. Q: What happens if the transmitter is damaged or lost? A: Each remote set has a unique security code to prevent accidental operation from other units. You can purchase a new transmitter and easily reprogram it to sync with your existing receiver.. Q: What kind of safety features are built into this remote control? A: It includes a large, mushroom-head emergency stop button for immediate shutdown. There is also a removable key switch that prevents anyone from using the crane without authorization.. Q: What kind of safety features are built into this remote control? A: It includes a large, mushroom-head emergency stop button for immediate shutdown. There is also a removable key switch that prevents anyone from using the crane without authorization.. Q: What kind of safety features are built into this remote control? A: It includes a large, mushroom-head emergency stop button for immediate shutdown. There is also a removable key switch that prevents anyone from using the crane without authorization..
