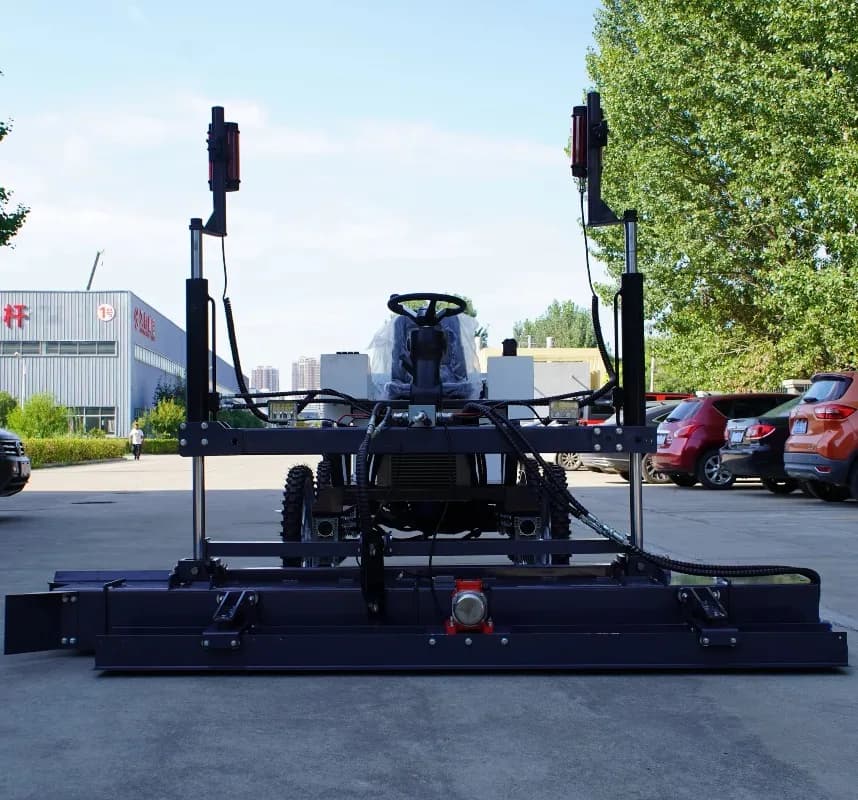

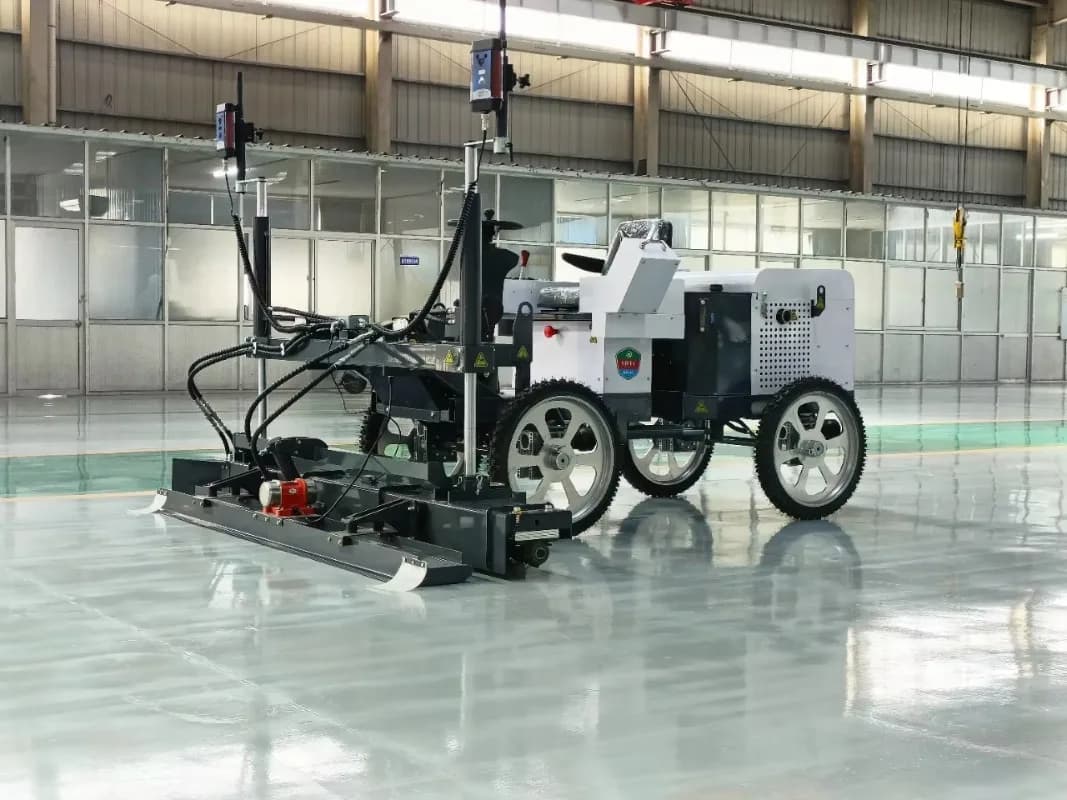

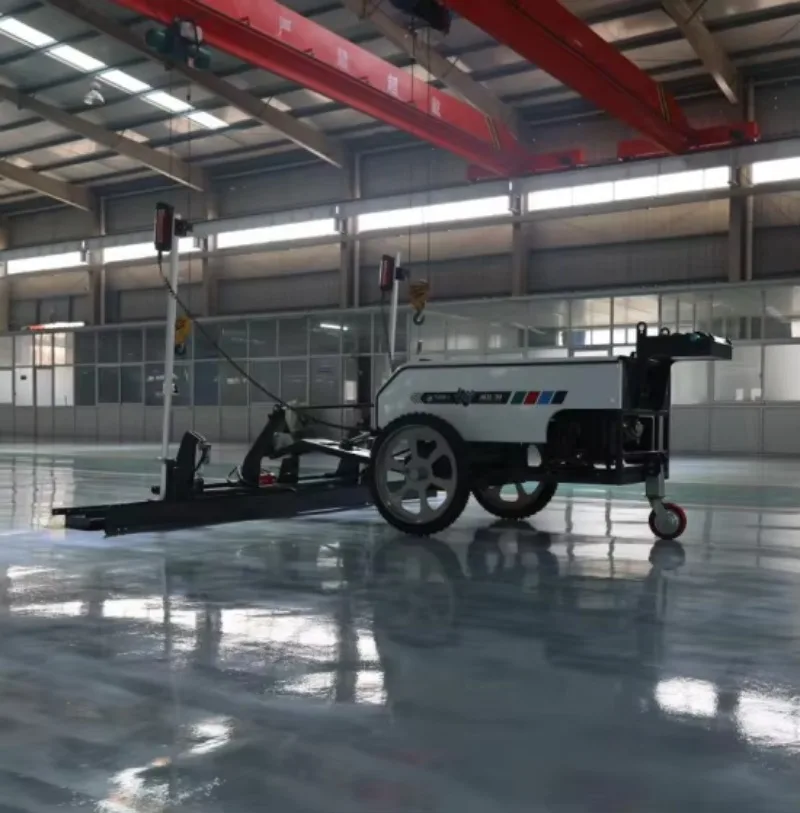

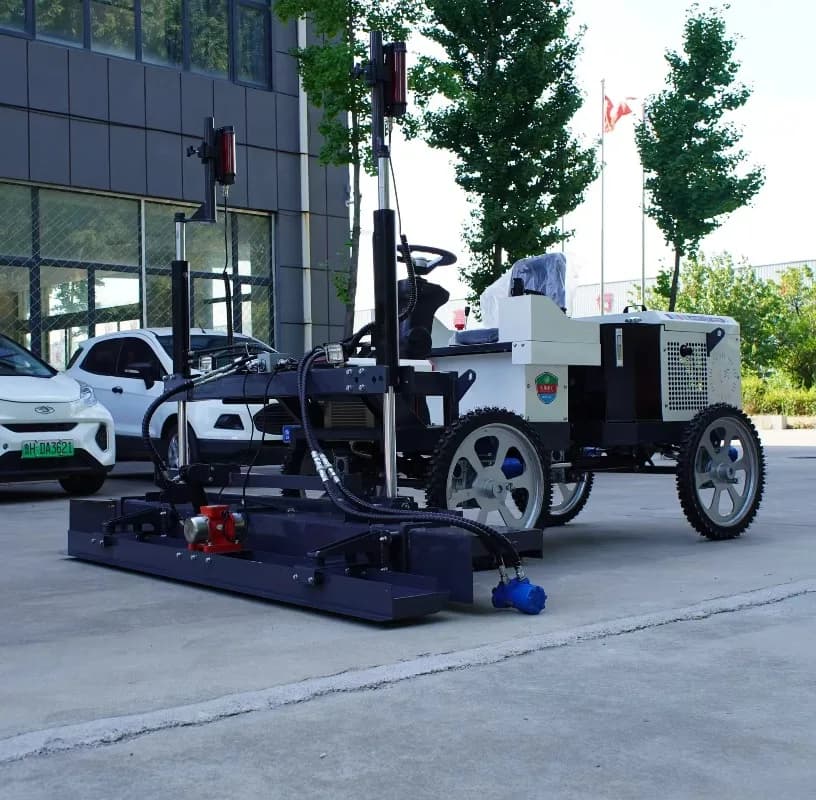

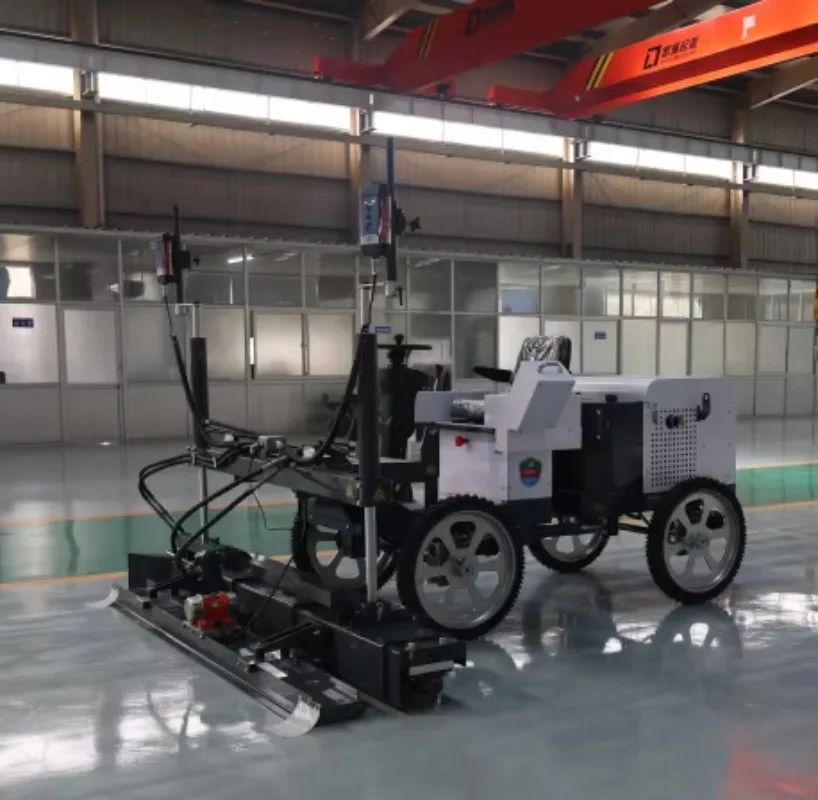

Achieve superior flatness and finish with the High-Precision Professional Use Concrete Laser Screed Machine. This engine-powered screed delivers consistent, high-grade results for demanding road building and large-scale slab projects, significantly reducing labor time and material waste through its automated, laser-guided operation. Features and Benefits
- High-Power Engine Core Component - Provides reliable, cordless operation on remote job sites with consistent torque for demanding screeding tasks.
- Integrated Laser Receiver and Control System - Automatically adjusts the screed head to the laser plane, ensuring a perfectly level surface with minimal operator intervention.
- Heavy-Duty, Vibration-Dampened Frame - Maintains structural integrity under continuous use on rough terrain, ensuring long-term durability and precise screed alignment.
- Wide Format Screeding Head - Covers large areas quickly, dramatically increasing pour speed and productivity compared to manual methods.
- Precision Grade Adjustment Controls - Allow for on-the-fly fine-tuning of slope and elevation, enabling complex finishes and exact compliance with engineering specs. Applications
- Roadway and Highway Construction - Ideal for creating the precise, level base required for asphalt paving or concrete roadways.
- Large Industrial Floor Slabs - Efficiently screed warehouse, factory, and commercial floors where flatness tolerances are critical.
- Foundation and Subfloor Preparation - Ensures a perfectly level substrate for subsequent construction phases, preventing future structural issues.
- Commercial Parking Lots and Aprons - Manages large, open-area pours with speed and accuracy, meeting commercial grade requirements.
Operating Weight: 1500-2500 kg. Frame Material: High-Strength Steel. Fuel Tank Capacity: 20-30 L. Power Source: Internal Combustion Engine. Engine Power: 15-25 kW. Application: Professional Road Building. Control System: Remote Control. Engine Type: Diesel. Flatness Accuracy: ±3 mm / 3 m. Grade Accuracy: ±3 mm. Hydraulic System Pressure: 16-20 MPa. Laser System: Dual-Axis Grade Control. Maximum Concrete Depth: 300 mm. Operating Speed: 0-15 m/min. Product Type: Concrete Laser Screed Machine. Screed Length: Adjustable. Screed Width: Adjustable. Track Type: Rubber or Steel. Transport Length: 4.5 m. Transport Width: 2.5 m. Vibration Frequency: 0-70 Hz. Screed Width: Adjustable, typical range 4 to 12 meters. Operating Weight: Approximately 800-1200 kg, dependent on configuration. Frame Construction: Heavy-duty welded steel with vibration dampening. Screed Board Material: High-strength aluminum alloy with hardened steel edges. Engine Power Output: 50-80 HP (37-60 kW) range. Power Source: Diesel Engine, liquid-cooled. Fuel Tank Capacity: 40-60 liters. Operating Speed: 0-5 meters per minute, variable. Compatibility: Works with standard construction laser transmitters. Application: Professional Road Building and Large-Scale Slab Construction. Control System: Laser-guided automatic leveling with dual-axis sensors. Core Component: Internal Combustion Engine. Gradeability: Minimum 15% for on-site maneuverability. Hydraulic System: Closed-loop, proportional control for precise movement. Laser Receiver: Dual-sensor for redundancy and increased accuracy. Leveling Precision: ±3 mm over 10 meters. Maximum Concrete Depth: Up to 300 mm (12 inches). Product Type: Concrete Laser Screed Machine. Screed Angle Adjustment: Hydraulic, 0 to 5 degrees for crown or slope. Vibration System: High-frequency, dual-shaft eccentric vibrators. Q: What are the key specifications and dimensions of this concrete laser screed machine? A: This high-precision laser screed machine is designed for professional road building and features a robust engine core component for power. While exact dimensions are not provided, it is engineered for heavy-duty site work, offering a wide screeding width and depth to handle large-scale concrete pours efficiently.. Q: How durable is this professional-use concrete laser screed for demanding job sites? A: Built for professional use, this machine features a heavy-duty frame and a reliable engine core component designed to withstand the rigors of continuous operation on road building projects. Its construction prioritizes longevity and minimal downtime in challenging industrial environments.. Q: Can this laser screed machine be used for applications other than road building? A: Yes, while optimized for road building, this high-precision concrete laser screed is versatile for any large-scale, flat concrete work. It is ideal for industrial floors, warehouse slabs, and other commercial projects requiring a perfectly level finish.. Q: Does this professional concrete screed come with a warranty or guarantee? A: Yes, this machine includes a standard manufacturer's warranty that covers defects in materials and workmanship. We recommend contacting the seller directly for the specific warranty period and detailed terms of coverage for the engine and laser components.. Q: Is this concrete laser screed machine a good value for its performance? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, providing high-precision leveling capabilities essential for professional road building at a competitive cost..
