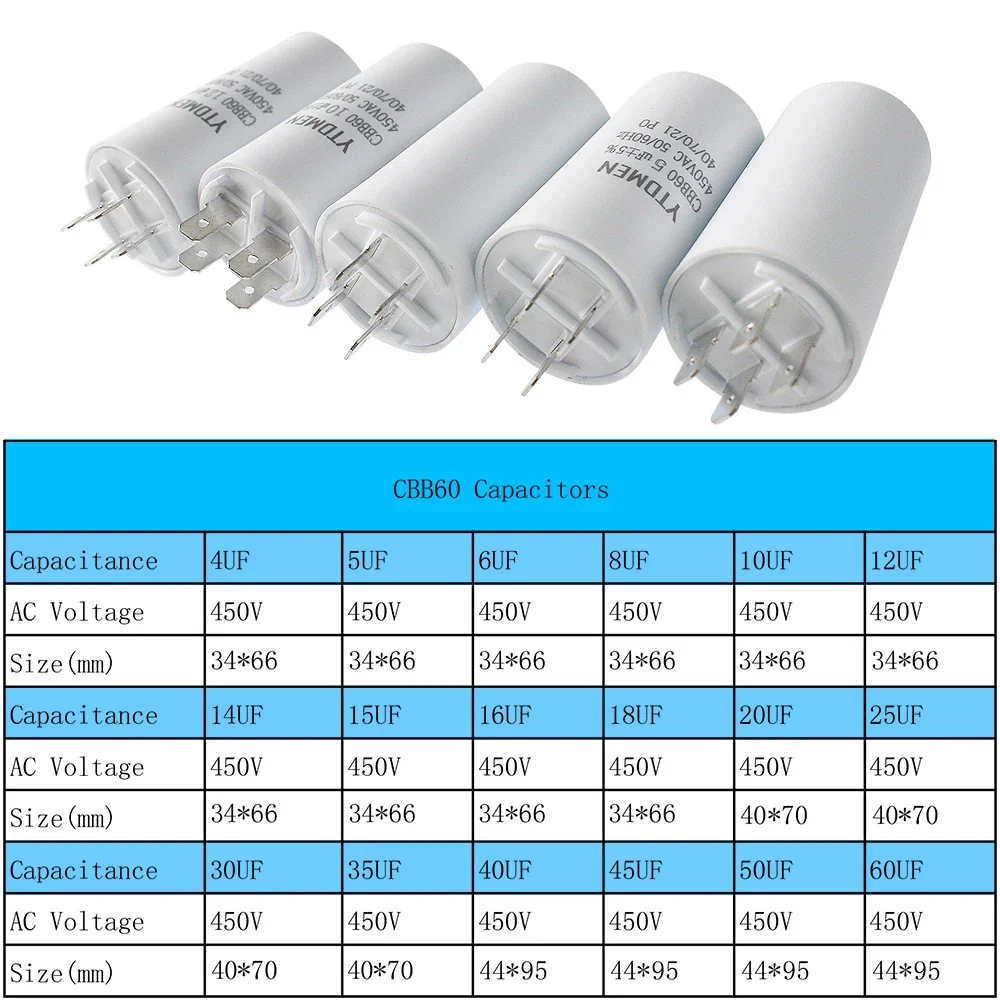

What capacitance values does this CBB60 cover?

It spans 4uF to 60uF, rated at 450V AC with a tight 5% tolerance. Pick the microfarad value your motor calls for, since the right value sets the phase shift and torque. It can briefly take 500V AC for up to 60 seconds.

Will this work for my water pump or air compressor?

Yes. The CBB60 is built for single-phase induction motors like water pumps, air compressors, and fans. The 450V AC rating handles common 110V and 220V setups. Just match the original capacitor's microfarad value.

How do the terminals connect?

It uses screw double-insert terminals, which hold tighter and resist vibration better than push-on spade connectors. The tinned copper leads make wiring easier and more reliable. The aluminum housing also helps shed heat during operation.

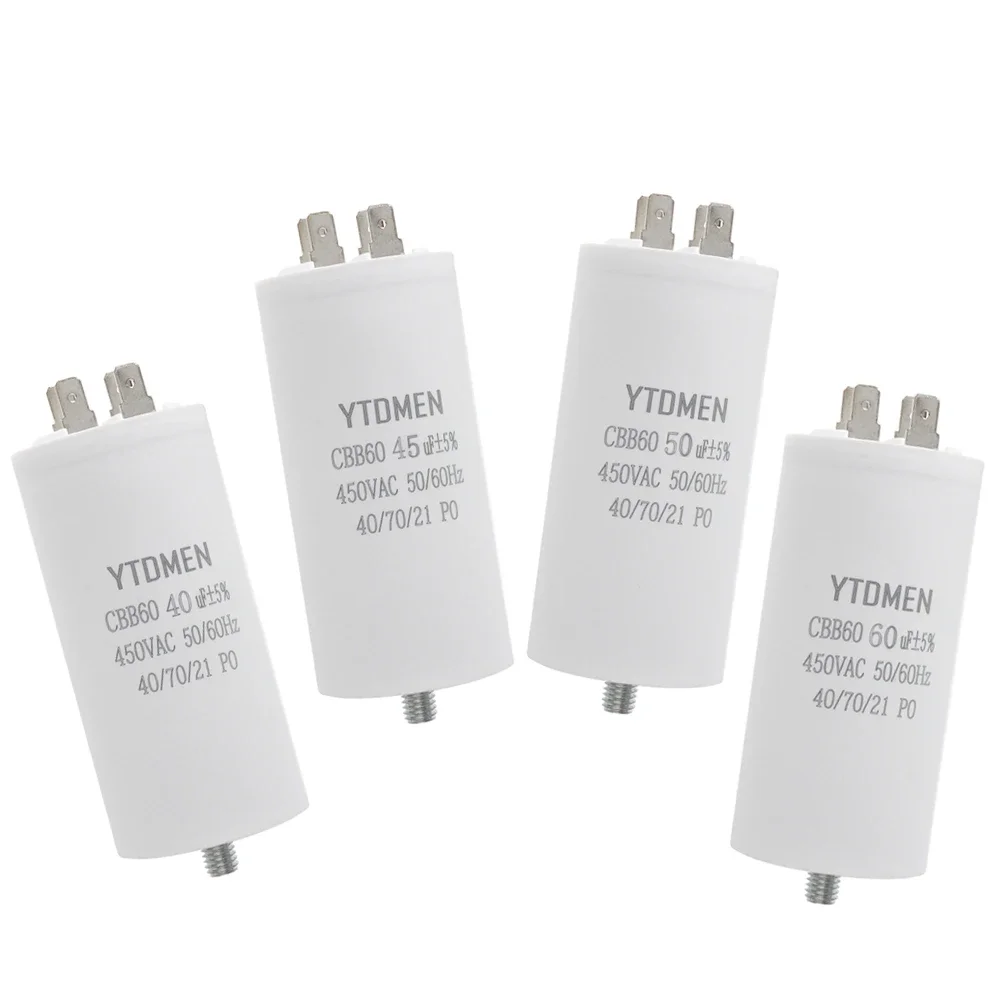

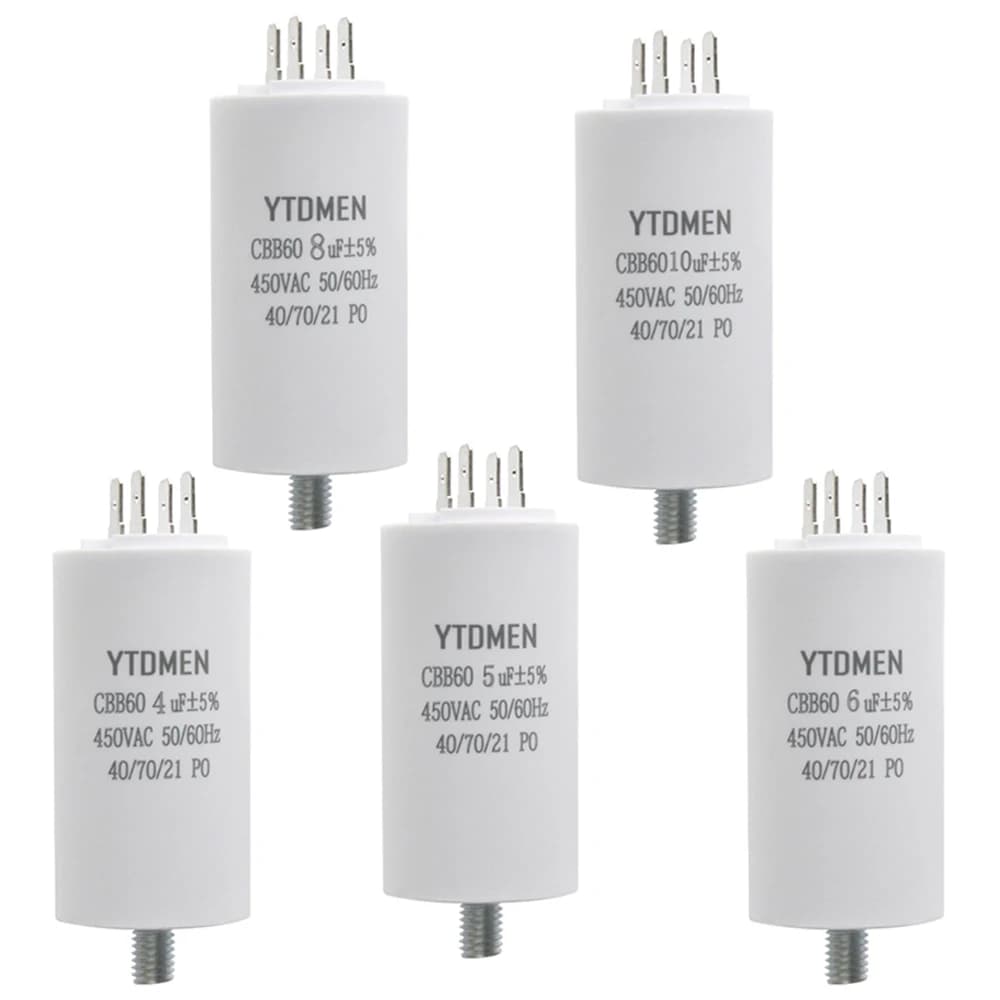

CBB60 Motor Capacitors with Screw Double Insert 450V AC Starting Capacitor 4uF~60uF capacitance for Air Compressor Water Pump

Name: CBB60 Motor Capacitors with Screw Double Insert 450V AC Starting Capacitor 4uF~60uF capacitance for Air Compressor Water Pump
Brand: Compel
SKU: ACCS-00289
Price: 12.99 USD
Availability: InStock

Stock #:TBS-03087

SKU:ACCS-00289

CBB60 Motor Capacitors with Screw Double Insert 450V AC Starting Capacitor 4uF~60uF capacitance for Air Compressor Water Pump - Image 1

1 / 4

$12.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

10-24 units-10%

Save $12.99 on 10 units

$11.69

per unit

25-49 units-15%

Save $48.71 on 25 units

$11.04

per unit

50-99 units-18%

Save $116.91 on 50 units

$10.65

per unit

100+ units-20%

Save $259.80 on 100 units

$10.39

per unit

Click a tier to set quantity • Discount applies automatically at checkout

Capacitance18 optionsSelect an option

Quantity

CBB60 Motor Capacitors with Screw Double Insert 450V AC Starting Capacitor 4uF~60uF capacitance for Air Compressor Water Pump

$12.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What capacitance values does this CBB60 cover?: It spans 4uF to 60uF, rated at 450V AC with a tight 5% tolerance. Pick the microfarad value your motor calls for, since the right value sets the phase shift and torque. It can briefly take 500V AC for up to 60 seconds.
Will this work for my water pump or air compressor?: Yes. The CBB60 is built for single-phase induction motors like water pumps, air compressors, and fans. The 450V AC rating handles common 110V and 220V setups. Just match the original capacitor's microfarad value.
How do the terminals connect?: It uses screw double-insert terminals, which hold tighter and resist vibration better than push-on spade connectors. The tinned copper leads make wiring easier and more reliable. The aluminum housing also helps shed heat during operation.
