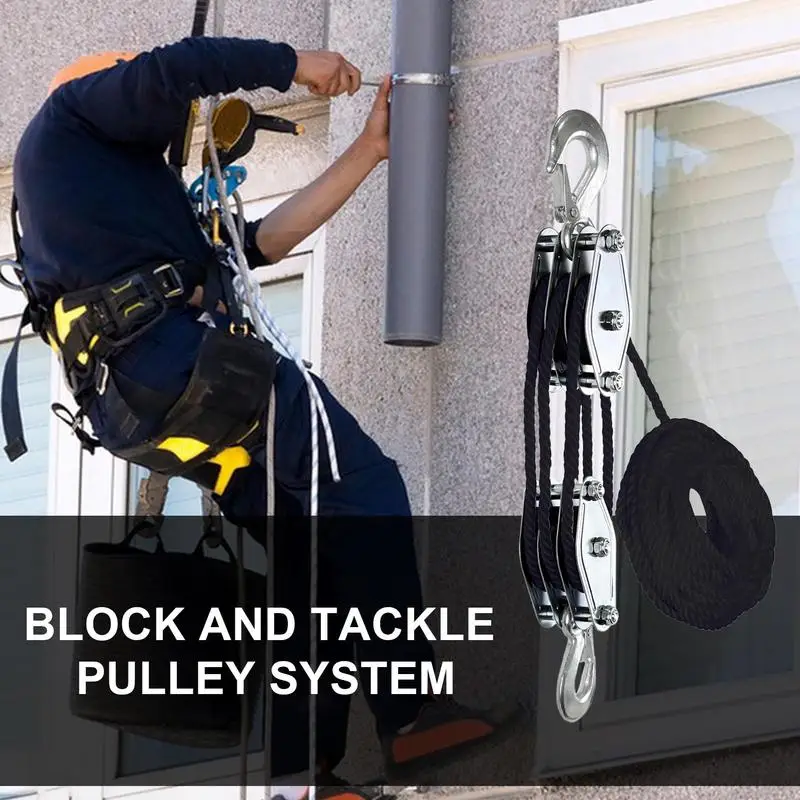

Engineered for demanding lifting tasks, this 2200 lb capacity block and tackle pulley system delivers a 6:1 mechanical advantage, allowing one person to lift heavy loads with minimal effort. The 50-foot, high-strength polyester rope and durable steel construction ensure reliable, safe performance for professional and serious DIY applications. Features and Benefits
- 6:1 Lifting Power - Achieve a significant mechanical advantage, reducing the required pulling force to just one-sixth of the load's weight for safer, easier operation.
- 2200 lb Maximum Capacity - Constructed with heavy-duty steel sheaves and reinforced components to handle substantial weights with confidence and stability.

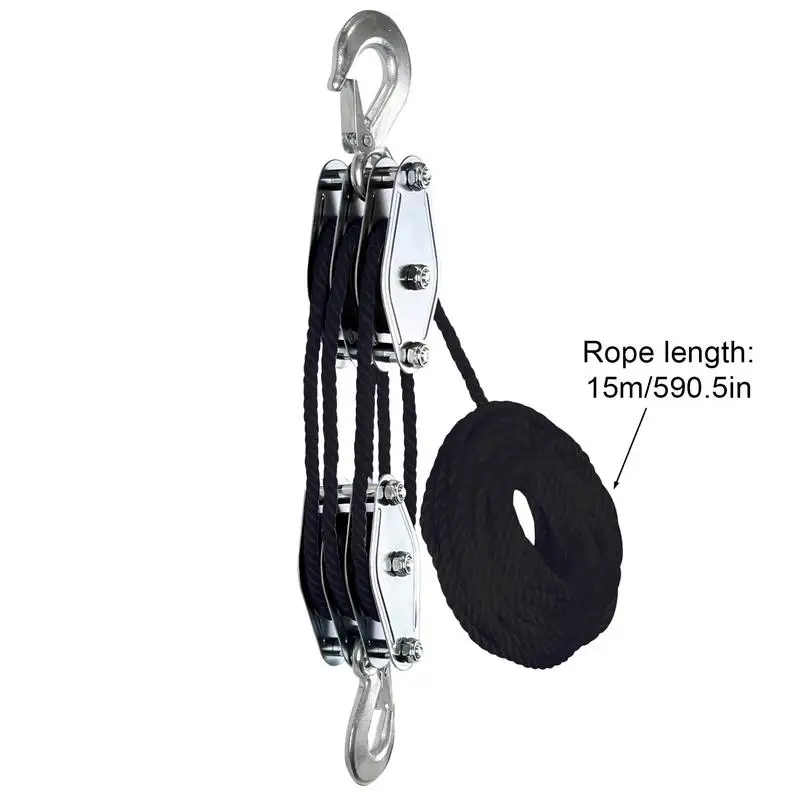

- 50-Foot Polyester Rope - Provides ample length for versatile setups; the durable, weather-resistant material offers excellent grip and resists abrasion.
- 3-Pulley System Design - Optimizes rope travel and force distribution for smoother lifting and controlled lowering of loads.
- Multifunctional Hardware Kit - Includes robust carabiners and connectors for quick, secure attachment to beams, vehicles, or anchor points in various configurations. Applications
- Workshop and Garage - Safely hoist engines, heavy equipment, or storage items to elevated racks or workbenches.

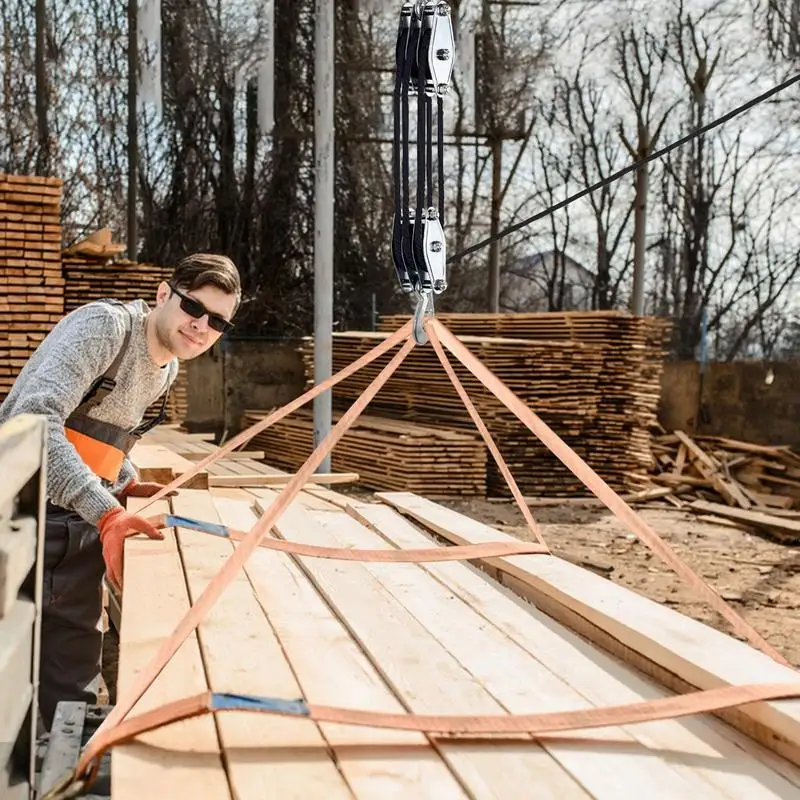

- Construction and Farm Use - Lift building materials, hay bales, or machinery for installation, transport, or maintenance.
- Vehicle Recovery and Off-Roading - An essential tool for winching vehicles, extracting stumps, or tensioning lines in remote locations.
- Marine and Camping - Rig temporary lifts for boats, canoes, or heavy gear, or set up tarps and shelters with controlled tension. Note
Always inspect all components before use and ensure anchor points can support significantly more than the intended load. Use proper personal protective equipment during operation.
Pulley Wheel Material: Steel. Frame Material: Steel. Hook Material: Forged Steel. Rope Material: Synthetic Fiber. Hook Safety Latch: Yes. Maximum Working Load: 998 kg. Mechanical Advantage: 6:1. Minimum Breaking Strength: 5988 kg. Pulley Wheel Quantity: 6. Rope Diameter: 8 mm. Rope Length: 15.24 m. Rope Quantity: 3. Maximum Operational Height: ~8.3 ft (2.5 m) (50ft rope / 6 parts of line). Rope Diameter: 10 mm (Inferred). Rope Length: 50 ft (15.24 m). System Weight: 15 lbs (6.8 kg) (Estimated). Pulley Sheave Material: High-Strength Polymer or Steel (Inferred). Lifting Capacity: 2200 lbs (998 kg). Compliance Standard: Meets ANSI/ASME B30.21 Rigging Hardware Standards (Inferred). Application: Vertical Lifting, Horizontal Pulling, Mechanical Advantage Systems. Environmental Suitability: General Purpose, Dry to Mild Conditions. Hook Type: Forged Steel Safety Hooks with Latch. Hook Working Load Limit: 2200 lbs (998 kg). Mechanical Advantage: 6:1. Minimum Breaking Strength (Rope): 13,200 lbs (6,000 kg) (Inferred 6x Safety Factor). Number of Pulley Blocks: 3. Product Type: Block and Tackle Pulley System. Pulley Bearing Type: Sealed Ball Bearing. Recommended Single Line Pull Force: 367 lbs (167 kg). Rope Type: Synthetic Fiber (Polyester/Nylon). Q: What are the exact specifications for this 2200 lb pulley hoist system? A: This heavy-duty block and tackle pulley system features a 50-foot long rope and provides a 6:1 mechanical advantage for lifting. It is rated for a maximum safe working load of 2200 lbs, making it suitable for demanding tasks.. Q: How durable is the construction of this 6:1 lifting pulley system? A: The system is built for heavy-duty use with robust components designed to handle the 2200 lb capacity. The pulleys feature sealed ball bearings for smooth operation and the rope is made from high-strength, abrasion-resistant material for long-term reliability.. Q: Can this multifunctional pulley hoist be used for vehicle recovery? A: Yes, this 2200 lb capacity pulley system with 6:1 lifting power is an excellent tool for vehicle recovery and off-road use. Its 50-foot rope length and high strength make it suitable for pulling or lifting vehicles, engines, and other heavy equipment safely.. Q: Does this heavy-duty pulley system come with a warranty? A: Yes, this product is backed by a standard manufacturer's warranty that covers defects in materials and workmanship. For specific warranty duration and claim details, please refer to the documentation included with your purchase or contact the seller directly.. Q: Is this block and tackle system a good value compared to premium brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with its 2200 lb capacity and 6:1 mechanical advantage, matching the core functionality of more expensive systems..
