The HITBOX HBT250P AC/DC TIG Welding Machine delivers 250 amps of power for versatile welding on steel, stainless, and aluminum. Its IGBT inverter technology ensures stable arc performance and energy efficiency, while the precise digital pulse control allows for clean, spatter-free welds on thin materials down to 0.5mm. Features and Benefits
- AC/DC Output with HF Start - Enables high-quality TIG welding on both ferrous and non-ferrous metals like aluminum and stainless steel without electrode contamination.
- 2T/4T Trigger Modes - Provides flexibility for spot welding (2T) or complex welds requiring pre/post gas flow (4T), enhancing control and weld quality.

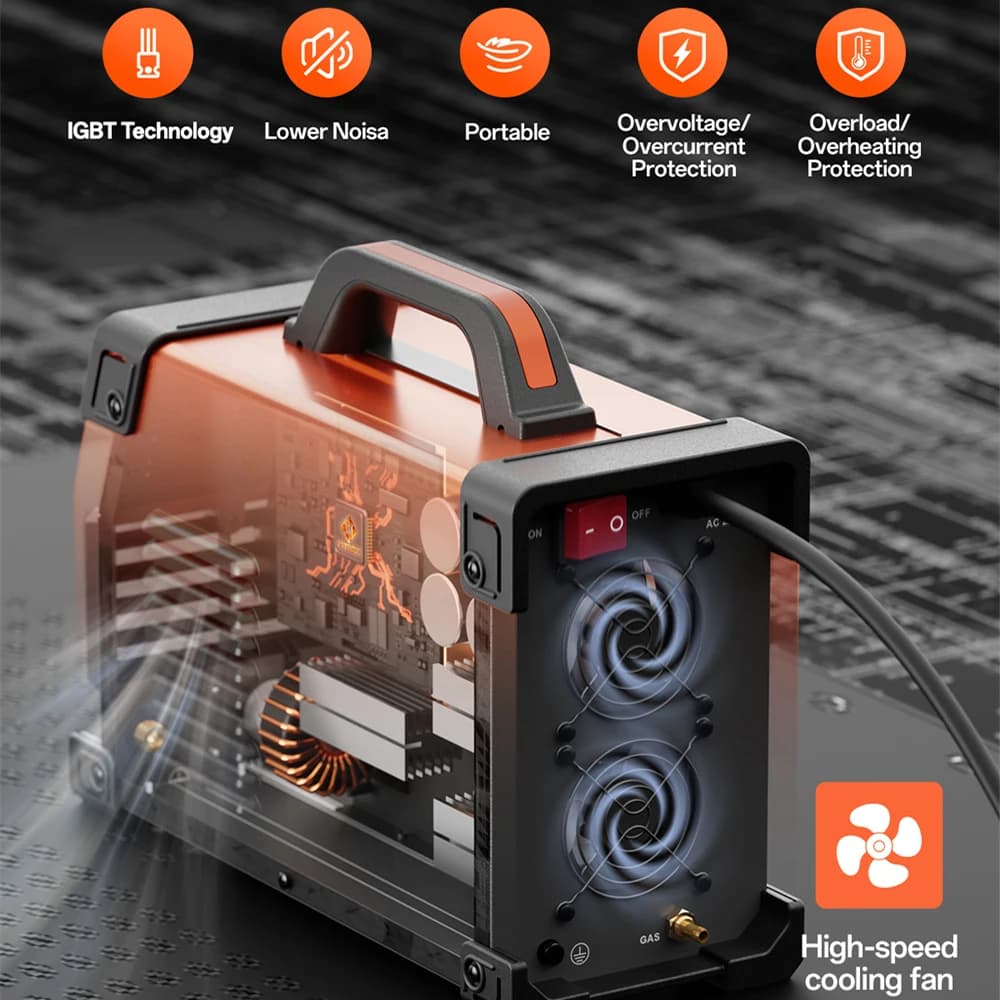

- IGBT Inverter Technology - Offers a lightweight, portable design with excellent arc stability, reduced power consumption, and reliable performance.

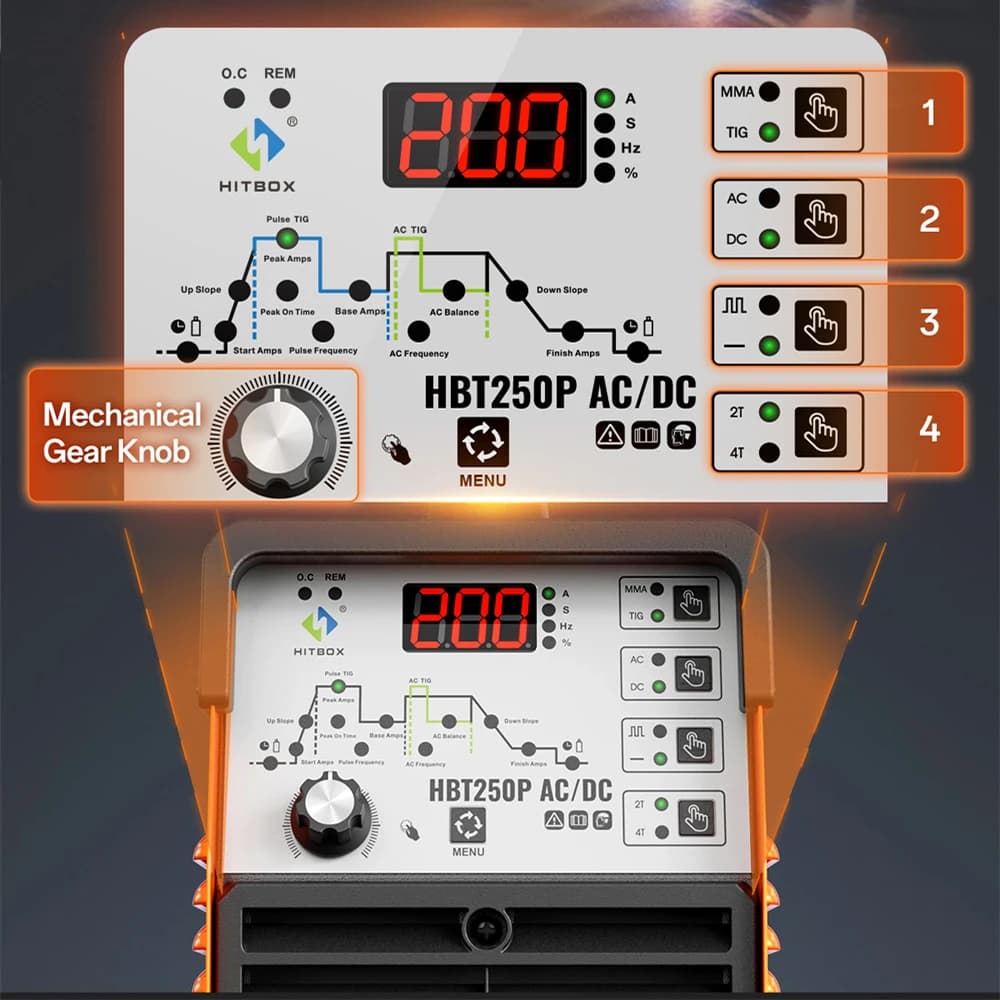

- Digital Pulse Control - Allows precise adjustment of peak/base current and frequency for superior heat management on thin sheet metal and intricate joints.
- Argon Arc Precise Function - Ensures clean, oxidation-free welds with a focused arc, ideal for professional-grade fabrication and repair work. Applications
- Automotive and Metal Fabrication - Perfect for welding thin-gauge body panels, exhaust systems, and custom aluminum parts with minimal distortion.
- Maintenance and Repair Shops - An excellent choice for repairing machinery, equipment, and structural components made from various metals.
- DIY and Home Workshop Projects - A versatile, budget-friendly professional tool for enthusiasts tackling projects like furniture, artwork, or home repairs. Note
This welder is designed for use with proper safety equipment, including a welding helmet, gloves, and adequate ventilation. Always consult the manual for correct setup and operation procedures.
Dimensions: 32 x 15 x 8 cm. Weight: 1.2 kg. Case Material: Aluminum. Power Supply: IGBT Inverter. Input Voltage: 220V AC, 50/60Hz. Display Type: Digital. Control Mode: 2T, 4T. Duty Cycle: 60% @ 250A. HF Start: Yes. Model: HBT250P. Output Current Range: 10 - 250 A. Pulse Function: Yes. Welding Process: AC TIG, DC TIG, MMA (Stick). Dimensions (Approx.): 400mm x 180mm x 300mm (L x W x H). Weight (Approx.): 12.5 kg. Case Material: Aluminium alloy. Open Circuit Voltage: 68V (MMA), 92V (TIG). Power Factor: ≥0.93. Rated Input Voltage: 220V ±15%, 50/60Hz. AC Balance Control Range: 30% - 70%. AC Frequency Range: 20Hz - 250Hz. Efficiency: ≥85%. Output Current Range (MMA): 10A - 250A. Output Current Range (TIG): 10A - 250A. Pulse Frequency Range: 0.5Hz - 500Hz. Control Modes: 2T, 4T. Protection Rating: IP21S. Cooling Method: Forced air cooling with fan. Duty Cycle @ Rated Current: 60% @ 250A. HF Ignition: Yes, for TIG arc starting. Insulation Class: F. Lift Arc Ignition: Yes, for TIG arc starting. Product Type: IGBT Inverter Welding Machine. Pulse Welding Function: Yes, with adjustable peak/base current and frequency. Welding Processes: AC TIG, DC TIG, MMA (Stick). Q: What are the key specifications and dimensions of the HITBOX HBT250P AC/DC TIG welder? A: The HITBOX HBT250P is an IGBT inverter welder capable of both AC and DC TIG welding, as well as MMA (stick) welding. It features high-frequency (HF) start, 2T/4T trigger modes, digital pulse control, and argon arc capability for precise aluminum welding.. Q: Is the HITBOX HBT250P a durable and reliable welding machine for regular use? A: Yes, the HBT250P is built with a robust aluminium housing and utilizes advanced IGBT inverter technology known for efficiency and reliability. It is designed to withstand the demands of both workshop and on-site welding tasks.. Q: Can the HITBOX HBT250P AC/DC welder be used for welding aluminum and steel? A: Absolutely. The AC output mode with high-frequency start is specifically designed for TIG welding aluminum, while the DC output mode is ideal for TIG welding steel, stainless steel, and performing MMA (stick) welding on a variety of metals.. Q: Does the HITBOX HBT250P come with a warranty or guarantee? A: Yes, the HITBOX HBT250P welding machine includes a standard manufacturer's warranty. For specific warranty duration and coverage details, please refer to the seller's product listing or contact them directly.. Q: Is the HITBOX HBT250P a good value compared to other welders with similar features? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable AC/DC TIG and stick welding performance with precise digital pulse control at a competitive price point..
