Pneumatic Quick-Connect Coupler | C-Type with Valve | SH SP10/20/30/40 Fittings

Name: Pneumatic Quick-Connect Coupler | C-Type with Valve | SH SP10/20/30/40 Fittings
Brand: Compel Group
SKU: HYDR-00159
Price: 44.99 GBP
Availability: InStock

Stock Nr:

SKU:

1 / 6

£44.99inc VAT

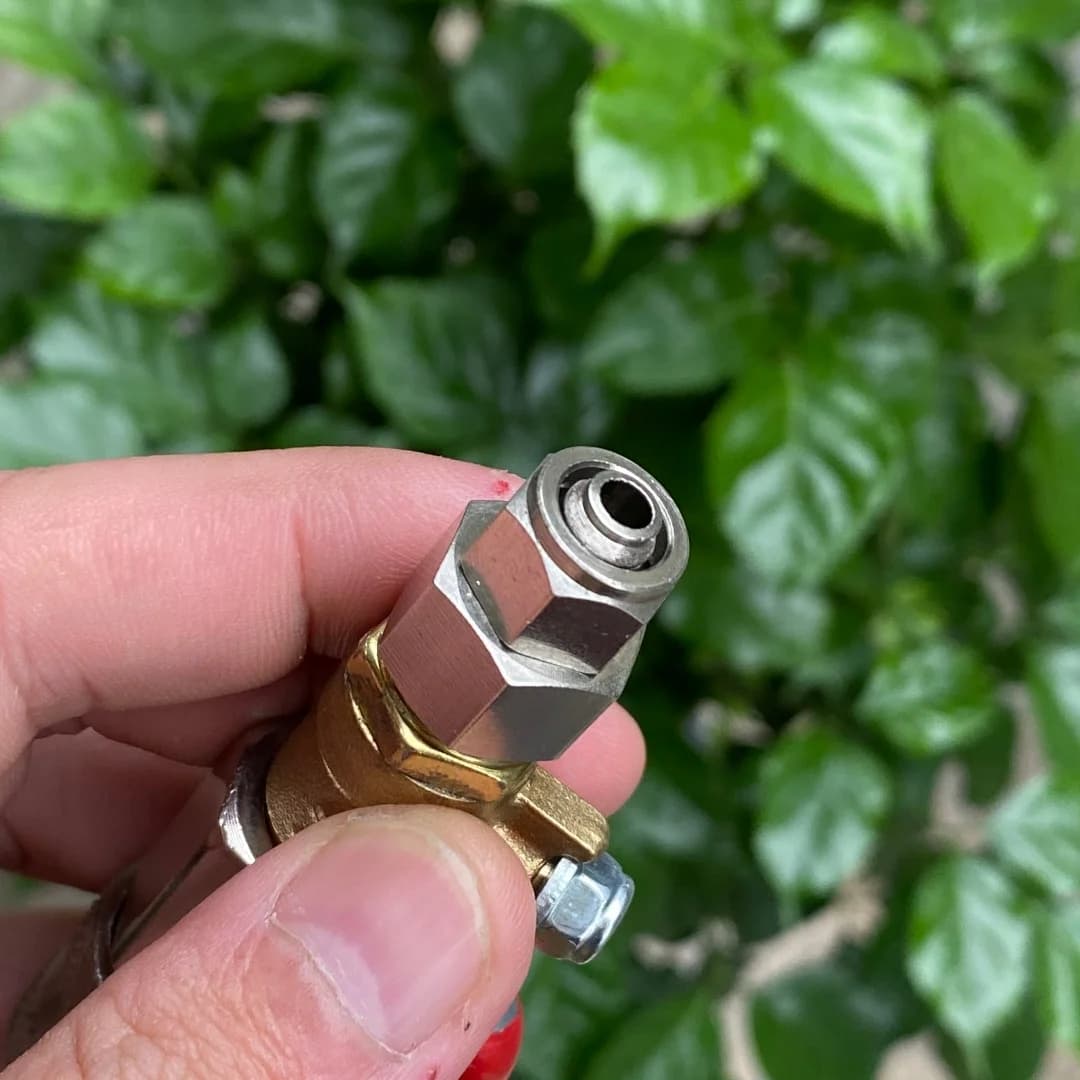

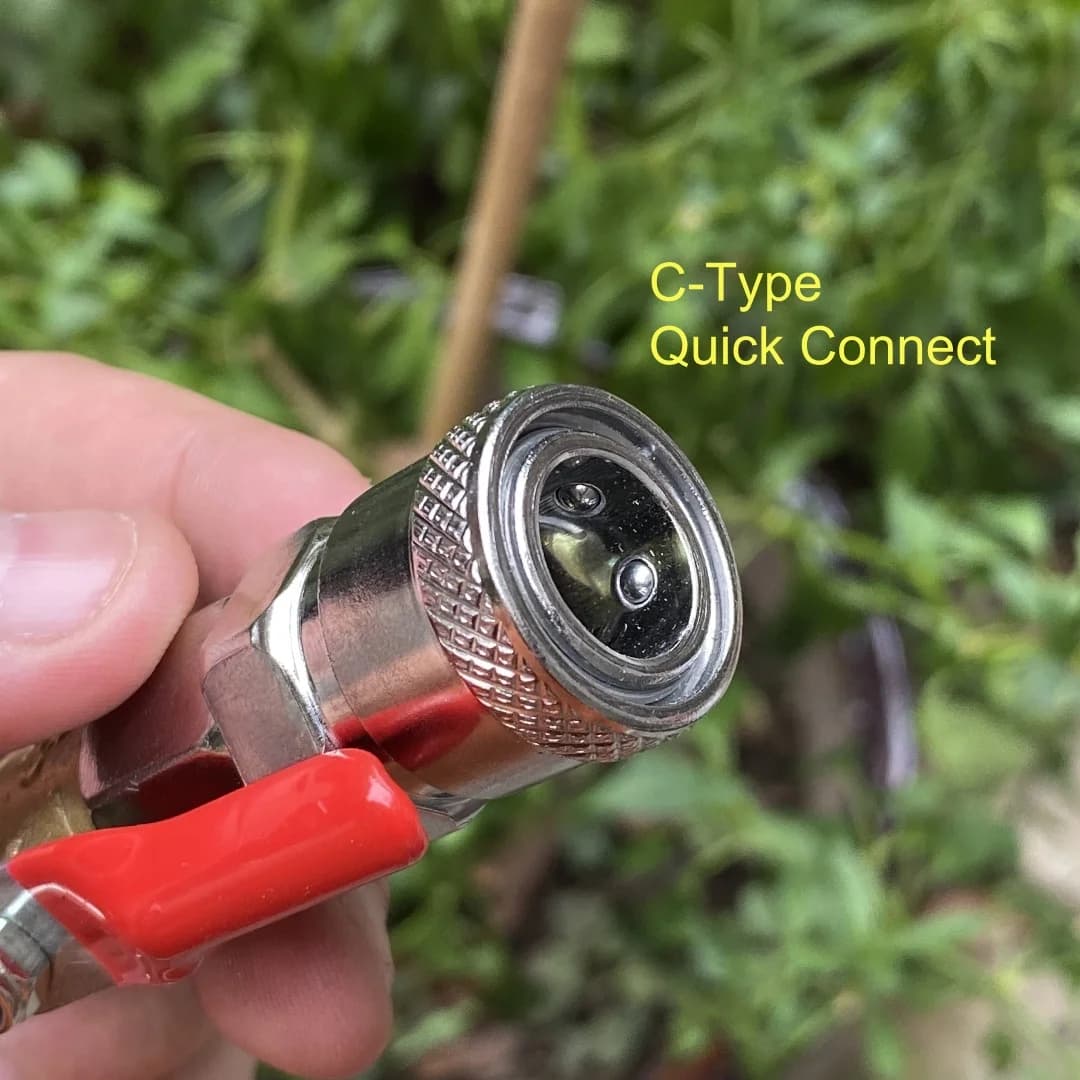

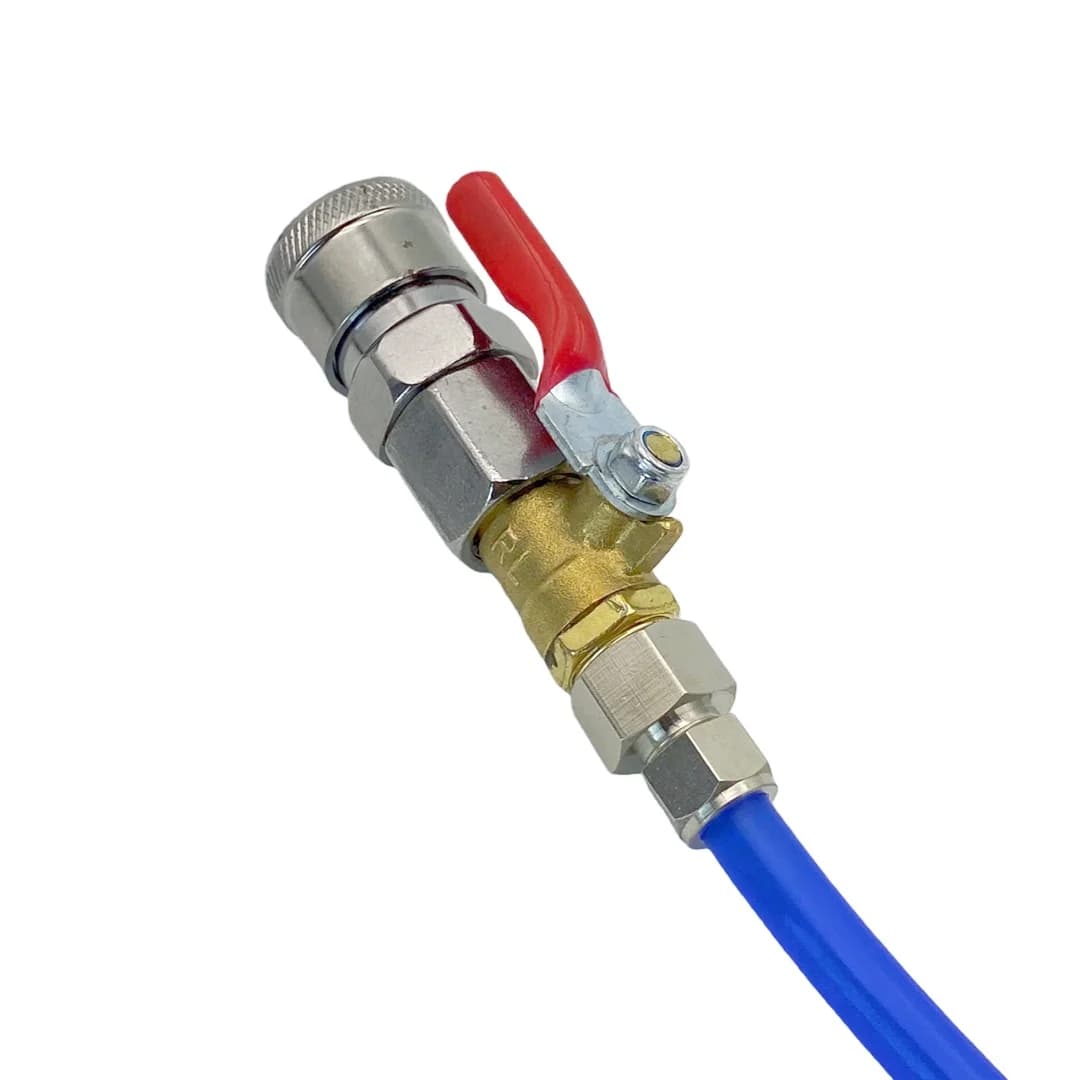

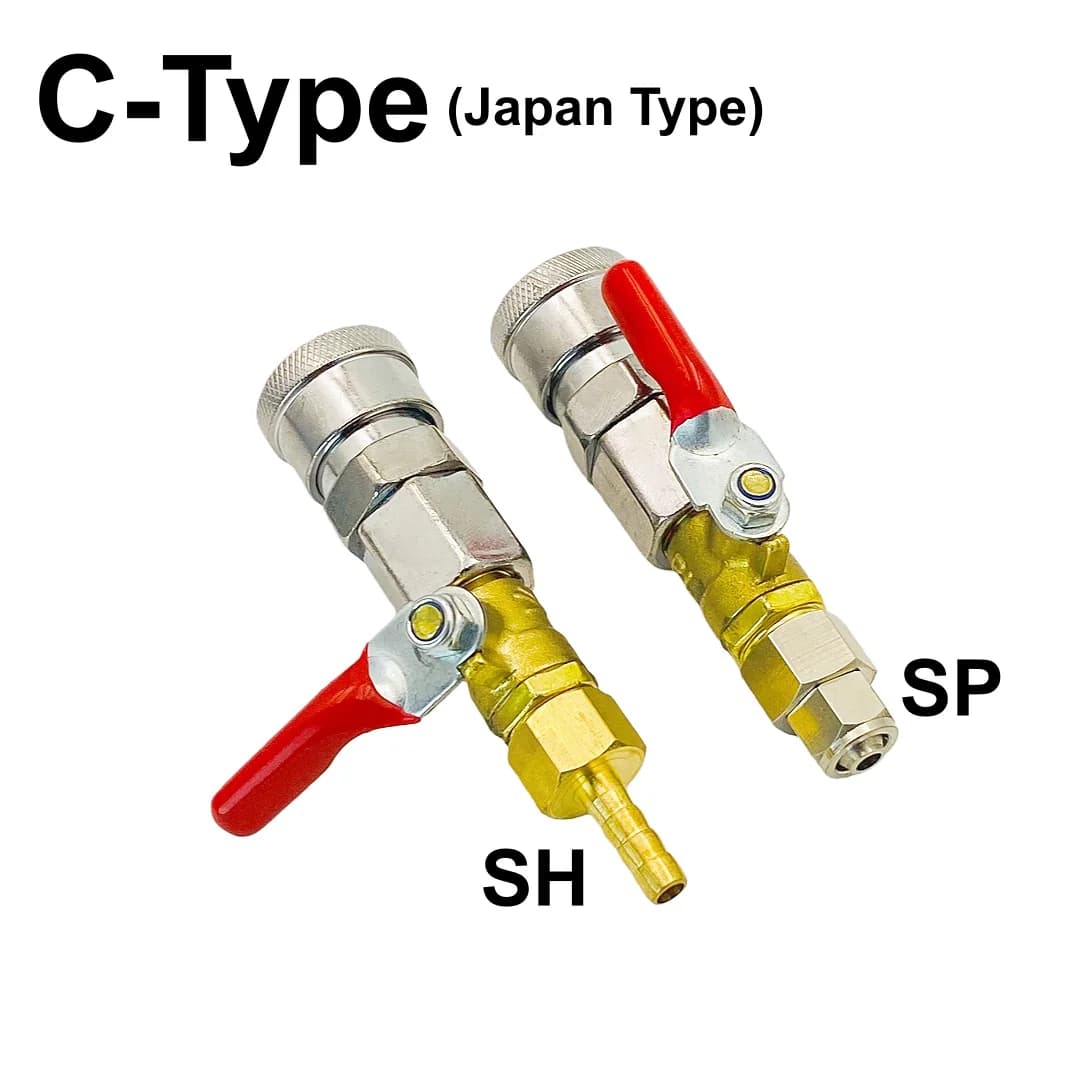

Premium Air Hose Quick Connector C-Type (Japan Standard) With Valve Switch Pneumatic Fitting Coupler SH SP10/20/30/40. Quality construction with reliable performance for professional and home use....

OptionSelect an option

Quantity

Secure checkout
All major cards
Tracked delivery

Pneumatic Quick-Connect Coupler | C-Type with Valve | SH SP10/20/30/40 Fittings

£44.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

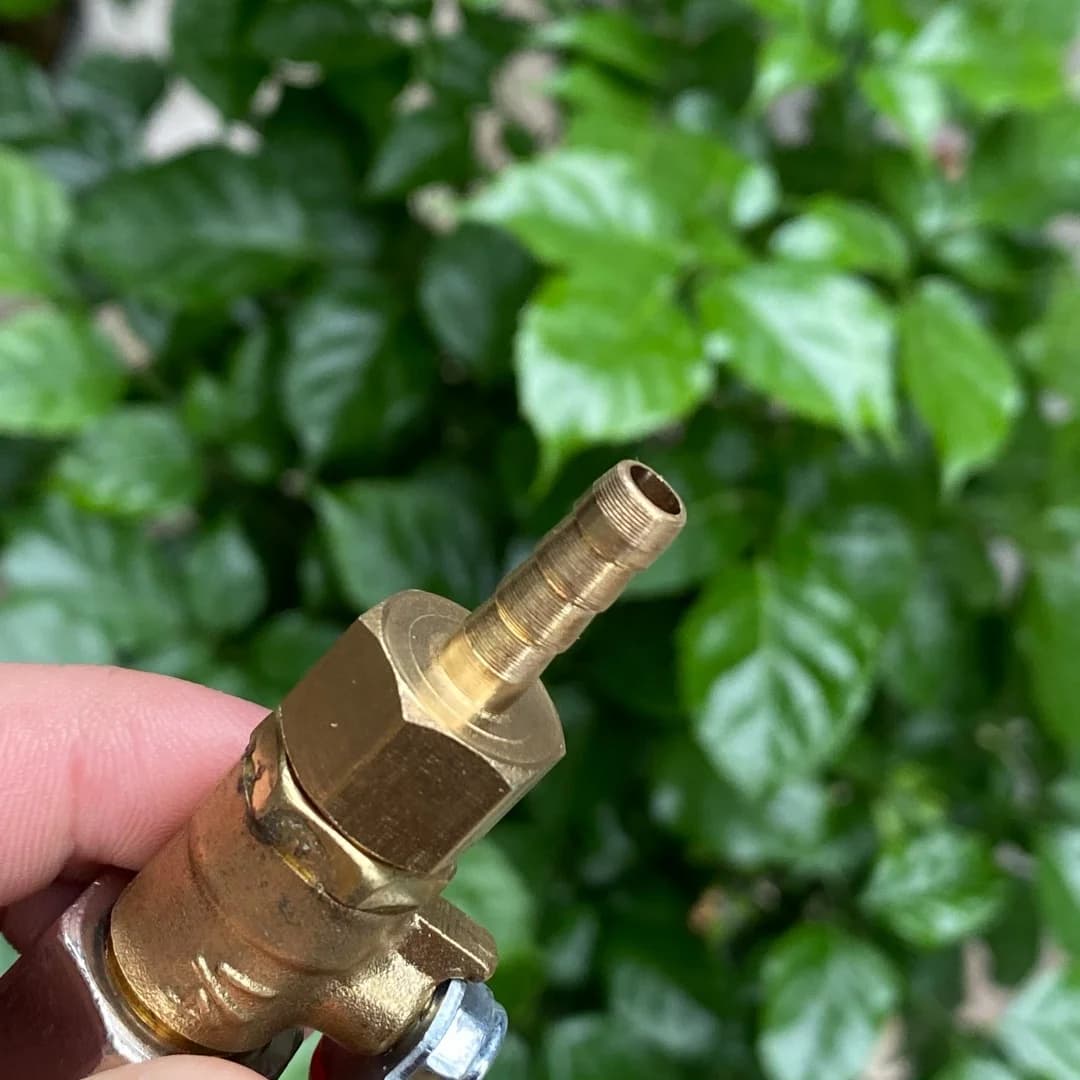

What air hose sizes will these quick-connect couplers work with?: These C-Type quick-connect couplers are available in SH SP10, SP20, SP30, and SP40 models. These correspond to thread sizes 1/8", 1/4", 3/8", and 1/2" respectively. They are designed for specific hose outer diameters, typically connecting to barbed hose connections.
What is the maximum pressure and temperature this pneumatic coupler can handle?: This pneumatic quick-connect coupler can operate at a maximum pressure of 1.0 MPa (10 bar / 145 psi). The operating temperature range is -5°C to 60°C, which is suitable for the NBR seals used. It has a minimum burst pressure of 3.0 MPa.
What materials are these quick-connect fittings made from?: The body of these quick-connect fittings is made from corrosion-resistant brass. The seals are NBR (Nitrile Rubber) O-rings, providing reliable performance within the specified temperature range. The surface has a nickel plating for added durability.

Hydraulics & Pneumatics spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £44.99

This product

Air hose quick connector C-Type with valve switch, a Japan Standard pneumatic fitting coupler for industrial air tools.

Pneumatic Quick-Connect Coupler | C-Type with Valve | SH SP10/20/30/40 Fittings

Price: £44.99
Rating: Not rated
Sold: 1+
Stock: In stock

You're viewing this

Alternative

HEBAI EU European Standard quick coupling connector for air compressors, with 1/4, 3/8, and 1/2 inch male thread options in a durable chrome finish.

Quick-Connect Air Coupler | 1/4, 3/8, 1/2 NPT Male Thread | Industrial-Grade Brass Fitting

Price: £22.99
Rating: 4.9
Sold: 374+
Stock: In stock

View

Alternative

European standard EU Euro type pneumatic quick coupling connector for air compressor hoses, featuring a brass body and barbed hose adapter.

Air Hose Quick Coupler | EU Standard Pneumatic Fitting | Secure Barb Connector

Price: £21.99
Rating: 4.8
Sold: 800+
Stock: In stock

View

Alternative

5 Pcs1/4 Inch NPT External Thread Pneumatic Quick Coupling M - Premium Industrial & Machinery > Hydraulics & Pneumatics with professional quality and features

1/4 NPT Pneumatic Quick Couplers | 5-Pack Male Connectors | Secure Air Line Fittings

Price: £35.99
Rating: 4.8
Sold: 600+
Stock: In stock

View

Alternative

1pcs NPT1/2 High Pressure Hydraulic Oil Pipe Quick Connector - Premium Industrial & Machinery > Hydraulics & Pneumatics with professional quality and features

High-Pressure Hydraulic Quick Coupler | 1/2 NPT Thread | ISO A Series Male & Female Connector

Price: £41.99
Rating: 4.7
Sold: 53+
Stock: In stock

View

Compare options

More Hydraulics & Pneumatics

All Hydraulics & Pneumatics

Push-to-Connect Air Fittings Kit | 10-Piece Set | 4mm-12mm PU Hose Compatible

5.0

£25.99

Pneumatic Fittings Kit | 20-Piece Set | 4mm-12mm & 1/8 NPT Threads | Durable Air Connectors

5.0

£35.99

Push-to-Connect Fittings | 4mm-14mm Sizes | Leak-Free Pneumatic & Hydraulic Hose Connectors

5.0

£21.99

Pneumatic Cylinder | 16-40mm Bore | 25-300mm Stroke | Single-Acting Air Actuator

5.0

£32.99

Nitrile Rubber Sealing Strip | Oil-Resistant NBR Round Cord | Multiple Diameters

5.0

£25.99

Pneumatic Quick-Connect Fittings Kit | M3-M6 & 1/8 Threads | 3mm-6mm OD Tube

5.0

£27.99

Stainless Steel Compression Fittings | 6mm to 12mm Tube | 1/8 NPT

5.0

£24.99

Compact Pneumatic Cylinder | Double-Action Aluminum | 16-100mm Bore | 5-100mm Stroke

5.0

£31.99

1/4 Quick-Connect Air Fitting | High-Flow Industrial Coupler for Compressor Tools

5.0

£25.99

Pneumatic Quick-Connect Fittings Kit | 5-Piece Set | 4mm to 16mm for PE/PU Air Hose

5.0

£26.99

Pneumatic Quick-Disconnect Fitting | 6mm to 6.35mm Hose Adapter for Air Tools

5.0

£36.99

Pneumatic Quick-Connect Fittings | 1/4 NPT Male Thread | Leak-Resistant Sealed Design

5.0

£38.99

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

TUYA WiFi/ZigBee MCB Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Remote Control Switch

4.9

£83.99

Radiator Cleaning Brush | Flexible Long Thin Duster | Dryer Duct Cleaner

4.9(688)

£49.99

Fitting | 304 Stainless Steel Compression | 1/2 NPT Union

4.9(49)

£21.99

Digital Barometric Sensor Module | 0-40KPa Pressure

4.9(253)

£36.99

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

£38.99

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

£45.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

£65.99

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

£72.99

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

£39.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

£20.99

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

£27.99

Premium Air Hose Quick Connector C-Type (Japan Standard) With Valve Switch Pneumatic Fitting Coupler SH SP10/20/30/40. Quality construction with reliable performance for professional and home use.

Thread Size: 1/8", 1/4", 3/8", 1/2". Seal Material: NBR (Nitrile Rubber). Body Material: Brass. Connection Type: Push-to-connect (One-touch). Hose Connection: Barbed (for specified hose outer diameter). Model Variants: SH SP10, SH SP20, SH SP30, SH SP40. Operating Pressure: 0.95 MPa (Maximum). Operating Temperature: -5°C to 60°C. Product Name: Pneumatic Quick Connector, C-Type (Japan Standard). Standard: JIS B8381 (Japan Standard). Surface Finish: Nickel Plating. Thread Type: R (PT) / G (PF). Type: Fitting, Coupler. Valve Type: Shut-off Valve (Auto-shut on disconnect). Thread Sizes: SP10 (1/8"), SP20 (1/4"), SP30 (3/8"), SP40 (1/2"). Body Material: Brass (Corrosion Resistant). Seal Material: NBR (Nitrile Rubber) O-rings. Operating Temperature: -5°C to 60°C (with NBR seals). Operating Pressure: 1.0 MPa (10 bar / 145 psi) Maximum. Standard: JIS B 8381 (Japanese Industrial Standard) - C-Type. Burst Pressure: 3.0 MPa (30 bar / 435 psi) Minimum. Durability: ≥ 30,000 connect/disconnect cycles. Flow Coefficient (Cv): Varies by size (SP10/20/30/40). Hose Connection: Barbed or Threaded (Model dependent). Leakage: Meets JIS B 8381 Class A or B standards. Product Type: Pneumatic Quick Connector (Coupler). Proof Pressure: 1.5 MPa (15 bar / 217.5 psi) Minimum. Shank Type: Plug (Male Thread) / Socket (Female Thread) (Inferred for set). Thread Type: R (PT) / G (PF) / NPT (Inferred based on standard). Valve Type: Integrated Shut-off Valve (Auto-shut on disconnect). Q: What are the specific dimensions and model numbers for this Air Hose Quick Connector C-Type? A: This pneumatic fitting coupler is available in four standard sizes: SP10, SP20, SP30, and SP40. These model numbers correspond to the thread size, allowing you to select the correct one for your air hose and tool connections.. Q: How durable is this C-Type quick connector with a valve switch? A: It is built for reliable performance in pneumatic systems. The valve switch ensures minimal air loss during disconnection, and the robust construction is designed to withstand regular industrial or workshop use.. Q: Is this C-Type (Japan Standard) quick connector compatible with my existing air tools? A: Yes, it is designed to the Japanese Industrial Standard (JIS) for C-Type fittings, which is widely used. It will connect seamlessly with other tools and hoses that use the standard C-Type quick connect interface.. Q: Does this pneumatic coupler come with any warranty or guarantee? A: While specific warranty terms depend on the seller, this product is manufactured to meet quality standards for reliable operation. We recommend checking the seller's policy for detailed guarantee information.. Q: Is this Air Hose Quick Connector a good value compared to premium brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in pneumatic applications..
