Industrial Electrical Components

Selecting Control and Signal Isolation Devices

When selecting control devices like a relay module or operator switch, space constraints and operating environment dictate your choice. For high-cycle switching, a solid-state relay module avoids mechanical wear and offers quiet operation. Note the control voltage range (typically 3-32 V DC) and output load limits (such as 90-280 V AC) to prevent premature failure.

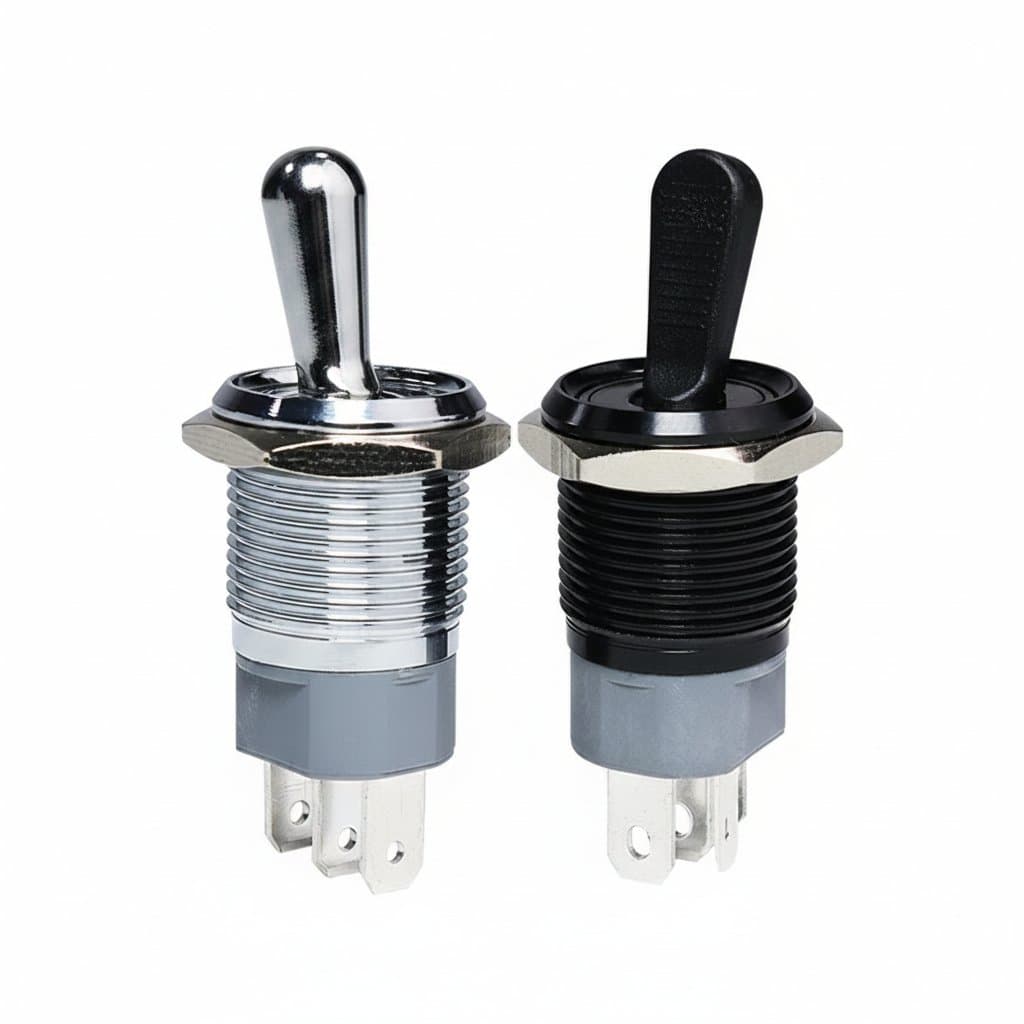

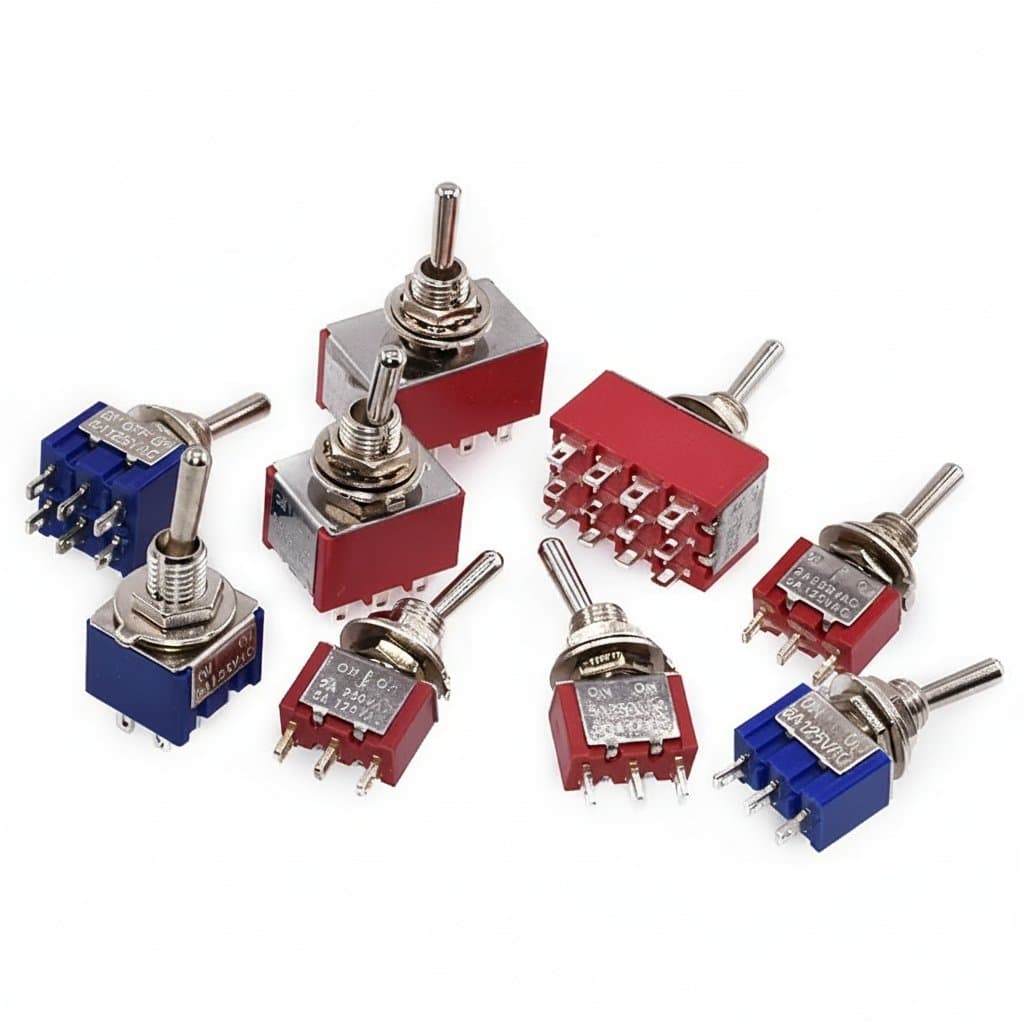

For physical operator interfaces, verify environmental sealing. Panel-mounted push buttons require specific ingress protection like IP67 for wet or dusty environments. Ensure the housing material matches the physical abuse the station will receive.

• Slim SSRs (such as 22.5 mm width) save critical DIN rail space in crowded enclosures.
• Opt for metal housing push buttons in high-wear physical environments.
• Match isolation voltage ratings (like 2500 V AC) to your safety isolation requirements.

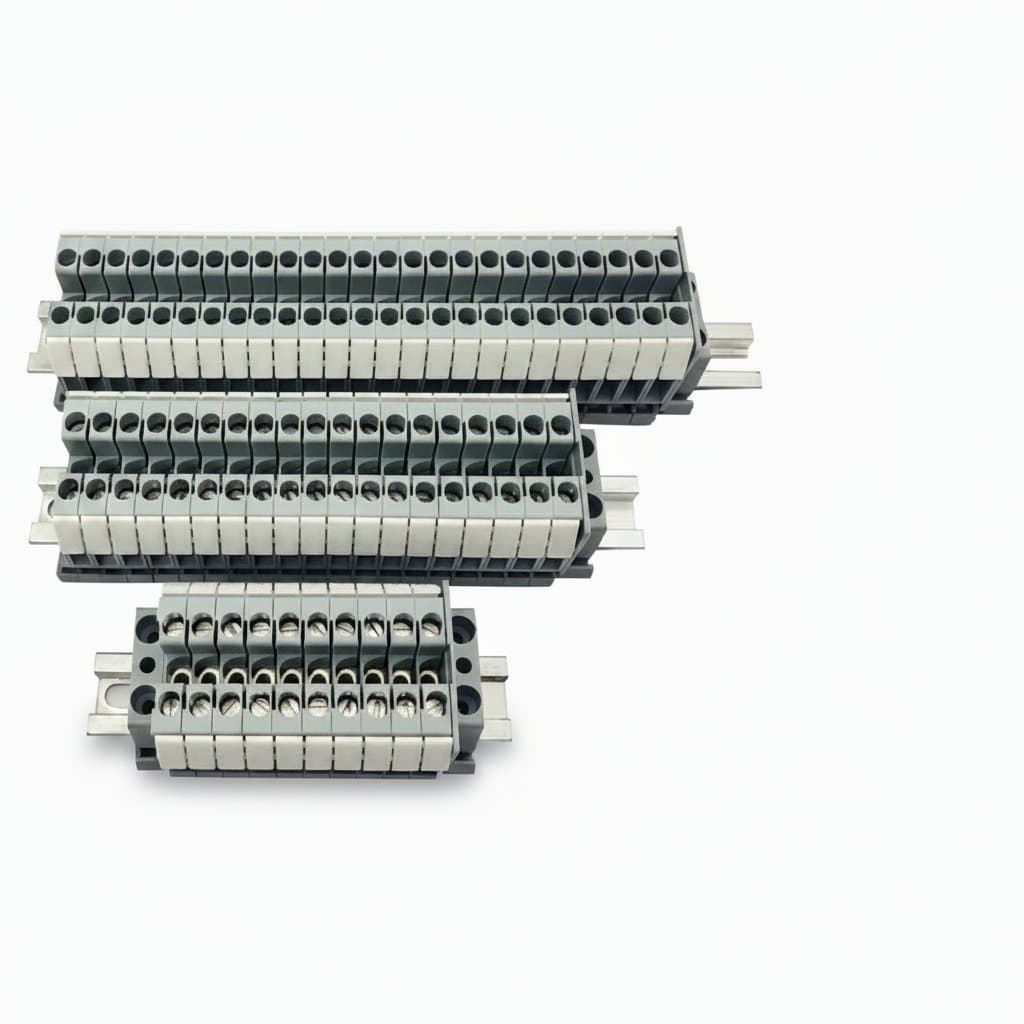

• Verify terminal clamp wire limits, typically handling 0.08 to 4 mm² conductors.

Sizing Circuit Protection for AC and DC Systems

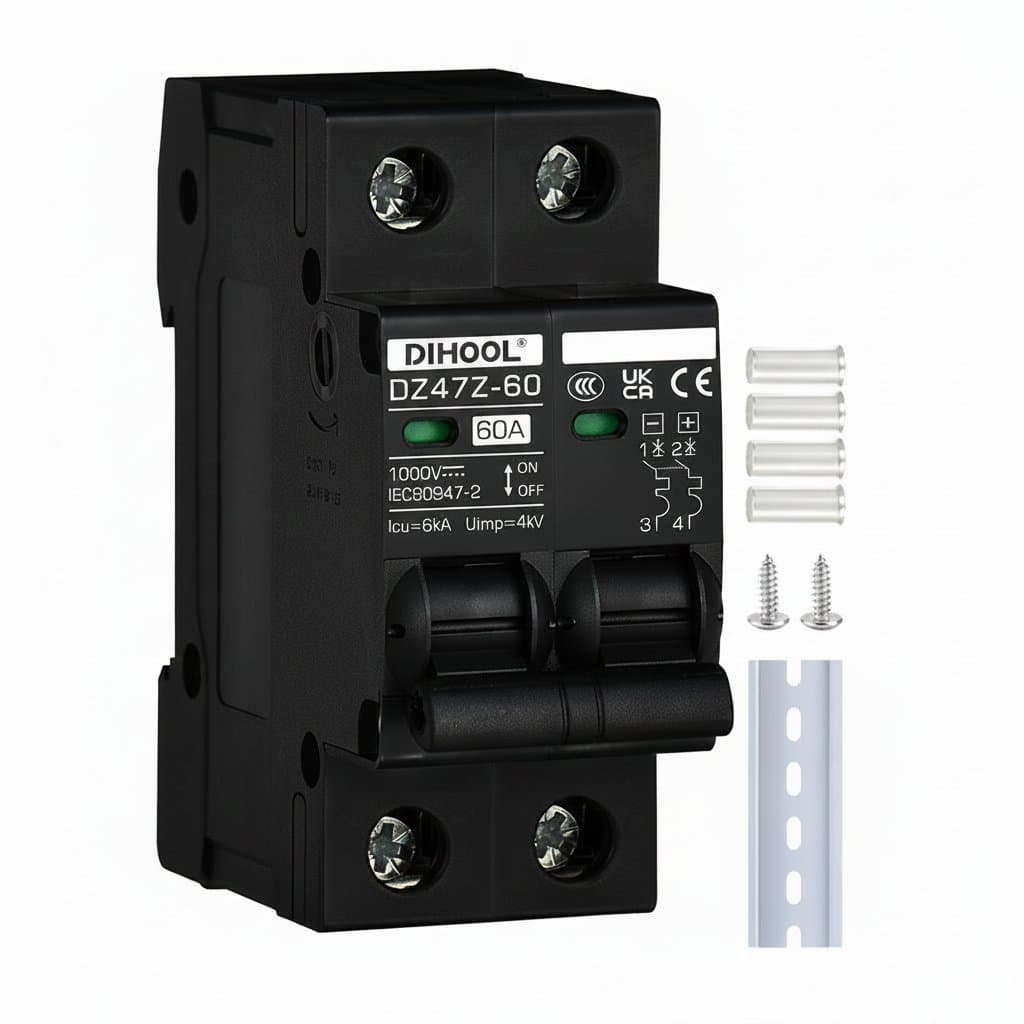

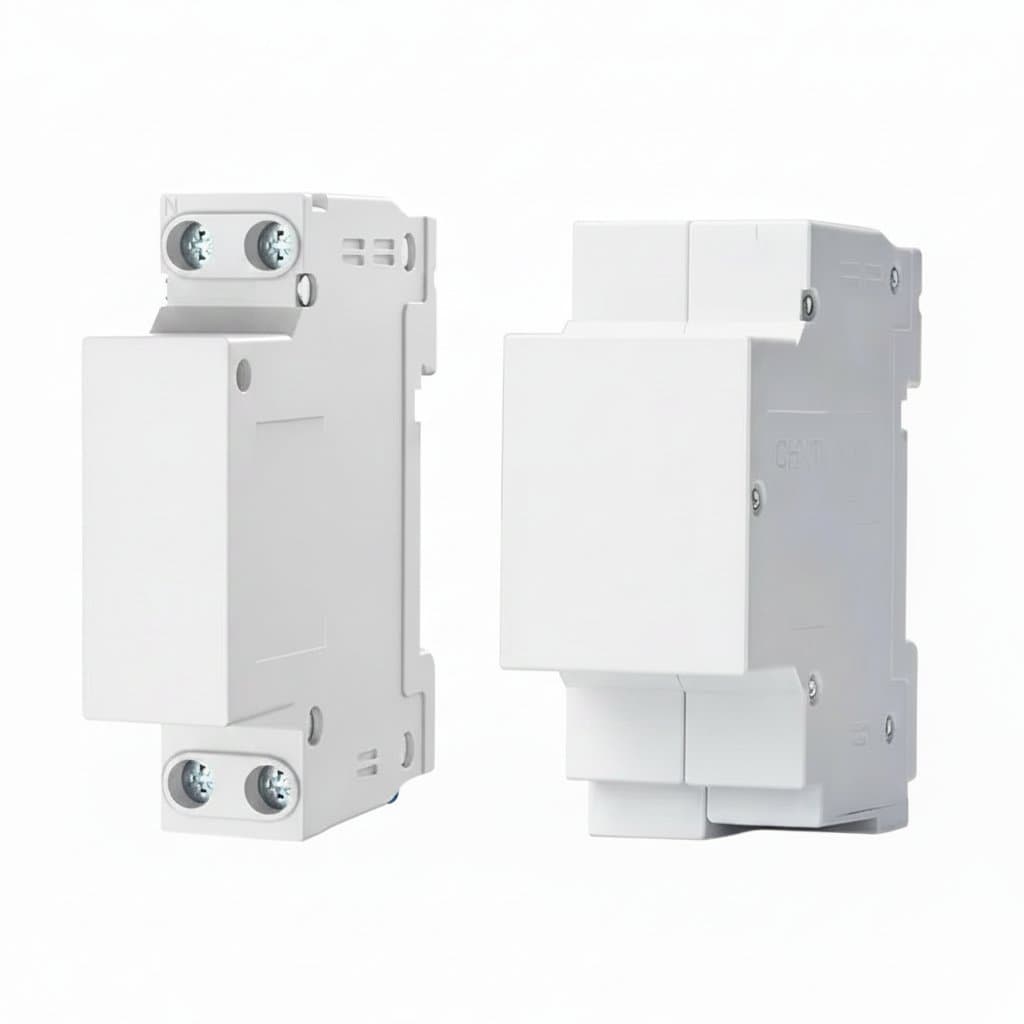

Circuit protection requires matching the breaker type to your specific power supply architecture. Standard AC miniature circuit breakers (MCBs) protect control circuits, typically offering up to 6 kA breaking capacity. For photovoltaic or heavy DC machinery, standard AC breakers will not extinguish DC arcs safely. You must use dedicated 2-pole DC circuit breakers rated up to 1000 V DC.

In areas prone to electrical disturbances, install surge protectors. Choose units with a maximum continuous operating voltage matching your system's peak normal operation to prevent nuisance tripping while still clamping dangerous spikes.

• Verify the rated current range (from 3 A up to 63 A) against your maximum continuous load.
• Check the maximum continuous operating voltage (Uc) for surge arresters, ranging from 500 V to 1000 V DC.

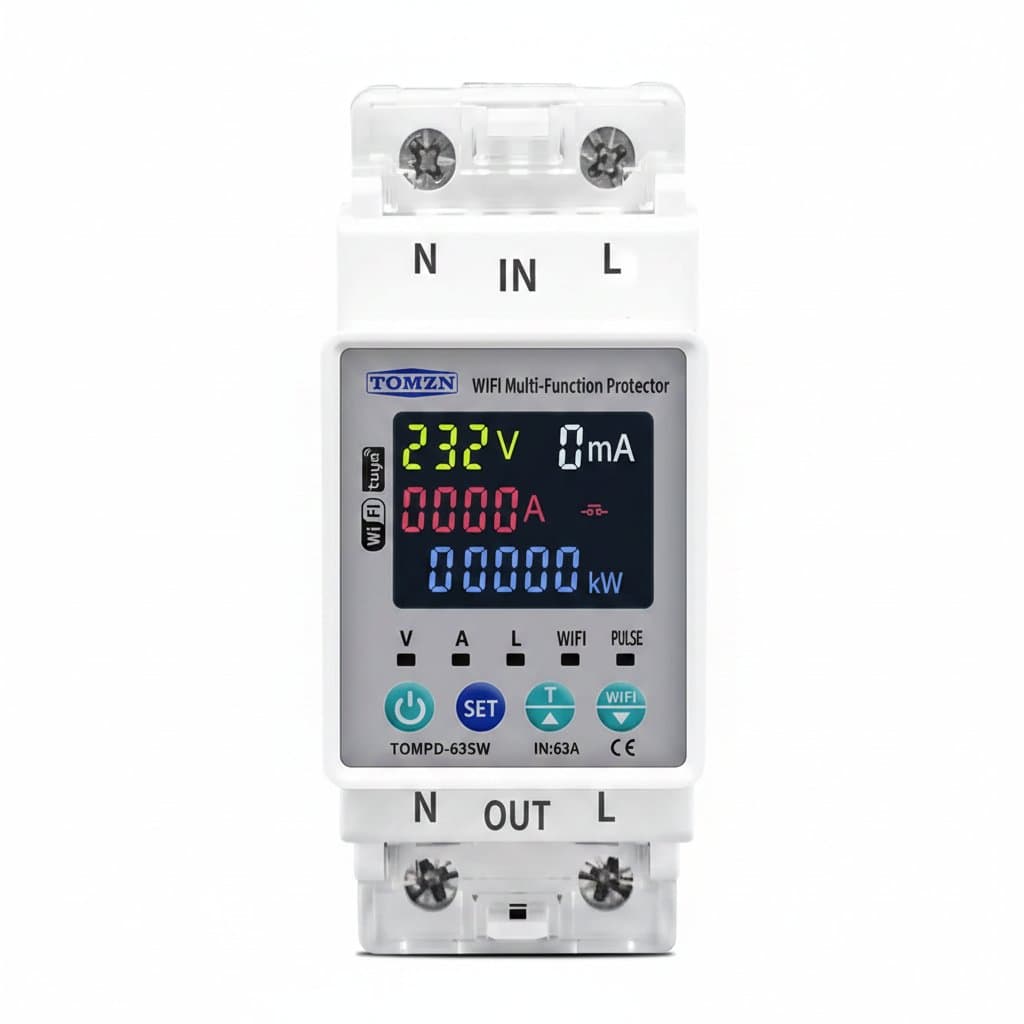

• Consider smart breakers with WiFi or ZigBee protocols if remote energy monitoring is required.
• Match the breaking capacity (such as 6 kA) to the potential short-circuit current of your power supply.
