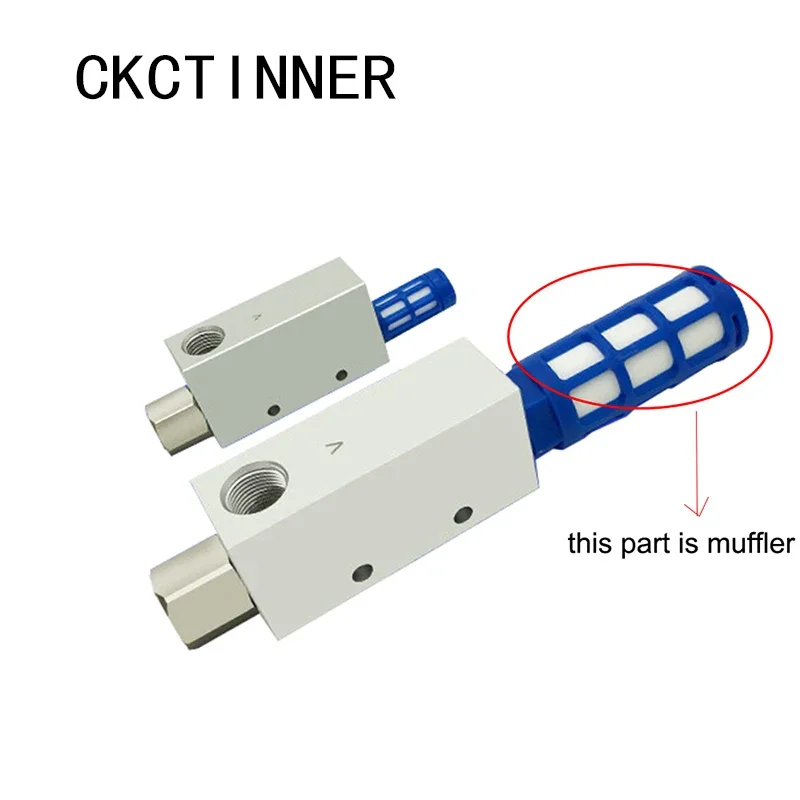

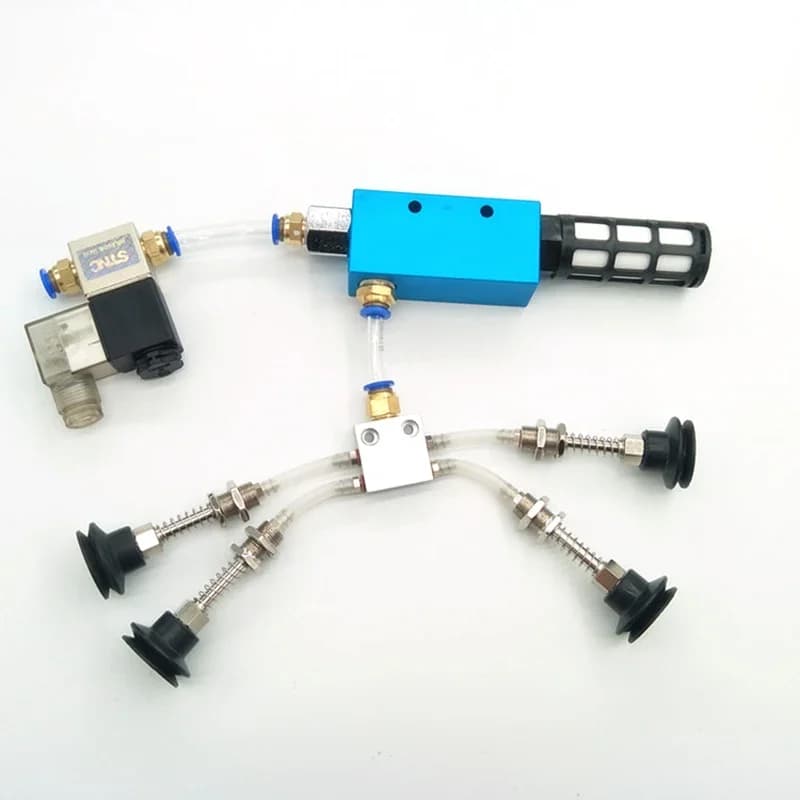

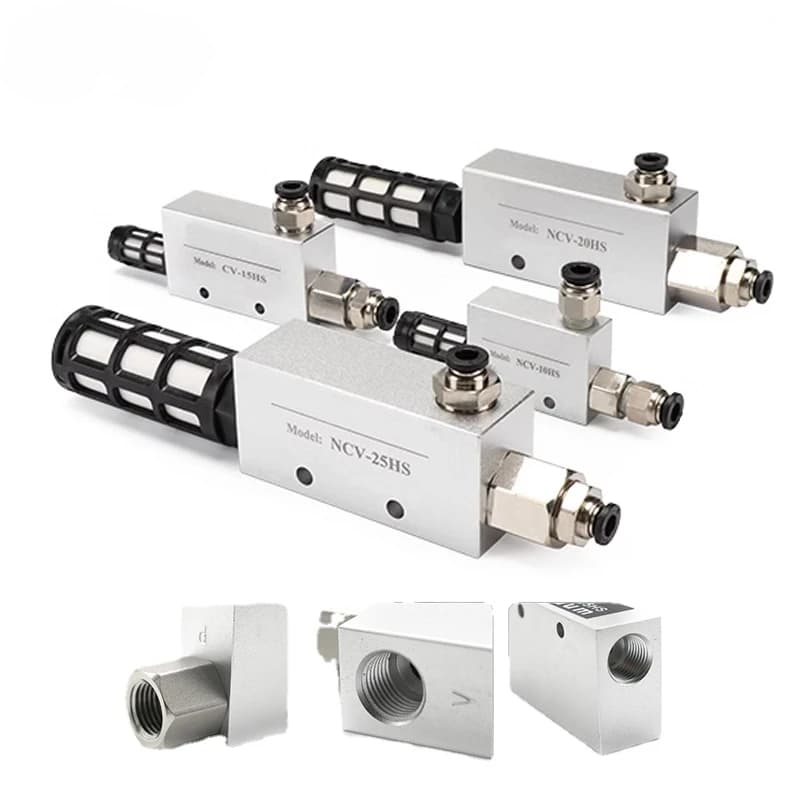

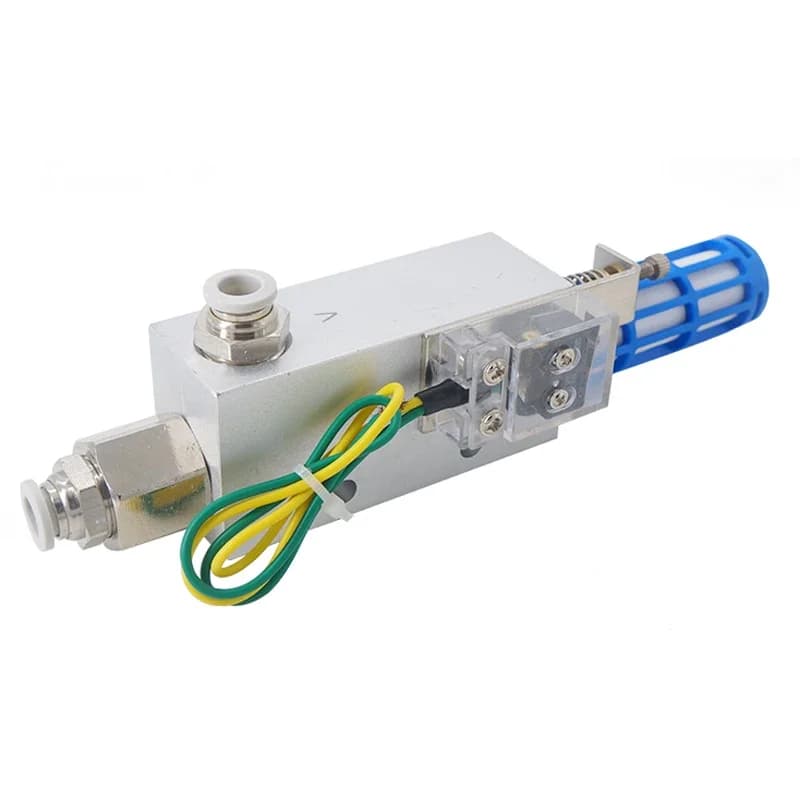

Pneumatic Vacuum Generator | ACV Series Ejector | CV-10 to CV-25 | Negative Pressure Control Valve

The ACV CV series vacuum generator provides reliable, high-flow vacuum generation for demanding industrial applications. This compact ejector is engineered for efficient operation, creating a powerful vacuum from standard compressed air lines to handle materials like sheet metal, plastic, and glass. Its robust design ensures consistent negative pressure for secure holding and lifting tasks. Features and Benefits - Multiple Port Sizes (CV-10, 15, 20, 25) - Offers flexibility to match your specific system's flow rate and connection requirements for optimal integration. - Air Exhaust Ejector Design - Generates vacuum without moving parts, ensuring high reliability, minimal maintenance, and long service life in harsh environments. - Negative Control Valve Integration - Allows for precise on/off control of the vacuum circuit, enabling quick part release and efficient cycle times. - Pneumatic Operation - Powered by standard plant air, eliminating the need for electrical connections and providing a safe solution for wet or hazardous areas. - Compact and Lightweight Construction - Saves valuable space on machinery and robotic end-effectors, simplifying installation and reducing load. Applications - Robotic End-of-Arm Tooling (EOAT) - Provides secure vacuum gripping for pick-and-place automation of parts in manufacturing and packaging lines. - CNC Machining and Workholding - Creates a reliable vacuum bed to firmly hold sheet materials like acrylic, aluminum, or wood during cutting and milling operations. - Material Handling and Lifting - Enables the safe lifting and movement of non-porous panels, such as glass or composite sheets, in fabrication shops. - Packaging and Palletizing - Used in systems to lift and position bags, cartons, or lids where a clean, reliable holding force is required. Note: For best performance, ensure your compressed air supply is clean, dry, and regulated to the manufacturer's specified pressure range.
