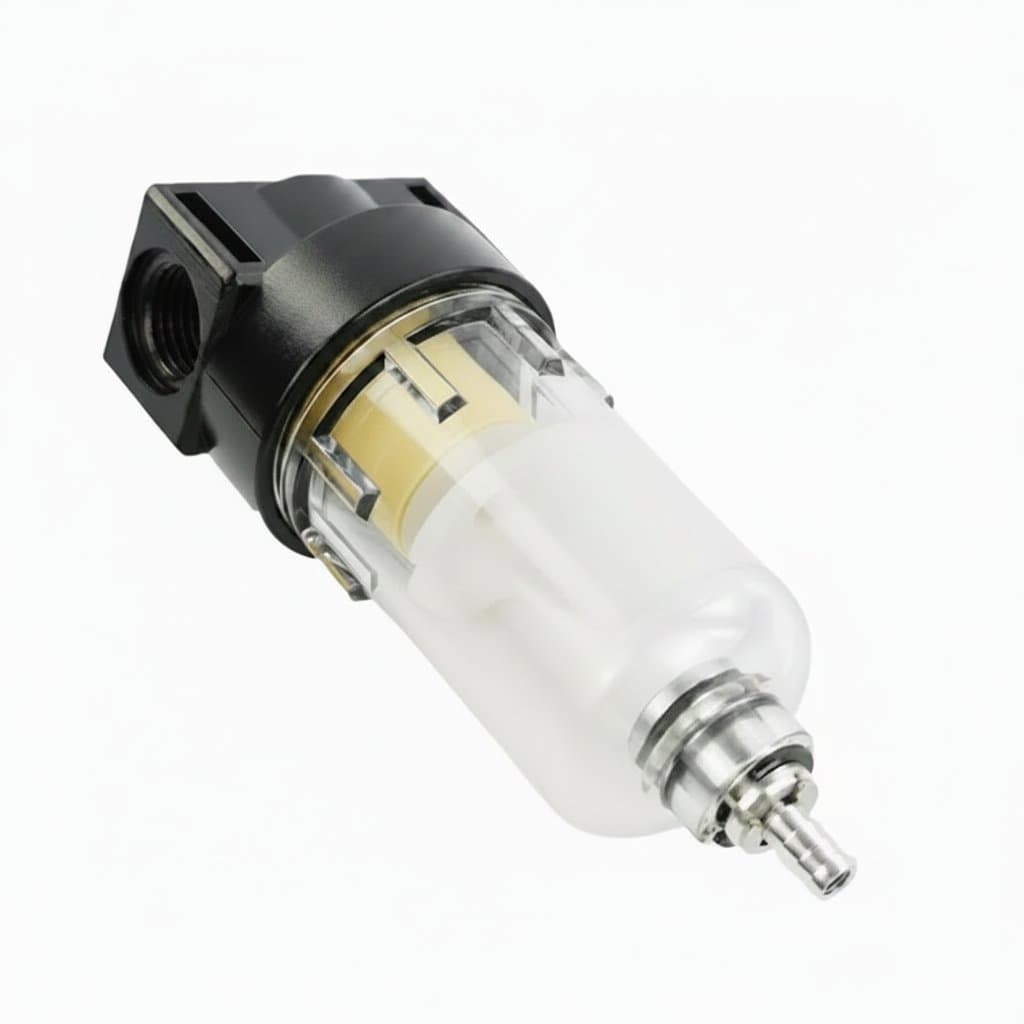

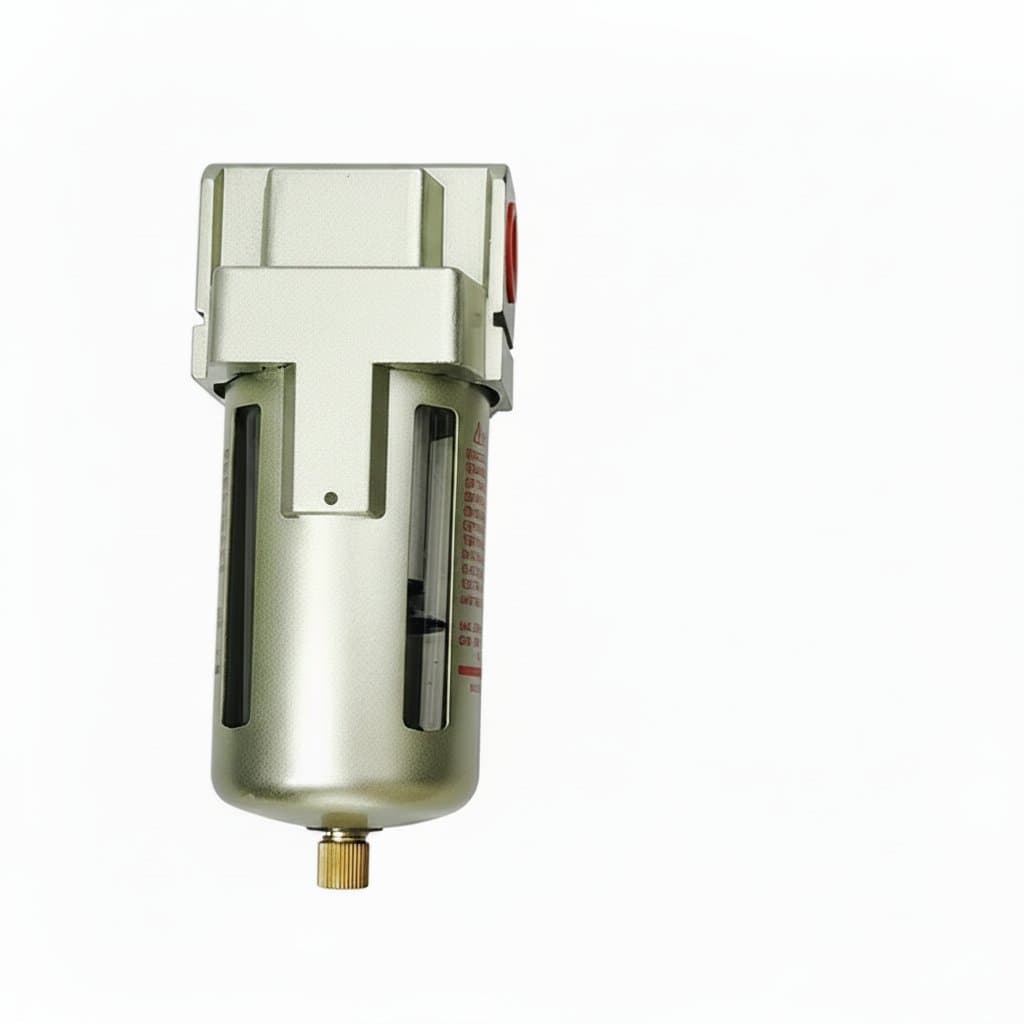

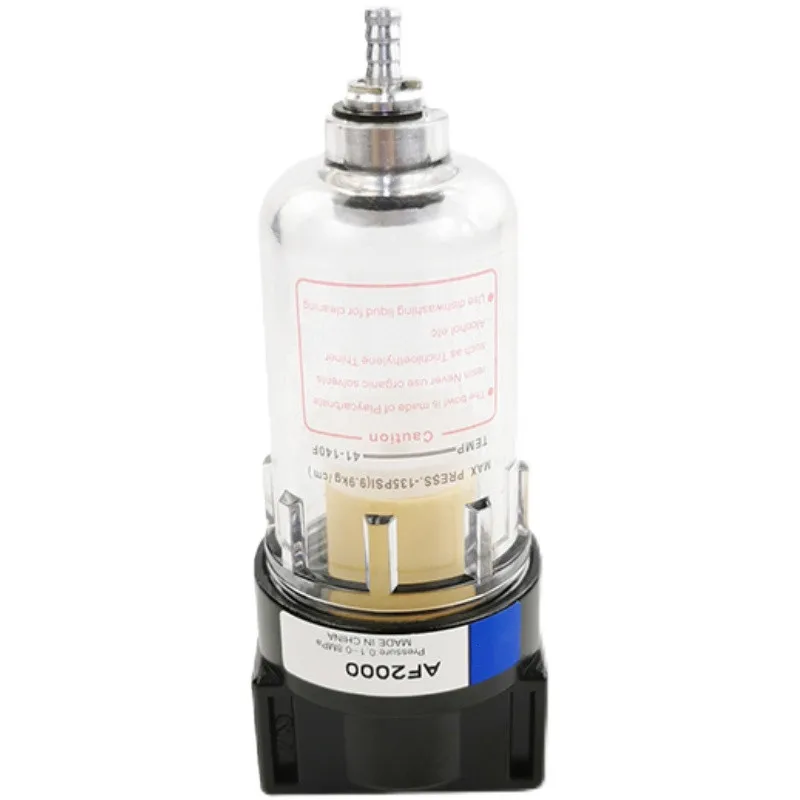

The AF2000-02 universal compressor moisture separator delivers clean, dry air critical for protecting your tools and finishes. This 1/4" NPT unit features an automatic drain valve for maintenance-free operation and efficiently removes water, oil, and particulates from your air line, extending the life of your pneumatic equipment and ensuring professional results. Features and Benefits
- Universal 1/4" NPT Ports - Provides easy integration into most existing compressor and tool setups without the need for multiple adapters.
- Automatic Drain Valve - Eliminates the need for manual draining, ensuring consistent performance and preventing water accumulation that can damage the filter.
- Multi-Stage Filtration System - Captures water, oil aerosols, and solid particulates to deliver exceptionally clean air for sensitive tools and applications.
- Durable, Corrosion-Resistant Construction - Built with robust materials to withstand demanding workshop environments and provide long-term reliability.
- Compact and Lightweight Design - Easy to install in tight spaces on mobile compressor carts or within fixed workshop air systems. Applications
- Spray Painting and Finishing - Essential for preventing water spots and contamination in paint, ensuring a smooth, professional-quality finish.
- Air Tool Operation - Protects expensive pneumatic tools like nailers, sanders, and impacts from internal corrosion and wear caused by moisture.
- Sandblasting and Airbrushing - Provides the clean, dry air required for precise control and to prevent clogging in fine-detail work.
- General Workshop Air Supply - Safeguards all downstream pneumatic equipment and air lines as a primary point-of-use filter.
Connection Port Size: 1/4 inch NPT. Housing Material: Aluminum. Element Material: Borosilicate Glass Fiber. Application: Universal Compressor. Connection Type: Female Thread. Drain Type: Automatic Condensate Drain. Filter Element Type: Coalescing. Function: Water Separator, Oil Filter. Maximum Flow Rate: 2000 l/min. Maximum Operating Pressure: 10 bar. Model Number: AF2000-02. Product Type: Compressed Air Filter. Inlet/Outlet Port Size: 1/4 inch NPT (National Pipe Thread). Housing Material: Anodized Aluminum or Reinforced Polymer. Drain Bowl Capacity: 100 to 200 ml (estimated). Flow Capacity: 15 to 25 SCFM at 100 PSI (estimated). Moisture Removal Efficiency: >99% at rated flow and pressure. Oil Removal Capacity: 0.01 ppm w/w residual oil content (typical for coalescing). Operating Temperature Range: 35°F to 120°F (2°C to 49°C). Filtration Rating: 0.3 to 1.0 micron (typical for coalescing). Maximum Operating Pressure: 150 PSI (10.3 Bar) typical. Thread Standard: NPT (National Pipe Thread). Drain Type: Automatic condensate drain. Element Media: Borosilicate micro-fiber or sintered polymer. Filter Element Type: Coalescing filter element. Filter Stages: Multi-stage (Water/Oil/Automatic Drain). Installation Orientation: Vertical, inlet marked. Pressure Drop: <5 PSI at rated flow. Primary Function: Coalescing Filtration for Compressed Air. Product Type: Universal Compressor Moisture Separator / Filter Assembly. Q: What are the specifications and dimensions of the AF2000-02 universal compressor moisture separator? A: The AF2000-02 is a universal source treatment unit designed for 1/4 inch connections. It features an automatic drain for captured water and oil, ensuring consistent air quality without manual intervention.. Q: How durable is the AF2000-02 air filter and moisture separator? A: This unit is built with robust materials to withstand regular industrial use. Its design focuses on reliable, long-term performance in filtering moisture and oil from compressed air systems.. Q: Is the AF2000-02 universal moisture separator compatible with my air compressor? A: Yes, its universal 1/4 inch NPT connection makes it compatible with a wide range of standard air compressors and pneumatic tools. It is designed as a general-purpose filter and water separator for compressed air lines.. Q: Does this compressor filter and automatic drain come with a warranty? A: Warranty details are typically provided by the seller at the point of purchase. We recommend checking the specific warranty terms listed on the product page or contacting the seller directly for confirmation.. Q: Is the AF2000-02 a good value for a moisture separator and oil filter? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with the added convenience of an automatic drain..
