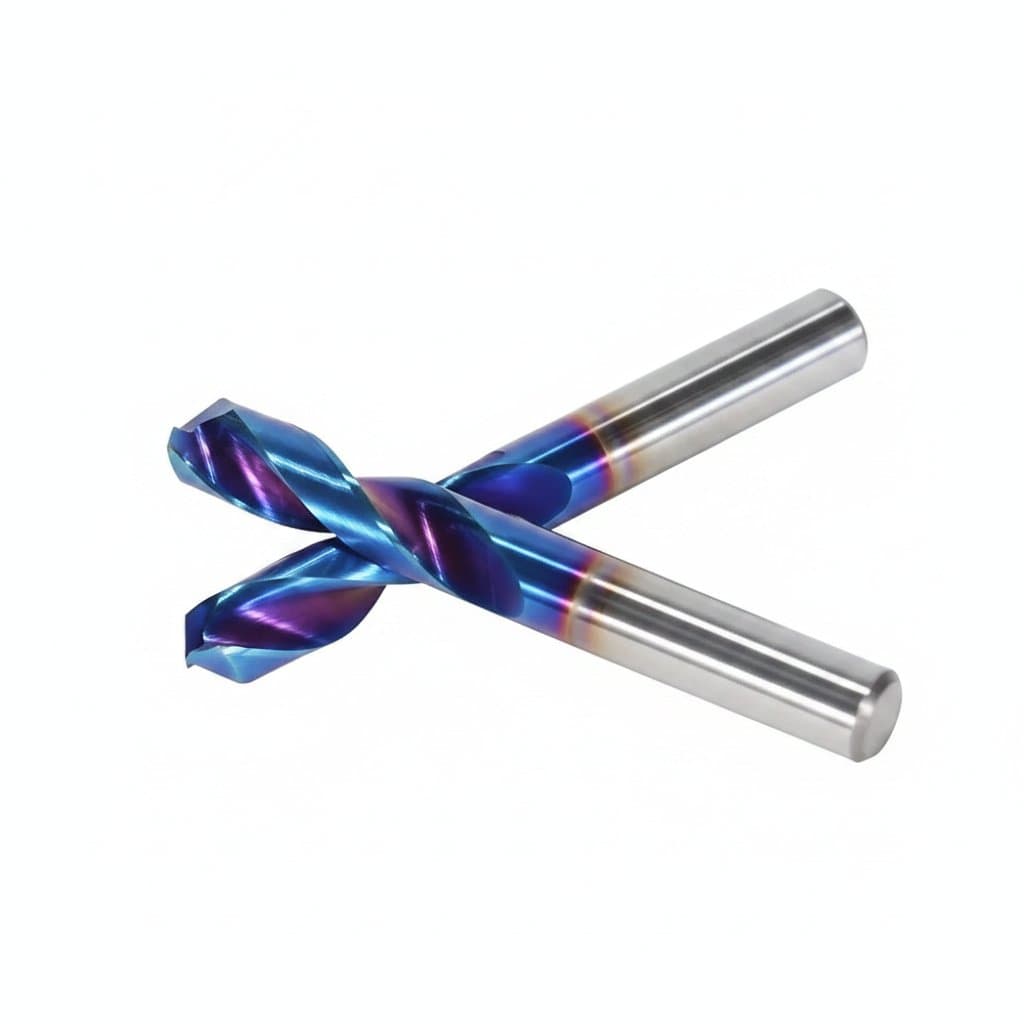

Engineered for extreme hardness, the LUFEICNC HRC65° Tungsten Carbide Drill Bits deliver superior performance in stainless steel and hardened alloys. With a Rockwell hardness rating of 65, these bits maintain a sharp cutting edge far longer than standard HSS, reducing tool changes and increasing productivity on demanding metalworking projects. Features and Benefits
- HRC65° Tungsten Carbide Tip - Exceptional wear resistance for drilling through hardened steel, stainless steel, and cast iron with minimal heat buildup and extended tool life.
- Precision Ground Flutes - Optimized chip evacuation reduces clogging and heat, ensuring cleaner holes and preventing work-hardening of materials like 304/316 stainless.
- 135° Self-Centering Point Geometry - Provides accurate starting without walking, reducing burrs and improving hole placement accuracy for CNC and manual drilling.
- Full Size Range (0.5-20mm) - A comprehensive set for intricate precision work up to heavy-duty drilling, offering versatility for various project requirements.
- Robust Shank Design - Ensures maximum grip and minimal runout in chucks, enhancing stability and drilling accuracy on lathes, mills, and drill presses. Applications
- CNC Machining and Lathe Work - Ideal for automated production runs where consistent performance and minimal tool deflection are critical for tight-tolerance parts.
- Professional Fabrication and Repair Shops - Tackle tough materials daily, from stainless steel fixtures to hardened tooling, with reliable, budget-friendly professional tools.
- Automotive and Aerospace Metalworking - Drill high-strength alloys and stainless components with confidence, benefiting from the enhanced durability of tungsten carbide.
- Advanced DIY and Prototyping - An excellent choice for enthusiasts and machinists who require quality tooling for challenging materials without the premium brand price point. Note
For optimal results, use with a rigid setup, appropriate cutting speeds, and consistent coolant or lubricant, especially when drilling stainless steels.
Material: Tungsten Carbide (WC). Coating: Uncoated. Cutting Direction: Right-Hand Cut. Diameter Range: 0.5 - 20 mm. Flute Length: 38 mm. Flute Type: Spiral Flute. Hardness: HRC 65. Helix Angle: 30°. Overall Length: 75 mm. Point Angle: 140°. Product Type: Tungsten Carbide Drill Bit. Rotation: Clockwise. Shank Diameter: 3 mm. Shank Type: Straight Shank. Diameter Increments: Standard metric sizes (e.g., 0.5, 1.0, 1.5, 2.0... up to 20.0 mm). Diameter Range: 0.5 mm to 20 mm. Flute Length Range: ~10 mm to ~80 mm (inferred proportional to diameter range). Overall Length Range: ~38 mm to ~150 mm (inferred proportional to diameter range). Applicable Workpiece Material: Stainless Steel, Hardened Steel, Alloy Steel, Cast Iron. Material: Tungsten Carbide (WC-Co). Machine Compatibility: CNC Lathe, CNC Milling Machine, Precision Drill Press. Coating: Uncoated (Bright Finish, inferred from title). Coolant Application: Through-tool coolant recommended (inferred for deep-hole drilling in stainless). Cutting Direction: Right-hand rotation, right-hand cut (standard). Flute Count: 2. Flute Type: Spiral Flute. Hardness: HRC 65°. Helix Angle: 30° (inferred standard for stainless steel). Point Angle: 140° (inferred standard for stainless steel). Product Type: Solid Carbide Drill Bit. Shank Tolerance: h6 (inferred for precision CNC toolholding). Shank Type: Straight Shank (implied for CNC/collet use). Q: What are the exact size specifications for this LUFEICNC tungsten carbide drill bit set? A: This set includes drill bits ranging from 0.5mm to 20mm in diameter. The specific increments and quantity of bits per size are not provided in the product details, but the range is suitable for a wide variety of precision to medium-duty metal drilling tasks.. Q: How durable is this HRC65° tungsten carbide drill bit for drilling stainless steel? A: The HRC65° hardness rating indicates an extremely hard and wear-resistant material, specifically designed for tough metals like stainless steel. This tungsten carbide construction provides superior durability and heat resistance compared to standard HSS bits, significantly reducing wear during metalworking.. Q: Can I use this drill bit with a standard handheld drill, or is it only for CNC machines? A: While optimized for the stability of CNC lathes and milling machines, these tungsten carbide drill bits can be used in a high-quality, variable-speed handheld drill or drill press. For best results and to prevent breakage, ensure the tool is securely mounted and you use appropriate cutting fluid, especially on hard metals.. Q: Does this metal drill bit set come with any warranty or guarantee? A: Product information regarding a specific manufacturer's warranty is not provided. We recommend reviewing the seller's policy page for details on any satisfaction guarantees or return options that may apply to your purchase.. Q: Is this LUFEICNC drill bit set a good value for professional metalworking? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. The HRC65° tungsten carbide construction delivers reliable performance for regular use on hard metals, making it a cost-effective choice for demanding applications..
