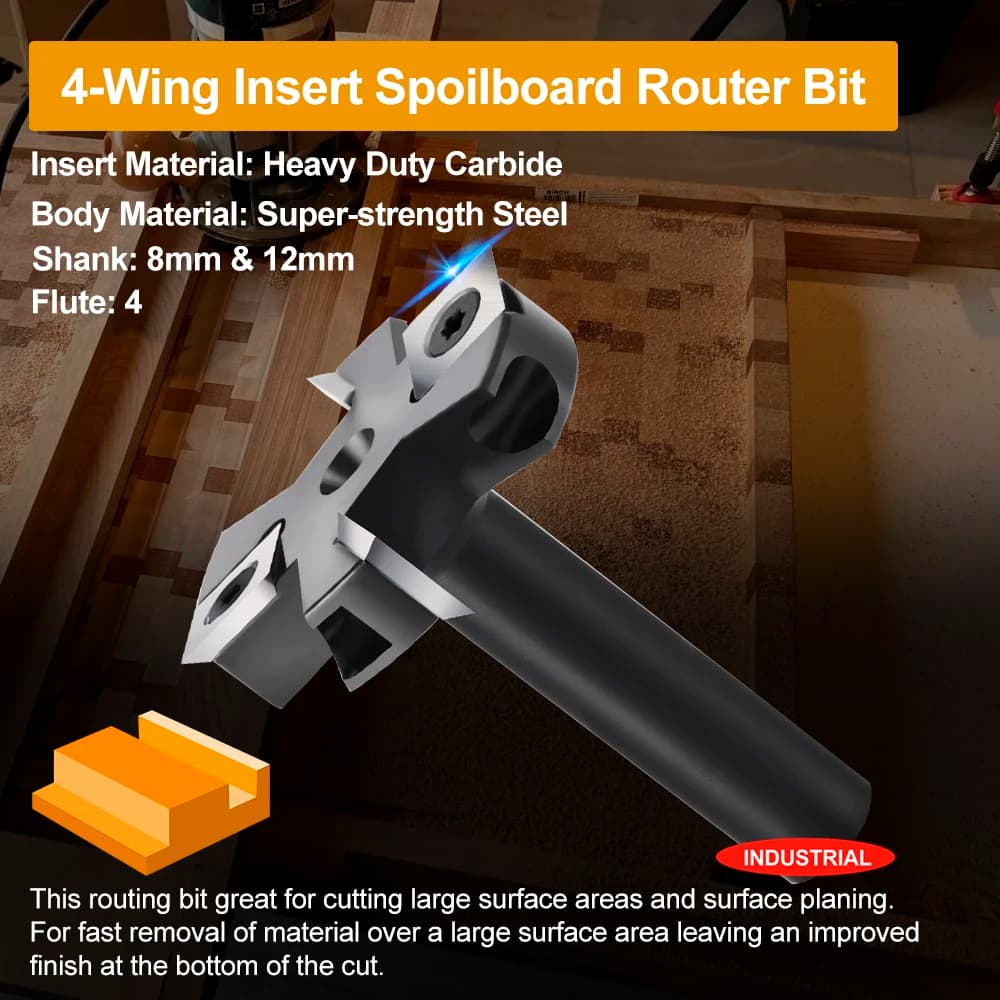

Achieve flawlessly flat surfaces on large wood panels with this professional spoilboard surfacing bit. The 4-flute design and replaceable carbide inserts provide a smooth, tear-out-free finish, making it essential for CNC router tables and slab flattening operations. Features and Benefits

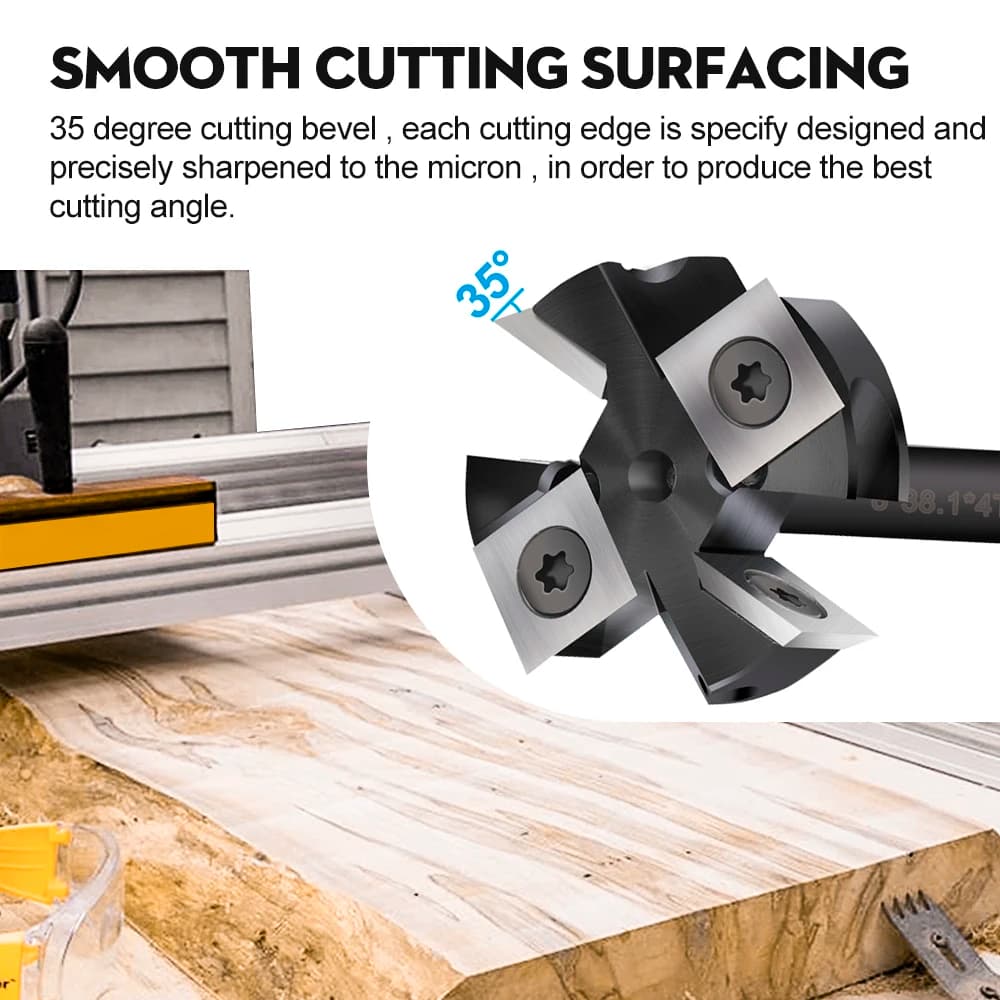

- Four-flute spiral design with shearing action - Produces exceptionally smooth surface finishes with minimal sanding required and efficient chip removal.

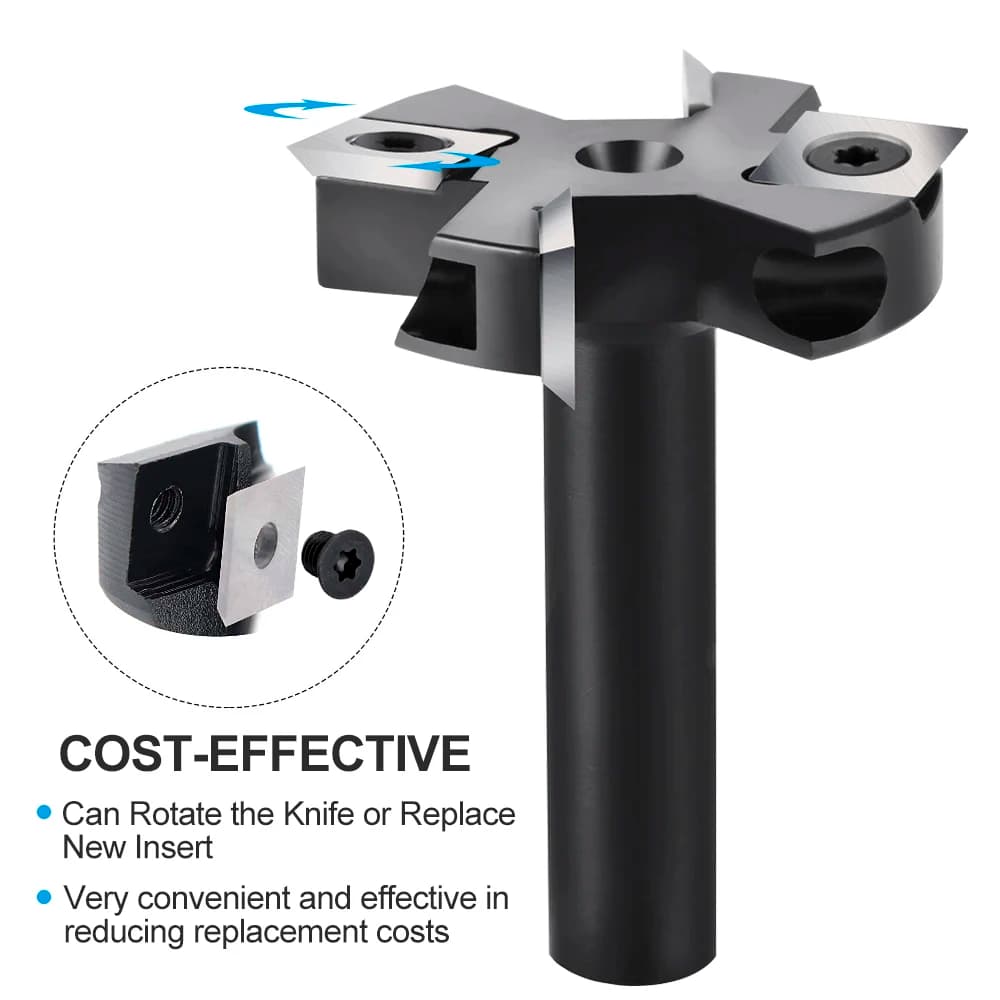

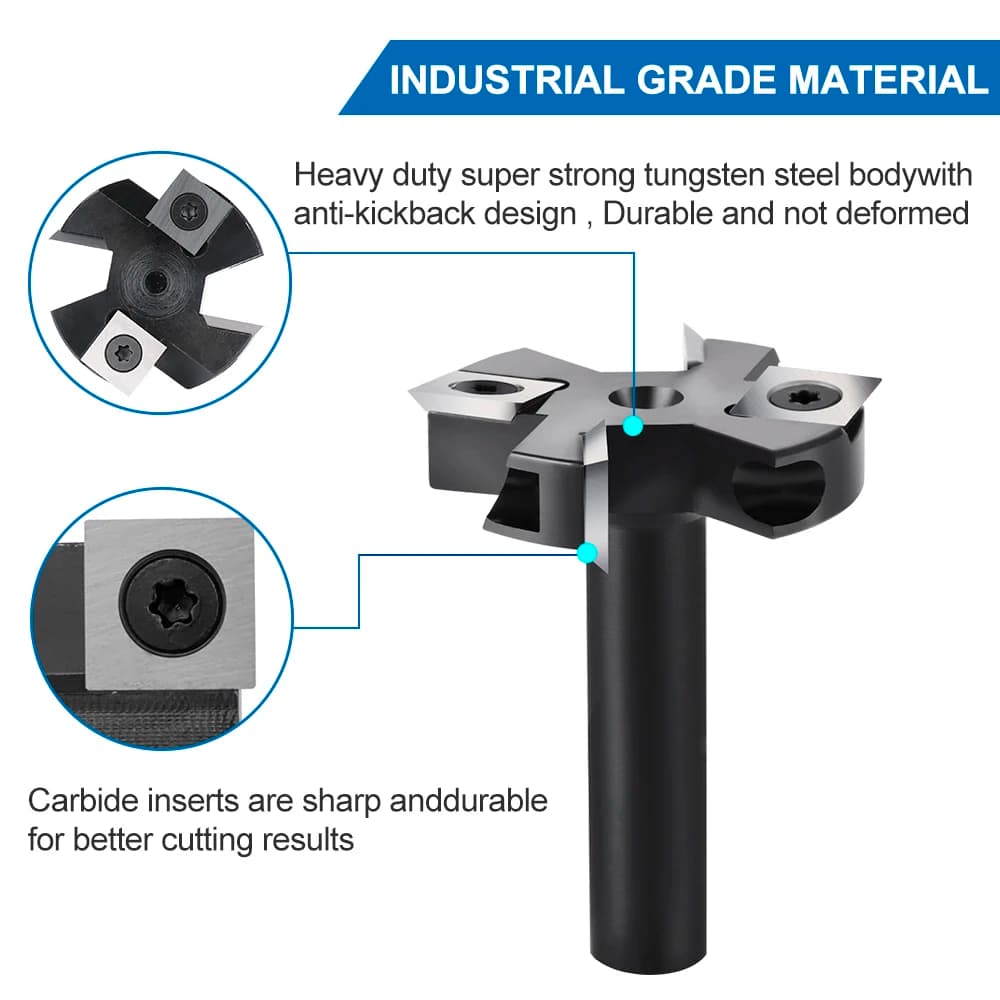

- Replaceable square carbide inserts (commonly APKT or similar) - Allows for easy and cost-effective blade replacement, maximizing tool life and reducing long-term operating costs.
- Robust 8mm or 12mm shank options - Ensures superior rigidity, reduces vibration, and prevents deflection during deep cuts on large workpieces.
- Engineered specifically for spoilboard and slab flattening - Features an optimized cutting diameter and geometry to efficiently mill large surface areas flat and parallel. Applications
- Resurfacing and leveling CNC router spoilboards and work tables to maintain perfect tool height and workpiece alignment.
- Flattening live-edge slabs, tabletops, and wide wooden panels for furniture making and woodworking projects.
- Planing and creating large, flat reference surfaces on plywood, MDF, and solid wood in cabinet shops and professional workshops.
Material: Carbide Insert. Application: Wood slab flattening, spoilboard surfacing, planing. Flute Count: 4. Overall Length: 60mm. Shank Diameter: 8mm / 12mm. Degree: R0.1. Product Type: Spoilboard Surfacing Router Bit. Cutting Diameter: Typically 50-80 mm (inferred from application). Overall Length: Approx. 80-120 mm (estimated). Shank Diameter Options: 8 mm, 12 mm. Cutting Edge Material: Carbide. Cutting Material: Carbide Insert. Recommended Router Power: > 2 HP (1500W). Recommended RPM Range: 10,000 - 18,000 RPM. Application: Wood planing, slab flattening, spoilboard surfacing. Bit Style: Insert-based, replaceable carbide cutters. Brand: XCAN. Insert Replacement: Yes, uses standard carbide inserts. Maximum Recommended Feed Rate: 100-300 inches per minute (dependent on material). Number of Flutes: 4. Primary Use: Flattening large wood slabs and leveling CNC spoilboards. Product Type: Spoilboard Surfacing Router Bit / Slab Flattening Bit. Q: What are the exact specifications for the XCAN 4-flute spoilboard surfacing router bit? A: This XCAN bit features a 4-flute design with an 8mm or 12mm shank option for secure collet grip. It utilizes a replaceable carbide insert for the cutting edge, designed specifically for slab flattening and spoilboard surfacing tasks.. Q: What are the exact specifications and dimensions of the XCAN 4-flute spoilboard surfacing bit? A: This XCAN milling cutter features a 4-flute design with an 8mm or 12mm shank option. It is designed for slab flattening and spoilboard surfacing, utilizing a carbide insert for the cutting edge, though specific cutting diameter and overall length are not provided in the product details.. Q: What are the technical specs of this spoilboard surfacing router bit? A: This is a 4-flute spoilboard flattening bit designed for slab leveling and planing. It features an insert carbide cutting design and is available with either an 8mm or 12mm shank diameter for use in routers and CNC machines.. Q: How durable is the carbide insert on this wood planer bit? A: The carbide insert is highly durable and designed to withstand the rigors of flattening hardwoods and composite materials. Its replaceable nature means you can easily swap in a fresh cutting edge, significantly extending the overall life of the router bit.. Q: How durable is the carbide insert on this wood planer bit for heavy use? A: The carbide insert is designed for high durability and long life, making it suitable for flattening slabs and surfacing large workpieces. It maintains a sharp edge through demanding tasks, offering reliable performance for both professional and serious DIY workshop use.. Q: How does the quality of this planer bit compare for surfacing large wood slabs? A: The bit is built for heavy-duty surfacing, featuring a robust body and replaceable carbide inserts. This design ensures a smooth finish on large workpieces like tabletops and provides excellent durability for flattening operations.. Q: Can this slab flattening bit be used with any router for planing large surfaces? A: Yes, this bit is compatible with any standard router that accepts an 8mm or 12mm collet. It is specifically engineered for use in router sleds or CNC machines to plane and flatten large slabs, tabletops, and workbench surfaces effectively.. Q: Can this slab flattening bit be used with a standard handheld router? A: Yes, this router bit is compatible with any standard router that accepts an 8mm or 12mm collet. It is specifically designed for surfacing and flattening operations, making it ideal for use in a router sled setup to level large wooden slabs or clean up workbench tops.. Q: What type of machines is this flattening bit compatible with? A: It is compatible with standard routers and CNC routers that have collets matching the 8mm or 12mm shank options. It is specifically designed for spoilboard surfacing, slab flattening, and large-area planing tasks.. Q: Does the XCAN milling cutter come with a warranty or guarantee? A: Warranty details are not provided in the product listing. We recommend contacting the seller directly for specific information regarding any product guarantees or return policies before purchase.. Q: Does the XCAN milling cutter come with any warranty or guarantee? A: Warranty information for this specific product is not provided in the available details. We recommend checking the product listing or contacting the seller directly for information regarding any manufacturer guarantees or return policies.. Q: What warranty coverage is offered with this router bit? A: For warranty information, such as coverage period and terms for defects, please refer to the seller's product page or documentation. Manufacturer warranties often cover the tool body under normal use conditions.. Q: Is this XCAN spoilboard surfacing bit a good value compared to premium brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in slab flattening and surface planing applications.. Q: Is this XCAN surfacing bit a good value compared to premium brand options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in slab flattening and spoilboard surfacing applications.. Q: Is this insert-style surfacing bit a good value for woodworking shops? A: Yes, the insert carbide design offers excellent value as the cutting edges are replaceable, significantly extending the tool's life compared to solid carbide bits. This reduces long-term costs for shops performing frequent flattening work..
