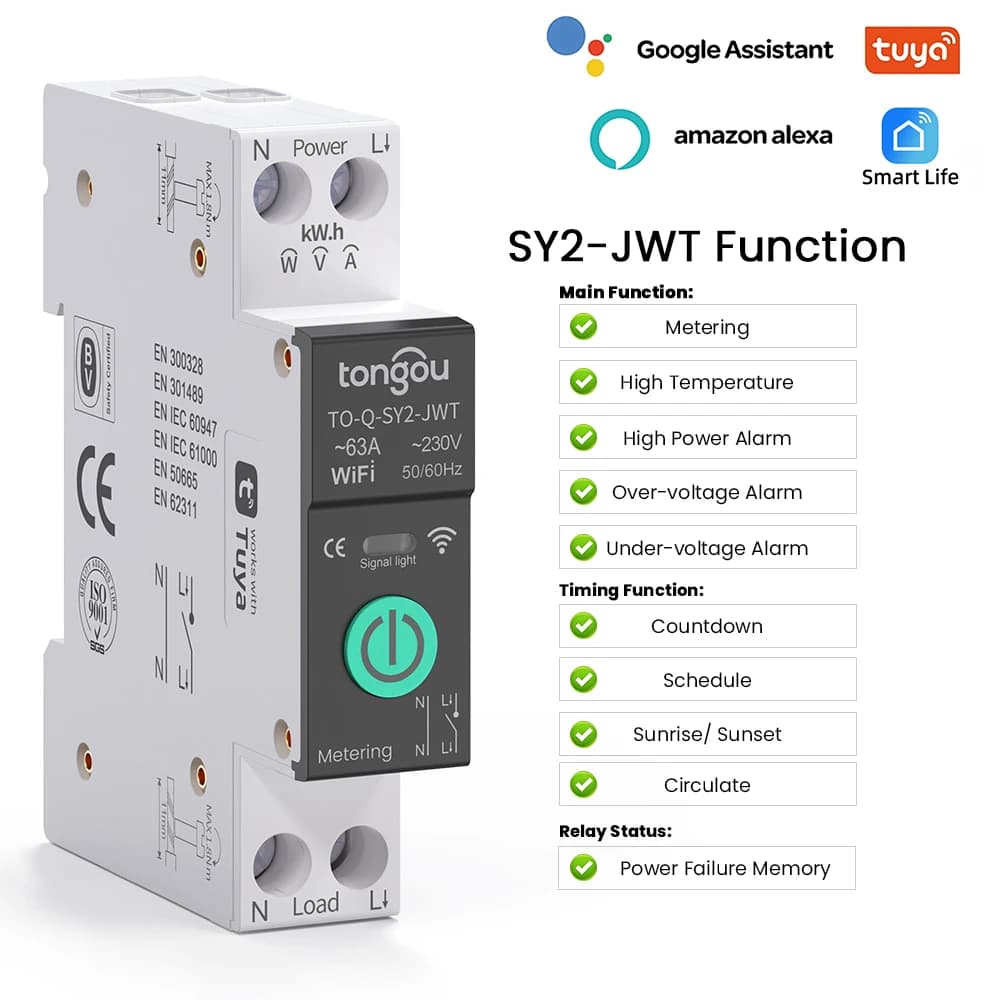

Take full control of your home's electrical circuits with the TUYA WIFI Smart Circuit Breaker. This 1P, 50A/63A DIN-rail device integrates precise energy metering with remote app control, allowing you to monitor real-time power consumption, set schedules, and instantly cut power from anywhere via your smartphone for enhanced safety and efficiency. Features and Benefits
- 50A/63A Rated Current with Precise Metering - Monitor voltage, current, power, and energy consumption in real-time through the app for detailed electrical insights and cost management.
- TUYA Smart Life App & Wireless Remote Control - Securely operate the breaker from anywhere using your smartphone, enabling remote on/off switching and integration with voice assistants.
- DIN Rail Mounting Design - Ensures quick, secure, and standardized installation within any modern electrical panel or distribution board.
- Overload and Short-Circuit Protection - Provides reliable automated safety cutoff to protect your connected appliances and home wiring from electrical faults.
- Scheduling and Timer Functions - Program the breaker to automatically power circuits on or off at set times, ideal for lighting, heating, or routine equipment management. Applications
- Smart Home Energy Management - Install on high-consumption circuits to track and optimize electricity usage for appliances, HVAC systems, or workshops.
- Remote Property and Vacation Home Control - Manage power to essential circuits remotely for security, to prevent phantom loads, or to prepare for arrival.
- Enhanced Workshop and Garage Safety - Control power to heavy-duty tools and machinery remotely, adding a layer of safety and convenience for DIY enthusiasts.
- Automated Agricultural and Irrigation Systems - Schedule power to pumps, lights, or ventilation systems in sheds, greenhouses, or coops for hands-free operation.
Communication Protocol: Wi-Fi. Control Method: Remote via Mobile Application. Function: Circuit Protection, Energy Metering. Mounting Type: DIN Rail. Pole Configuration: 1P. Product Type: DIN Rail Smart Circuit Breaker. Rated Current: 50A, 63A. Battery: No. Certification: CE. Warranty: One year. Energy Metering: Integrated (Voltage, Current, Power, Energy Consumption). Standby Power Consumption: < 1W (WiFi Module). Voltage Rating: 120V/240V AC (Inferred for 1P). Wireless Standard: WiFi 802.11 b/g/n (2.4GHz). Ambient Operating Temperature: -25°C to +55°C. Relative Humidity: ≤ 95% (Non-condensing). Storage Temperature: -40°C to +70°C. Enclosure Protection Rating: IP20 (Standard for DIN Rail Devices). Mounting Standard: DIN Rail (EN 60715, 35mm). Operating Frequency: 50/60 Hz. Communication Protocol: Tuya Smart WiFi (Embedded Module). Connection Type: Screw Terminal. Control Method: Remote Control via Smartphone App (Tuya/Smart Life). Electrical Endurance: ≥ 4000 cycles. Installation Altitude: ≤ 2000m above sea level. Mechanical Endurance: ≥ 10000 cycles. Overload Protection: Thermal-Magnetic Trip Mechanism. Pole Configuration: 1P (Single Pole). Pollution Degree: 2. Product Type: DIN Rail Mounted Smart Circuit Breaker with Energy Metering. Rated Current: 50A, 63A (Dual Rating). Short Circuit Protection: Magnetic Trip Mechanism. Torque Specification: 2.0 N·m (Inferred for terminal screws). Q: What are the specifications for the TUYA WIFI Smart Circuit Breaker? A: This smart circuit breaker is a 1-pole (1P) model designed for DIN rail mounting. It is available in two amperage ratings, 50A and 63A, to suit different electrical load requirements for home circuits.. Q: Is the TUYA smart circuit breaker durable and safe for long-term use? A: Yes, it is built with quality materials for reliable performance and safety. It features built-in overload and short-circuit protection, meeting standard electrical safety requirements for residential installation.. Q: How does the TUYA WIFI Smart Circuit Breaker work with my smart home? A: It connects directly to your home WiFi network via the TUYA or Smart Life app, allowing remote control and scheduling. This compatibility makes it ideal for automating heavy appliances, monitoring energy usage, and integrating with other smart home ecosystems.. Q: Does this smart circuit breaker come with a warranty? A: Yes, the product includes a standard manufacturer's warranty. For specific warranty duration and terms, please check the detailed product listing or contact the seller directly for confirmation.. Q: Is this TUYA Smart Circuit Breaker a good value compared to other smart switches? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, combining remote control, energy metering, and safety features in one device..
