RS485 to TTL UART Converter | Industrial-Grade Isolation & Surge Protection for PLC & MCU

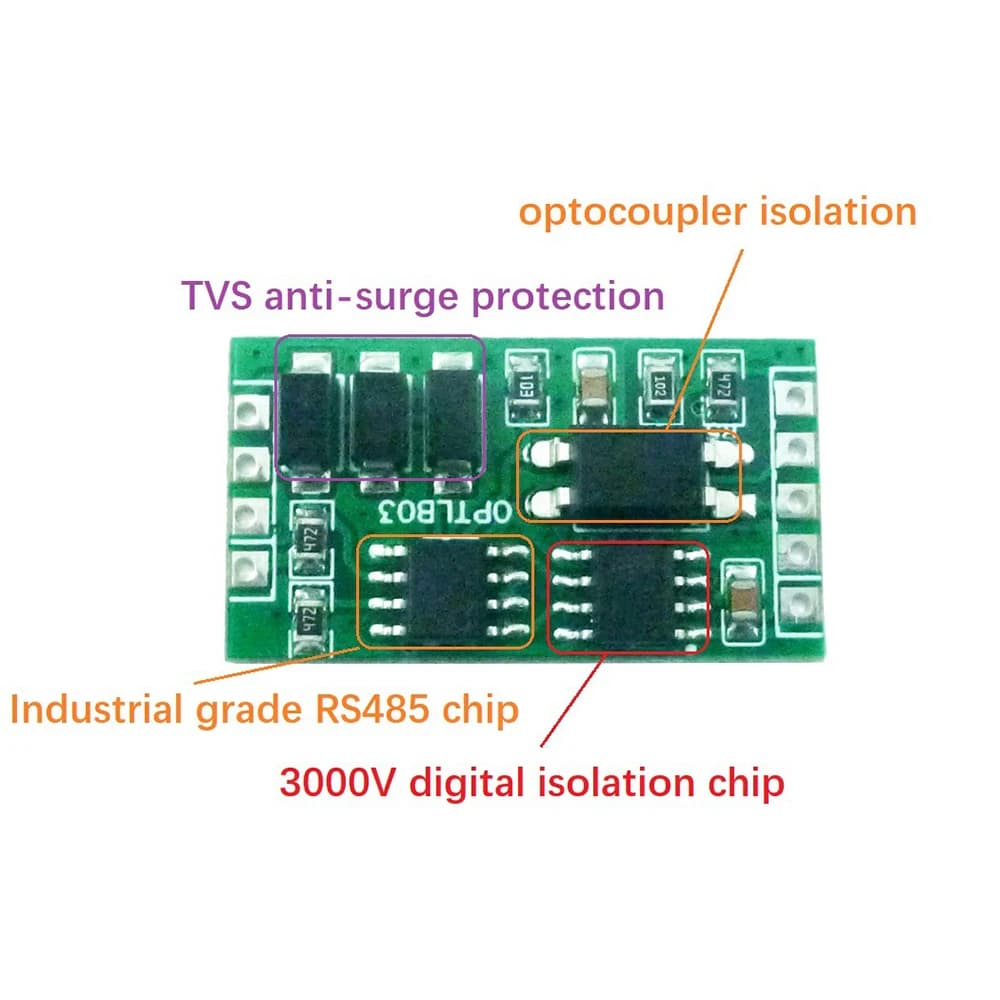

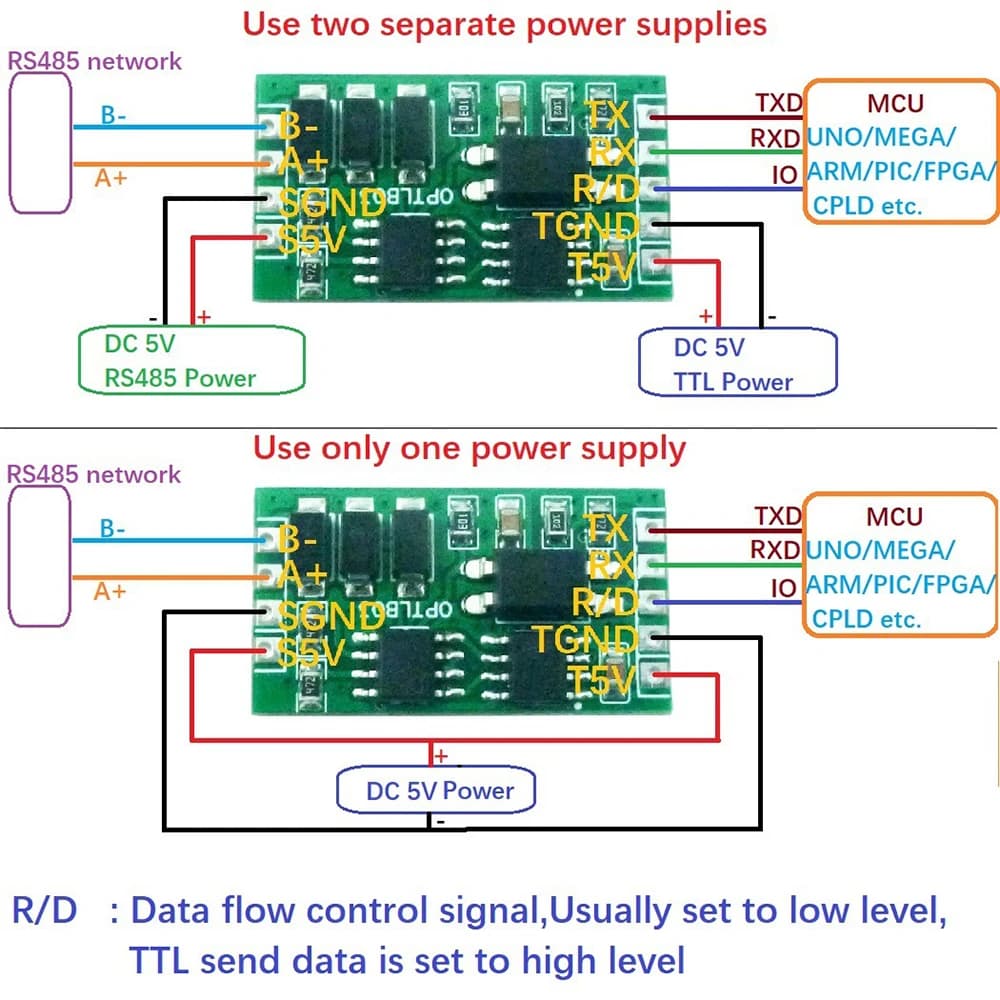

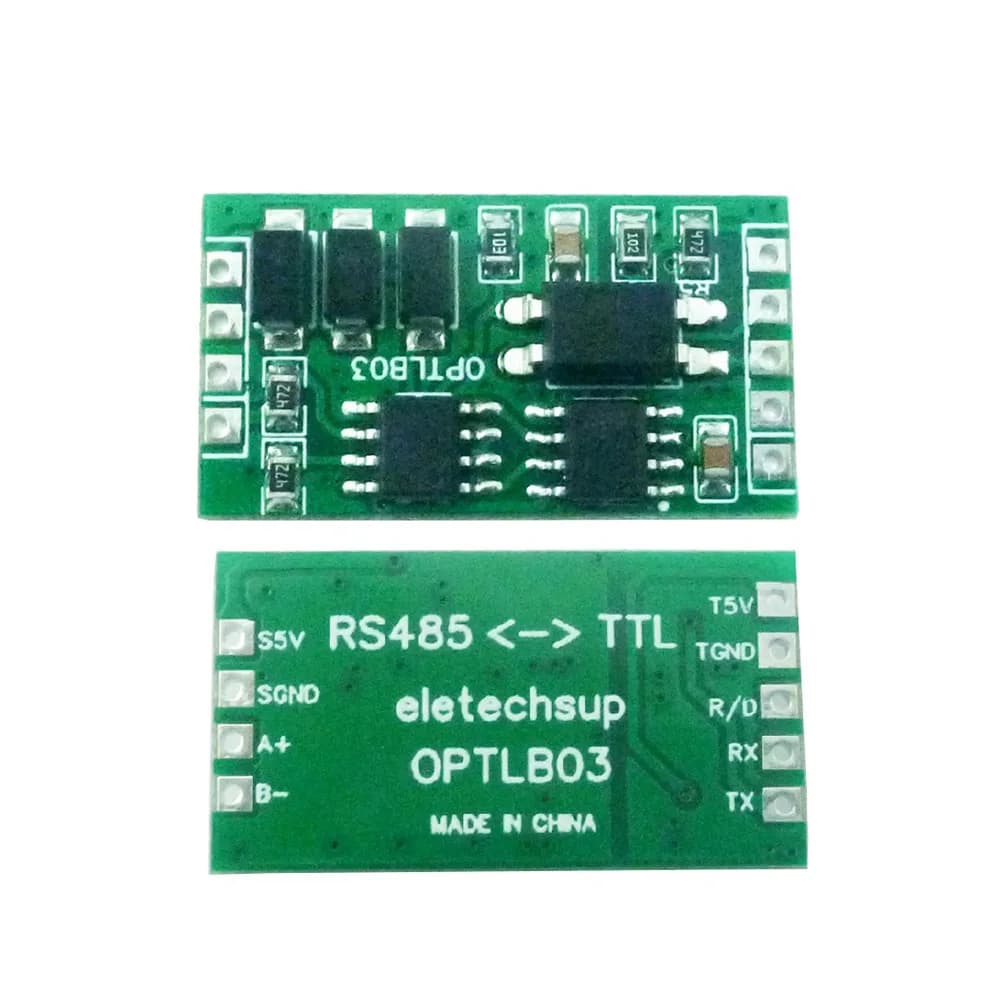

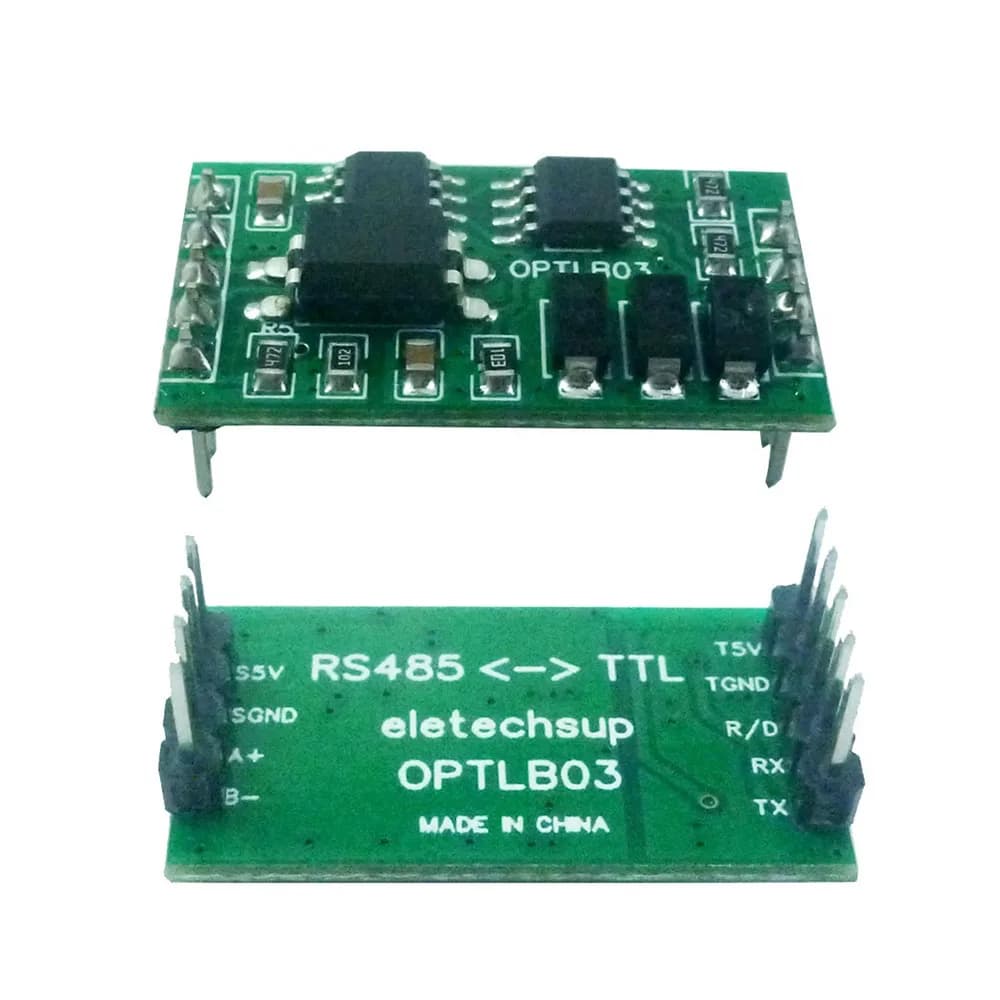

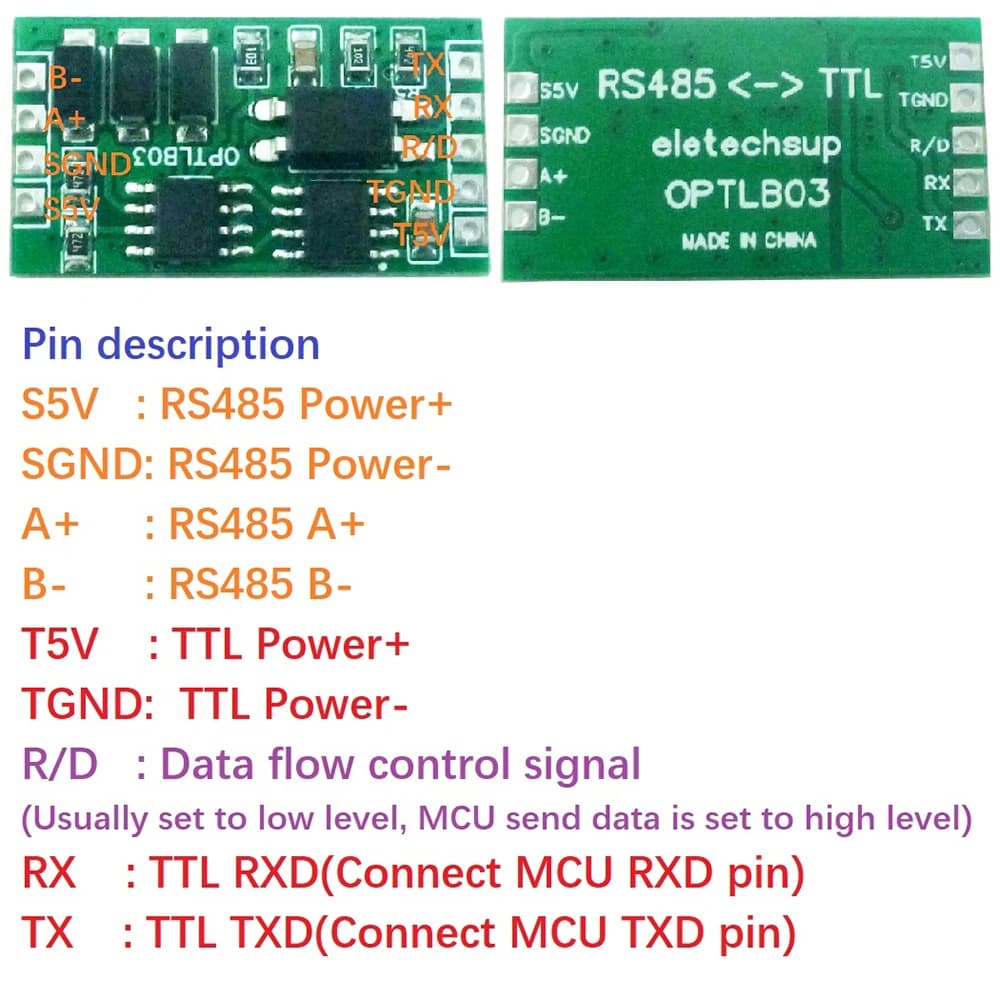

This Industrial Grade RS485 to TTL232 UART Isolated Communication Module provides robust, interference-free data transfer between industrial networks and microcontrollers. It features 2500V optical isolation and integrated surge protection to ensure reliable operation in electrically noisy environments, protecting sensitive PLC, MCU, and FPGA systems from damaging voltage spikes and ground loops. Features and Benefits - 2500V Optical Isolation - Completely breaks ground loops and prevents high-voltage transients from damaging your sensitive TTL-side circuitry, ensuring signal integrity. - Integrated TVS Surge Protection - Safeguards the RS485 interface against induced lightning surges and electromagnetic interference common in industrial settings. - Automatic Data Direction Control - Eliminates the need for a separate GPIO pin to control the RE/DE lines, simplifying firmware development and reducing MCU resource usage. - Wide 5-30V Operating Voltage - Offers flexible power supply compatibility, directly accepting common industrial DC power sources like 12V or 24V systems. - Bi-directional 3.3V/5V TTL UART Interface - Provides direct, level-compatible connectivity to a vast range of modern microcontrollers, FPGAs, and single-board computers without logic level shifters. - Industrial-Grade Components and PCB Layout - Designed for long-term reliability in harsh conditions, offering stable performance where generic modules fail. Applications - PLC and Industrial Controller Networks - Interface industrial sensors, drives, and HMIs using RS485 with a central microcontroller or FPGA-based control system. - Building Automation and HVAC Systems - Create reliable, long-distance communication links for monitoring and control units while protecting core logic from electrical noise. - Renewable Energy and Power Monitoring - Connect inverters, charge controllers, or power meters to a data logging device in environments prone to voltage surges. - Custom CNC and Motion Control - Integrate RS485-based stepper drivers or spindle controllers into a TTL-based main controller for DIY or prototype machinery. Note: Ensure correct wiring of the RS485 A/B lines and provide a stable power source within the specified 5-30V DC range for optimal performance and protection.
