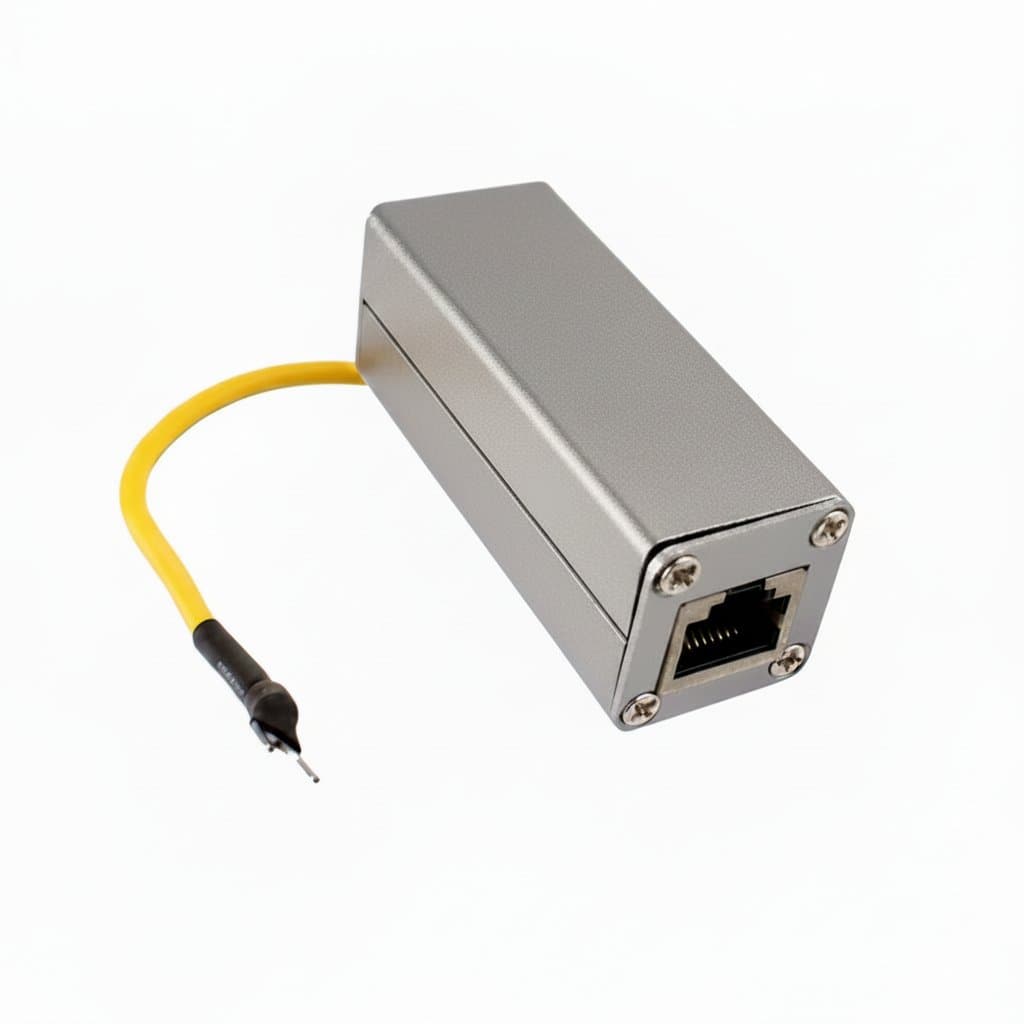

Safeguard your network equipment with the RJ45 Adapter Ethernet Network Device Surge Protector Lightning Arrester #79510. This essential device provides robust protection against voltage spikes and lightning-induced surges, ensuring the longevity of your connected routers, switches, and modems. It features a durable metal oxide varistor (MOV) design for reliable performance and stable data transmission. Features and Benefits
- Metal Oxide Varistor (MOV) Core - Provides fast-acting surge suppression to clamp dangerous voltage spikes before they reach your sensitive electronics.
- RJ45 Port Protection - Shields both your network device and the connected Ethernet cable from transient overvoltage, preventing costly damage.
- Durable Metal Housing - Offers superior heat dissipation and physical durability for reliable operation in demanding environments.
- Plug-and-Play Installation - Requires no software or configuration; simply connect inline between your modem/router and device for instant protection.
- Maintains Signal Integrity - Designed to protect without degrading network performance or data transfer speeds. Applications
- Home Network Protection - Essential for safeguarding routers, gaming consoles, and smart TVs connected to cable or DSL internet lines.
- Small Office/Home Office (SOHO) Setup - Protects critical business hardware like switches, VoIP phones, and NAS devices from electrical disturbances.
- Point-of-Sale and Security Systems - Provides an added layer of defense for always-on commercial equipment vulnerable to power surges. Note: For optimal protection, this device should be used in conjunction with a quality power strip or UPS system. It is designed to absorb a surge event; severe strikes may require unit replacement.
Housing Material: Flame Retardant Plastic. Operating Voltage: 5 V DC. Clamping Voltage: < 10 V. Connector Type: 8P8C. Data Rate: 10/100/1000 Mbps. Function: Ethernet Surge Protection. Insertion Loss: < 0.5 dB. Interface: RJ45. Operating Temperature: -40°C to +85°C. Protection Level: 6 kV. Protection Standard: IEEE 802.3. Response Time: < 1 ns. Return Loss: > 20 dB. Housing Material: Flame Retardant (FR) Plastic (UL94 V-0 rated). Clamping Voltage: < 40 V (typical for data line protection). Maximum Continuous Operating Voltage: 57 V DC. Interface Standard: RJ45 (8P8C). Operating Temperature: 0°C to 40°C. Relative Humidity: 5% to 95% non-condensing. Storage Temperature: -20°C to 70°C. Network Standard: IEEE 802.3 for Ethernet (10/100/1000BASE-T compatible). Insertion Loss: < 0.5 dB at 100 MHz. Maximum Data Rate: 1000 Mbps (Gigabit Ethernet). Mounting: DIN Rail mountable (inferred from common industrial surge protector design). Primary Function: Transient Voltage Surge Suppression (TVSS) for Ethernet Networks. Product Type: RJ45 Ethernet Surge Protector / Lightning Arrester. Protection Circuit: Gas Discharge Tube (GDT) and TVS Diode array. Protection Indicator: Visual status LED (inferred for fault indication). Protection Level: Designed to withstand induced surges per IEC 61000-4-5. Protection Mode: Common Mode (Line-to-Ground) Surge Protection. Response Time: < 1 nanosecond. Return Loss: > 20 dB at 100 MHz. Wiring: Screw terminal or punch-down block for ground connection (inferred). Q: What are the specifications and dimensions of the RJ45 Adapter Ethernet Network Device Surge Protector Lightning Arrester #79510? A: This RJ45 surge protector is designed for standard network applications. While specific dimensions are not provided, it is a compact, in-line adapter that fits easily into most network setups.. Q: How durable is this RJ45 surge protector, and is it built for long-term use? A: Yes, it is constructed with robust materials to ensure durability and reliable surge protection. It is designed for long-term installation in both home and office network environments.. Q: Is this RJ45 Ethernet surge protector compatible with all my network equipment? A: This adapter is compatible with standard RJ45 Ethernet cables and ports, making it suitable for protecting routers, switches, modems, and PCs. It is designed for use in typical 10/100/1000 Mbps network environments.. Q: Does the RJ45 Adapter Ethernet Surge Protector come with a warranty or guarantee? A: Warranty details for this specific model are not provided. For information on any product guarantee, please check the seller's listing or contact customer support directly.. Q: Is this RJ45 lightning arrester a good value compared to other surge protectors? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use and provides essential protection for valuable network hardware..
