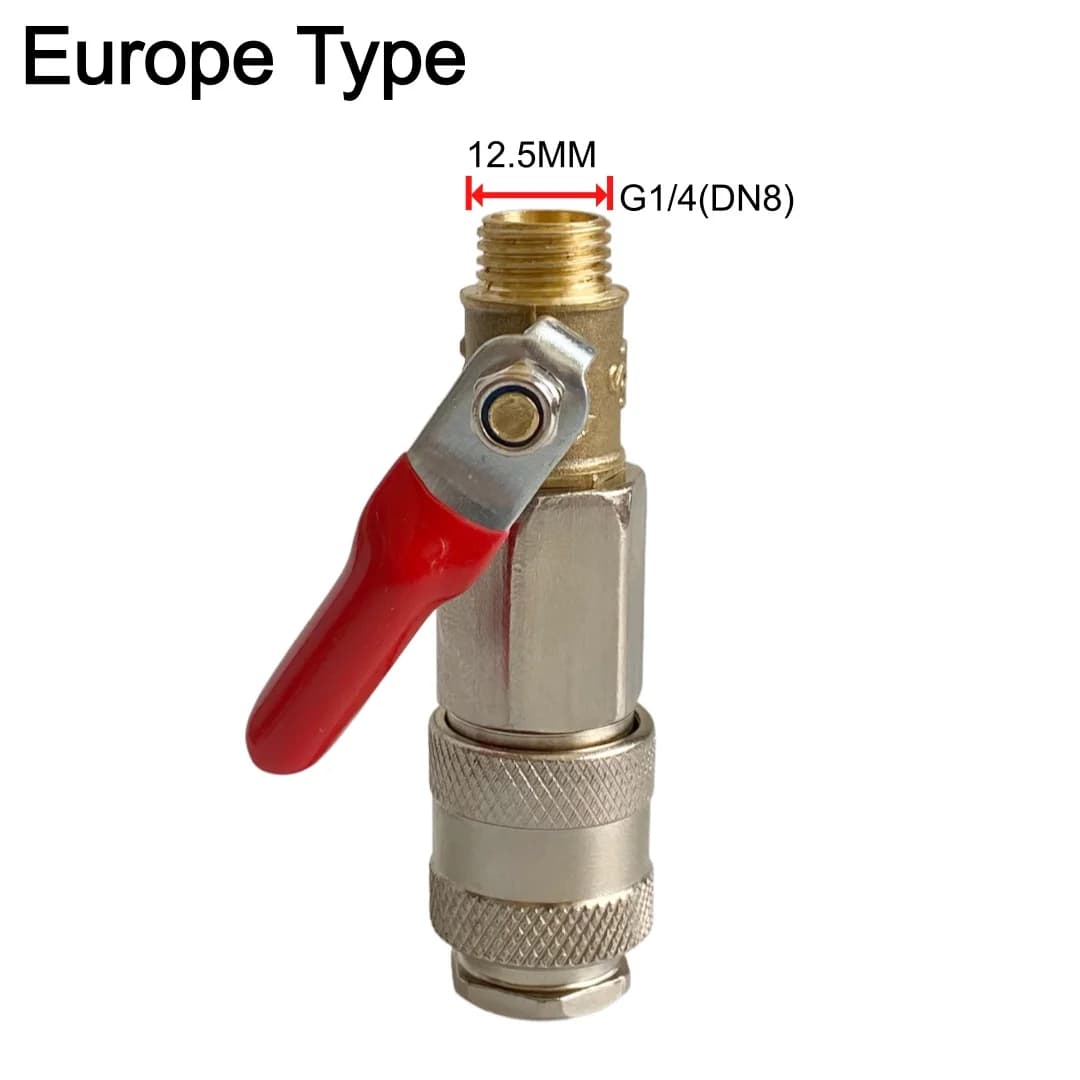

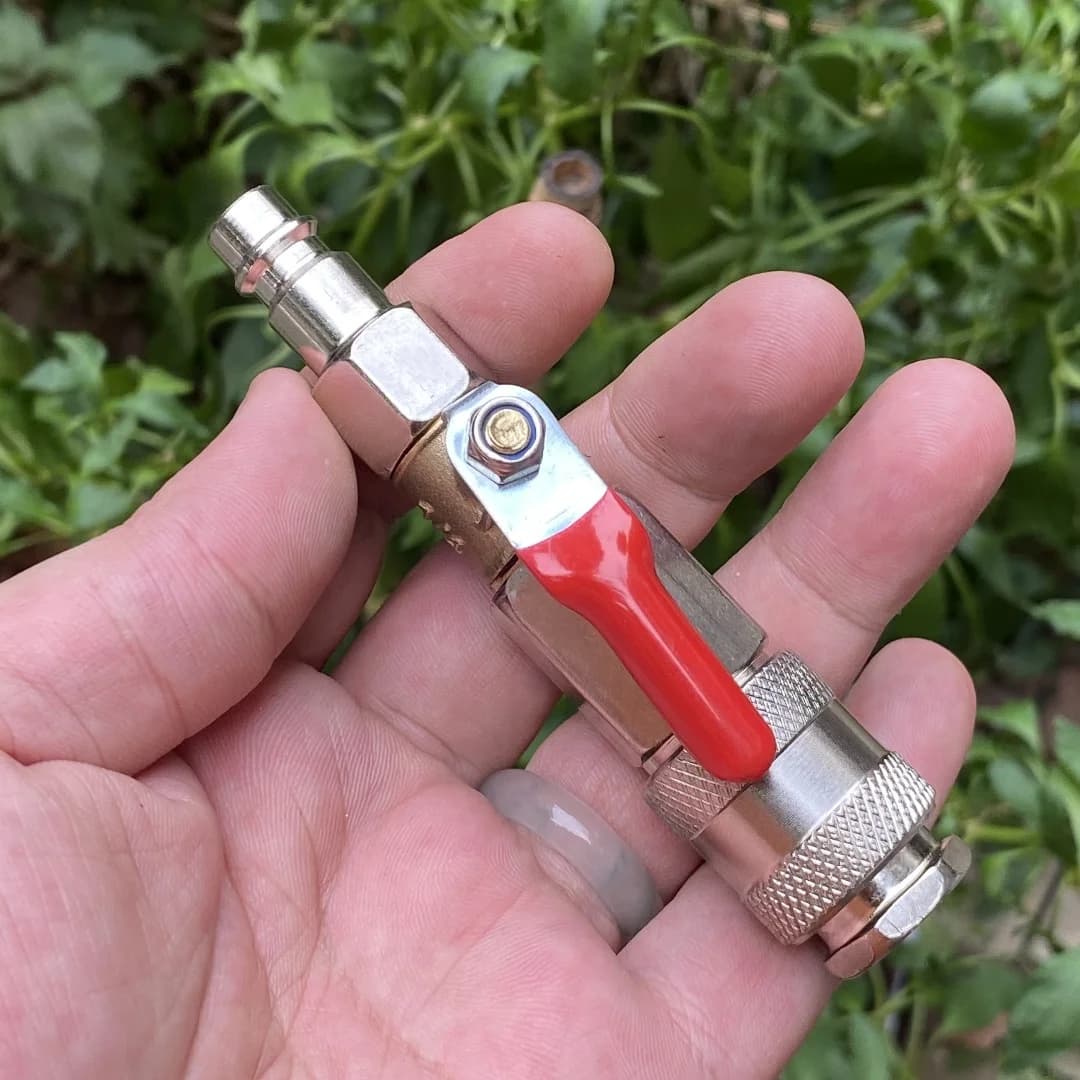

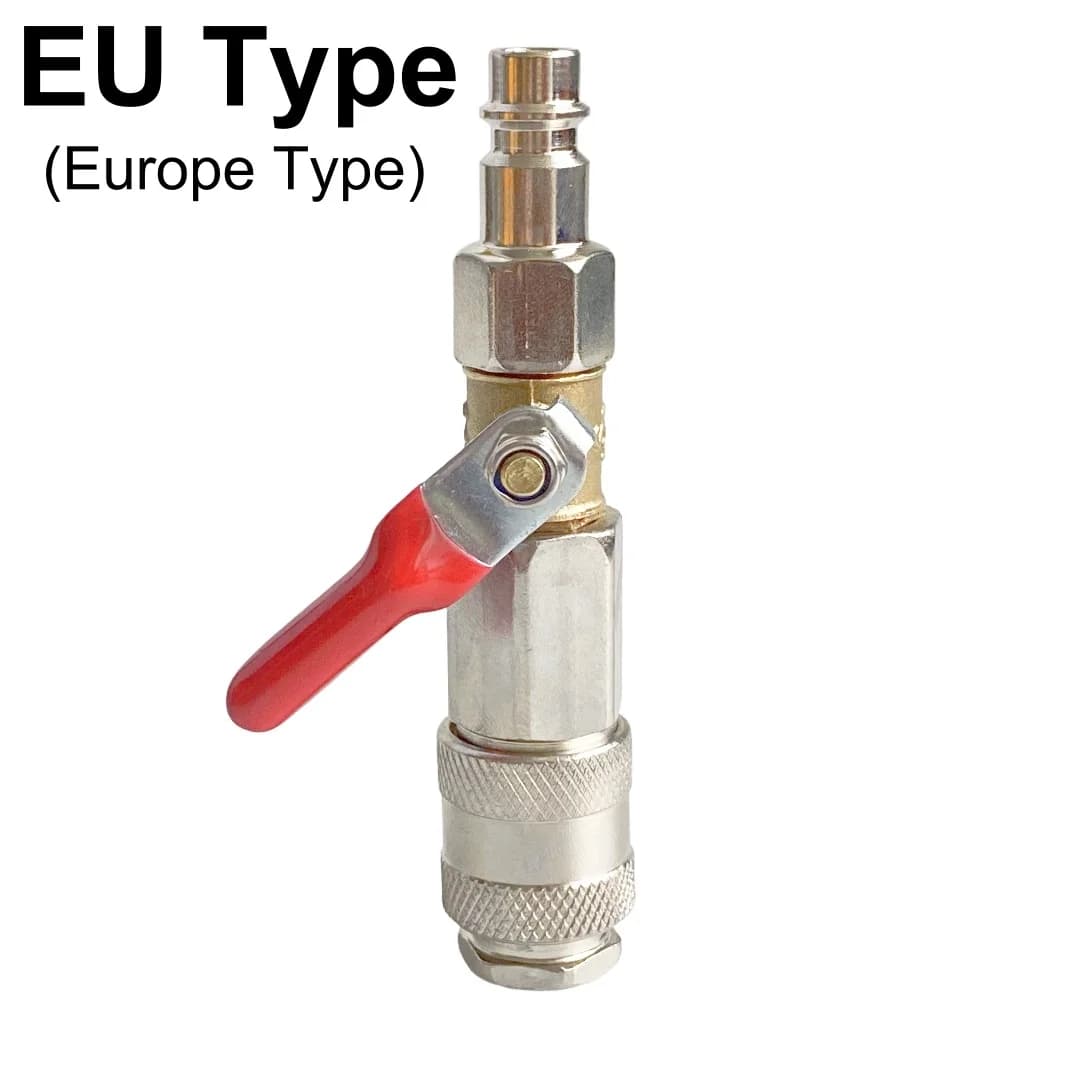

Engineered for reliable control, this Pneumatic Switch Valve features a robust Europe-type quick connect fitting for secure, leak-free operation. Its integrated on/off switch provides immediate air flow control directly at the tool, enhancing safety and efficiency by eliminating the need to constantly cycle the main compressor. Features and Benefits

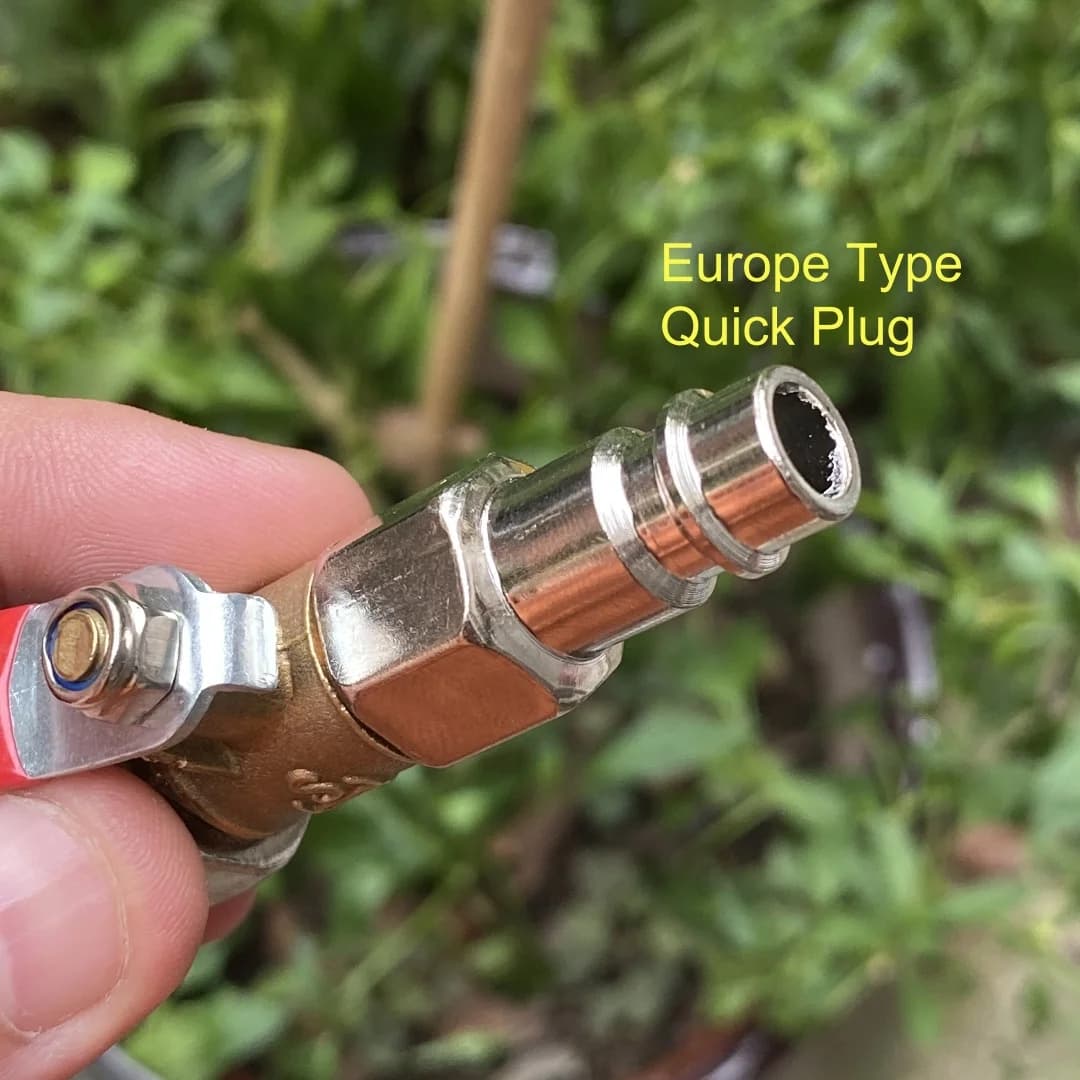

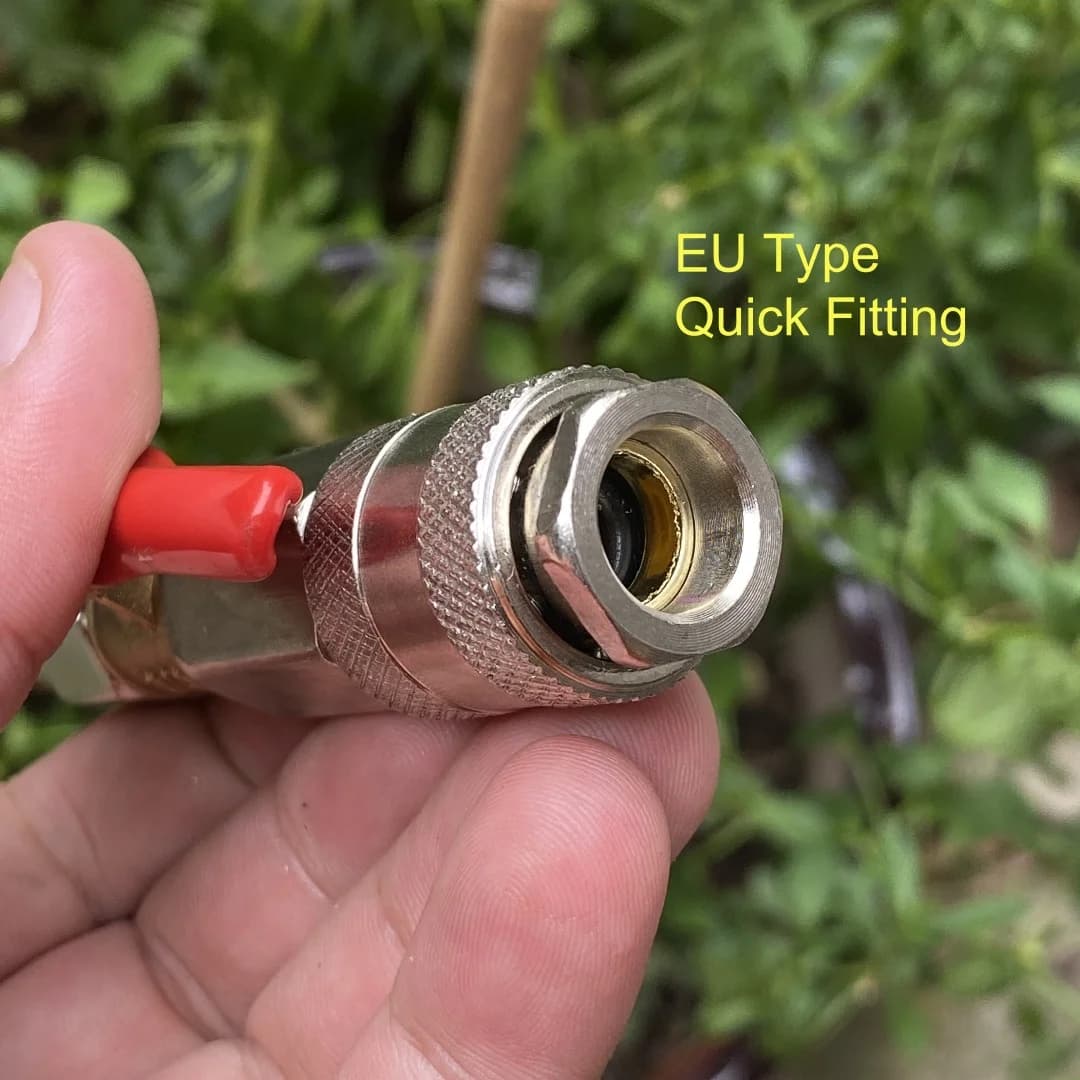

- Europe-Type Quick Connect Fitting - Ensures a secure, universal connection with standard European-style air tools and hoses, preventing accidental disconnection under pressure.
- Integrated On/Off Switch - Allows for instant control of air flow at the point of use, saving energy and reducing compressor wear by avoiding frequent main unit cycling.
- Durable Brass Construction - Provides excellent corrosion resistance and long-term durability for consistent performance in demanding workshop environments.
- Ergonomic Lever Design - Features a comfortable, easy-to-operate lever for quick switching, even when wearing work gloves.
- Compact and Lightweight Body - Designed for easy integration into existing air lines without adding significant bulk or weight to your tool setup. Applications
- Air Tool Control - Ideal for mounting directly on pneumatic nail guns, staplers, or impact wrenches to provide immediate, localized air shut-off.
- Compressor Station Setup - Perfect for creating a dedicated workstation with multiple air outlets, allowing individual control for each connected tool.
- DIY and Automotive Workshops - An excellent choice for enthusiasts and professionals who require reliable, daily-use pneumatic control without premium pricing.
- Spray Painting Systems - Useful for quickly isolating the air supply to a paint gun, facilitating cleaner color changes and reducing material waste.
Actuation Type: Manual (Gun Switch). Application: Air Compressor Systems. Connection Standard: European Interchange. Connection Type: Quick Connect Coupler. Valve Type: On/Off. Port Size (Inferred): 1/4" BSPP or NPT (Standard for air tools). Weight: ~50 - 100 grams. Body Material: Brass or Zinc Alloy (Corrosion resistant for pneumatic systems). Seal Material: Nitrile Rubber (Buna-N) or Polyurethane. Operating Temperature Range: -10°C to 80°C (Typical for pneumatic seals). Maximum Operating Pressure: 150 PSI (10.3 Bar) - Standard for general pneumatic tools. Pressure Rating: 150 PSI Working Pressure / 300 PSI Proof Pressure. Connection Type 1: Quick Connect Coupler (Male Plug). Connection Type 2: Female Thread (for Compressor Line). Flow Coefficient (Cv): Approximately 0.5 - 1.0 (Estimated for 1/4" port). Flow Configuration: 2-Port, 2-Position (2/2). Installation Orientation: Any (Non-directional flow). Intended Application: Air Compressor to Air Tool Line. Leakage Class: Class IV (Industrial standard for shut-off valves). Mechanical Life: 500,000 cycles minimum. Primary Use: Inline control for pneumatic tools (e.g., air guns). Product Type: Pneumatic Switch Valve. Valve Actuation: Manual Lever. Valve Function: On/Off Control.
