Right-Angle Pneumatic Fittings | Quick-Connect L-Shaped Bulkhead Adapter | 4-12mm Sizes

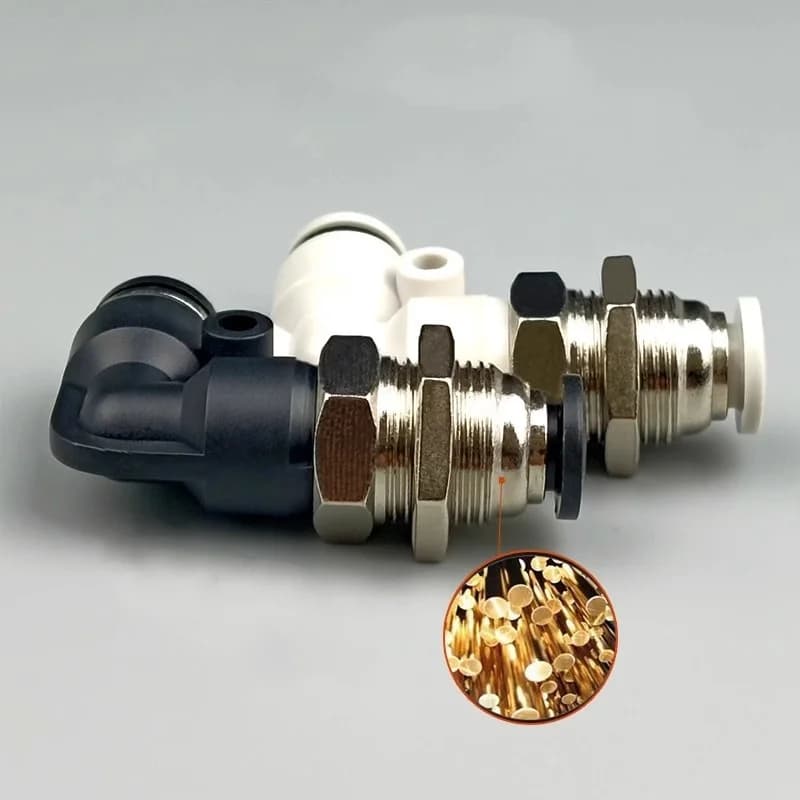

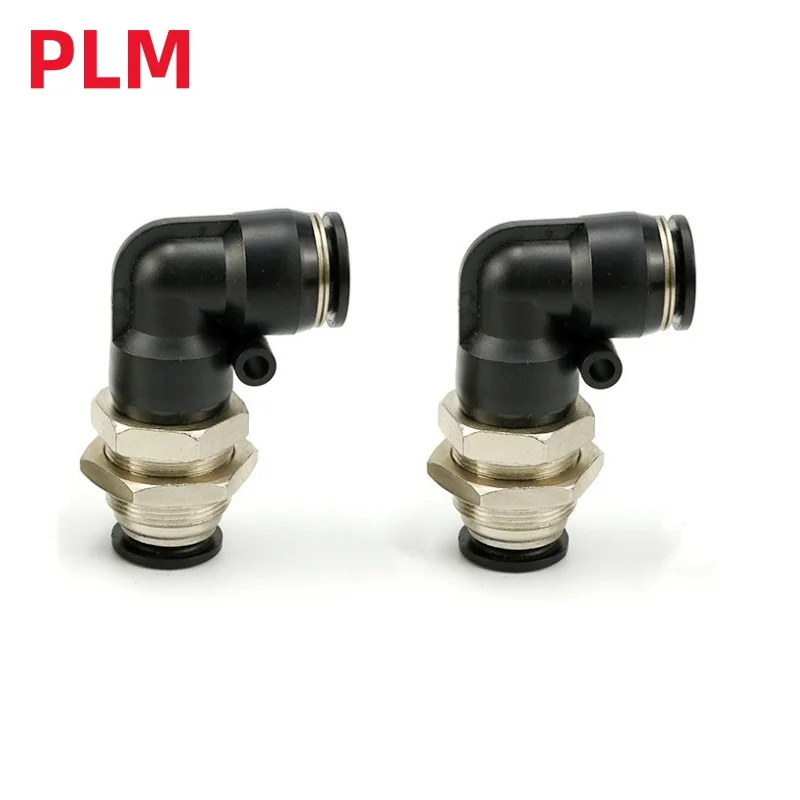

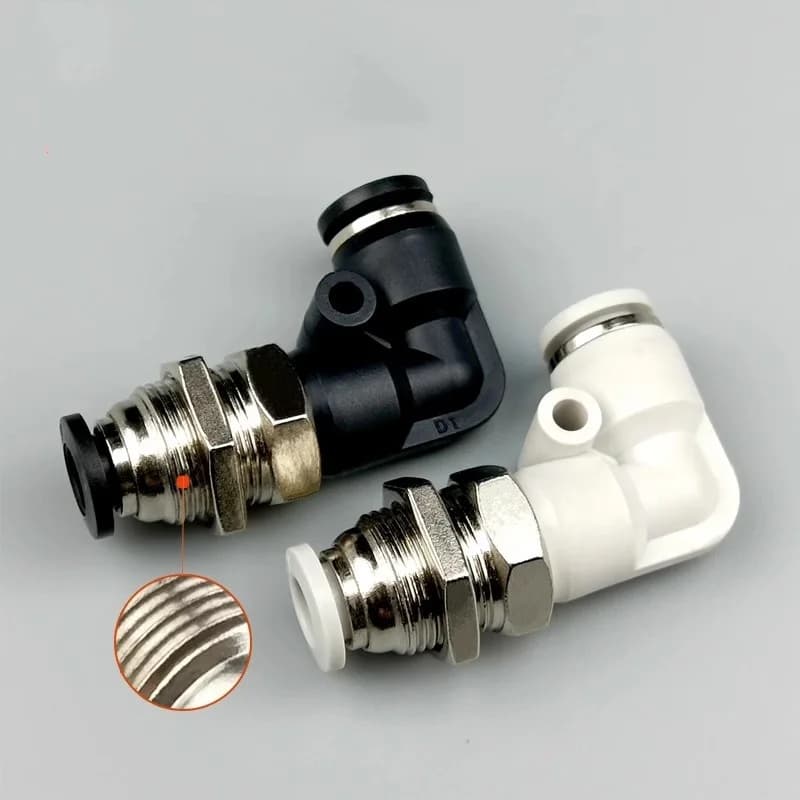

The Pneumatic quick connector partition bend provides a reliable right-angle connection for 4, 6, 8, 10, and 12mm air lines. This L-shaped through-plate fitting ensures a secure, leak-free seal with a simple push-to-connect design, maximizing airflow efficiency and reducing pressure drop in compact installations. Features and Benefits - Push-to-Connect Design - Enables fast, tool-free installation and removal of air lines, saving significant time during setup and maintenance. - L-Shaped Through-Plate Body - Allows for a clean 90-degree turn while mounting directly through panels or walls, organizing lines in tight spaces. - Multi-Size Compatibility (4-12mm) - Accommodates a wide range of standard pneumatic tubing diameters with a single fitting type, simplifying inventory. - Sealed Parting Surface - Features a precision-machined partition that prevents air leakage between connected lines, ensuring consistent system pressure. - Durable Brass Construction - Provides excellent corrosion resistance and mechanical strength for reliable performance in demanding workshop environments. - Standard BSPP Threads - Ensures compatibility with common pneumatic manifolds, valves, and equipment for seamless system integration. Applications - CNC Machine and Automation Tooling - Ideal for routing air supply lines to actuators and cylinders in confined machine enclosures. - Workshop Air Supply Drops - Perfect for creating organized, professional air line connections from overhead mains to workbench outlets. - Pneumatic Control Panels - Enables neat, right-angle port connections on manifold banks and control systems mounted inside electrical enclosures. - Automotive Service Equipment - Connects air lines to tire changers, impact wrenches, and spray guns where space around the tool is limited.
