Engineered for silent, high-airflow performance, the ID Cooling AF-125-K 12cm PC case fan delivers reliable cooling with a 4-pin PWM design for precise speed control. Its hydraulic bearing system ensures quiet operation and extended durability, making it an excellent value for system builders seeking quality components without premium pricing. Features and Benefits
- 4-Pin PWM Control - Allows for dynamic fan speed adjustment from 800 to 1500 RPM, balancing cooling performance and acoustics based on system temperature.

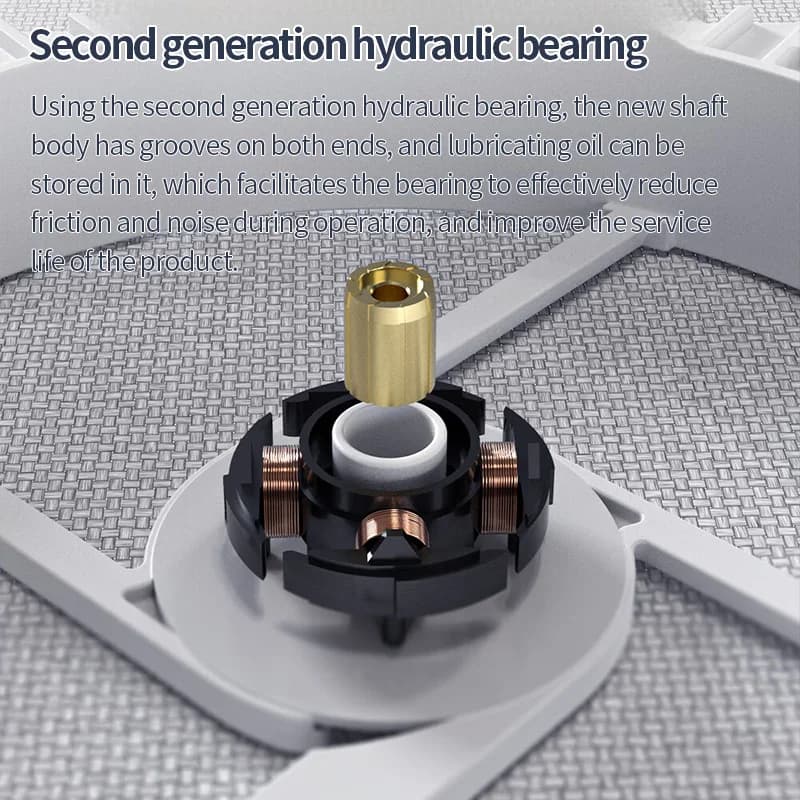

- Hydraulic Bearing - Provides smooth, quiet operation and a longer lifespan with reduced friction compared to traditional sleeve bearings.
- Optimized Fan Blades - Designed to maximize airflow while minimizing noise generation for efficient chassis ventilation.
- Durable Construction - Features a sturdy frame with anti-vibration rubber pads to dampen resonance and ensure stable mounting.
- Standard 12V DC Operation - Ensures broad compatibility with most PC motherboards, fan controllers, and power supplies. Applications
- Chassis Airflow - Install as intake or exhaust fans to create positive air pressure and remove hot air from your PC case efficiently.

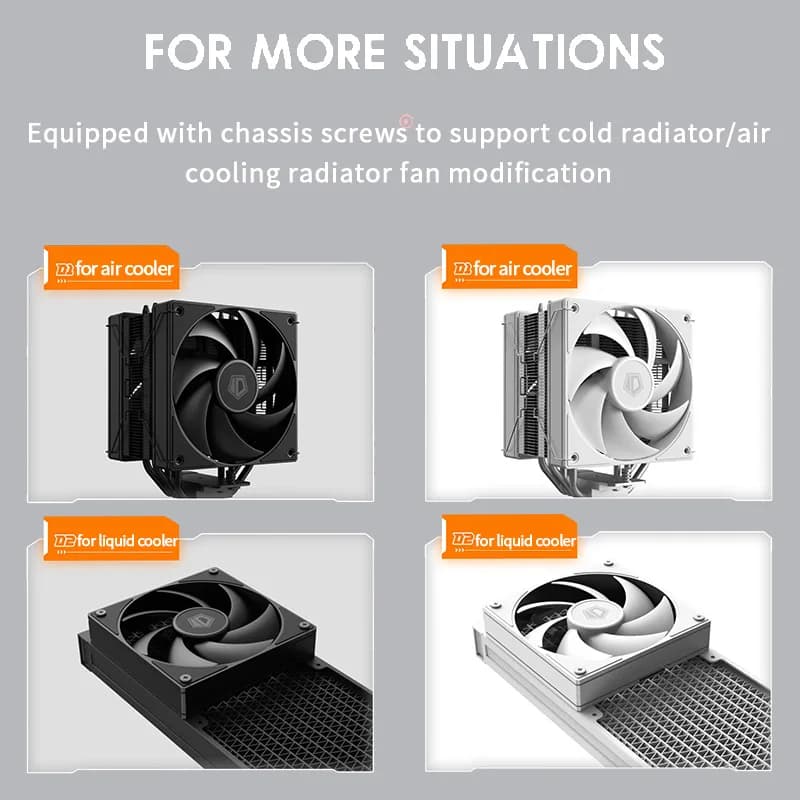

- CPU Air Cooler & Heatsink - Replace stock fans on tower or downdraft coolers for improved thermal performance with less noise.
- Radiator Cooling - An effective and affordable choice for water cooling radiators, providing the static pressure needed to push air through dense fins.
- General System Ventilation - Perfect for adding supplemental cooling to GPU areas, hard drive cages, or other hotspots within a build.
Frame Dimensions: 120 x 120 x 25 mm. Fan Size: 120 mm. Power Consumption: 1.92 W. Nominal Voltage: 12 V DC. Airflow: 74.5 CFM. Bearing Type: Hydraulic. Connector Type: 4-pin PWM. Model Number: AF-125-K. Mounting Hole Spacing: 105 mm. MTBF: 50,000 hours. Noise Level: 28.2 dBA. Nominal Current: 0.16 A. Product Type: Case Fan. Speed Range: 500 - 2000 RPM. Static Pressure: 2.04 mmH₂O. Frame Dimensions: 120mm x 120mm. Frame Thickness: 25mm (Standard thickness). Blade Material: Thermoplastic (Inferred, often with optimized blade design). Frame Material: Thermoplastic (PBT or similar, inferred). Nominal Voltage: 12V DC. Power Connector: 4-Pin PWM. Power Consumption: Not specified (Typical: 1.2W - 3.6W). Start Voltage: Not specified (Typically ~5V for PWM fans). Fan Speed Range: 500 - 2000 RPM (PWM Controlled). Operating Temperature Range: 0°C to 70°C (Typical for PC components). Airflow: Not specified (Typical for this class: 50-80 CFM). Bearing Type: Hydraulic Bearing. Control Signal: PWM (Pulse Width Modulation) via 4th pin. Model Number: AF-125-K. Mounting Hole Spacing: 105mm (Standard 120mm fan spacing). MTBF (Mean Time Between Failures): High (Inferred from hydraulic bearing longevity). Noise Level: Silent-optimized design (inferred from title). Primary Application: Chassis ventilation, CPU air cooler, Radiator (Air/Water cooling). Product Type: 120mm PWM PC Case Fan. Rated Current: Not specified (Typical for 120mm fan: 0.1A - 0.3A). Static Pressure: Not specified (Suitable for radiators, typical: 1.0-2.0 mmH2O). Q: What are the exact dimensions and specifications of the ID Cooling AF-125-K PC case fan? A: The ID Cooling AF-125-K is a standard 120mm (12cm) case fan. It operates on a 12V, 4-pin PWM interface and features a variable speed range from 500 to 2000 RPM, allowing for precise control over airflow and noise levels.. Q: How durable is the hydraulic bearing in this ID Cooling AF-125-K silent fan? A: The hydraulic bearing is designed for long-term reliability and quiet operation. It reduces friction and noise compared to traditional sleeve bearings, making this fan a durable choice for continuous use in chassis, CPU radiator, or water cooling applications.. Q: Can the ID Cooling AF-125-K be used for both case ventilation and on a CPU cooler radiator? A: Yes, absolutely. This 4-pin PWM fan is specifically designed as a versatile cooling solution. Its 500-2000 RPM range and focused airflow make it effective for general chassis ventilation as well as for pushing air through dense CPU radiator fins in air or water cooling setups.. Q: Does the ID Cooling AF-125-K come with a warranty or guarantee? A: Warranty details are typically provided by the retailer. For specific warranty information regarding this product, including its duration and coverage, please check the product listing or contact your point of purchase directly.. Q: Is the ID Cooling AF-125-K a good value compared to other 120mm PWM fans? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, providing variable PWM speed control, a quiet hydraulic bearing, and versatile cooling capability at a competitive price point..
