Which amp rating should I pick?

It comes in 6A, 10A, 16A, 20A, 25A, and 32A versions. Lighting circuits usually take the lower ratings, while higher-power outlets need 20A or more. Match the breaker to the cable size and load it protects.

How does this mount in my panel?

It clips onto a standard 35mm DIN rail and takes up 18mm of width. The 1P+N design switches both the phase and neutral together. It accepts wire from 1mm² up to 25mm², so most household and light commercial circuits fit.

What kind of protection does it give?

It uses a thermal-magnetic trip, which handles slow overloads thermally and short circuits instantly with the magnetic part. The breaking capacity is 6000A and it's rated to IEC/EN 60898-1 for 230V AC. Always have a qualified electrician wire it into your panel.

DZ30-32 DIN Rail Miniature Circuit Breaker | 6A-32A MCB for Home Electrical Panel & DIY Projects

Name: DZ30-32 DIN Rail Miniature Circuit Breaker | 6A-32A MCB for Home Electrical Panel & DIY Projects
Brand: Compel
SKU: REMO-00009
Price: 5.95 USD
Availability: InStock

Stock #:TBS-03493

SKU:REMO-00009

DZ30-32 DIN Rail Miniature Circuit Breaker | 6A-32A MCB for Home Electrical Panel & DIY Projects - Image 1

$5.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Poles NumberSelect an option

Rated CurrentSelect an option

Quantity

DZ30-32 DIN Rail Miniature Circuit Breaker | 6A-32A MCB for Home Electrical Panel & DIY Projects

$5.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Which amp rating should I pick?: It comes in 6A, 10A, 16A, 20A, 25A, and 32A versions. Lighting circuits usually take the lower ratings, while higher-power outlets need 20A or more. Match the breaker to the cable size and load it protects.
How does this mount in my panel?: It clips onto a standard 35mm DIN rail and takes up 18mm of width. The 1P+N design switches both the phase and neutral together. It accepts wire from 1mm² up to 25mm², so most household and light commercial circuits fit.
What kind of protection does it give?: It uses a thermal-magnetic trip, which handles slow overloads thermally and short circuits instantly with the magnetic part. The breaking capacity is 6000A and it's rated to IEC/EN 60898-1 for 230V AC. Always have a qualified electrician wire it into your panel.

Remote Control spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare remote control

This product

DZ30-32 DPN Mini Circuit Breaker MCB for household electrical panels, showing 1P+N design and amperage ratings on a white background.

DZ30-32 DIN Rail Miniature Circuit Breaker | 6A-32A MCB for Home Electrical Panel & DIY Projects

Price$5.95

Rating4.8

Sold70+

Stock In stock

You're viewing this

Alternative

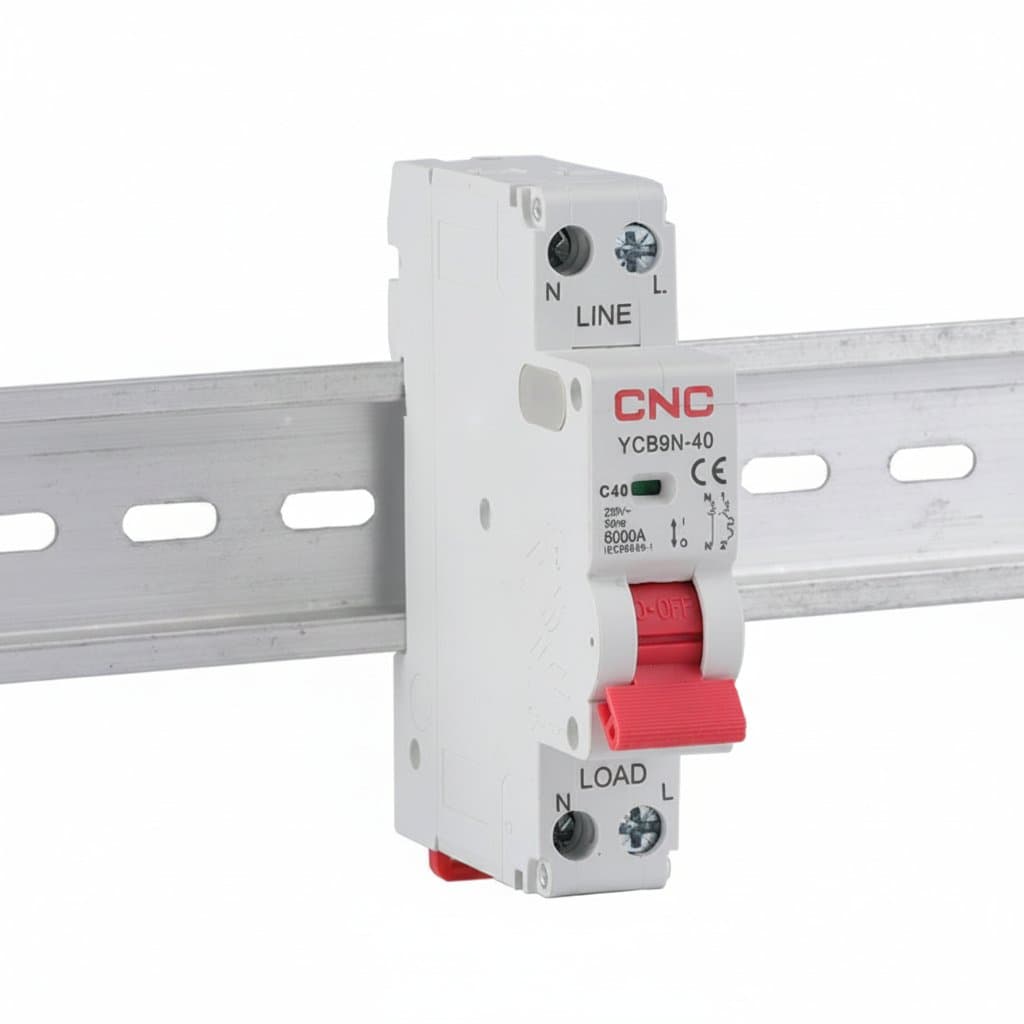

CNC MCB DPN 6000A miniature circuit breaker mounted on a silver DIN rail, showing its 18mm width and 230V 50Hz rating for household electrical panels.

18mm DIN Rail Miniature Circuit Breaker | 6000A 230V 50Hz | DPN MCB for Home Electrical Protection

Price$5.95

RatingNot rated

Sold-

Stock In stock

View

Alternative

CHINT NXB-63 miniature circuit breaker for household electrical protection, 1A to 63A rating, mounted on a DIN rail.

DIN Rail Miniature Circuit Breaker | 1-63A Capacity | 230V AC Household Protection

Price$7.95

Rating5.0

Sold80+

Stock In stock

View

Alternative

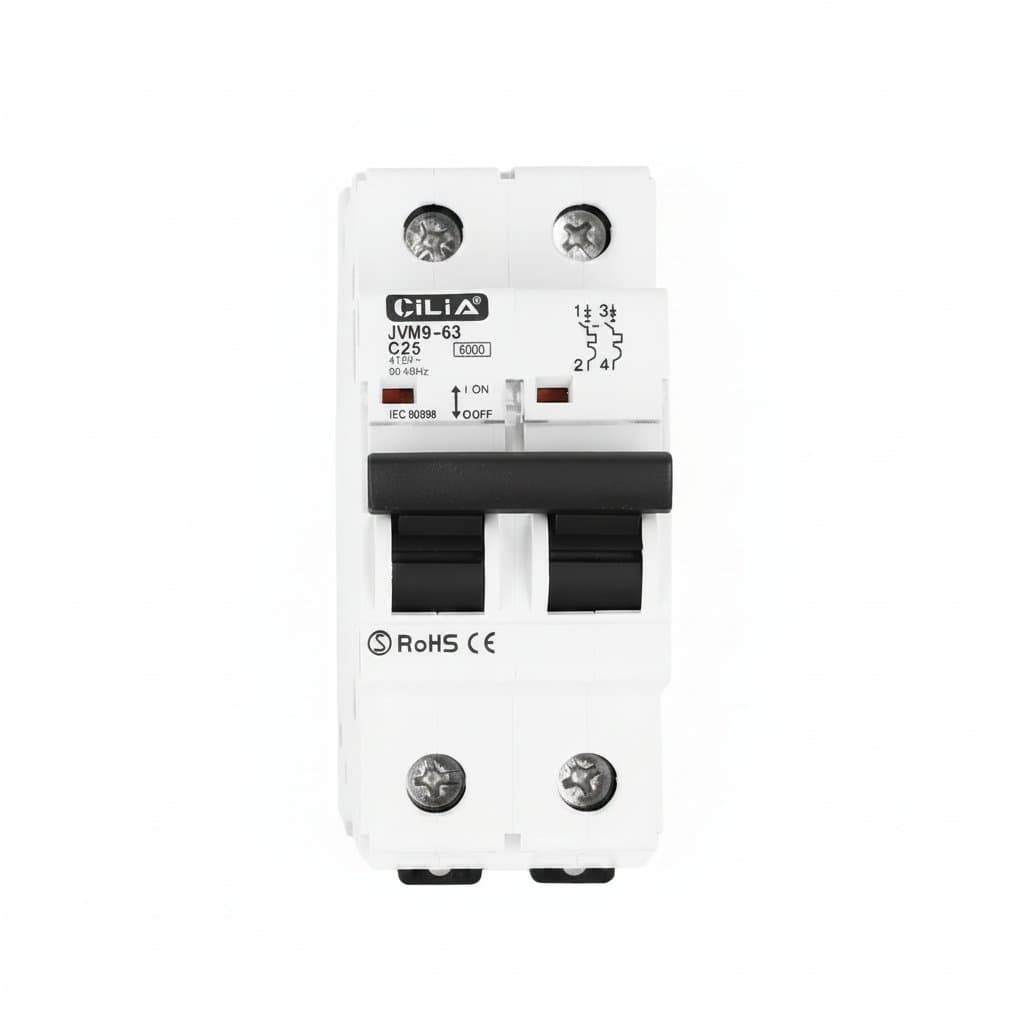

CILIA miniature circuit breaker MCB for DIN rail mounting, showing 1P+N and 2P models with amperage ratings from 10A to 32A.

DIN Rail Miniature Circuit Breaker | 1P+N & 2P | 10-32A | 120/240V AC | CE Certified

Price$13.95$12.99

RatingNot rated

Sold-

Stock In stock

View

Compare options

More Remote Control

All Remote Control

Solar DC Circuit Breaker | 1000V PV System Protection | 3A-63A Range | 35mm DIN Rail MCB

5.0

$11.99

-11%

2-Pole DC Solar Circuit Breaker | 1000V Photovoltaic MCB | 6A-63A Overload Protection

4.9

$6.95$7.81

Miniature Circuit Breaker | TOB1-63H C-Type | 3A-63A Capacity | 230/400V AC Protection

4.9

$5.95

C-Type Mini Circuit Breaker | 10A-63A DC 1000V MCB | DIN Rail Mount Overload & Short Circuit Protection

5.0

$13.99

2P DC 600V Circuit breaker MCB C curve single pole direct-current fuse for PV

4.9

$6.95

2-Pole Circuit Breaker | 16A-63A DIN Rail Mount | 230V/400V Overload Protection

4.9

$5.95

Miniature Circuit Breaker | 1P 230/400V | C-Curve 6A-125A | Overload & Short-Circuit Protection

4.9

$13.99

63A-125A Main Isolating Switch | 400V Circuit Breaker for Home & Industrial Electrical Panels

4.8

$13.99

-86%

CNC Electric Retracts | 7-8KG, 90-120mm Stroke | For 90-120mm RC Plane Jets & Models

4.8

$11.99$83.11

Airplane Brushless Motor | 1503 High-Performance | For 4-Axis Remote Control Planes

$5.95

Explore the range

Popular right now

Digital Vernier Caliper | 0-150mm Measuring Tool | Plastic Body

4.9

$6.95

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

$7.95

-21%

Damage-Free Picture Hanging Strips | Assorted Sizes | Removable Wall Mounting for Frames & Posters

4.9

$14.99$18.89

Digital Tire Pressure Gauge | Backlit LCD Display | Car & Truck Auto Monitoring

4.9

$14.99

Door & Window Magnetic Sensor | Zigbee Wireless | App Alert Security Alarm

4.9(496)

$12.99

Clutch Alignment Tool | Plastic Dismantle & Correction Kit | Car Repair Accessories

4.9

$29.99

Power Adapter AC 100-240V Input DC Output Supply Charger EU/US 12V Universal Adapter Converter Plug for Camera DVR LED Robot LED

4.9

$15.99

Desoldering Braid | Solder Remover Wick | 2.0mm & 3.5mm x 1.5M

4.9

$5.95

USB-C Endoscope Camera | 5.5mm Lens for Android & PC | Flexible Inspection Borescope with 6 LEDs

4.9

$10.99

Quick-Connect Wire Terminals | 10-75 Pc Assortment | 250V/32A Electrical Connectors

4.9

$8.95

Tool Set 4pc | Tile Grout & Sealant Remover | For Shower, Kitchen & Bathroom Cleaning

4.9

$17.99

Non-Contact Voltage Tester Pen | AC Voltage Detector | 12-1000V Breakpoint Finder

4.9

$6.95

The DZ30-32 DPN 1P+N Mini Circuit Breaker provides reliable overcurrent and short-circuit protection for residential and light commercial circuits. This DIN-rail mounted MCB features a compact design and is available in a range of current ratings from 6A to 32A, ensuring precise protection for various electrical loads with a quick-make, quick-break mechanism for safety. Features and Benefits - 1P+N (Single Pole + Neutral) Design - Provides simultaneous switching and protection for both the phase and neutral conductors, enhancing overall circuit safety and compliance with modern wiring standards. - DIN Rail Mounting - Features a standardized 35mm DIN rail clip for fast, secure, and organized installation within electrical panels and distribution boards. - Multiple Current Ratings (6A, 10A, 16A, 20A, 25A, 32A) - Allows for precise circuit protection tailored to specific load requirements, from lighting circuits to higher-power outlets. - Thermal-Magnetic Trip Mechanism - Combines reliable overload protection (thermal) with instantaneous short-circuit protection (magnetic) for comprehensive safety against common electrical faults. - Compact and Durable Housing - The high-quality thermoplastic case is flame-retardant and designed for long-term reliability in various environmental conditions. Applications - Residential Electrical Distribution - Ideal for protecting individual branch circuits in household consumer units, such as lighting, socket outlets, and appliance circuits. - Light Commercial and Workshop Panels - A cost-effective and reliable solution for small offices, retail spaces, or DIY workshop sub-panels requiring organized circuit protection. - OEM Equipment and Machinery Integration - Perfect for manufacturers needing a compact, DIN-rail mounted circuit breaker for integration into control cabinets or machine electrical systems. - DIY Electrical Projects and Upgrades - An excellent choice for experienced DIY enthusiasts and electricians seeking quality, value-oriented components for panel upgrades or new installations.

Wire Size: 1-25 mm². Breaking Capacity: 6000A. Rated Voltage: 230V AC. Storage Temperature: -40°C to +70°C. Electrical Life: 10,000 cycles. Installation Category: III. Mechanical Life: 20,000 cycles. Model: DZ30-32. Mounting Type: DIN Rail. Mounting Width: 18 mm. Operating Temperature: -25°C to +55°C. Pole Configuration: 1P+N. Pollution Degree: 2. Product Type: Miniature Circuit Breaker (MCB). Rated Current: 6A, 10A, 16A, 20A, 25A, 32A. Standards Compliance: IEC/EN 60898-1. Terminal Torque: 2.0 N·m. Terminal Type: Screw. Tripping Characteristic: C. Mounting Width: 18mm (Standard for 1P+N MCB). Wire Size Range: 1mm² to 25mm² (Flexible/Stranded). Arc Chute Material: Metal Plates & De-ionizing Grid. Housing Material: Thermoplastic (Flame Retardant). Rated Impulse Withstand Voltage (Uimp): 4kV. Rated Insulation Voltage (Ui): 500V AC. Rated Operational Voltage (Ue): 230V AC. Breaking Capacity (Icn): 6000A (Inferred Standard for Household). Operating Temperature Range: -25°C to +55°C. Storage Temperature Range: -40°C to +70°C. Standards Compliance: IEC/EN 60898-1. Electrical Endurance: 10,000 operations at In. Mechanical Endurance: 20,000 operations. Mounting Type: DIN Rail Mounting (EN 60715, 35mm). Pole Configuration: 1P+N (Single Pole + Neutral). Product Type: Miniature Circuit Breaker (MCB). Protection Class: IP20 (Front of device). Rated Current (In): 6A, 10A, 16A, 20A, 25A, 32A (Selectable). Terminal Torque: 2.0 N·m (Recommended). Terminal Type: Screw Clamp. Trip Mechanism: Thermal-Magnetic (Bimetal & Solenoid). Tripping Characteristic: C Curve (Standard for General Household/DIY). Q: What are the exact dimensions of the DZ30-32 DPN Mini Circuit Breaker for DIN rail mounting? A: The DZ30-32 MCB is designed for standard DIN rail installation. Its compact, single-module width makes it suitable for fitting into most modern electrical distribution boards and enclosures.. Q: How durable and reliable is this DZ30-32 miniature circuit breaker for household use? A: This MCB is built with a robust thermoplastic housing and precision internal components for reliable performance. It is designed to withstand repeated tripping and resetting, ensuring long-term safety and durability in household applications.. Q: Can this 1P+N DZ30-32 MCB be used to protect a remote control toy charging station? A: Yes, absolutely. This MCB is ideal for protecting low-power circuits like a dedicated charging station for RC toys, drones, or other hobby electronics. Choosing the correct amperage (e.g., 6A or 10A) ensures safe overcurrent protection for your setup.. Q: Does the DZ30-32 DIN rail MCB come with any warranty or guarantee? A: This product is offered with a standard manufacturer's warranty that covers defects in materials and workmanship. For specific warranty duration and claim details, please refer to the seller's product listing or contact them directly.. Q: Is this DZ30-32 Mini Circuit Breaker a good value compared to other brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in household, workshop, or hobby project electrical panels..
