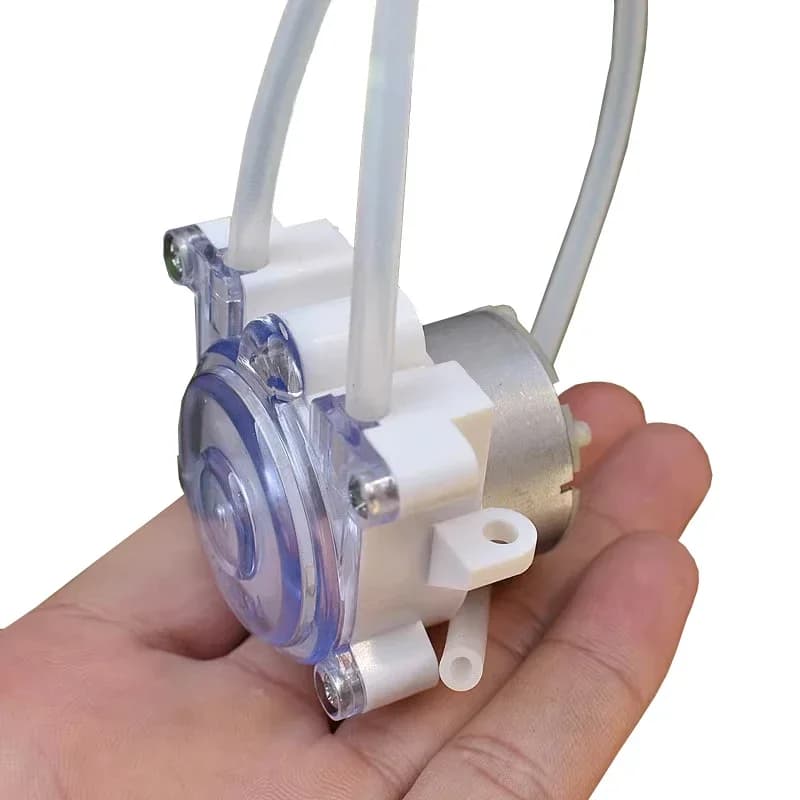

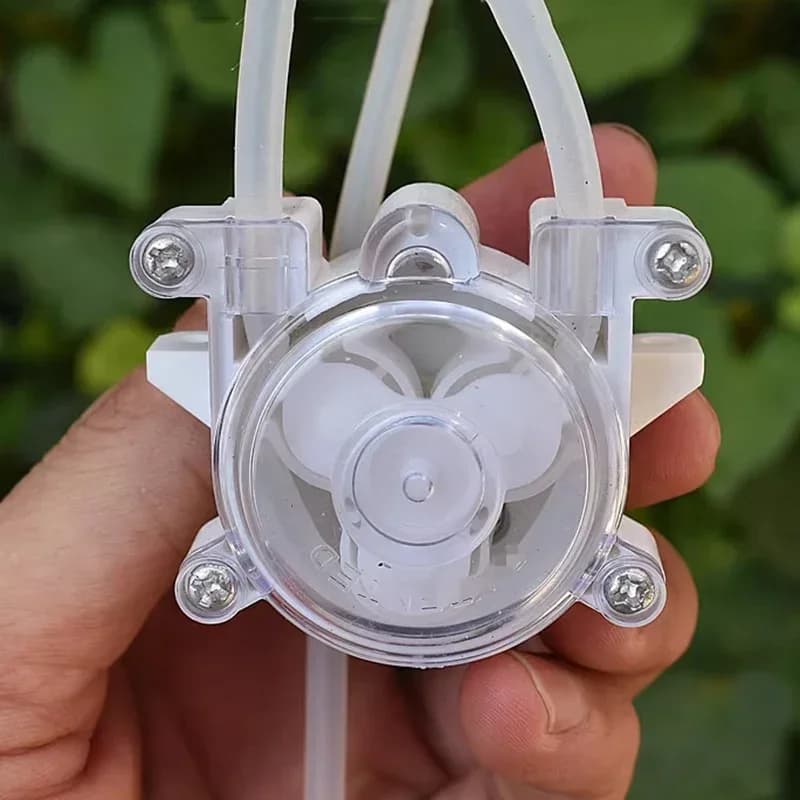

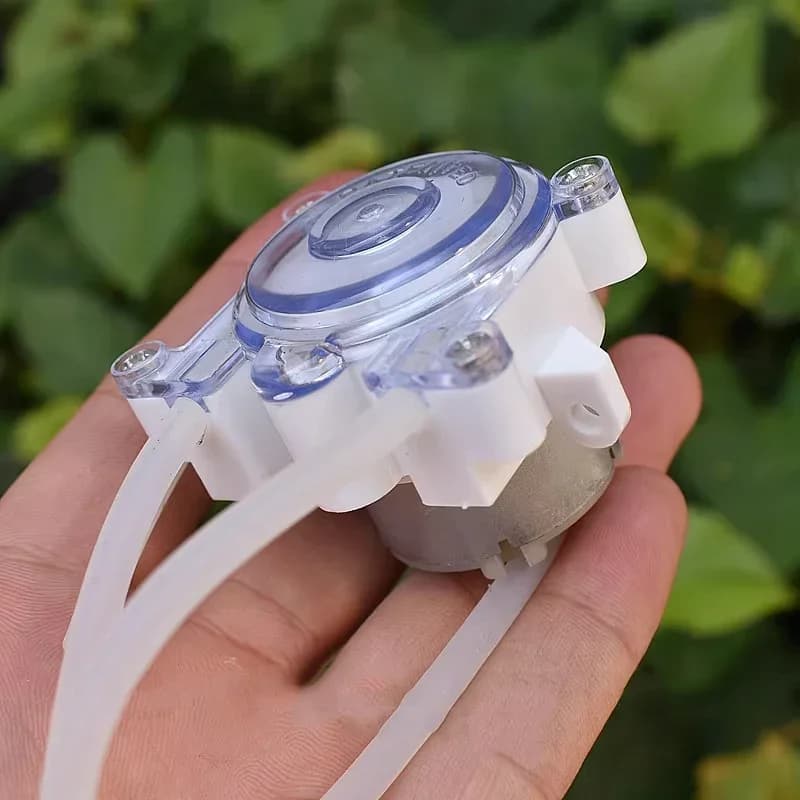

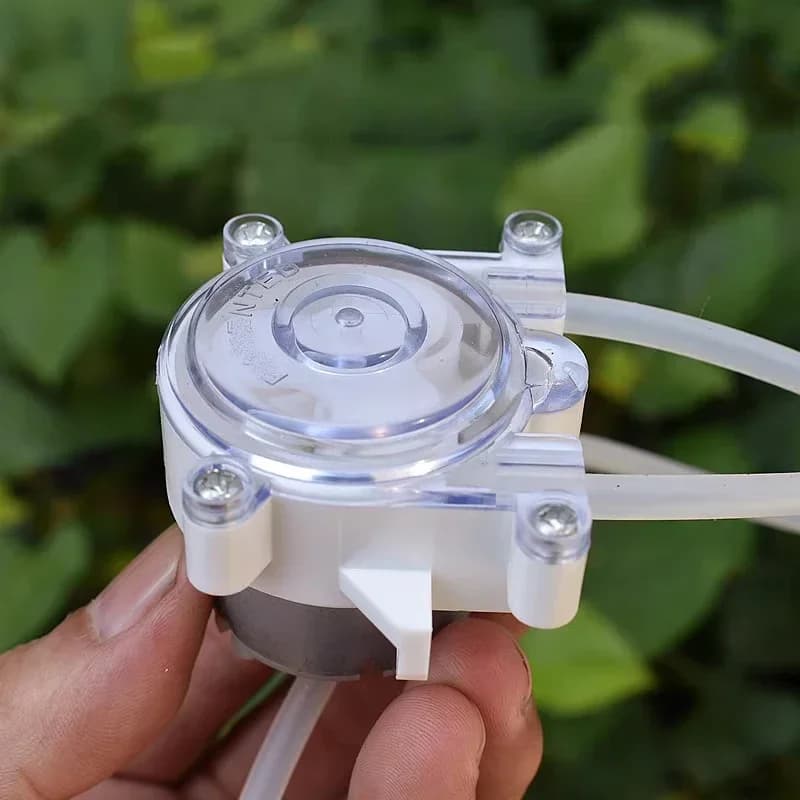

Peristaltic Dosing Pump | DC 6V-12V Mini Liquid Squeeze Pump | 500 RPM for Lab Ink Sampling Applications
Stock #:TBS-05258
SKU:MOTO-00186
1 / 7
$22.99
Ships to United States · standard est. 10-20 business days
Free standard shipping on orders over $59 (under 2kg). Express available at checkout.
This micro peristaltic pump delivers precise, contamination-free fluid transfer, ideal for dosing and sampling applications. Its compact 6V-12V DC motor and 500:1 gear ratio ensure reliable, low-flow ...
Select an option
Select an option
1
$22.99
1
Fast Shipping
Secure Payment
Easy Returns
Good to know
Questions about this product
- What are the flow rate limits and dosing accuracy of this micro pump?
- This mini pump delivers an adjustable flow rate between 0.1 and 10 milliliters per minute. It operates with a dosing accuracy of ±2% and a repeatability of ±1%. Just make sure your system does not exceed the maximum pressure of 0.1 MPa.
- What size tubing does this pump use, and what are its physical dimensions?

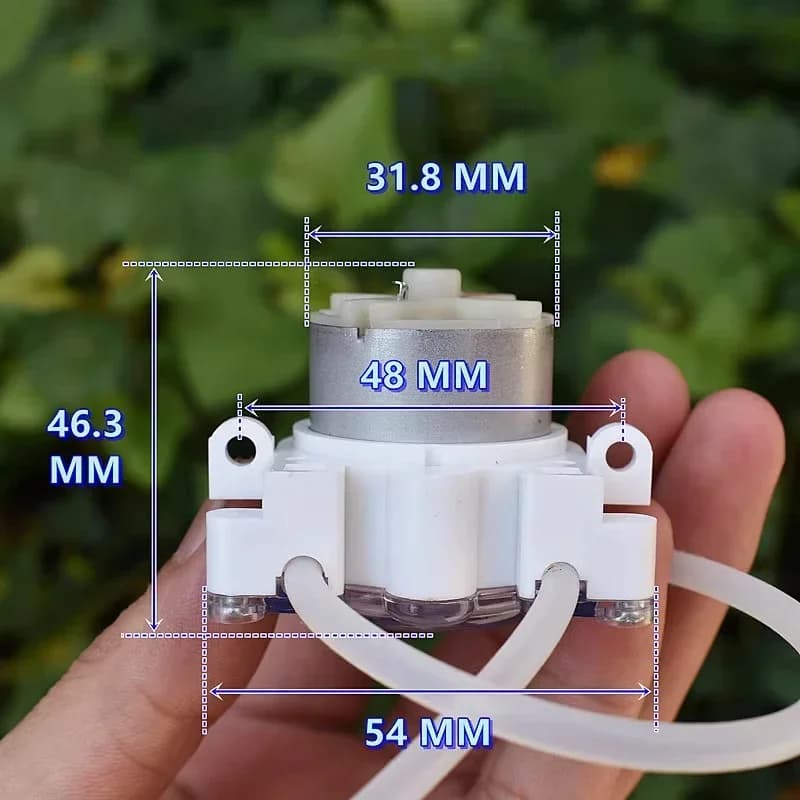

- The pump is compatible with tubing that has a 1.6mm inner diameter and 3.2mm outer diameter. The housing itself measures 45 by 35 by 25 millimeters and weighs only 45 grams. You can easily integrate this lightweight unit into tight setups.
- What materials are the pump housing and the internal rollers made of?

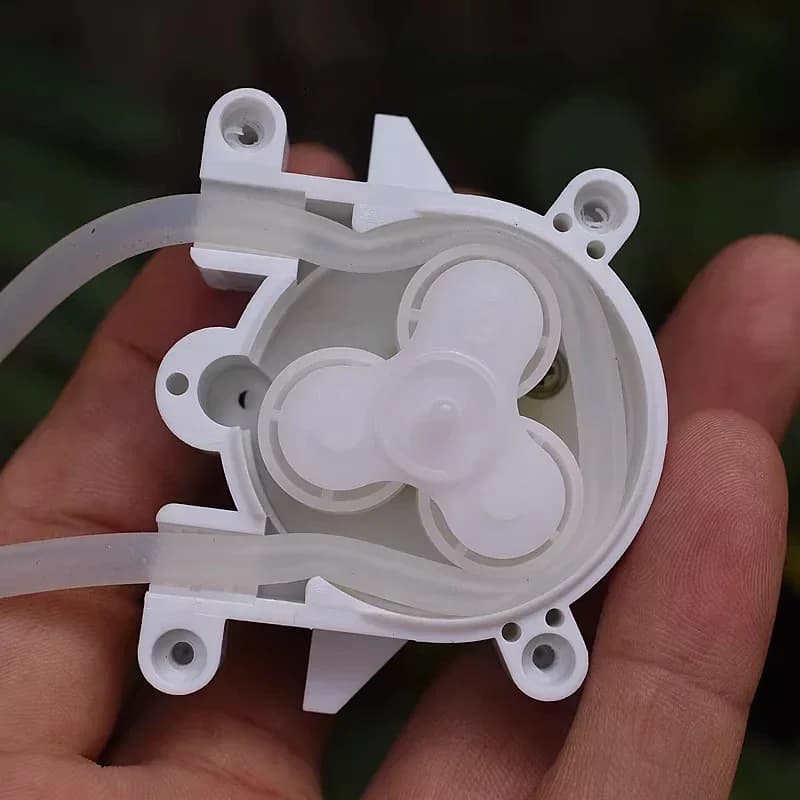

- The manufacturer builds the housing from ABS plastic and uses stainless steel for the rollers. Since this is a peristaltic pump, your liquid only contacts the inside of the tubing. This setup keeps your fluids clean and prevents any housing corrosion.
Motors & Drivers spec sheet (PDF)
Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.
