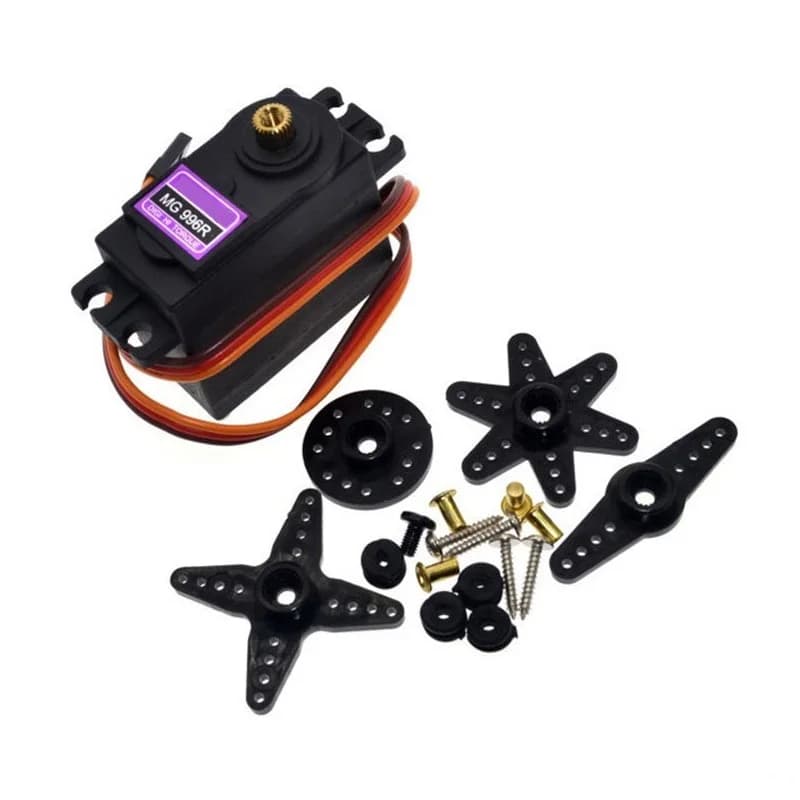

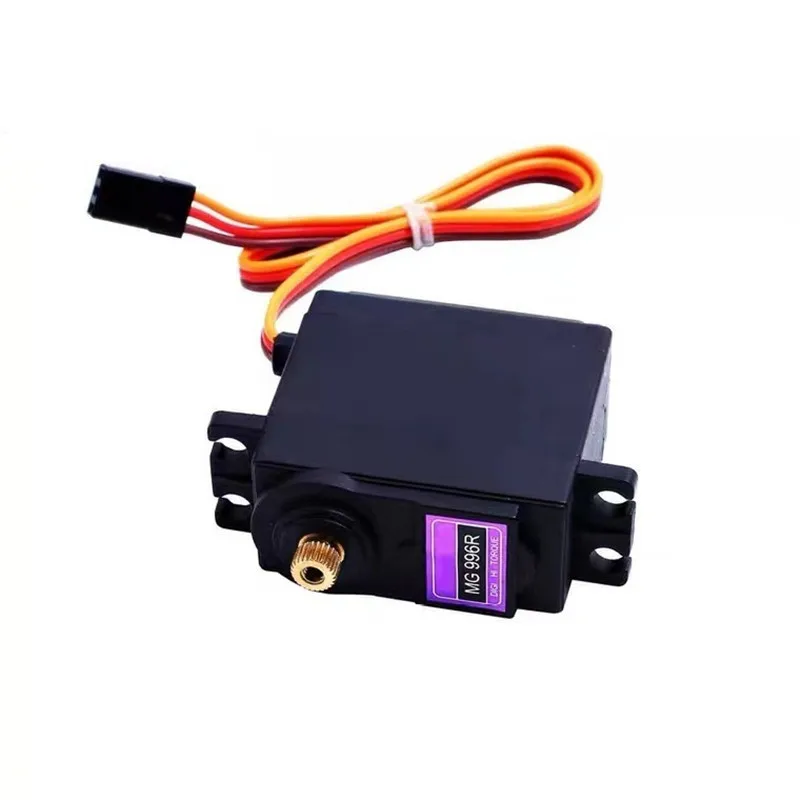

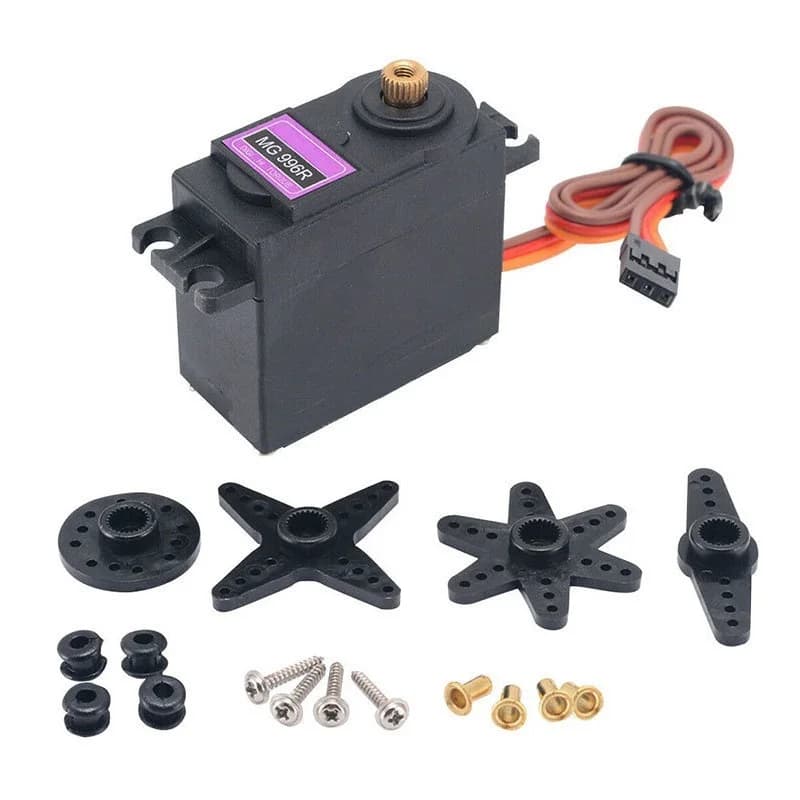

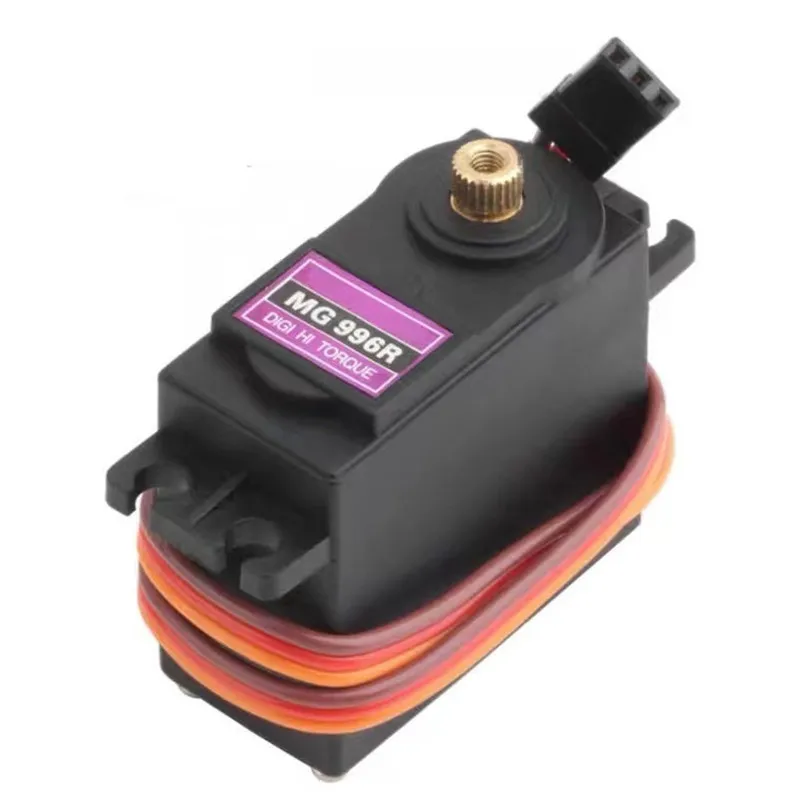

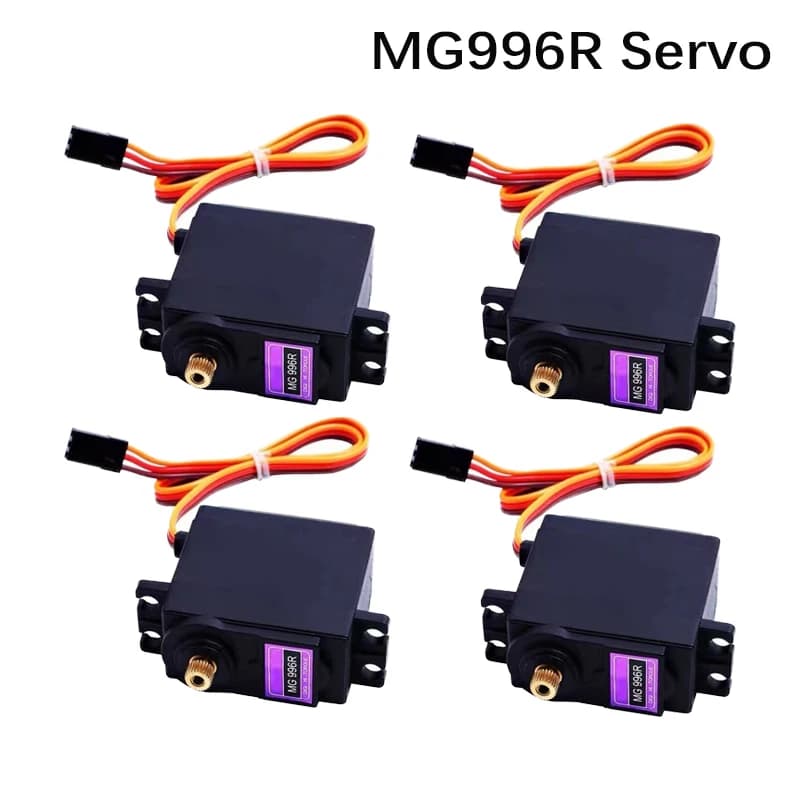

The MG996R 13kg High Torque Metal Gear Servo delivers exceptional power and durability for demanding RC and robotics projects. This digital servo provides a robust 13kg/cm of torque at 6.0V, ensuring precise control and reliable holding power under heavy loads. Its metal gear train and ball bearing design are engineered for long-lasting performance in competitive and hobbyist applications. Features and Benefits
- 13kg/cm Torque at 6.0V - Delivers powerful, responsive movement capable of handling large-scale models and robotic arms with ease.

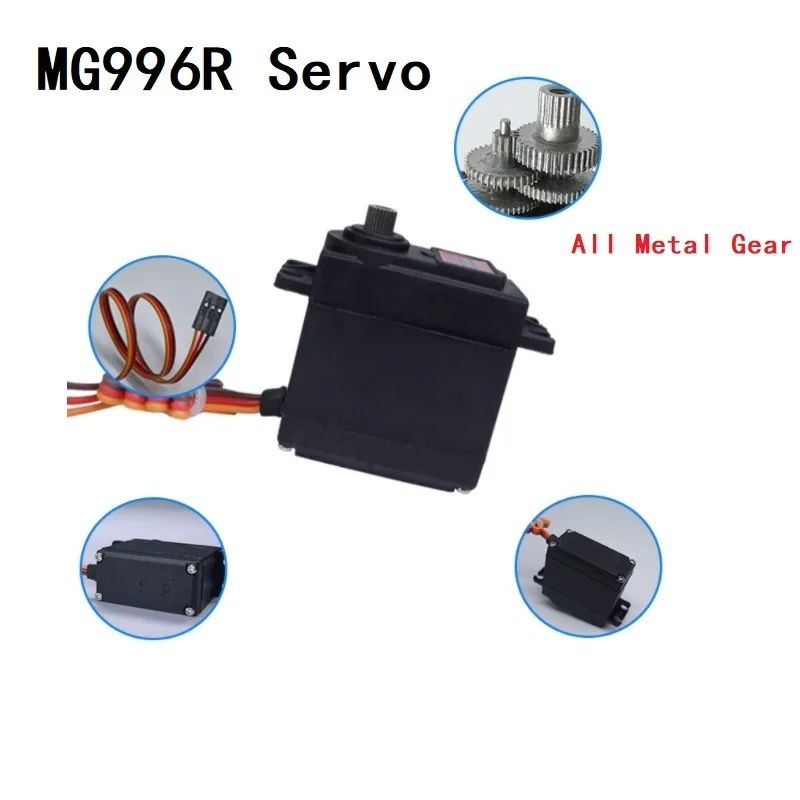

- Full Metal Gear Train - Provides superior durability and resistance to wear, stripping, and shock impacts compared to plastic or composite gears.
- Digital Servo Control Circuit - Offers faster response times, improved holding power, and more precise positioning for accurate control.
- Dual Ball Bearing Design - Ensures smooth operation, reduces shaft play, and increases overall stability and longevity.
- Wide Operating Voltage (4.8V - 6.0V) - Offers flexibility to integrate with various power systems and achieve maximum performance at 6.0V.
- High-Quality Motor - Delivers consistent speed and power output for reliable, repeatable performance in every use. Applications
- 1/8 & 1/10 Scale RC Cars/Trucks - Ideal for steering and throttle/brake control in nitro and electric models requiring high torque.
- RC Robotics & Manipulator Arms - Provides the necessary strength and precision for lifting, gripping, and articulated movements.
- Large RC Boats & Helicopters - Suitable for throttle, rudder, or swashplate control where dependable, powerful actuation is critical.
- Advanced DIY & Engineering Projects - A reliable, powerful actuator for custom robotics, animatronics, and automated systems.
Dimensions: 40.7 x 19.7 x 42.9 mm. Weight: 55 g. Gear Material: Metal. Operating Voltage: 4.8 V - 7.2 V. Cable Length: 300 mm. Connector Type: JR / Futaba Compatible. Control System: Pulse Width Modulation. Dead Band Width: 5 µs. Model: MG996R. Motor Type: Coreless. Neutral Position: 1500 µs. Operating Speed: 0.17 s/60° @ 4.8 V, 0.13 s/60° @ 6.0 V. Pulse Width: 1000 µs - 2000 µs. Rotation Angle: 120° (± 60°). Shaft Type: 25T Spline. Torque: 13 kg·cm. Type: Digital Servo. Dimensions: Approximately 40.7 x 19.7 x 42.9 mm (Body), 21 x 40mm (Horn). Pulse Width Range: 1000µs - 2000µs (standard). Wire Length: Approximately 30 cm (estimated standard length). Weight: Approximately 55 g. Gear Material: Metal (likely steel alloy). Housing Material: Plastic (Nylon/Composite). Operating Voltage: 4.8V - 6.0V DC. Speed: 0.19 sec/60° (at 4.8V), 0.15 sec/60° (at 6.0V). Application Compatibility: 1/8 & 1/10 Scale RC Cars, Helicopters, Robotics, Boats. Bearing Type: Dual Ball Bearings. Connector Type: Standard 3-pin (JR/Futaba compatible). Control Signal: Pulse Width Modulation (PWM). Idle Current: Approximately 10 mA (typical for digital servos). Motor Type: Coreless DC Motor. Neutral Position: 1500µs (standard). Product Type: Digital Servo Motor. Rotation Angle: Approximately 180 degrees (standard for analog/digital servos). Shaft Type: 25T Spline (standard for MG996R). Stall Current: Approximately 2.5 A (estimated). Torque: 13 kg-cm (at 4.8V), 15 kg-cm (at 6.0V). Q: What are the key specifications of the MG996R digital servo? A: The MG996R is a high-torque digital servo providing 13kg of torque at 6.0V. It features metal gears for durability and operates on a standard pulse width of 500-2500µs. This makes it suitable for demanding applications in RC cars, boats, and robotics.. Q: How durable is the metal gear construction in this servo? A: The metal gear train is designed for high-impact applications, offering significantly greater durability than plastic gears. This construction helps the MG996R servo withstand the stresses common in 1/8 and 1/10 scale RC car steering and robotic arm joints, providing long-lasting performance.. Q: Is the MG996R servo compatible with my Futaba or JR radio system? A: Yes, the MG996R digital servo is designed to be compatible with standard receivers from brands like Futaba and JR. It uses common 3-pin connectors and operates on typical RC servo signals, making it a direct replacement for many standard-sized servos in cars, helicopters, and boats.. Q: Does this product come with a warranty or guarantee? A: Warranty details are typically provided by the individual seller. For specific warranty information, including duration and coverage for this MG996R digital servo, please check the seller's product listing or contact them directly before purchase.. Q: Is this MG996R servo a good value for its performance? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable high-torque performance with durable metal gears, making it a cost-effective choice for regular use in RC models and robotics projects..
