Engineered for demanding power applications, the 50A M25 Self-locking Waterproof Plug Cable delivers a robust 50-amp continuous current with an IP67 waterproof and dustproof rating. Its self-locking M25 threaded coupling ensures a secure, vibration-proof connection for reliable performance in harsh environments. Features and Benefits

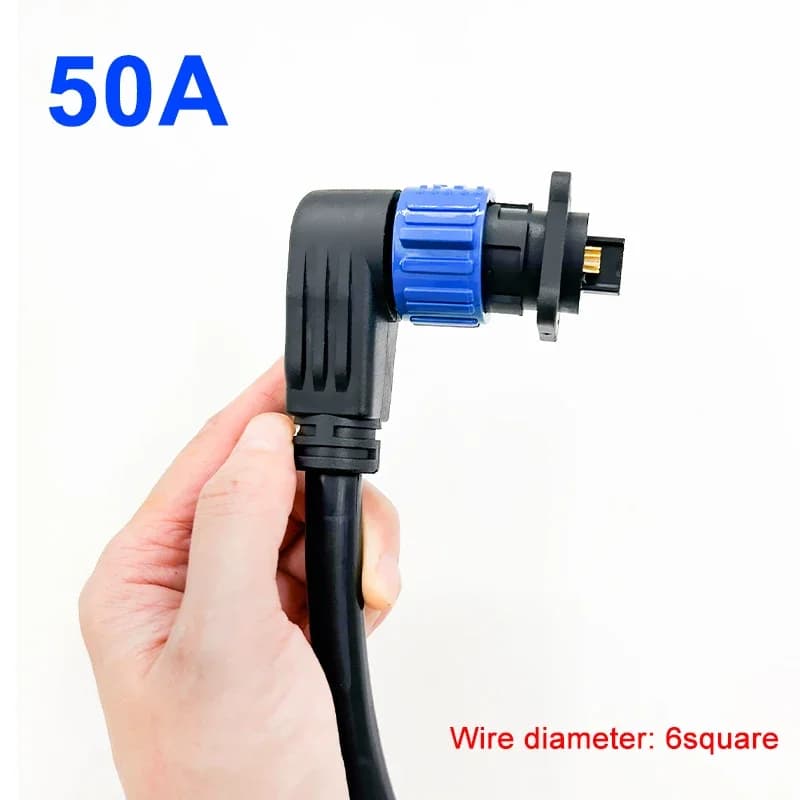

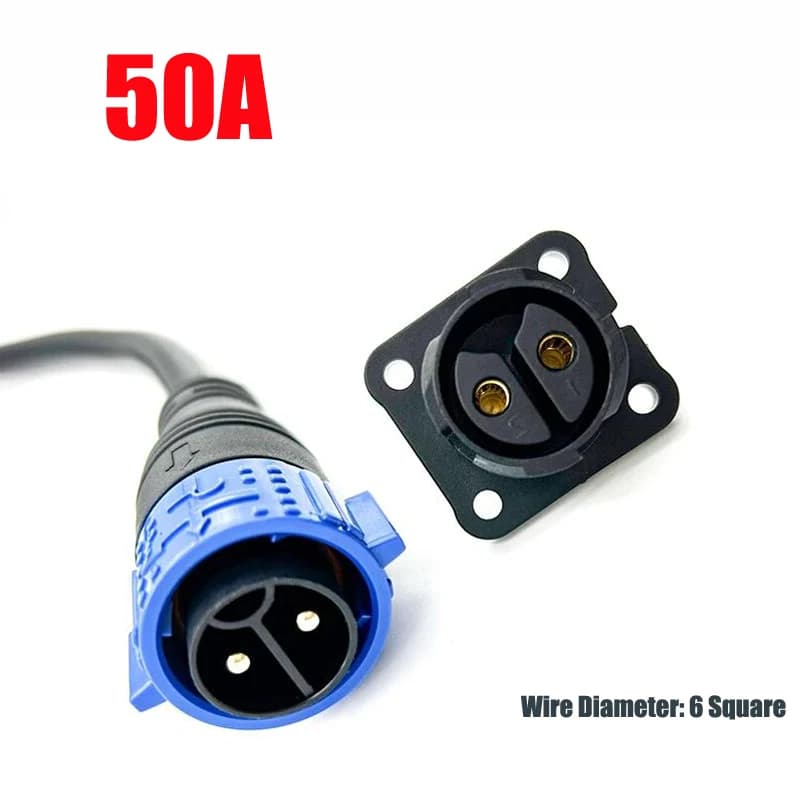

- 50A Continuous Current Rating - Handles high-power loads for industrial equipment, EV charging, and heavy-duty tools without overheating
- IP67 Waterproof and Dustproof Seal - Provides complete protection against temporary immersion and dust ingress, ideal for outdoor or wet-location use

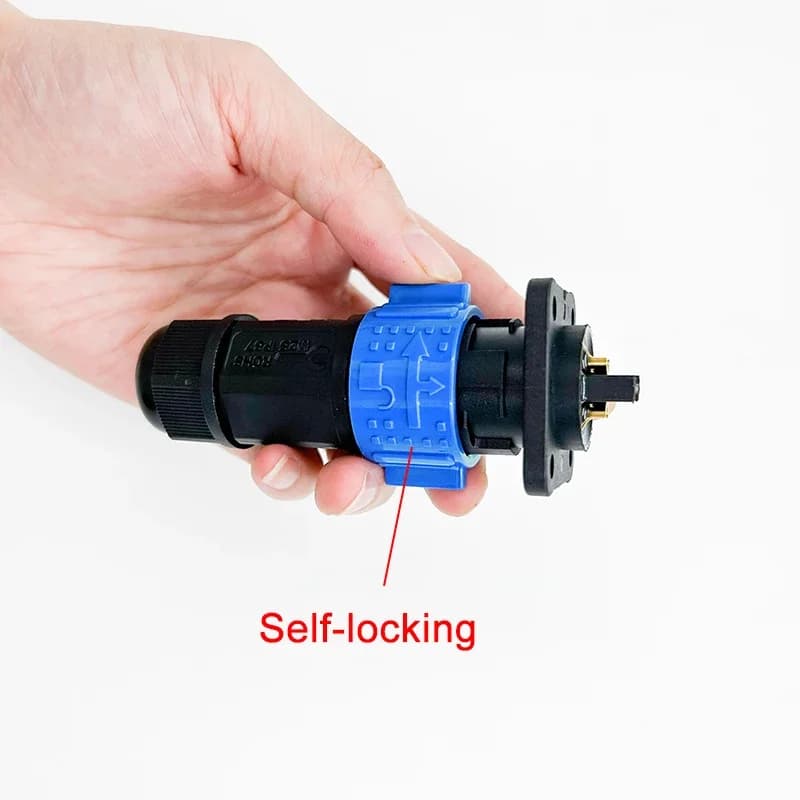

- M25 Threaded Self-locking Mechanism - Creates a secure, mechanically locked connection that resists vibration and accidental disconnection
- High-Quality Copper Contacts - Ensures minimal voltage drop and maximum conductivity for efficient power transfer

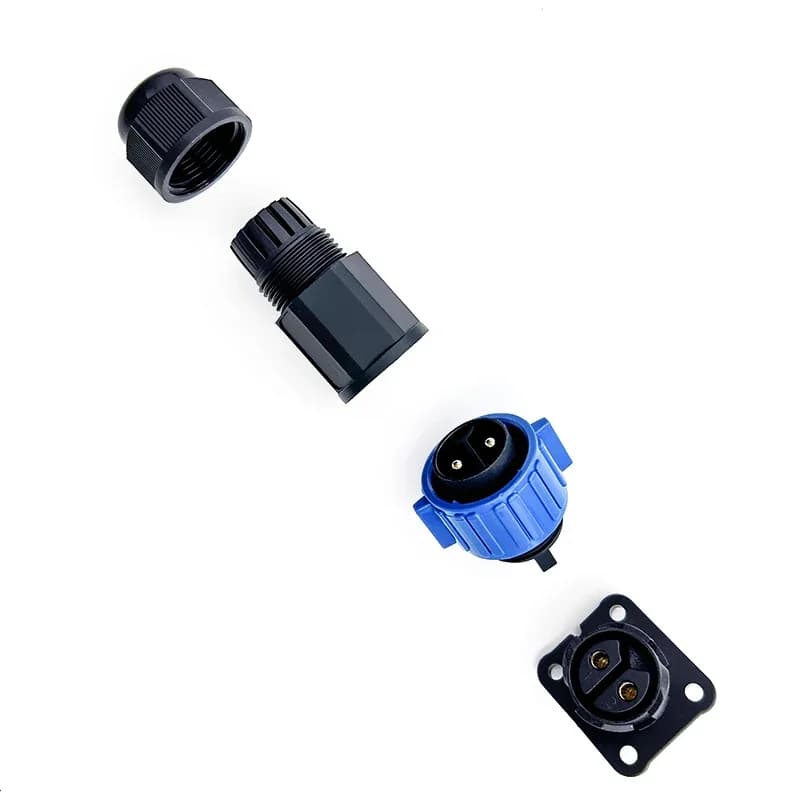

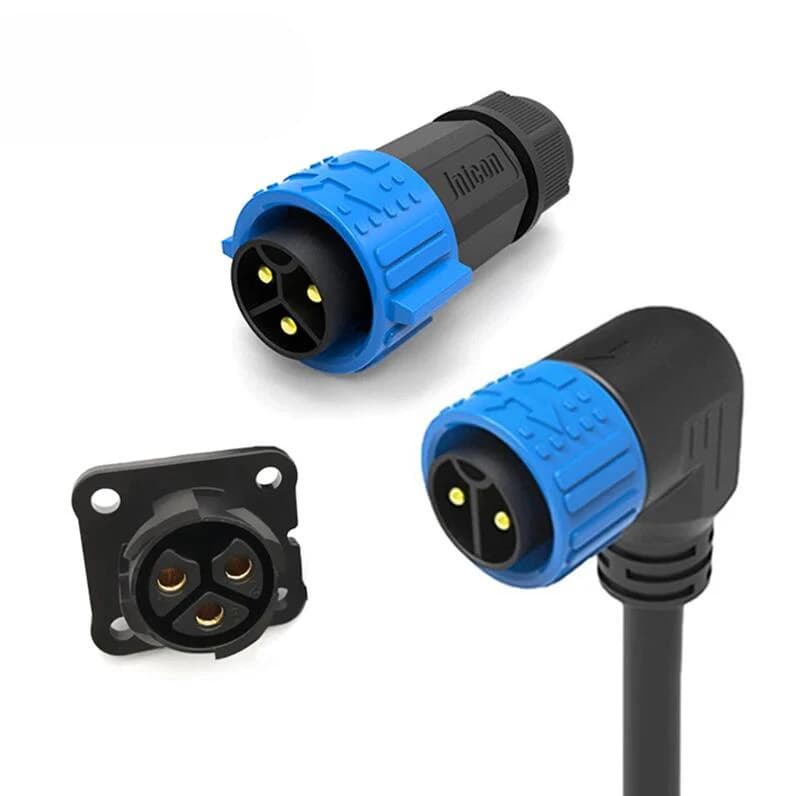

- Rugged Male and Female Aviation Plug Design - Features a durable, corrosion-resistant housing built for long-term reliability in tough conditions Applications
- Portable Power Stations and Generators - Create secure, high-current extension cables for job sites or outdoor events
- Electric Vehicle (EV) Charging Equipment - Build custom, waterproof charging connectors for DIY EV projects or charging stations
- Industrial Machinery and CNC Equipment - Provide reliable power connections for machines that require frequent setup and teardown
- Marine and RV Electrical Systems - Install dependable, waterproof power inlets and outlets for onboard AC systems Note: Ensure wire gauge is appropriately sized for the 50A load and that connections are properly terminated for optimal safety and performance.
Connector Type: M25 Aviation Plug. Gender: Male, Female. Pin Configuration: 2-pin, 3-pin. Current Rating: 50 A. Voltage: 500 V. Water Resistance Rating: IP67. Locking Mechanism: Self-locking. Housing Material: Engineering Plastics PA. Ambient Temperature: -40 to 105 °C. Fire Rating: 94-V0. Wire Gauge: 6 mm². Contact Material: High-conductivity copper alloy, gold-plated or silver-plated. Housing Material: Engineering-grade thermoplastic or polyamide (PA66/PA6). Voltage Rating: Typically 600V AC/DC (Inferred for high-current aviation connector). Operating Temperature Range: -25°C to +85°C (Typical for industrial connectors). Cable Compatibility: Suitable for cable outer diameters up to ~18mm. Current Rating: 50 Amperes (Continuous). Flammability Rating: UL94 V-0 (Inferred for safety-critical components). IP Rating: IP67 (Dust-tight and protected against immersion up to 1m). Thread Standard: M25 x 1.5mm (Standard aviation connector thread). Cable Entry: PG29 or M25 cable gland (integrated for IP67). Connector Type: Aviation Plug (M25 Thread). Contact Termination: Solder cup or screw clamp. Dielectric Strength: ≥2000V AC (1 minute). Gender: Male and Female connector pair. Insulation Resistance: ≥1000 MΩ (at 500V DC). Locking Mechanism: Self-locking (Bayonet or threaded coupling). Mechanical Life: ≥500 mating cycles. Pin Configuration Options: 2-pin or 3-pin variants. Sealing: Dual silicone O-rings for waterproofing. Q: What are the specifications of this M25 aviation plug connector? A: This is a 50A, IP67-rated waterproof connector. It features a self-locking M25 thread and is available in 2-pin and 3-pin configurations for male and female connections, suitable for high-current applications.. Q: How durable and waterproof is this IP67 aviation plug? A: The IP67 rating ensures complete protection against dust ingress and can withstand temporary immersion in water up to 1 meter deep. Its robust metal shell and self-locking mechanism provide excellent durability for demanding environments.. Q: Can I use this 50A connector for my electric vehicle charging cable project? A: Yes, its 50A current rating and IP67 waterproof design make it an excellent choice for DIY EV charging cables, outdoor power equipment, or any application requiring a robust, high-current, weatherproof connection.. Q: Does this DIVEDEER aviation plug come with a warranty or guarantee? A: Warranty details are typically provided by the seller at the point of purchase. We recommend checking the specific seller's policy for information on product guarantees and support.. Q: Is this M25 waterproof plug a good value compared to premium brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in high-current, waterproof applications..
