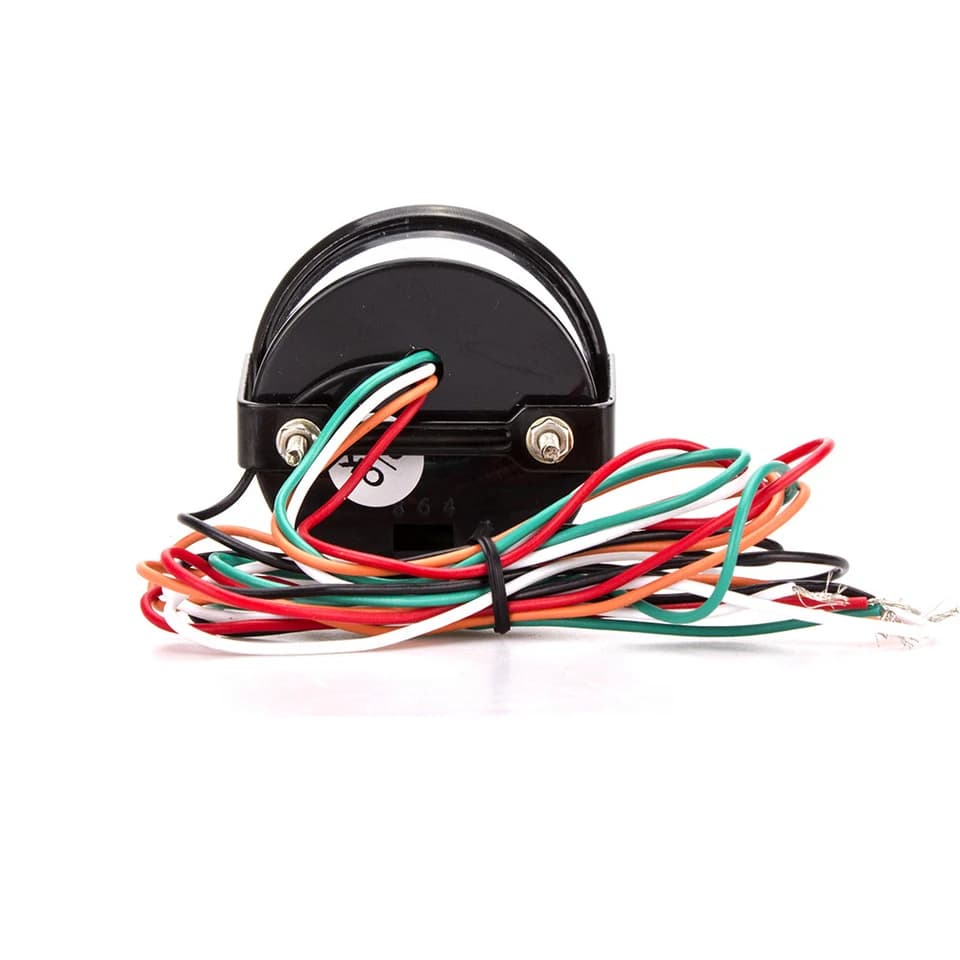

This 52mm gauge combines eight engine readings onto one LCD screen. It works as a tachometer, voltmeter, and pressure gauge, letting you watch RPM, water temperature, oil temperature, oil pressure, exhaust temperature, boost, vacuum, and air-fuel ratio. Features and Benefits
- All-in-One Display - Replaces several 52mm gauges with one unit, saving space and making wiring simpler.
- Dual-Color Backlight - You can switch between red and blue lights with a button to match your car's interior or your preference.
- Standard 52mm Size - The 2-1/16 inch diameter fits most aftermarket gauge pods, so it installs cleanly in nearly any car or boat.
- Complete Sensor Kit - Comes with all needed sensors, like oil pressure and water temperature senders, so you have everything to get started. Applications
- For custom car builds where you want a clean dashboard without losing important engine info.
- In performance cars to closely watch engine numbers like boost and air-fuel ratio when tuning or driving on a track.
- As a small monitoring option for boats, giving you key data like RPM and temperatures in a tight space.
Backlight Color: Red, Blue. Display Type: LCD. Measurements Displayed: RPM, Water Temperature, Oil Temperature, Oil Pressure, Exhaust Temperature, Voltm, Boost, Vacuum, AFR, Fuel Pressure. Diameter: 52 mm. Gauge Type: Multi-function display. Gauge Diameter: 52mm. Material: ABS Plastic, Aluminum Alloy. Input Voltage: 12V DC. AFR Range: 10:1 to 20:1. Boost/Vacuum Range: -1 to 2 Bar (-14.5 to 29 PSI). Exhaust Temperature Range: 0-1000°C (32-1832°F). Oil Pressure Range: 0-10 Bar (0-145 PSI). Oil Temperature Range: 40-150°C (104-302°F). RPM Measurement Range: 0-9999 RPM. Voltmeter Range: 8-18V. Water Temperature Range: 40-120°C (104-248°F). Functions Measured: RPM, Water Temperature, Oil Temperature, Oil Pressure, Exhaust Temperature, Voltmeter, Boost/Vacuum, Air-Fuel Ratio (AFR). Sensor Compatibility: Universal. Backlight Colors: Red, Blue. Display Type: LCD. Q: What all does this single gauge actually monitor? A: It's a multi-function gauge that displays nine different readings. You can track RPM, water temperature, oil temperature, oil pressure, exhaust temperature, voltage, boost, vacuum, and air-fuel ratio all on one screen.. Q: What all does this single gauge actually monitor? A: It's a multi-function gauge that displays nine different readings. You can track RPM, water temperature, oil temperature, oil pressure, exhaust temperature, voltage, boost, vacuum, and air-fuel ratio all on one screen.. Q: Is the LCD display easy to read during the day and at night? A: Yes, it's designed for clear visibility in different lighting. You can switch the backlight between red and blue to match your dash lights or personal preference, and the LCD is clear enough for daytime viewing.. Q: Is the LCD display easy to read during the day and at night? A: Yes, it's designed for clear visibility in different lighting. You can switch the backlight between red and blue to match your dash lights or personal preference, and the LCD is clear enough for daytime viewing.. Q: Will this fit in a standard 2-inch gauge pod? A: It will. The gauge has a 52mm diameter, which is the standard size for most aftermarket gauge pods, often referred to as 2 1/16 inches. So, it should drop right into any pod made for that size.. Q: Will this fit in a standard 2-inch gauge pod? A: It will. The gauge has a 52mm diameter, which is the standard size for most aftermarket gauge pods, often referred to as 2 1/16 inches. So, it should drop right into any pod made for that size.. Q: I'm looking for a fuel pressure gauge. Can the oil pressure function be used for fuel pressure instead? A: No, we don't recommend that. The included sensor is specifically calibrated for oil pressure and may not be safe or accurate for use with fuel. This unit is intended for monitoring oil pressure only.. Q: I'm looking for a fuel pressure gauge. Can the oil pressure function be used for fuel pressure instead? A: No, we don't recommend that. The included sensor is specifically calibrated for oil pressure and may not be safe or accurate for use with fuel. This unit is intended for monitoring oil pressure only.. Q: What's the warranty on this gauge and its sensors? A: The gauge and all the included sensors come with a one-year warranty against manufacturing defects. If you run into any issues with its function within that first year, we'll take care of it.. Q: What's the warranty on this gauge and its sensors? A: The gauge and all the included sensors come with a one-year warranty against manufacturing defects. If you run into any issues with its function within that first year, we'll take care of it..
