Fuel Pressure Gauges

Selecting the Right Display and Interface: Analog vs. Digital

The choice between analog and digital fuel pressure gauges depends on whether you are conducting static workshop diagnostics or requiring continuous, real-time in-cab monitoring. Analog gauges are self-powered, mechanical, and ideal for quick pressure checks at the fuel rail. Digital gauges require a 12V power source but deliver precise numerical readouts and often consolidate multiple sensor inputs into a single unit.

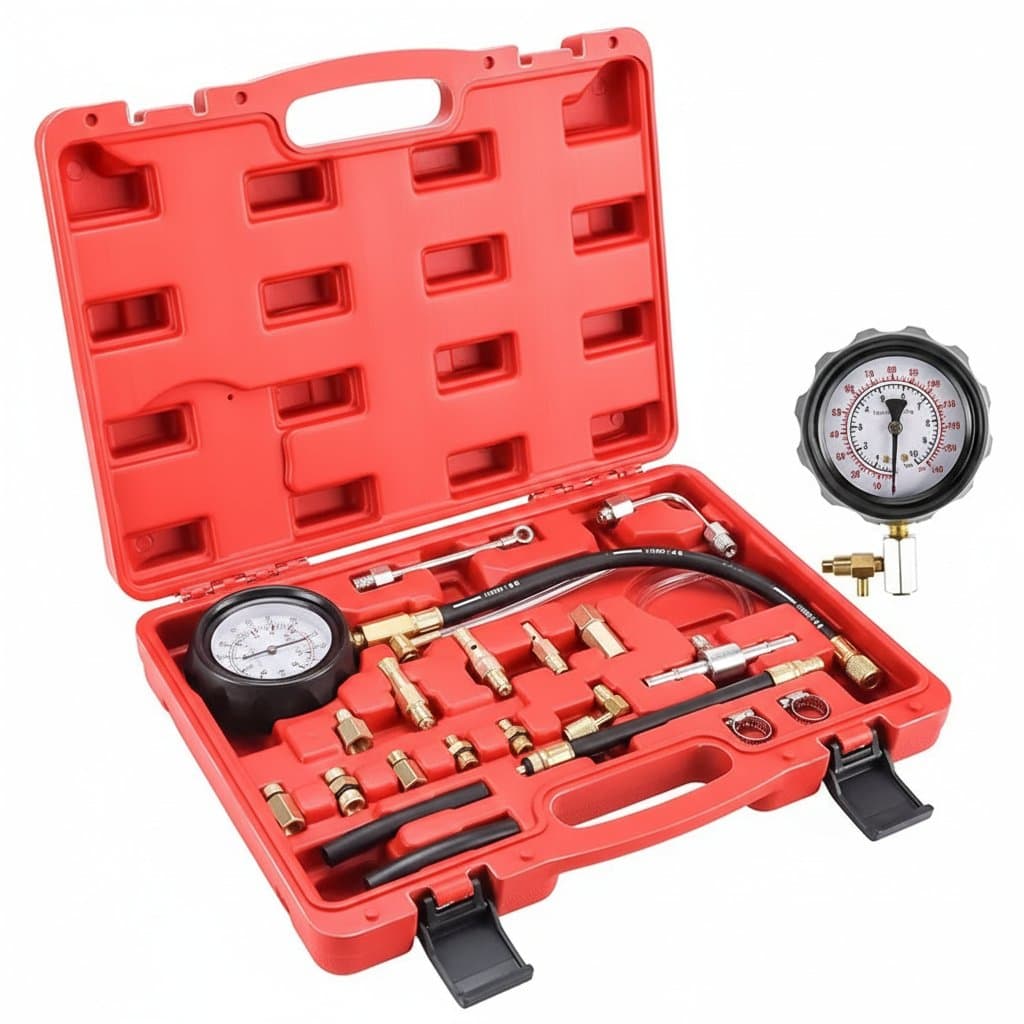

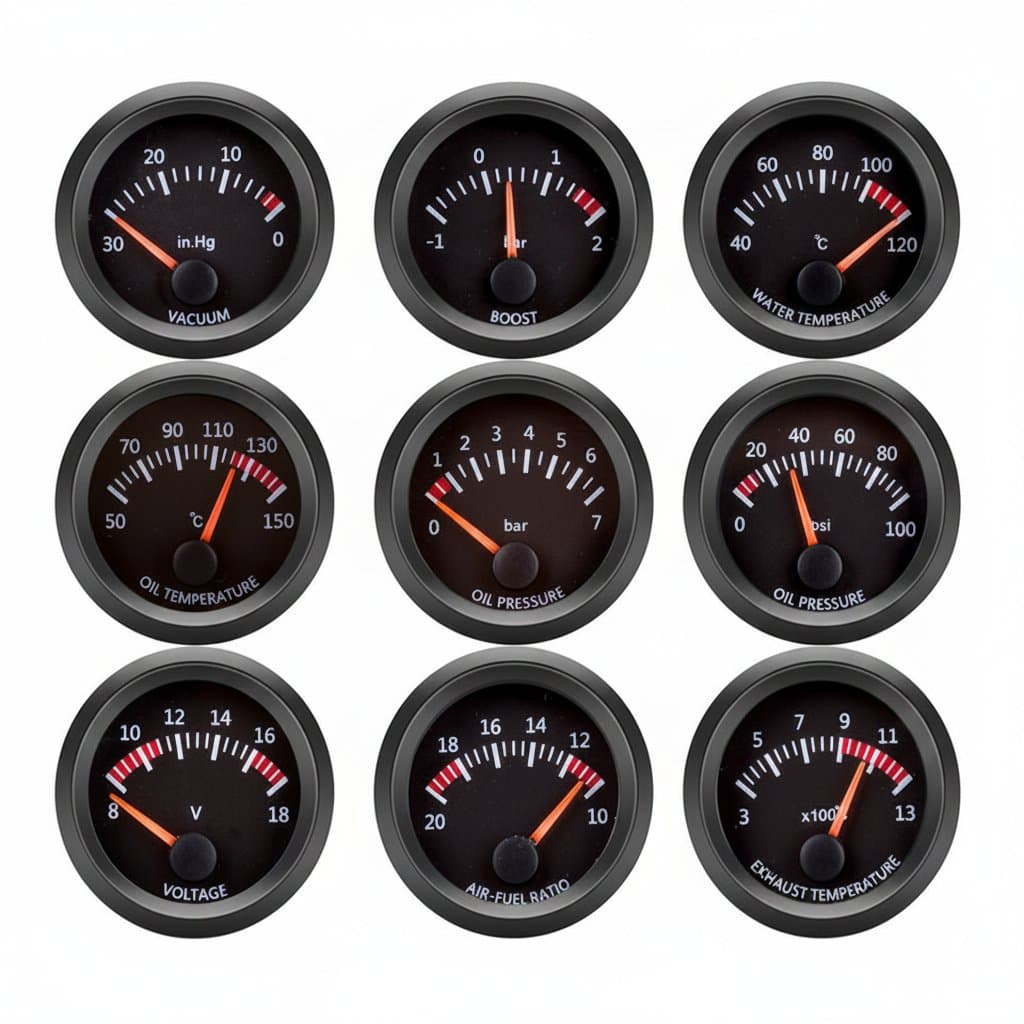

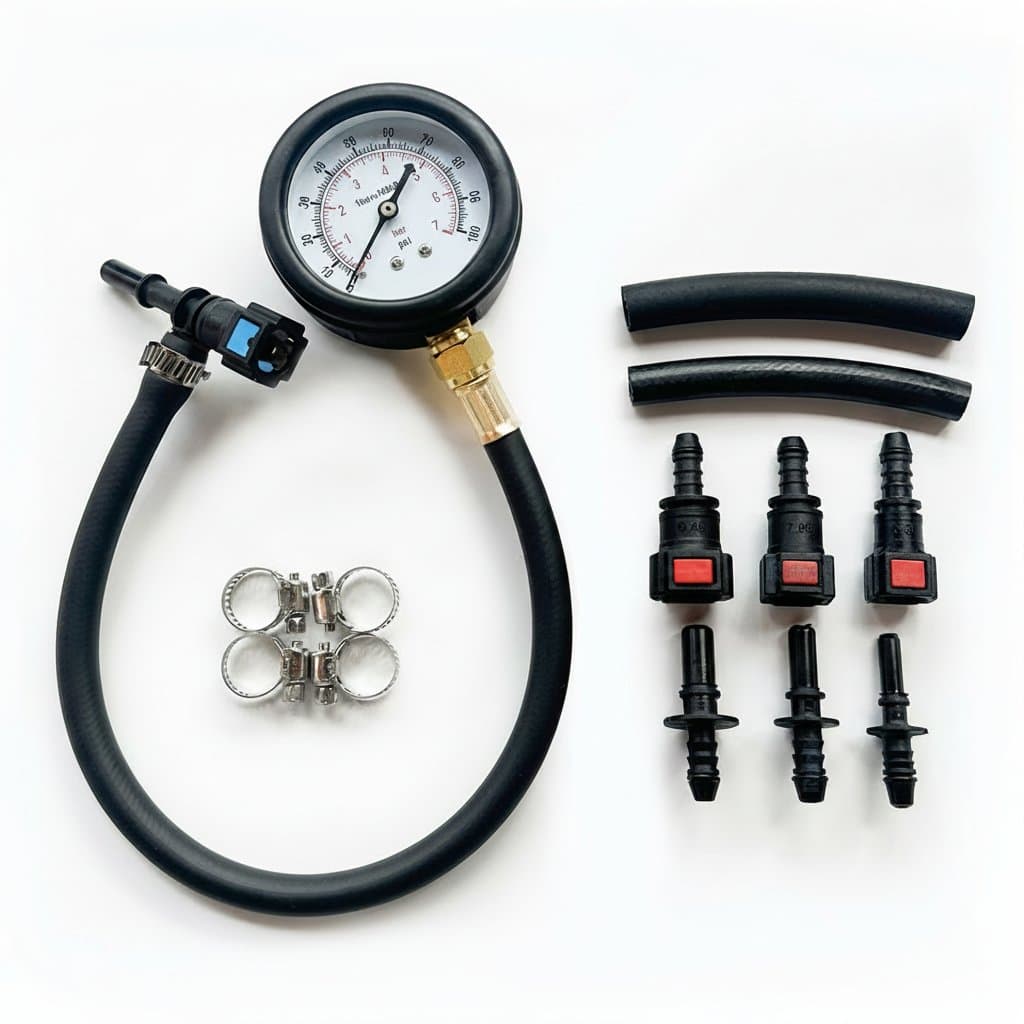

• Analog Test Kits: Typically feature 52mm to 63mm dials with measurement ranges like 0-100 PSI or 0-300 PSI for high-pressure compression testing.

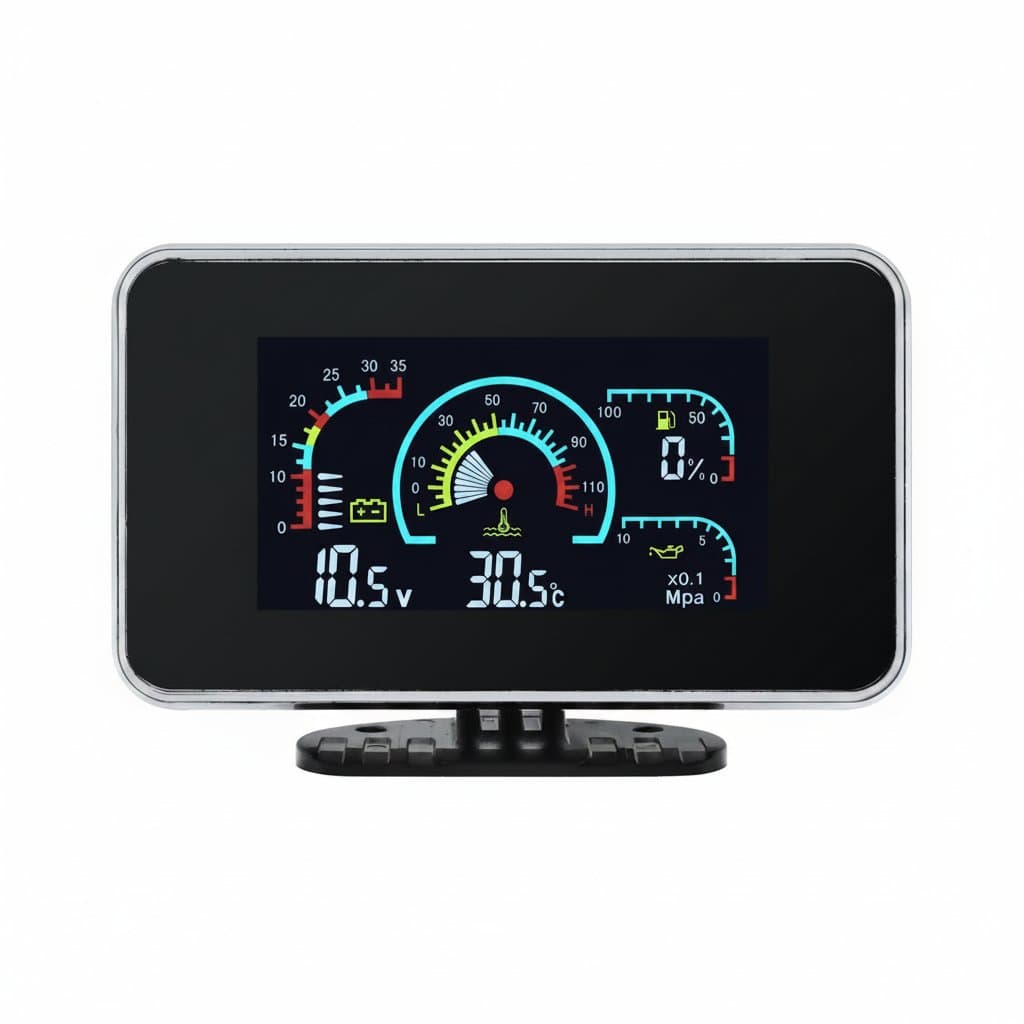

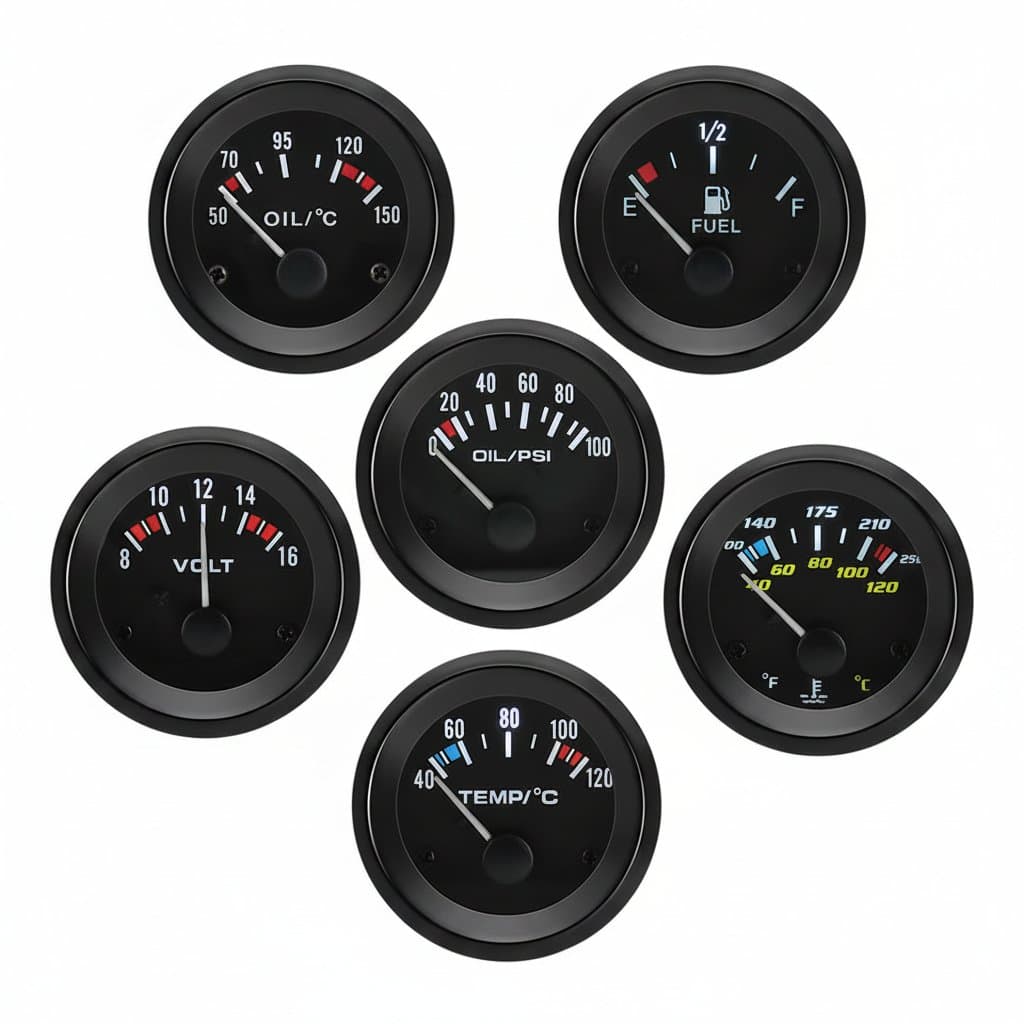

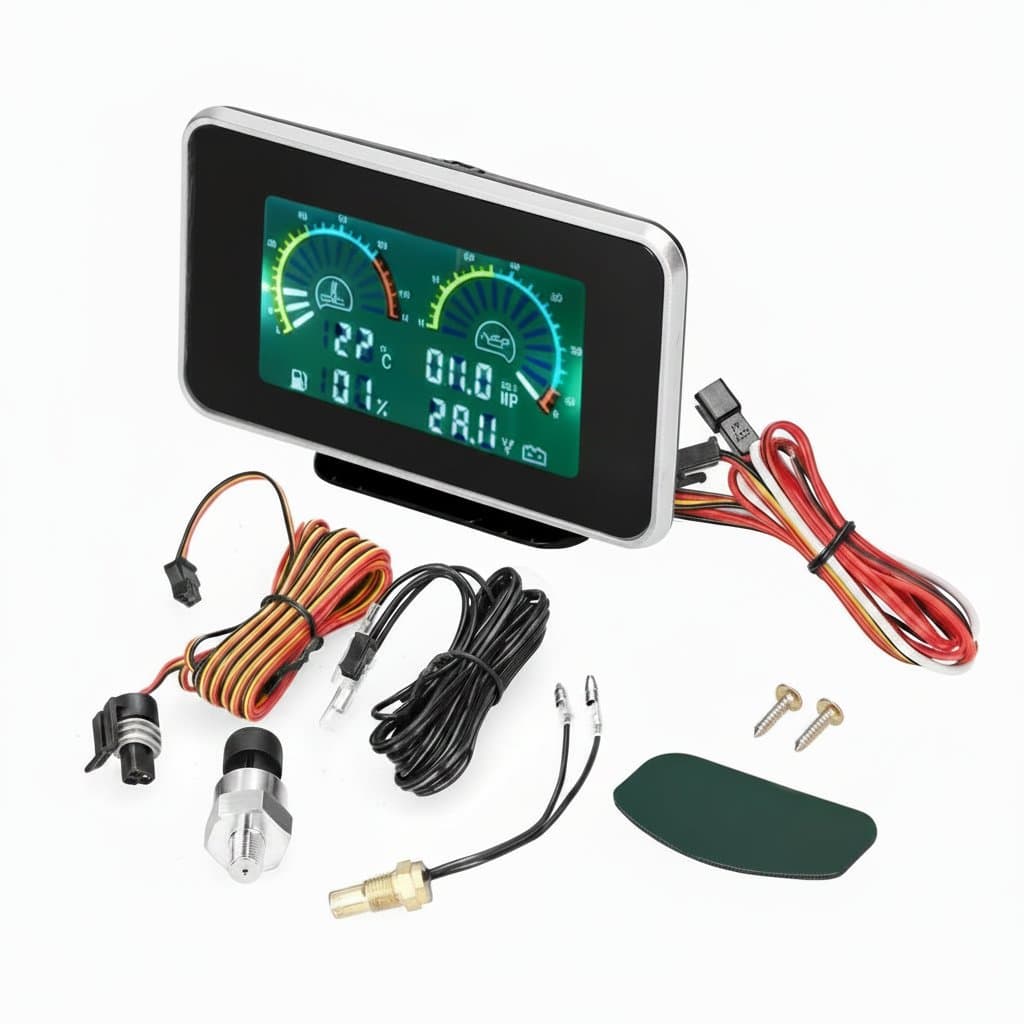

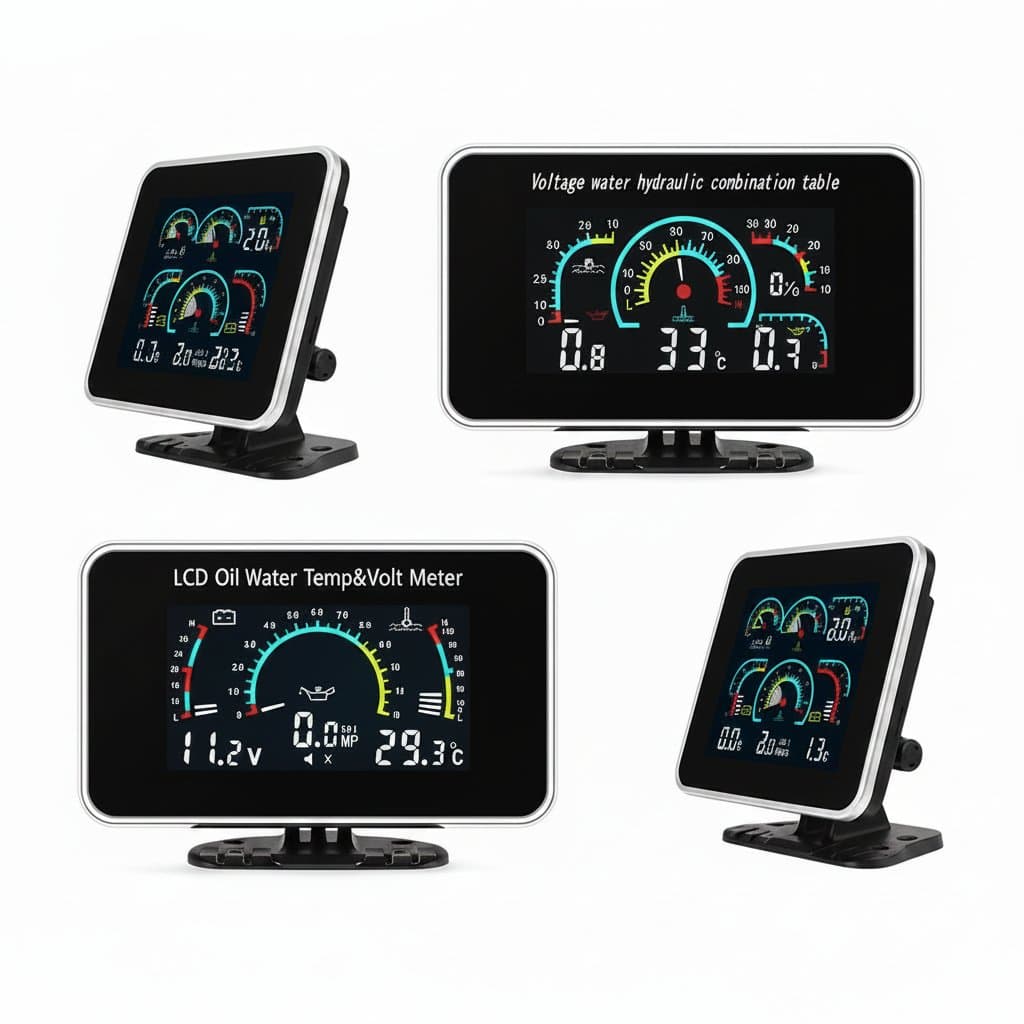

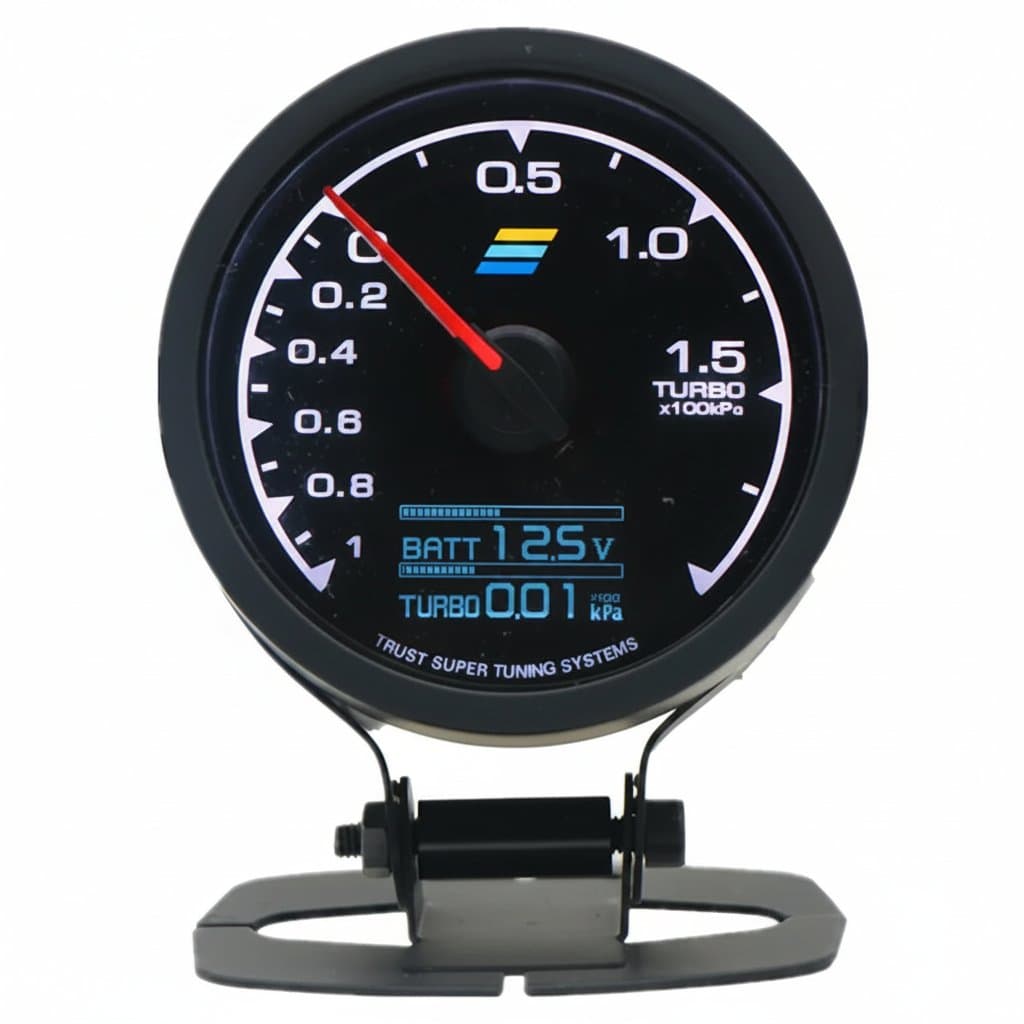

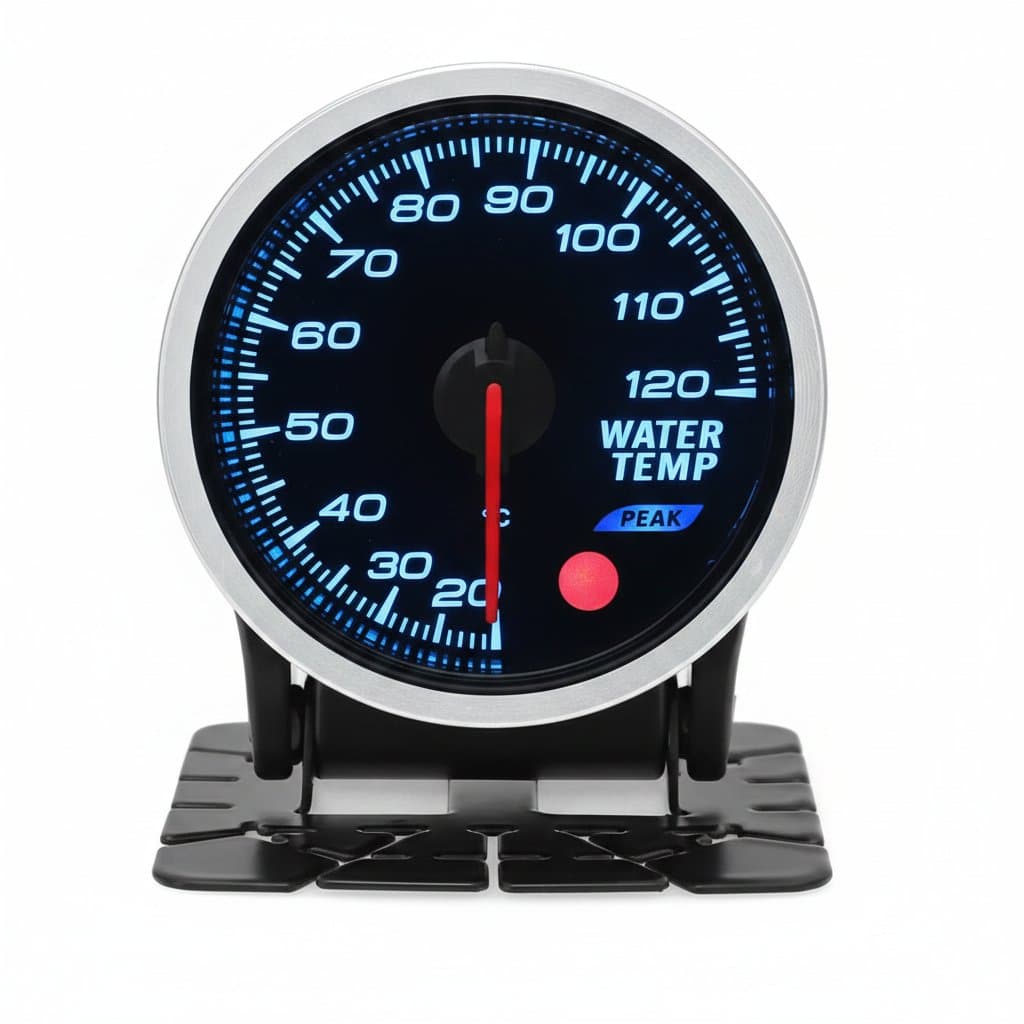

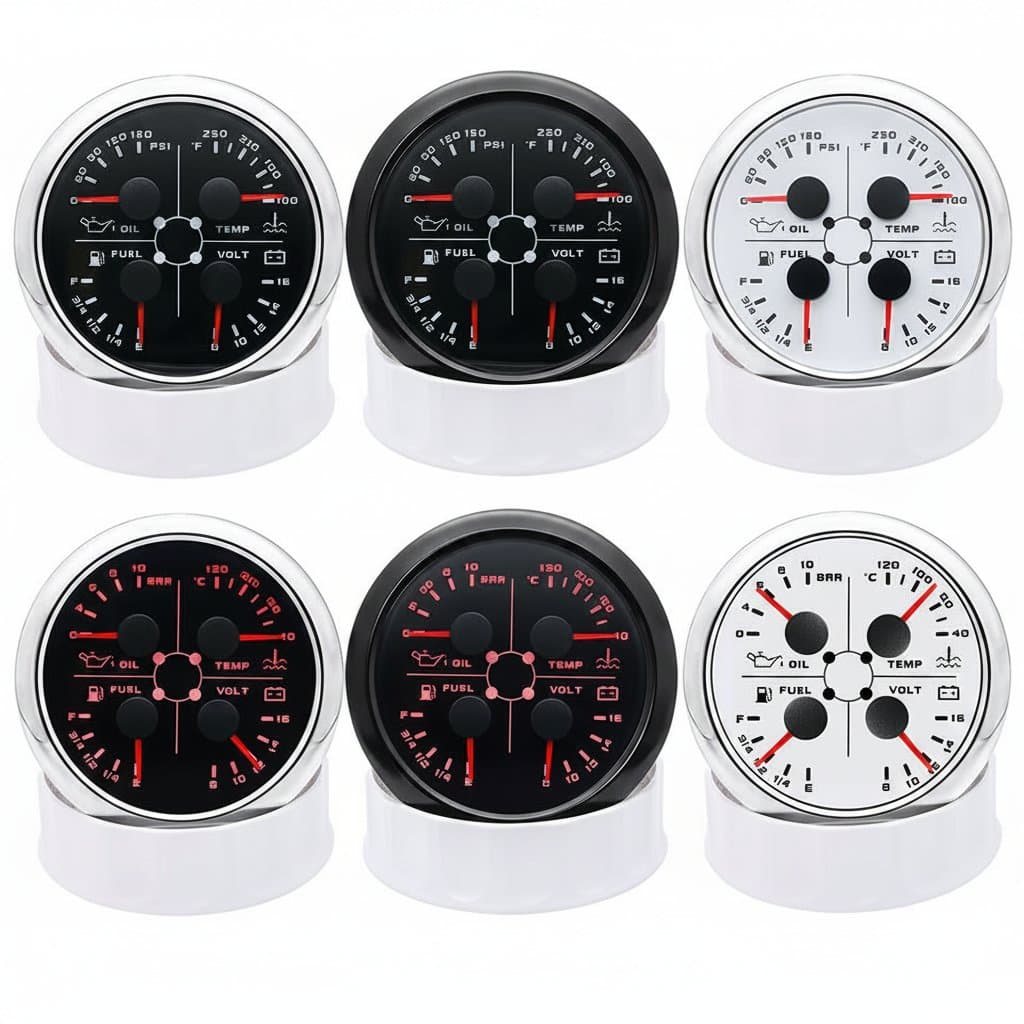

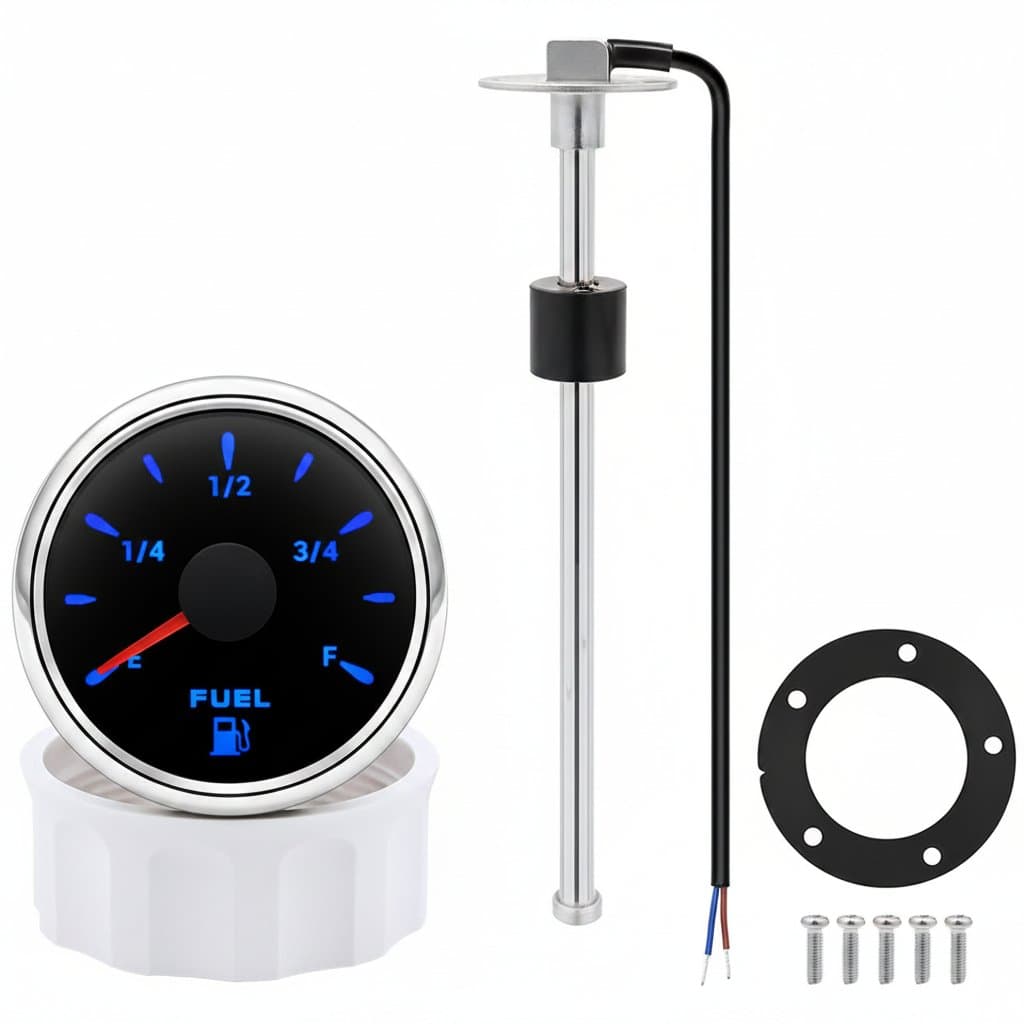

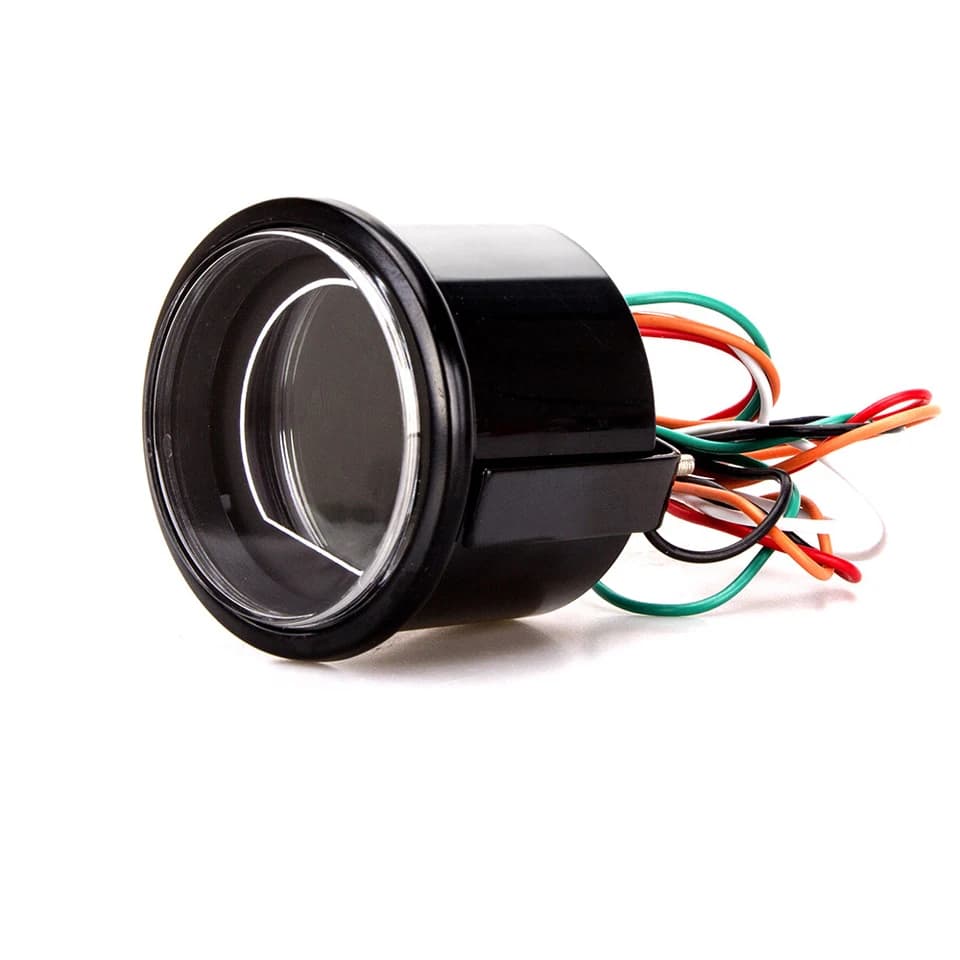

• Digital Multi-Function Gauges: Available in standard 52mm and 62mm sizes, offering selectable readouts for fuel pressure, oil temperature, voltage, and boost.

Evaluating Liquid-Filled Versus Dry Gauges

High-vibration environments, such as engine bays or heavy machinery, can cause needle flutter in standard dry analog gauges, making accurate readings difficult. Liquid-filled gauges solve this by dampening internal vibrations and lubricating the movement. This protection extends the service life of the instrument under harsh trade conditions.

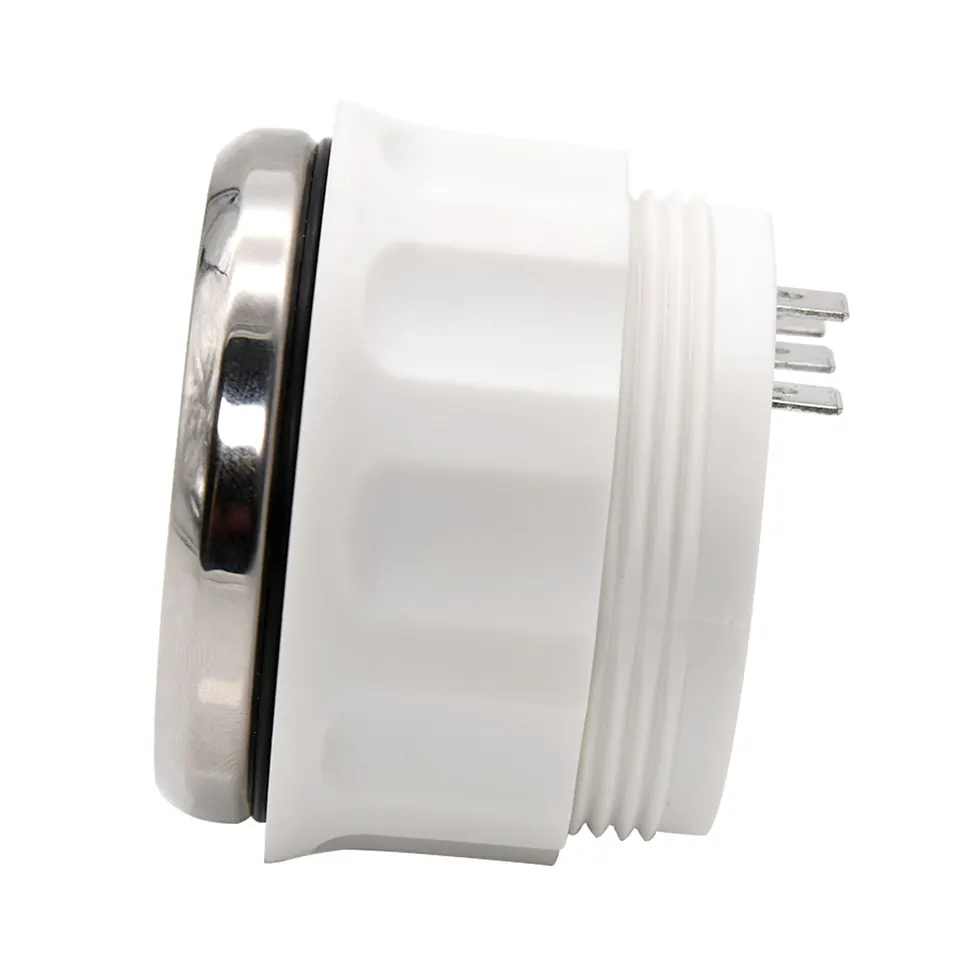

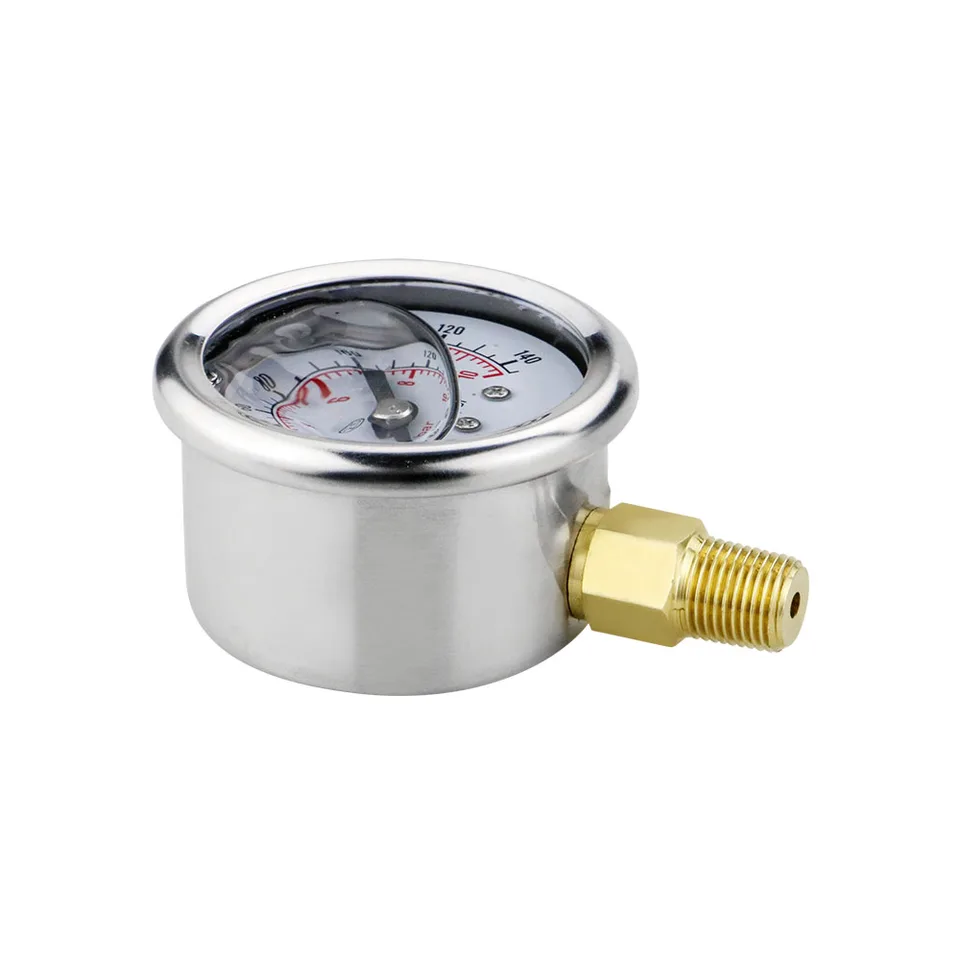

• Glycerin-Filled Gauges: Feature stainless steel cases and 1/8 NPT threads to prevent moisture ingress and mechanical wear.
• Dry Gauges: Best suited for portable diagnostic kits where the gauge is only connected temporarily during testing procedures.

Ensuring Fitting and Thread Compatibility

A diagnostic tool is only useful if it connects securely to the fuel system without leaking. Standard industrial systems and automotive fuel rails typically use NPT or metric threaded ports. When selecting a test kit, verify that the included adapters match your fleet requirements to prevent thread damage and hazardous fuel leaks.

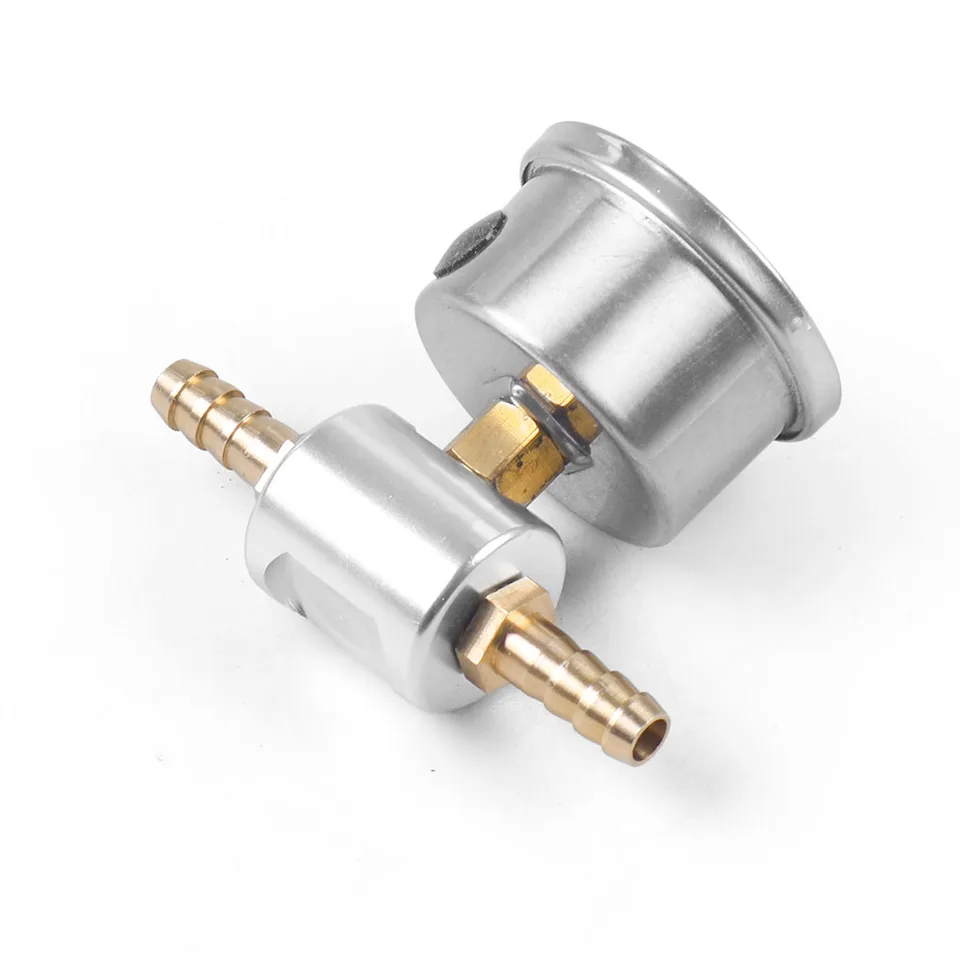

• 1/8 NPT Connections: The industry standard for direct-mount digital sensors and permanent analog gauges.

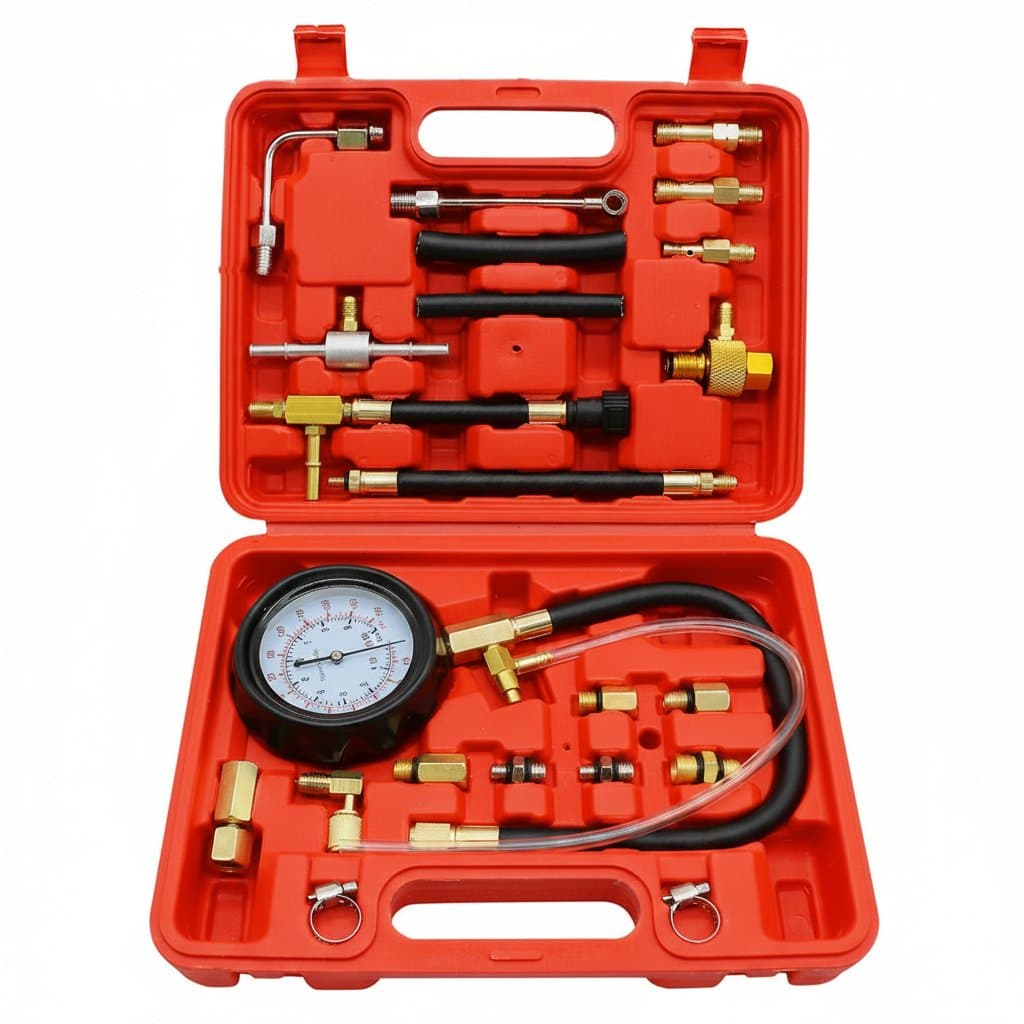

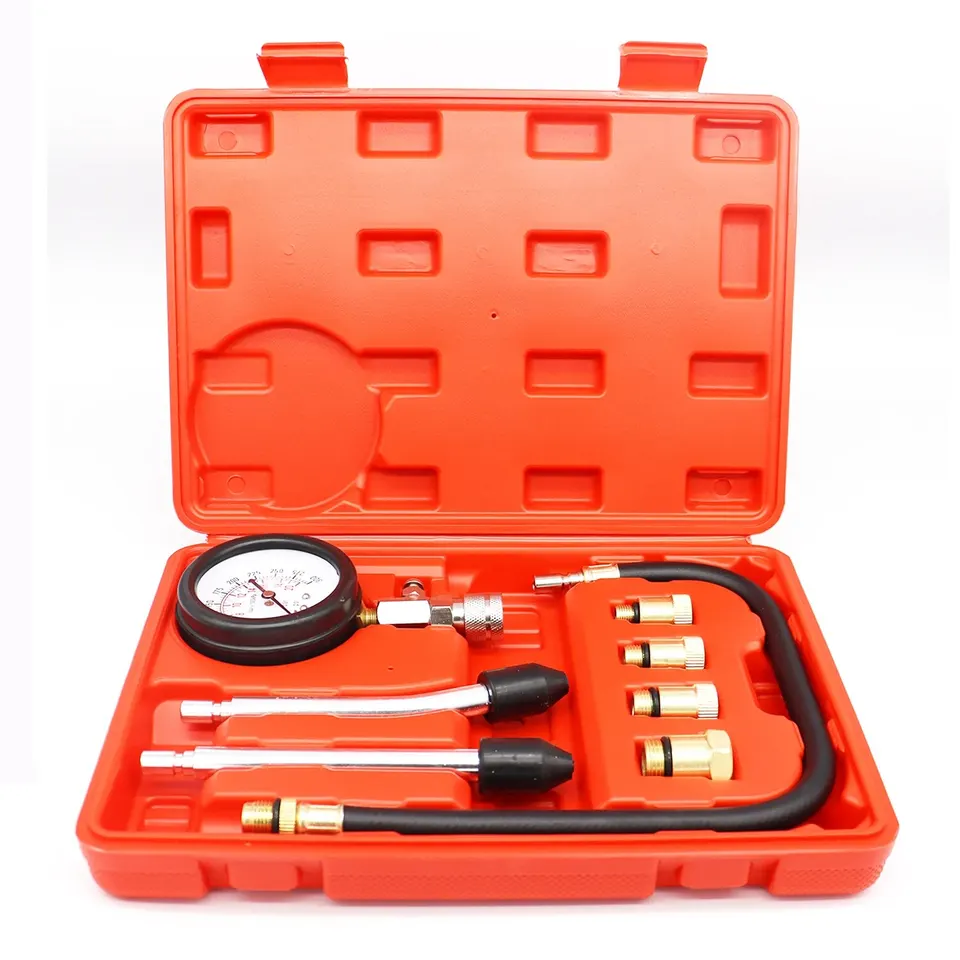

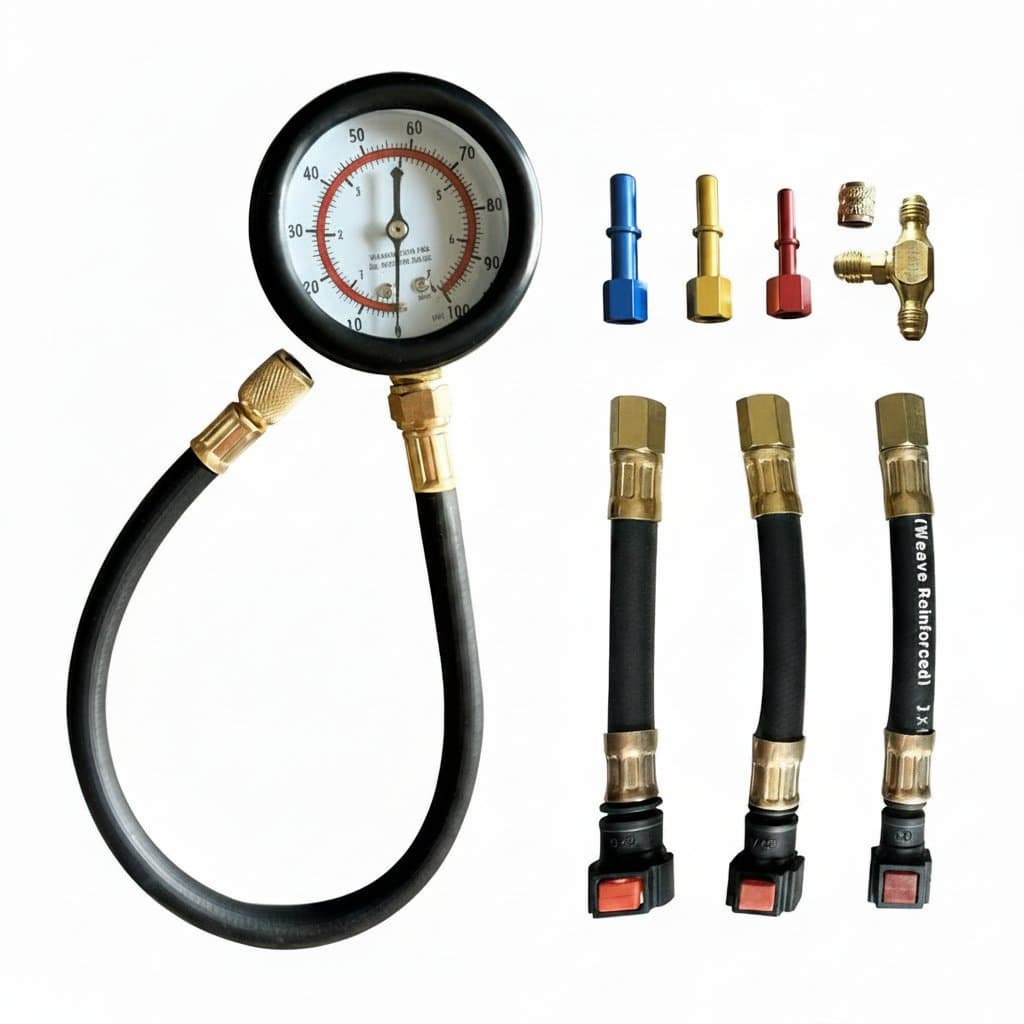

• Multi-Size Adapter Kits: Portable tester kits should include standard metric adapters like M10, M12, M14, and M18 to cover various gasoline injection systems.
• Hose Lengths: Look for long-reach hoses between 789mm and 949mm to keep the gauge at a safe distance from hot engine components during active testing.
