Does this switch panel have built-in fuses or circuit breakers?

This panel does not include integrated circuit protection. You will need to wire the switches to an external fuse block to protect your connected equipment.

How much power can each individual toggle switch safely handle?

Each rocker switch is rated for a maximum of 20 amps at 12 volts DC. The built-in USB port outputs 5 volts at 2.1 amps to quickly charge your phone or tablet.

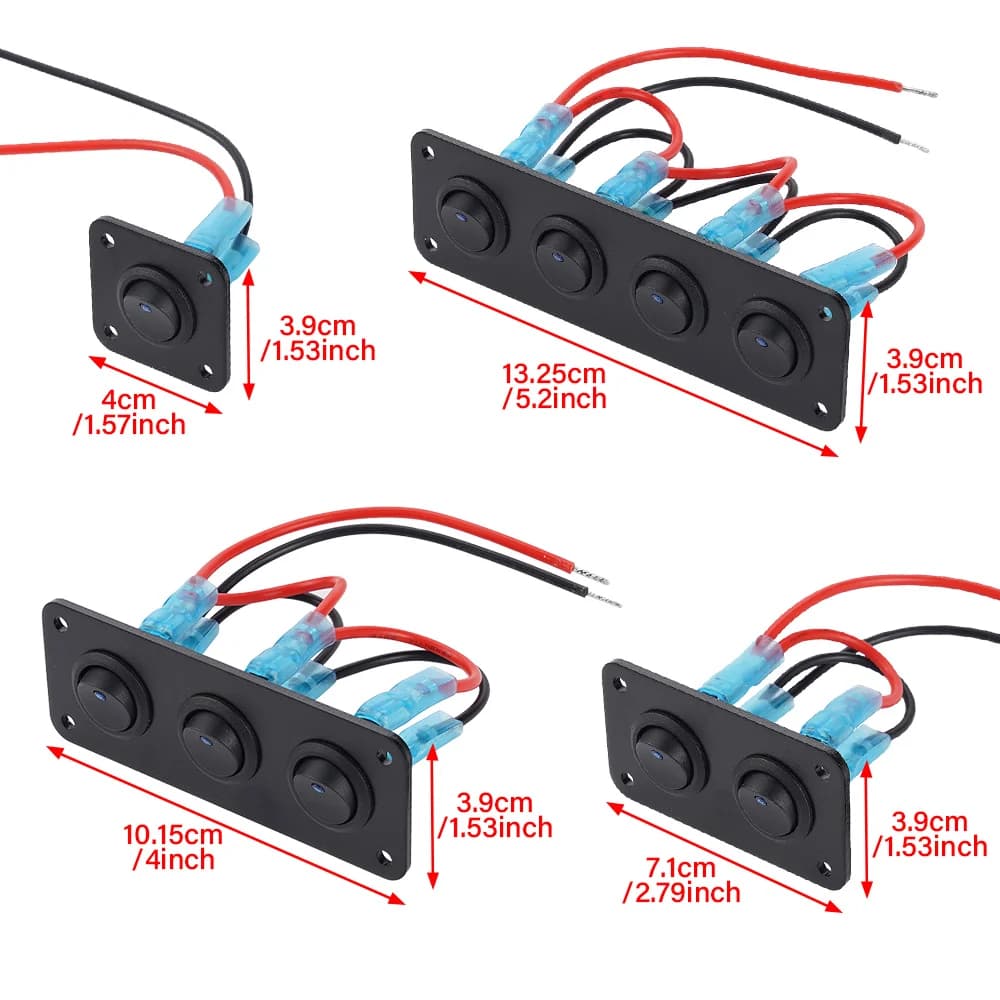

What are the cutout dimensions required to mount the 4-gang panel?

You need a cutout measuring roughly 72mm by 142mm for the 4-gang version. The package includes pre-drilled mounting holes and a grommet for a neat, warp-free installation.

Marine-Grade Rocker Switch Panel | 1-4 Gang Toggle | 12V/USB Power | Blue LED Backlit

Name: Marine-Grade Rocker Switch Panel | 1-4 Gang Toggle | 12V/USB Power | Blue LED Backlit
Brand: Compel
SKU: ACCS-00296
Price: 19.99 USD
Availability: InStock

Stock #:TBS-03140

SKU:ACCS-00296

Marine-Grade Rocker Switch Panel | 1-4 Gang Toggle | 12V/USB Power | Blue LED Backlit - Image 1

1 / 4

$19.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

10-24 units-10%

Save $19.99 on 10 units

$17.99

per unit

25-49 units-15%

Save $74.96 on 25 units

$16.99

per unit

50-99 units-18%

Save $179.91 on 50 units

$16.39

per unit

100+ units-20%

Save $399.80 on 100 units

$15.99

per unit

Click a tier to set quantity • Discount applies automatically at checkout

ColorSelect an option

Quantity

Marine-Grade Rocker Switch Panel | 1-4 Gang Toggle | 12V/USB Power | Blue LED Backlit

$19.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Does this switch panel have built-in fuses or circuit breakers?: This panel does not include integrated circuit protection. You will need to wire the switches to an external fuse block to protect your connected equipment.
How much power can each individual toggle switch safely handle?: Each rocker switch is rated for a maximum of 20 amps at 12 volts DC. The built-in USB port outputs 5 volts at 2.1 amps to quickly charge your phone or tablet.
What are the cutout dimensions required to mount the 4-gang panel?: You need a cutout measuring roughly 72mm by 142mm for the 4-gang version. The package includes pre-drilled mounting holes and a grommet for a neat, warp-free installation.

Car Accessories spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare car accessories

This product

Blue LED backlit 1 to 4 gang marine rocker switch panel for 12V power in cars, boats, RVs, and trucks with USB ports.

Marine-Grade Rocker Switch Panel | 1-4 Gang Toggle | 12V/USB Power | Blue LED Backlit

Price$19.99

Rating4.9

Sold1,000+

Stock In stock

You're viewing this

Alternative

Premium 2-8 gang LED rocker switch panel for marine boat, truck, or car, featuring circuit breakers and 12V socket mounts.

Marine-Grade Rocker Switch Panel | 2-8 Circuit Control | Waterproof Toggle Panel for Boats & RVs

Price$80.35$41.95

Rating5.0

Sold41+

Stock In stock

View

Alternative

8 Gang LED Rocker Switch Panel with Voltmeter and dual USB fast charger for car, marine, or boat installation

Marine-Grade Switch Panel | 4.2A Dual USB Fast Charger | Waterproof LED Rocker Switches

Price$24.95

Rating4.0

Sold8+

Stock In stock

View

Compare options

More Car Accessories

All Car Accessories

-54%

8-Gang Marine Switch Panel | 12V/24V Power Distribution | USB Charging for RV, Boat & Van

5.0

$8.95$19.57

Tesla Jack Pads | 4-Piece Set for Model 3, Y, S, X | Protective Chassis Lift Adapters

4.9

$29.95

Wireless Winch Remote Control Electric Winch Controller with 434MHZ Receiver for Truck ATV Winch Remote Control

5.0

$40.95

Heavy-Duty Tyre Pressure Gauge | 10-150 PSI | Dual Head Truck Tool

4.9(172)

$21.95

Tire Pressure Gauge | Backlit LCD | 250 PSI for Cars & Motorcycles

4.9(327)

$10.10

Illuminated Toggle Switch | 12V 20A with Safety Cover | Marine & Automotive Grade

4.8

$15.99

-4%

Automotive Trim & Radio Removal Tool Kit | 11-Piece Pry Tool Set for Secure Installation

4.6

$10.99$11.44

Waterproof Power Switch Kit | 10-Pack 16mm & 19mm Push Buttons | 12V LED & Accessory Control

4.3

$46.95

6-Gang Marine Switch Panel | 12V/24V Digital Voltmeter & Dual USB 3.0 Chargers

$12.99

-6%

Marine & RV Touch Control Panel | 10-Button Bluetooth Switch | 12V/24V 60A Fuse Protection

$12.99$13.82

Explore the range

Popular in Automotive & Powersports

Browse Automotive & Powersports

-57%

Brake Caliper Piston Rewind Tool | Disc Brake Pad Replacement Kit | Heavy-Duty Service Cube

5.0

$8.95$20.68

Motorcycle Chain Maintenance Kit | Mess-Free Lubricator & Cleaner | 1-3 Set Options

5.0

$4.49

Upgrade your vehicle's electrical control with this 1-4 gang toggle switch panel, featuring integrated 12V USB charging ports and crisp blue LED illumination. Engineered for reliable 12-24V DC operation, this panel provides a centralized, professional-grade interface for managing multiple accessories with clean, secure wiring and durable marine-grade construction. Features and Benefits - 1 to 4 Gang Configurable Design - Choose the exact number of switches you need for a custom, clutter-free dashboard installation without paying for unused ports. - Integrated 12V 2.1A USB Charging Ports - Provides fast, convenient device charging directly from your vehicle's electrical system, eliminating bulky adapters. - Illuminated Blue LED Rocker Switches - Offers clear, low-glare status indication in all lighting conditions for safe, intuitive operation day or night. - Universal SPST On/Off Toggle Switches - Delivers simple, reliable control for a wide range of 12V accessories like lights, fans, compressors, and inverters. - Marine-Grade ABS Panel Construction - Ensures long-term durability and resistance to vibration, moisture, and UV exposure in demanding environments. - Pre-Drilled Mounting Holes and Grommet - Allows for straightforward, secure installation with a clean, professional finish that prevents panel warping. Applications - Marine and Boat Electrical Systems - Ideal for controlling bilge pumps, navigation lights, livewell aerators, or stereo systems with a splash-resistant design. - RV and Camper Van Conversions - Perfect for managing interior lighting, vent fans, water pumps, or auxiliary power outlets in custom living spaces. - Off-Road and Overland Truck Builds - Provides reliable switch control for aftermarket light bars, winches, air compressors, or refrigerator slides. - Utility and Work Vehicle Organization - Consolidates control for strobe beacons, toolbed lights, hydraulic systems, or other commercial vehicle accessories.

Cutout Dimensions: 22 x 33 mm per switch (typical). Overall Panel Dimensions: Varies by gang count. Panel Material: ABS Plastic or Polycarbonate (typical). Indicator Light Color: Blue LED. Operating Voltage: 12V DC. Application: Automotive, Marine, Recreational Vehicle, Truck. Ingress Protection: IP66 or IP67 (typical for marine). Mounting Type: Panel mount. Operating Temperature: -20°C to +85°C (typical). Panel Type: Rocker switch. Switch Actuation: Momentary or maintained (universal). Switch Configuration: 1 to 4 gang. Switch Contact Rating: 20A @ 12V DC (typical). Switch Type: Toggle. Terminal Type: Screw or quick-connect (universal). USB Output: 5V DC, 2.1A (typical). USB Ports: 1. Cutout Dimensions (Inferred): Approximately 72mm x 142mm (for 4-gang standard). Overall Panel Dimensions (Inferred): Approximately 85mm x 155mm. Panel Material: Likely ABS Plastic or Polycarbonate. Illumination Power Source: Likely 12V Panel Backlighting. Primary Voltage Rating: 12V DC. USB Output Voltage: 5V DC. Total Panel Current Capacity (Inferred): 80A @ 12V DC (for 4-gang). USB Output Current: Likely 2.1A (Inferred from standard automotive accessory). USB Output Ports: 1 (Standard). Wire Gauge Compatibility: Likely 14-18 AWG. IP Rating (Inferred): Likely IP55 or similar for marine use. Operating Environment: Marine, Automotive, RV (Splash/Spray Resistant Inferred). Switch Contact Rating (Inferred): 20A @ 12V DC per switch (standard automotive). Circuit Protection: Not Integrated (Requires external fuse/circuit breaker). Illumination Type: Blue LED. Panel Mount Type: Universal Cutout (Single Rectangle). Switch Actuation: Toggle (On/Off). Switch Configuration: 1 to 4 Gang Toggle Switch Panel. Switch Type: Rocker Switch. Termination Type: Screw Terminal or Quick-Connect Spade (0.250"). Q: What are the dimensions and specifications of this 1-4 gang toggle switch panel? A: This universal switch panel is designed for standard 12V DC systems and features a 1-4 gang configuration for multiple accessories. The panel is constructed from durable ABS plastic and includes blue LED backlighting for clear visibility in low-light conditions.. Q: How durable is this marine rocker switch panel for use in vehicles and boats? A: The panel is built with robust materials suitable for demanding environments like marine, RV, and automotive use. The rocker switches are designed for reliable, long-term performance, and the construction resists vibration and moisture ingress common in these applications.. Q: Can this 12V USB and toggle switch panel be installed in my car, truck, and boat? A: Yes, this is a universal 12V panel compatible with cars, trucks, boats, RVs, and other marine applications. It is designed for easy integration into standard 12V DC electrical systems to control accessories like lights, fans, or USB charging ports.. Q: Does this automotive switch panel come with any warranty or guarantee? A: This product is backed by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty duration and terms, please refer to the seller's product listing or contact them directly for the most accurate and current information.. Q: Is this toggle switch panel a good value compared to other options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, combining multiple switch gangs and USB functionality in a single, durable unit for versatile 12V applications..
