Move aggressive workshop fluids safely using this drum pump electric unit built for standard 55-gallon containers. As a dedicated electric chemical drum pump, it uses corrosion-proof internal plastics to handle tough solutions. You can empty barrels steadily without splashing harsh reagents or breathing concentrated chemical fumes. Features and Benefits
- Chemical-grade polymer intake tube - Resists degradation from strong acids, alkalis, and shop detergents
- 800-watt variable speed motor - Adjusts delivery rates to prevent dangerous splashing in small containers
- Standard barrel adapter thread - Screws straight into drum bungs to eliminate chemical vapor leaks
- Modular two-piece shaft - Disassembles in seconds so you can clean residues between chemical batches Applications
- Dispensing raw industrial cleaners and sodium hydroxide mixes into portable wash buckets
- Transferring pool chemicals, light acids, and plating fluids directly from IBC storage containers
- Dosing liquid fertilizers and agricultural nutrients safely into field sprayer distribution tanks
Core Operating Mechanism
This unit operates as an electric drum pump using an internal drive screw pump mechanism. When powered, the electric motor turns the internal drive shaft, rotating the screw element inside the pump casing. This positive displacement action steadily draws fluids upward through the immersion tube and discharges them under consistent pressure. Unlike centrifugal designs that rely on high-speed impellers, the progressive screw geometry handles aggressive media smoothly without excessive agitation or churning. It is engineered specifically to transfer medium to high concentration acids and alkalis directly from the container, providing reliable fluid movement while keeping the operator isolated from hazardous chemical contact.
Key Types of Pneumatic Drum Pumps
Air-powered barrel units serve workshops where electric supply is restricted or explosive vapours prevent using electric drum pumps. Understanding how a pneumatic drum pump work comes down to compressed air driving either a continuous air motor or reciprocating diaphragms. Common workshop variants include:
- Air-motor centrifugal units, using shop air to spin impellers for rapid low-viscosity liquid decanting.
- Air-operated double diaphragm (AODD) barrel pumps, using pneumatic pressure plates for thick pastes, slurries, or solids.
- Pneumatic piston transfer pumps, delivering high discharge pressures for heavy oils and greases over longer pipe runs.
What It Is

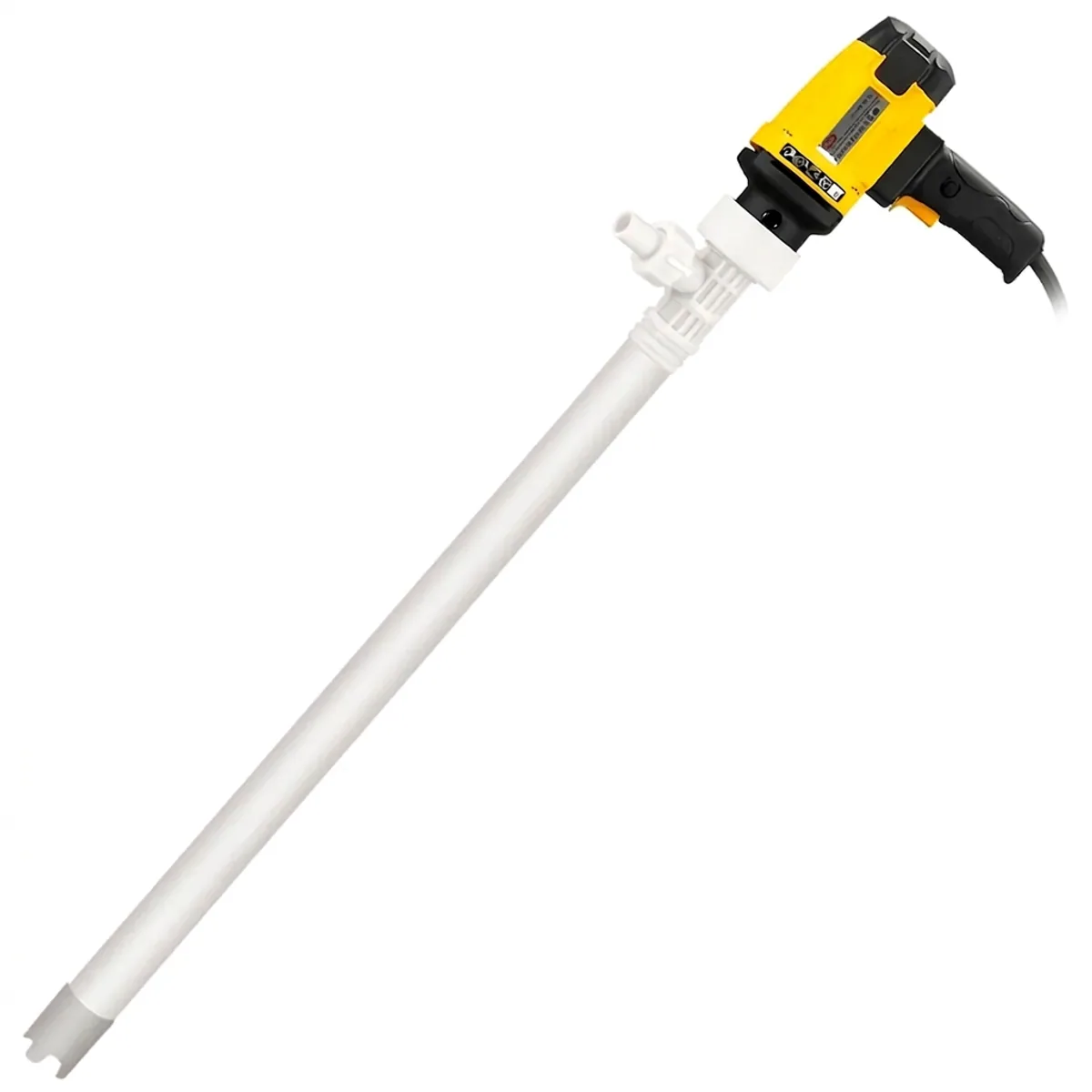

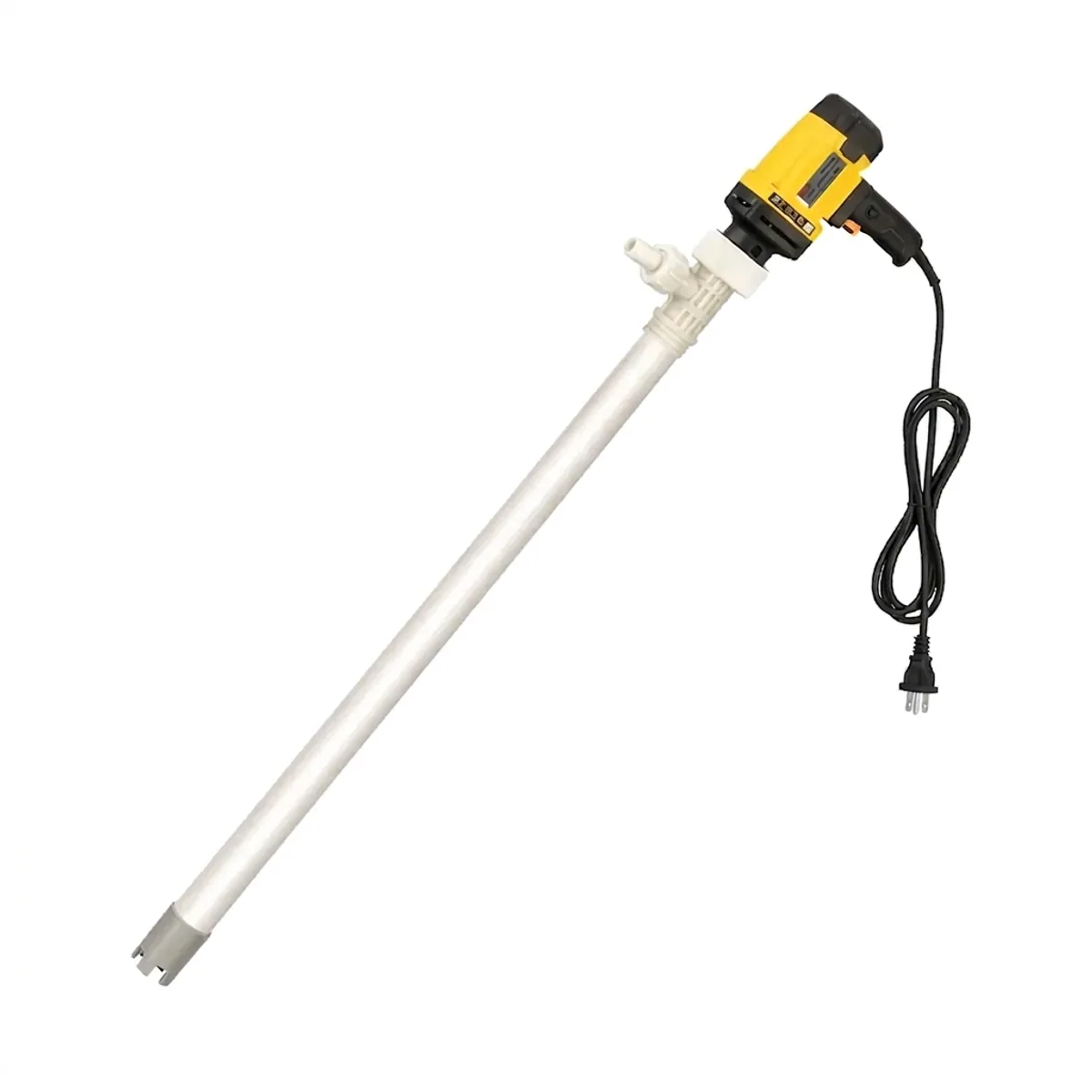

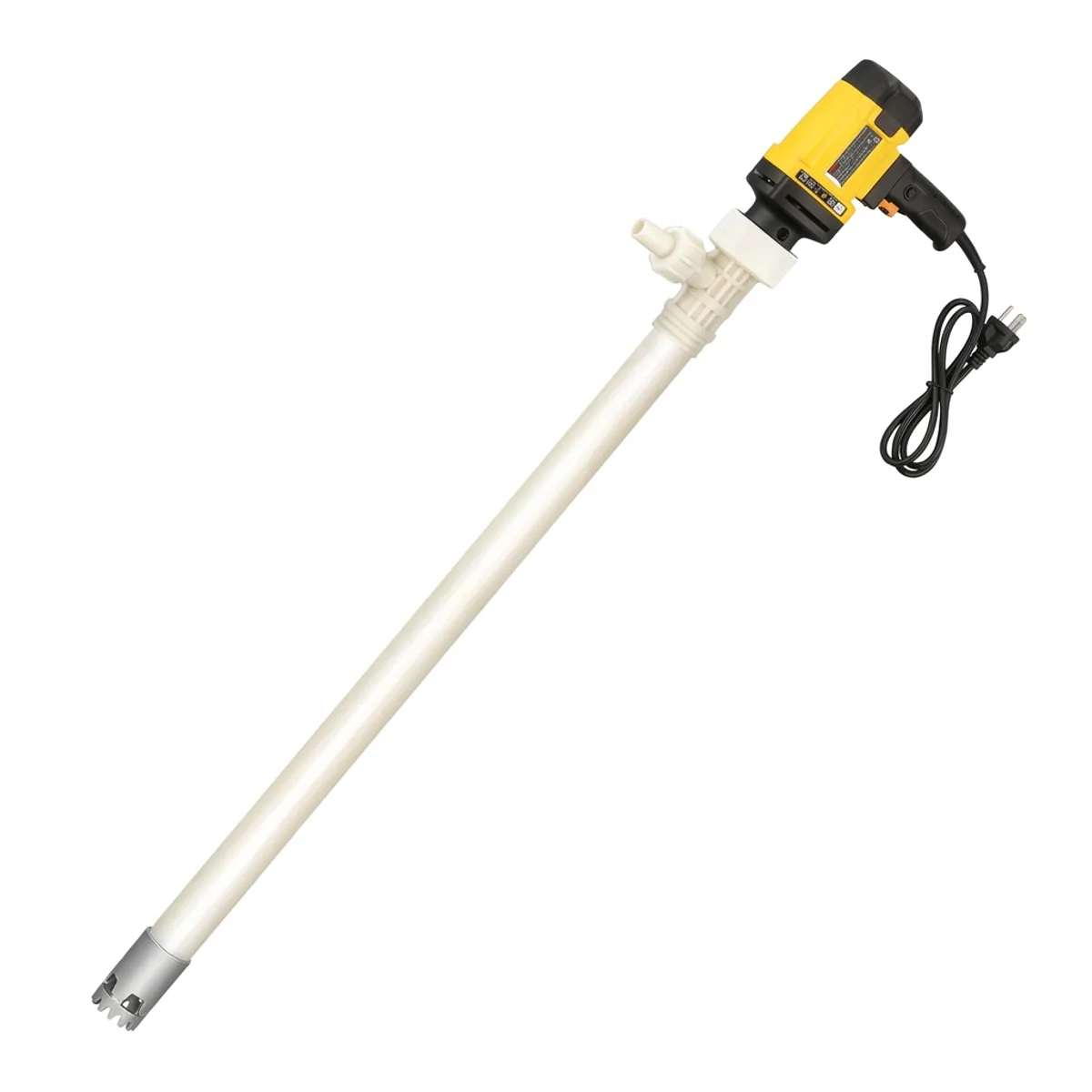

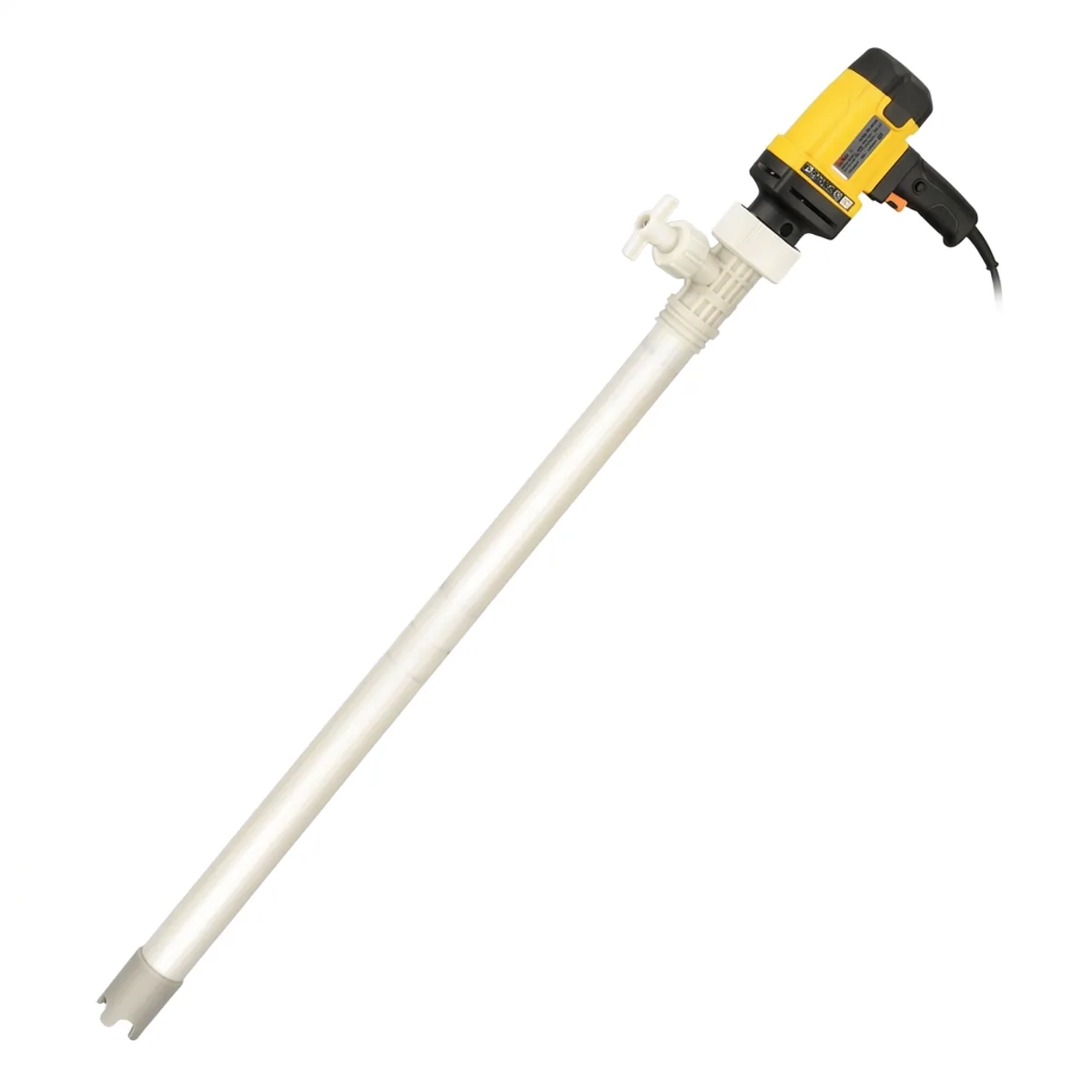

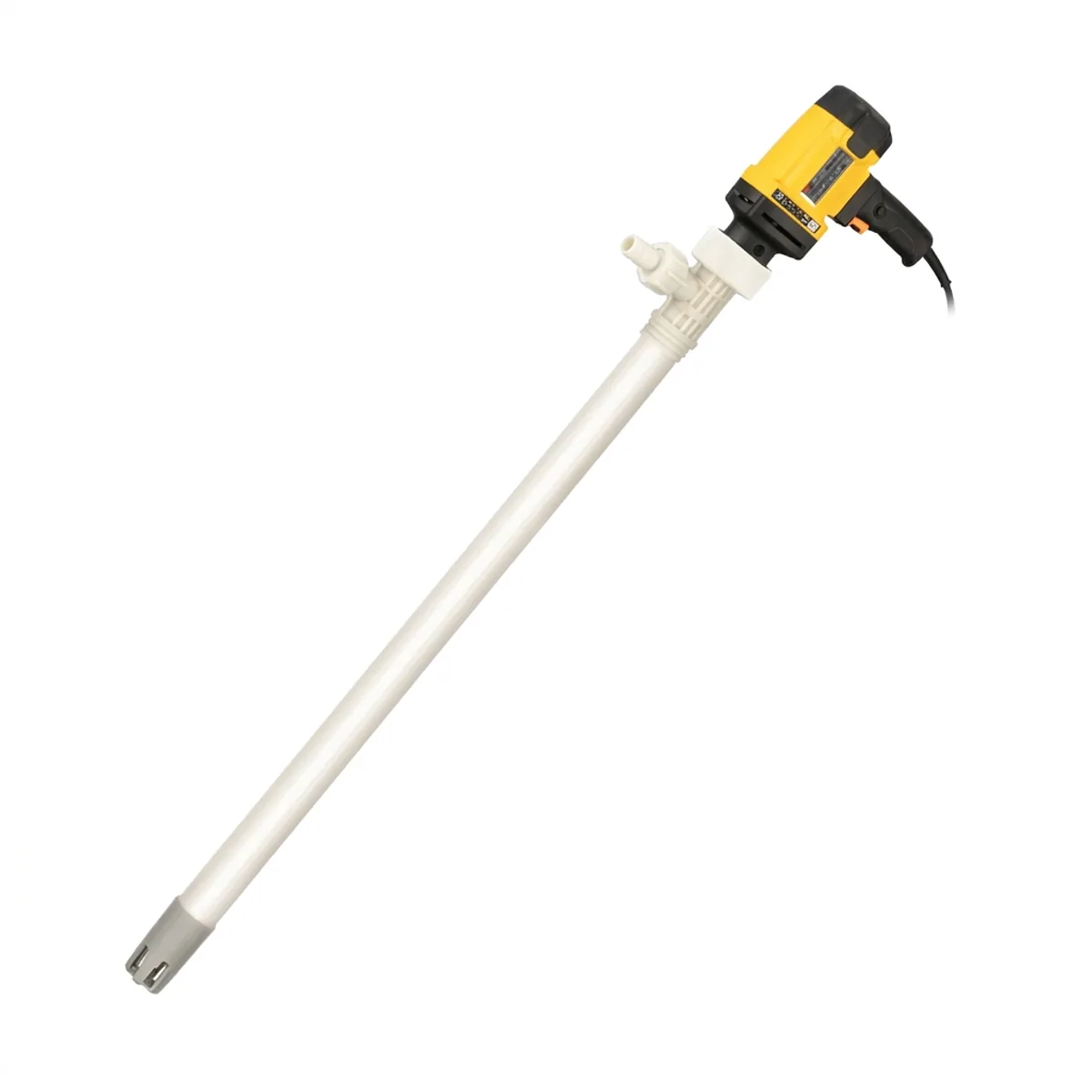

This product is a portable electric drum pump designed for direct drum and barrel mount applications across commercial workshops, factories, and site operations. Built specifically for liquid transfer, the pump structure uses a screw pump setup to handle chemical acid and alkali solutions at medium to high concentration. The portable design allows tradespeople to move the assembly between different storage drums cleanly and safely. Note that while unrelated queries like how to play pumped up kicks on drums or how to play pumped up kicks on the drums appear in barrel pump searches, this equipment is strictly an industrial fluid handling system.
Power Source: Electric. Chemical Resistance: Acid and Alkali Resistant (Medium to High Concentration). Mounting Type: Drum / Barrel Mount. Portability: Portable. Product Type: Electric Drum Pump. Pump Structure: Screw Pump. Immersion Tube Diameter: 41 mm. Immersion Tube Length: 1000 mm (fits standard 200L/55 Gal drums). Outlet Outer Diameter: 25 mm (1 inch). Net Weight: 4.6 kg. Screw Rotor Material: Stainless Steel 316. Wetted Parts Material: PTFE / PVDF / Acid-Resistant SS316. Drum Pump Electric Power Source: AC 220V, 50/60 Hz. Motor Power Rating: 880 W. Flow Capacity: 60 - 80 L/min. Chemical Compatibility: Medium-to-High Concentration Acids, Alkalis, Heavy Oils. Max Fluid Temperature: 90 °C. Insulation Class: Class B, Double Insulated. Maximum Viscosity Limit: 1200 mPa.s (cP). Pump Structure: Positive Displacement Screw Pump. Q: What are the mechanical specs of this drum pump electric model? A: This drum pump electric unit features an 800W to 1000W motor that delivers around 60 to 100 liters per minute. The immersion tube measures about 1 meter in length, which reaches the bottom of standard 55-gallon drums. Total unit weight stays under 4 kilograms for easy hand carrying.. Q: What materials protect the pump from chemical corrosion? A: The dip tube and internal impeller use PVDF or reinforced polypropylene, while the drive shaft is 316 stainless steel or Hastelloy. These materials withstand medium-to-high concentrations of hydrochloric acid, sulfuric acid, nitric acid, and liquid alkalis. Viton seals prevent fumes from leaking into the motor housing.. Q: Can this pump handle thick oils and viscous pastes? A: It handles light to medium-viscosity liquids up to roughly 500 to 800 centipoise. It works well with gear oils, liquid soaps, and dilute acids, but it struggles with heavy greases or pastes. For liquids thicker than motor oil, the flow rate drops significantly to protect the motor from overloading.. Q: How does the warranty handle corrosive chemical use? A: A one-year warranty covers mechanical and electrical defects on the motor drive and internal bearings. Chemical attack on the tube is covered as long as fluids match the approved compatibility chart. Damage caused by running the pump completely dry is excluded from coverage.. Q: How does this barrel pump reduce operational costs in a workshop? A: It removes the need for manual tipping or hand rotary cranks, cutting fluid transfer time from fifteen minutes down to two. Sealed drum extraction stops chemical spills, fumes, and product waste, protecting both workers and shop floors. The replaceable modular tube design means you only replace worn wet parts rather than the whole motor..
