What parts of my solar power system is this circuit breaker designed to protect?

This 2-pole DC breaker works as a main disconnect and overcurrent protector for your solar panel array or battery bank. It safely isolates both the positive and negative lines simultaneously. The C-curve trip design handles moderate startup surges from your inverter and charge controller without tripping falsely.

Can I use a standard AC breaker for my DC solar battery bank instead of this model?

No, you should not use standard AC breakers for DC solar systems. This breaker is rated for up to 600V DC to safely extinguish the continuous electrical arcs that DC current creates. AC breakers cannot extinguish these arcs, which creates a serious fire hazard in a PV setup.

How do I mount this circuit breaker and does the wiring polarity matter?

This breaker snaps directly onto a standard DIN rail in any physical orientation. Yes, polarity is critical because the device has clearly marked positive (+) and negative (-) terminals. You must wire it matching these labels to ensure the internal arc-extinguishing magnets work correctly during a fault.

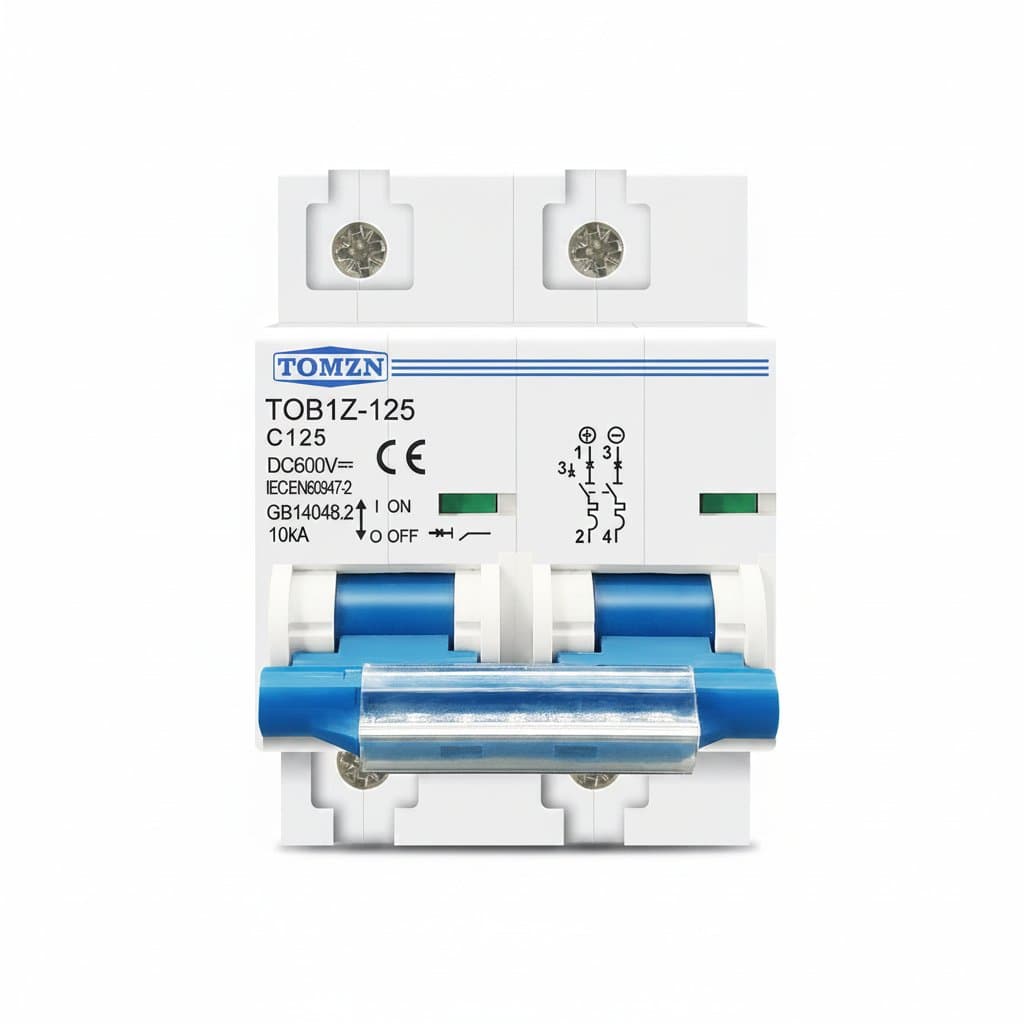

2P DC MCB 600V 125A 100A 80A Circuit breaker FOR PV System C curve Battery Main Switch

Name: 2P DC MCB 600V 125A 100A 80A Circuit breaker FOR PV System C curve Battery Main Switch
Brand: Compel
SKU: GENE-00052
Price: 28.95 USD
Availability: InStock

Stock #:TBS-03508

SKU:GENE-00052

2P DC MCB 600V 125A 100A 80A Circuit breaker FOR PV System C curve Battery Main Switch - Image 1

$28.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Rated CurrentSelect an option

Quantity

2P DC MCB 600V 125A 100A 80A Circuit breaker FOR PV System C curve Battery Main Switch

$28.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What parts of my solar power system is this circuit breaker designed to protect?: This 2-pole DC breaker works as a main disconnect and overcurrent protector for your solar panel array or battery bank. It safely isolates both the positive and negative lines simultaneously. The C-curve trip design handles moderate startup surges from your inverter and charge controller without tripping falsely.
Can I use a standard AC breaker for my DC solar battery bank instead of this model?: No, you should not use standard AC breakers for DC solar systems. This breaker is rated for up to 600V DC to safely extinguish the continuous electrical arcs that DC current creates. AC breakers cannot extinguish these arcs, which creates a serious fire hazard in a PV setup.
How do I mount this circuit breaker and does the wiring polarity matter?: This breaker snaps directly onto a standard DIN rail in any physical orientation. Yes, polarity is critical because the device has clearly marked positive (+) and negative (-) terminals. You must wire it matching these labels to ensure the internal arc-extinguishing magnets work correctly during a fault.

2P DC MCB 600V 125A 100A 80A Circuit breaker FOR PV System C curve Battery Main Switch spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.
