Does this pump need a separate air compressor?

Yes. It runs on shop air, not electricity, so you supply the compressor. It needs 90-120 PSI at the 1/4" NPT air inlet and draws around 5 CFM at 100 PSI. Make sure your compressor can keep up with that demand.

Will this work with my frame machine and hydraulic press?

It's built for exactly those jobs. The hydraulic outlet is 3/8" NPT and it pushes up to 10,000 PSI for pulling, straightening, and pressing. Just confirm your ram or cylinder is rated for 10,000 PSI and matches that port.

How do I operate it safely under that much pressure?

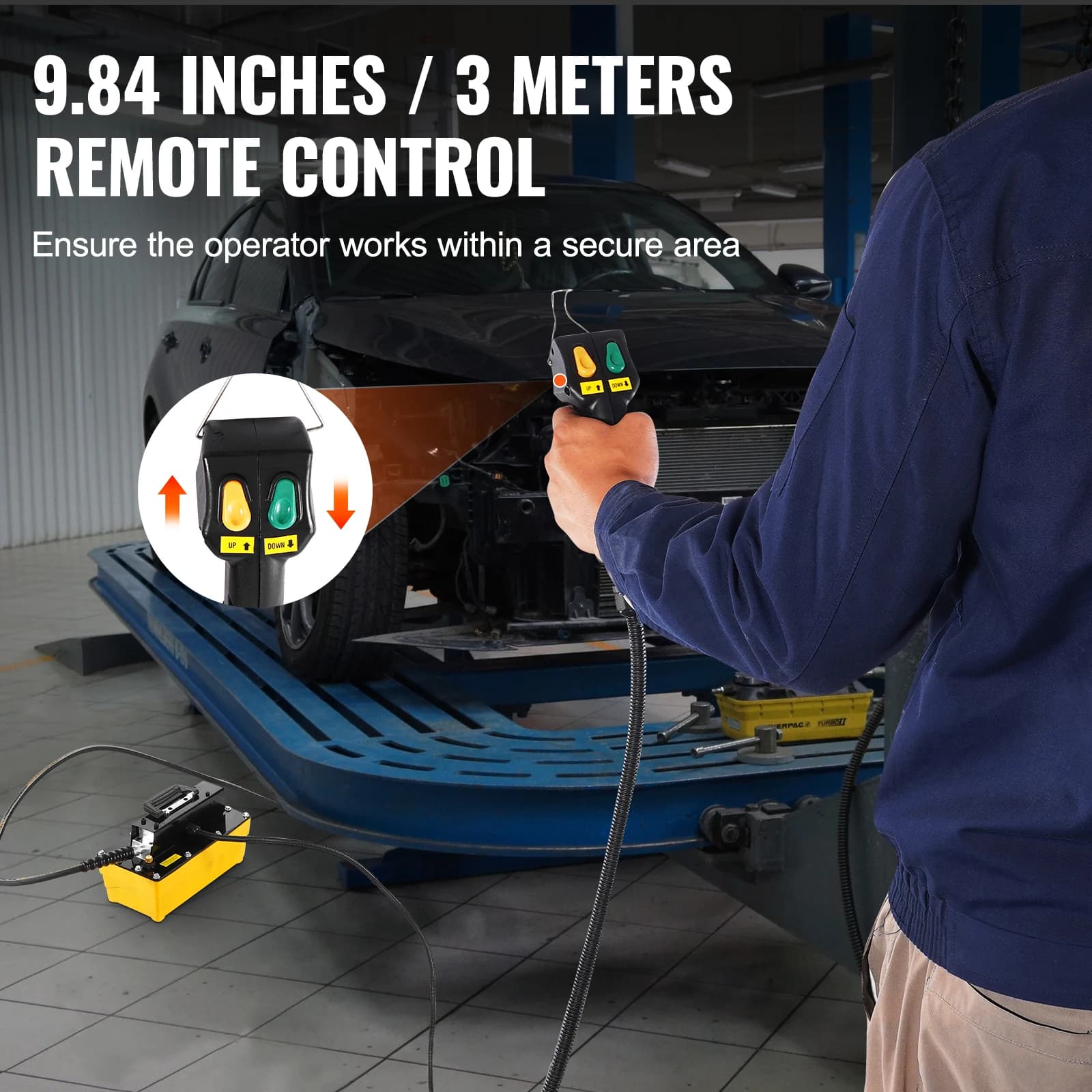

Use the remote control actuator so you can stand clear of the work area while it builds force. Always check that hoses and fittings are rated for 10,000 PSI before each use. Fill with ISO VG 32 or AW 32 hydraulic oil and watch the reservoir level.

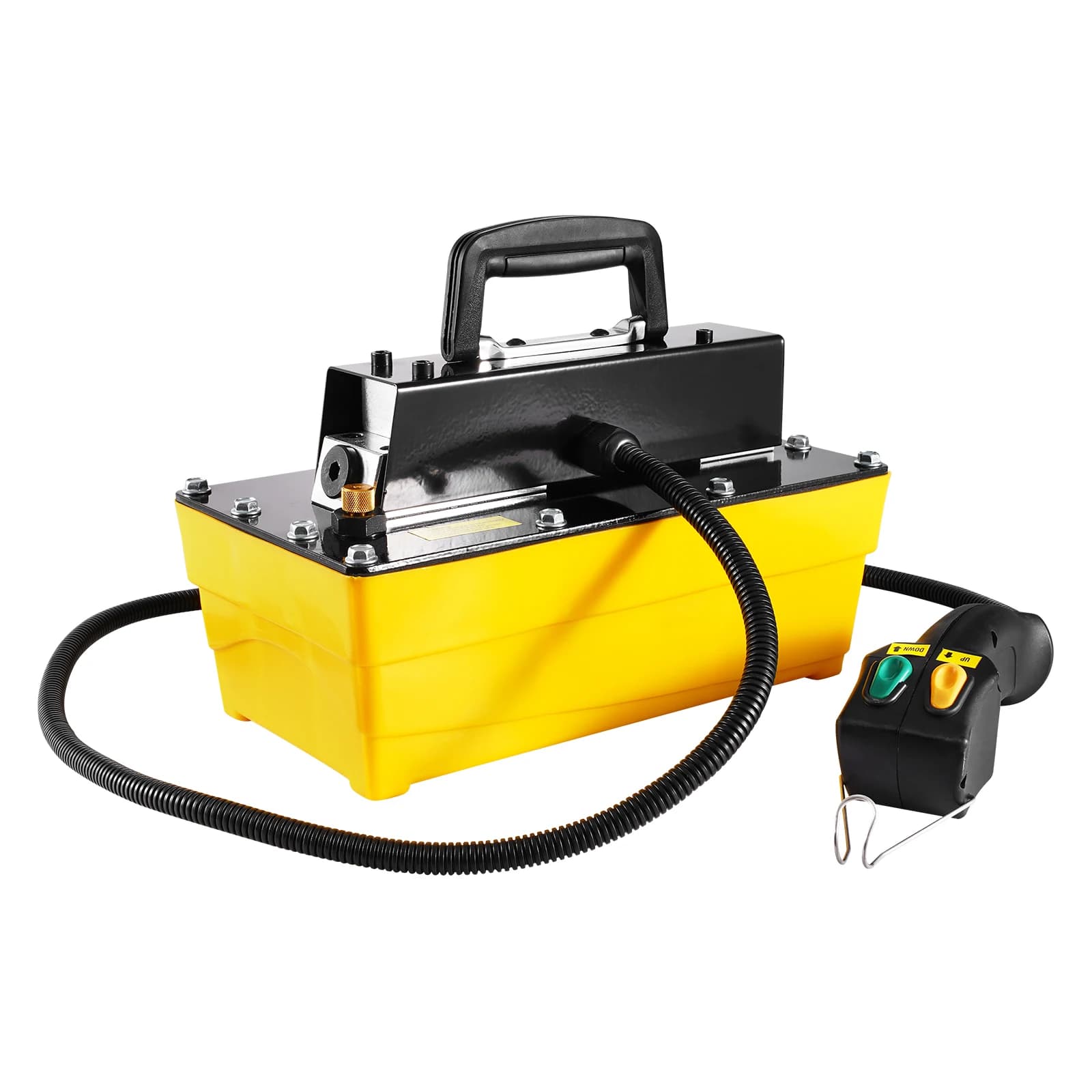

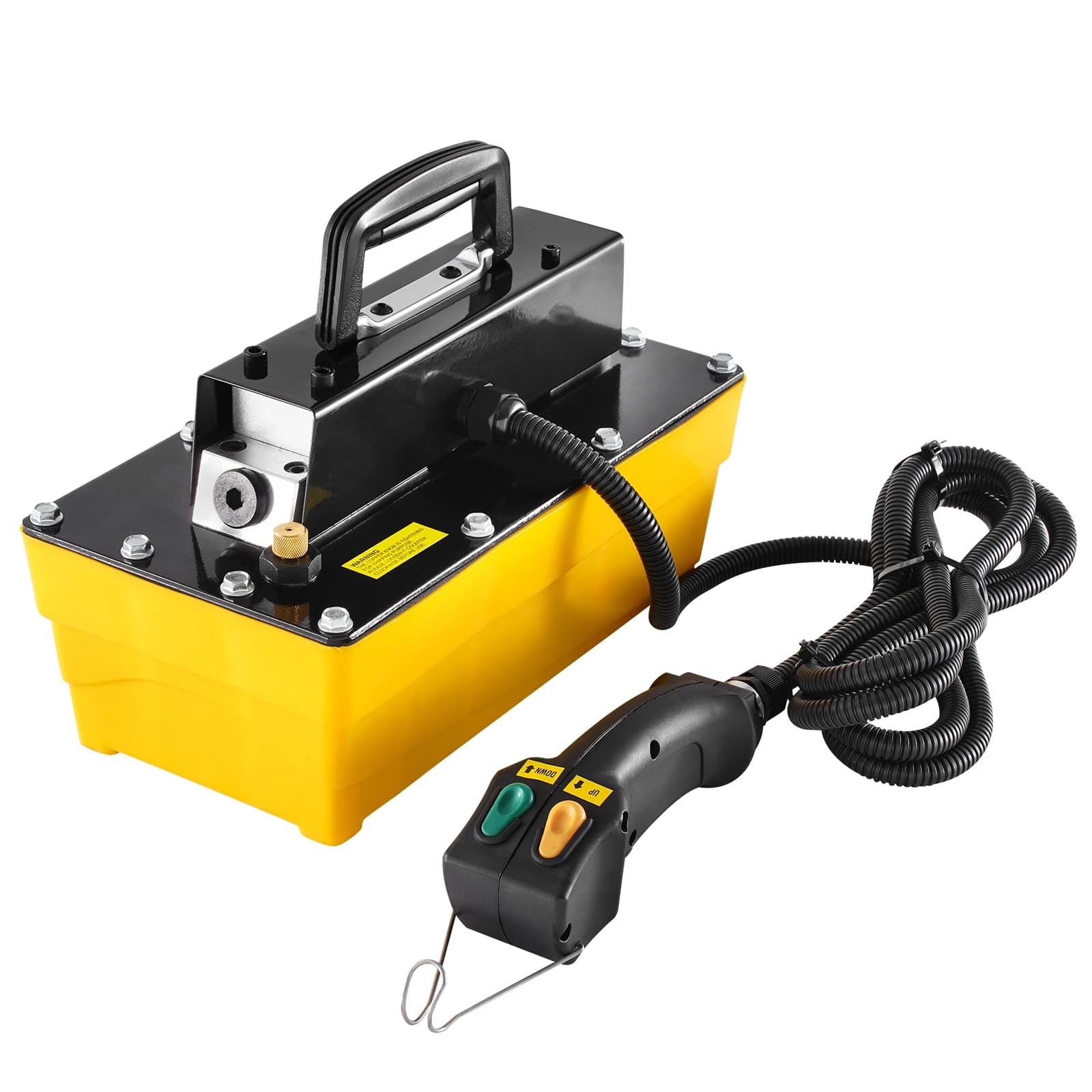

SucceBuy 10,000PSI Air Hydraulic Pump 0.61Gal Reservoir & Remote Control Actuator for Automobile Frame Machine & Hydraulic Press

Name: SucceBuy 10,000PSI Air Hydraulic Pump 0.61Gal Reservoir & Remote Control Actuator for Automobile Frame Machine & Hydraulic Press
Brand: Compel
SKU: GENE-00079
Price: 242.99 USD
Availability: InStock

Stock #:TBS-04079

SKU:GENE-00079

SucceBuy 10,000PSI Air Hydraulic Pump 0.61Gal Reservoir & Remote Control Actuator for Automobile Frame Machine & Hydraulic Press - Image 1

-15%

1 / 7

$242.99$285.72-15% OFF

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

OptionSelect an option

Quantity

SucceBuy 10,000PSI Air Hydraulic Pump 0.61Gal Reservoir & Remote Control Actuator for Automobile Frame Machine & Hydraulic Press

$242.99$285.72

$242.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Does this pump need a separate air compressor?: Yes. It runs on shop air, not electricity, so you supply the compressor. It needs 90-120 PSI at the 1/4" NPT air inlet and draws around 5 CFM at 100 PSI. Make sure your compressor can keep up with that demand.
Will this work with my frame machine and hydraulic press?: It's built for exactly those jobs. The hydraulic outlet is 3/8" NPT and it pushes up to 10,000 PSI for pulling, straightening, and pressing. Just confirm your ram or cylinder is rated for 10,000 PSI and matches that port.
How do I operate it safely under that much pressure?: Use the remote control actuator so you can stand clear of the work area while it builds force. Always check that hoses and fittings are rated for 10,000 PSI before each use. Fill with ISO VG 32 or AW 32 hydraulic oil and watch the reservoir level.

SucceBuy 10,000PSI Air Hydraulic Pump 0.61Gal Reservoir & Remote Control Actuator for Automobile Frame Machine & Hydraulic Press spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular right now

Digital Vernier Caliper | 0-150mm Measuring Tool | Plastic Body

4.9

$6.95

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

$7.95

-21%

Damage-Free Picture Hanging Strips | Assorted Sizes | Removable Wall Mounting for Frames & Posters

4.9

$14.99$18.89

Digital Tire Pressure Gauge | Backlit LCD Display | Car & Truck Auto Monitoring

4.9

$14.99

Door & Window Magnetic Sensor | Zigbee Wireless | App Alert Security Alarm

4.9(496)

$12.99

Clutch Alignment Tool | Plastic Dismantle & Correction Kit | Car Repair Accessories

4.9

$29.99

Power Adapter AC 100-240V Input DC Output Supply Charger EU/US 12V Universal Adapter Converter Plug for Camera DVR LED Robot LED

4.9

$15.99

Desoldering Braid | Solder Remover Wick | 2.0mm & 3.5mm x 1.5M

4.9

$5.95

USB-C Endoscope Camera | 5.5mm Lens for Android & PC | Flexible Inspection Borescope with 6 LEDs

4.9

$10.99

Quick-Connect Wire Terminals | 10-75 Pc Assortment | 250V/32A Electrical Connectors

4.9

$8.95

Tool Set 4pc | Tile Grout & Sealant Remover | For Shower, Kitchen & Bathroom Cleaning

4.9

$17.99

Non-Contact Voltage Tester Pen | AC Voltage Detector | 12-1000V Breakpoint Finder

4.9

$6.95

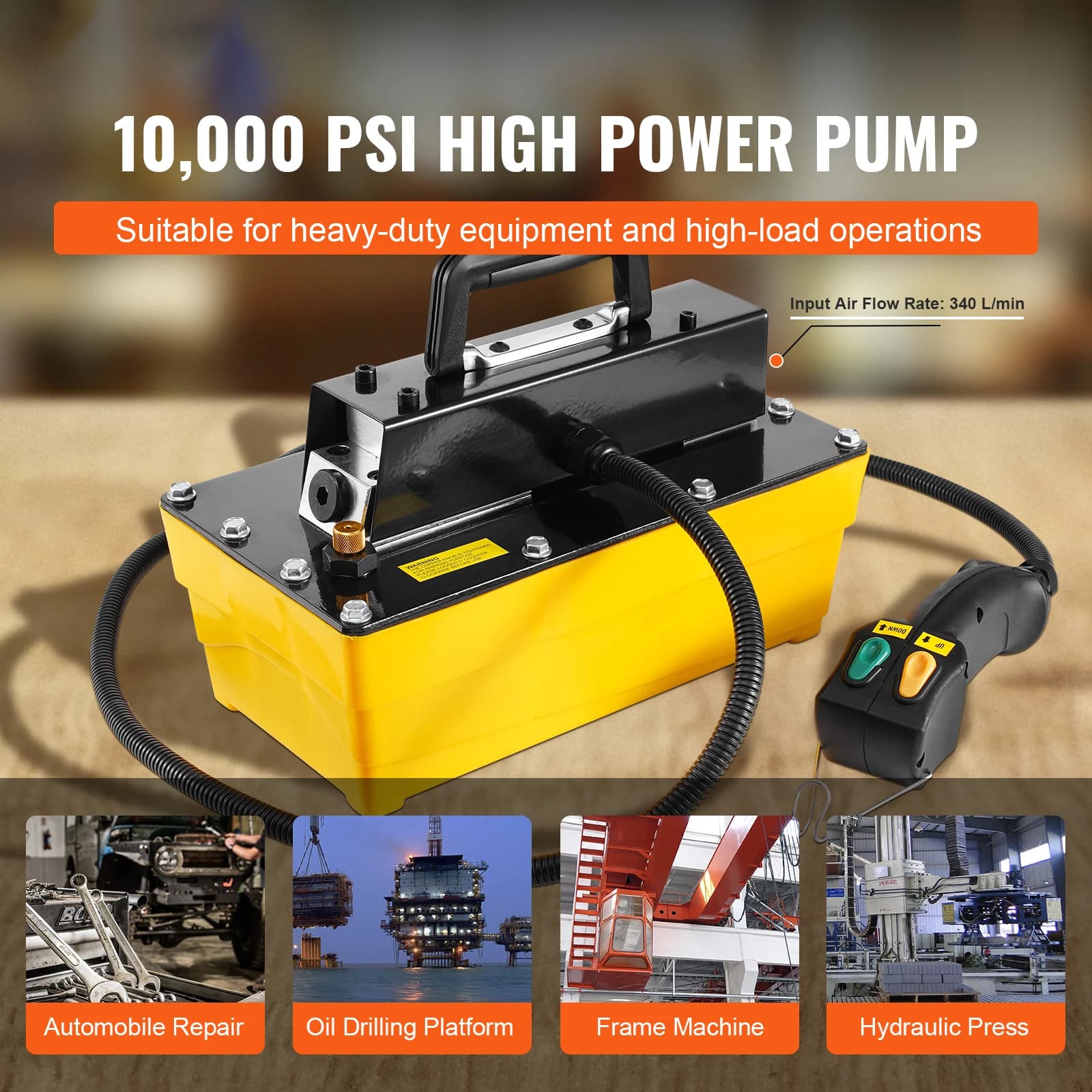

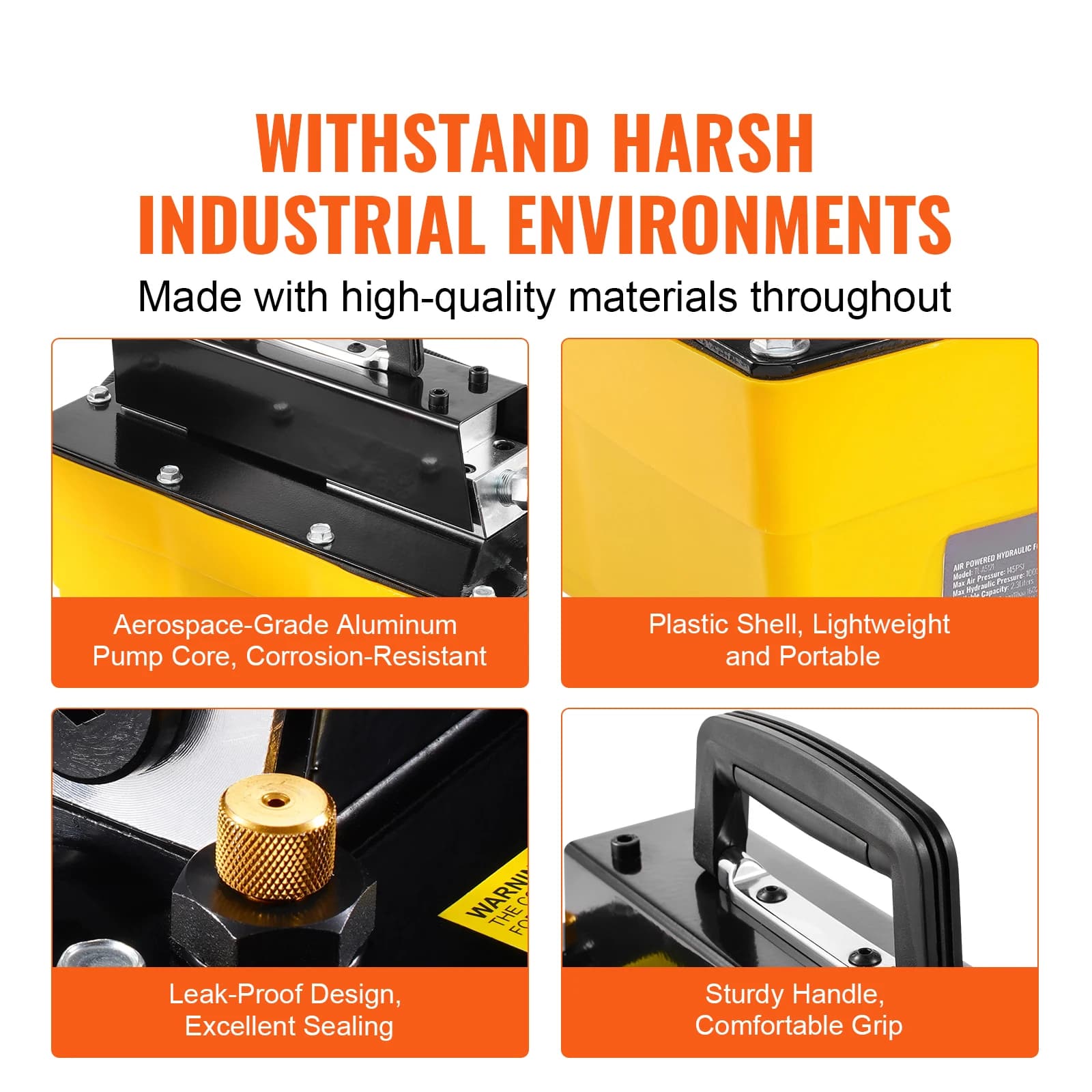

The SucceBuy 10,000PSI Air Hydraulic Pump delivers extreme pressure for demanding shop tasks. Its 0.61-gallon reservoir and remote control actuator provide sustained power and precise control, making it an excellent value for professionals and serious DIYers who require reliable performance without a premium brand price tag. Features and Benefits - 10,000 PSI Maximum Pressure - Generates the immense force required for heavy-duty bending, straightening, and pressing applications. - 0.61-Gallon Oil Reservoir - Allows for extended operation cycles without frequent refills, increasing shop efficiency. - Remote Control Actuator - Enables safe, precise control from a distance, keeping the operator clear of the work area. - Air-Powered Operation - Utilizes standard shop air (requires separate compressor) for consistent, powerful performance without electric motor limitations. - Durable Steel Construction - Built to withstand the rigors of professional shop environments, ensuring long-term reliability. Applications - Automotive Frame Straightening - Provides the controlled, high-pressure power needed for pulling and correcting unibody and frame damage on a frame machine. - Hydraulic Press Operations - Ideal for powering shop presses used for bearing installation/removal, bushing work, and metal forming. - Industrial Maintenance and Repair - Suitable for tasks requiring high-force hydraulic power in fabrication shops, machine shops, and industrial settings. - Heavy-Duty Bending and Forming - Capable of driving hydraulic cylinders for custom metal bending jigs and other fabrication needs.

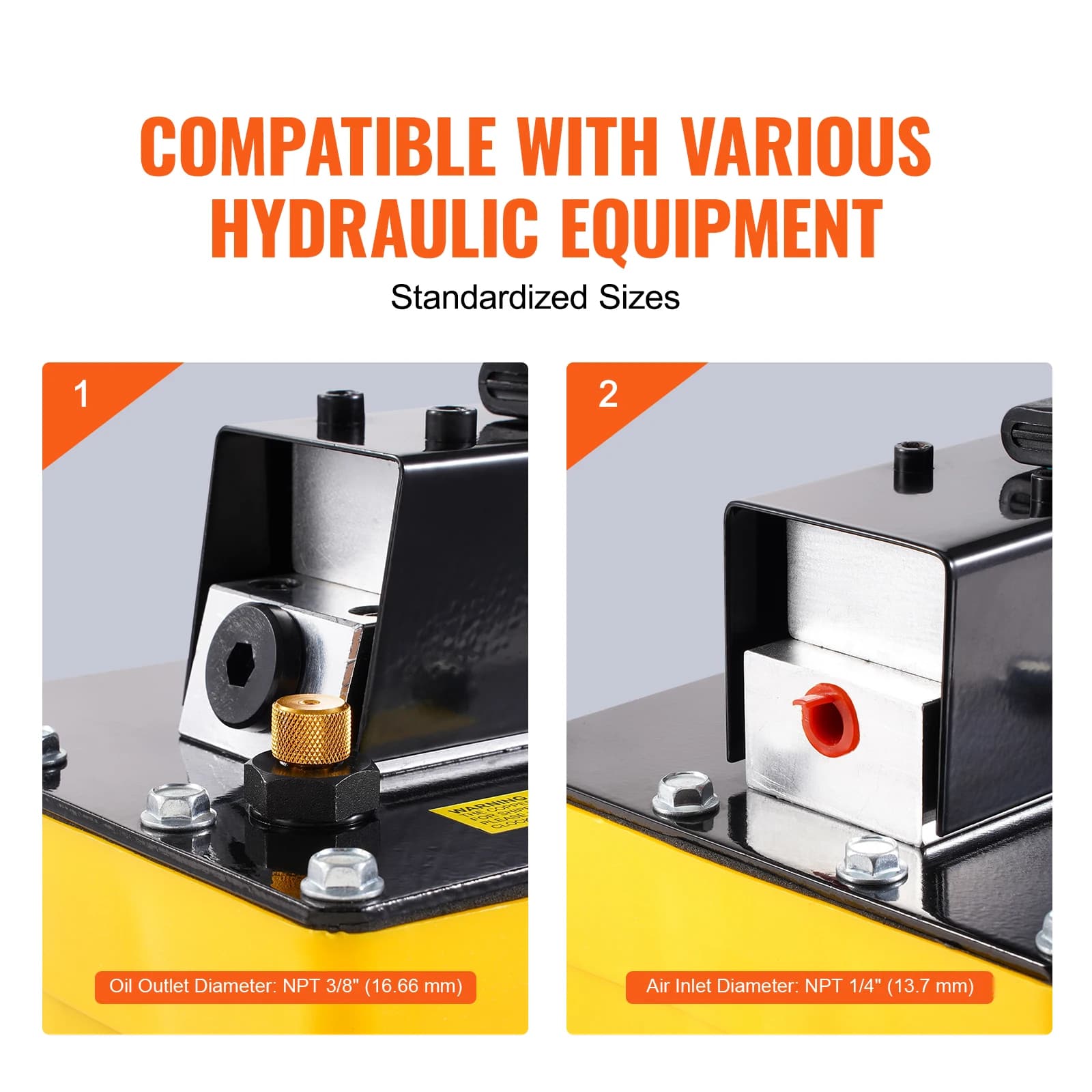

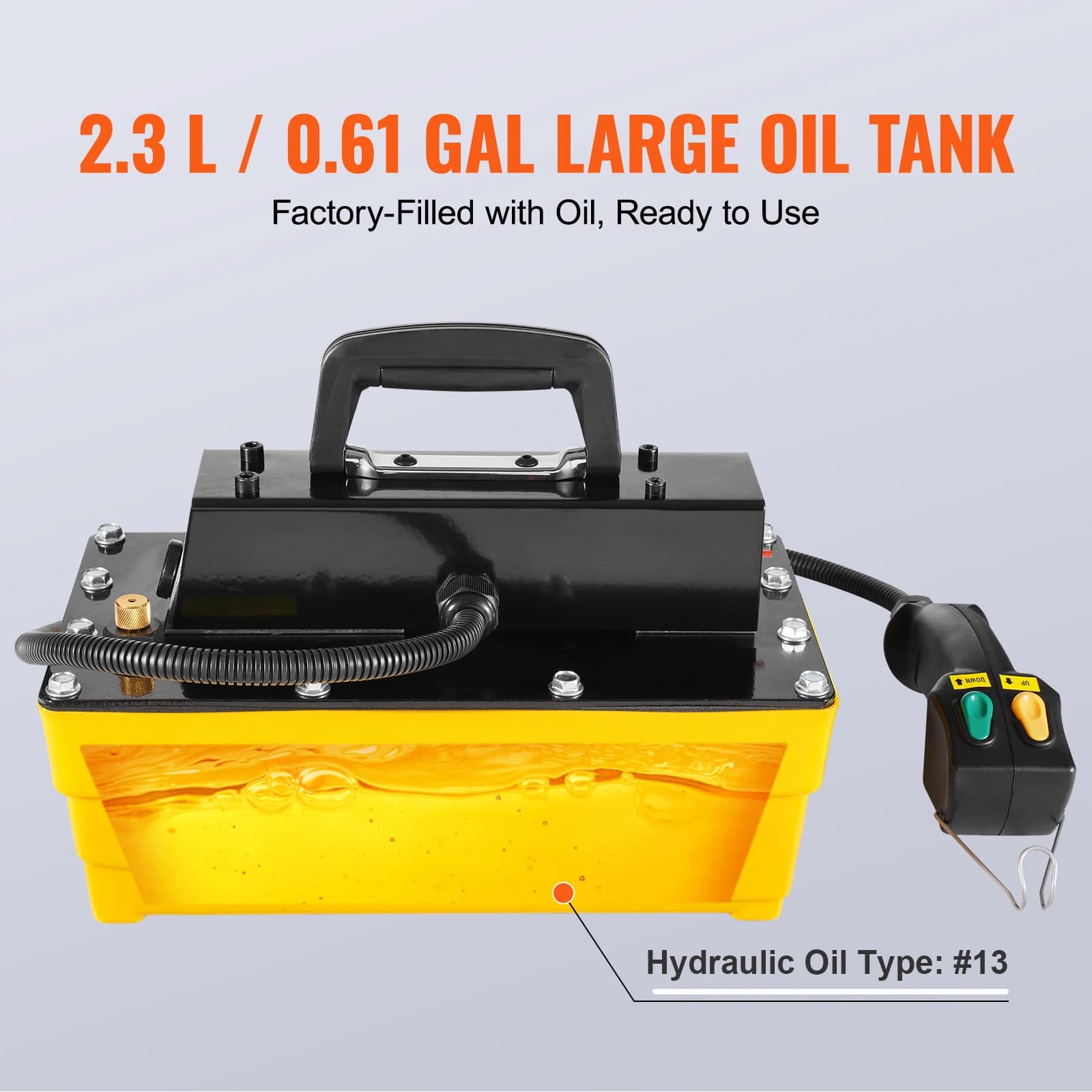

Reservoir Capacity: 0.61 US Gal (2.3 L). Power Source: Compressed Air. Actuator Type: Remote Control. Air Consumption: Approximately 5 CFM @ 100 PSI (142 L/min @ 6.9 bar). Air Inlet Connection: 1/4" NPT. Air Pressure Requirement: 90-120 PSI (6.2-8.3 bar). Hydraulic Fluid Delivery: Approximately 0.06 GPM @ 10,000 PSI (0.23 L/min @ 689 bar). Hydraulic Outlet Connection: 3/8" NPT. Intended Applications: Automobile Frame Machine, Hydraulic Press. Maximum Pressure: 10,000 PSI (689 bar). Model Number: TL-A5121. Oil Type: Hydraulic Oil (ISO VG 32 or AW 32 recommended). Oil-to-Air Ratio: Approximately 1:70. Type: Air Hydraulic Pump. Dimensions (Approx.): 18" L x 10" W x 12" H (Estimated based on reservoir capacity). Construction Material: Steel and Aluminum Alloy (Industrial Standard). Hydraulic Fluid Reservoir Capacity: 0.61 Gallons (2.3 Liters). Interface: Standard Hydraulic Quick-Connect Couplers. Maximum Operating Pressure: 10,000 PSI (689 Bar). Actuation Method: Remote Control Actuator. Air Consumption: Approximately 5-8 CFM @ 100 PSI (Estimated based on capacity). Air Inlet Connection: 1/4" NPT (Standard Inference). Control: Remote Foot Pedal or Hand Switch (Inferred). Drive Medium: Compressed Air. Hydraulic Outlet Connection: 3/8" NPT (Standard Inference). Model Number: TL-A5121. Primary Application: Automobile Frame Machine. Product Type: Air-Driven Hydraulic Pump. Pump Type: Two-Stage Hydraulic Pump (Inferred for high pressure). Recommended Air Pressure: 90-120 PSI (Standard Inference for 10K PSI pumps). Secondary Application: Hydraulic Press. Q: What are the key specifications of the SucceBuy 10,000PSI Air Hydraulic Pump? A: This pump delivers a maximum operating pressure of 10,000 PSI and features a 0.61-gallon (approximately 2.3-liter) hydraulic reservoir. The model number is TL-A5121, and it comes with a remote control actuator for convenient operation.. Q: Is the SucceBuy 10,000PSI Air Hydraulic Pump durable enough for professional shop use? A: Yes, it is built with robust components to handle demanding applications like operating a frame machine or hydraulic press. The construction is designed for reliable performance and longevity in a professional automotive or fabrication environment.. Q: Can this hydraulic pump be used with any automobile frame machine or press? A: It is specifically designed to be compatible with most standard automobile frame machines and hydraulic presses that require a 10,000 PSI air-over-hydraulic power source. Always verify the connection and pressure requirements of your specific equipment before use.. Q: Does the SucceBuy Air Hydraulic Pump come with a warranty? A: Warranty details are typically provided by the seller or retailer at the point of purchase. We recommend checking the product listing or contacting the seller directly for specific warranty information and support.. Q: Is this SucceBuy pump a good value compared to other brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable 10,000 PSI performance for regular use in frame straightening and pressing applications..
