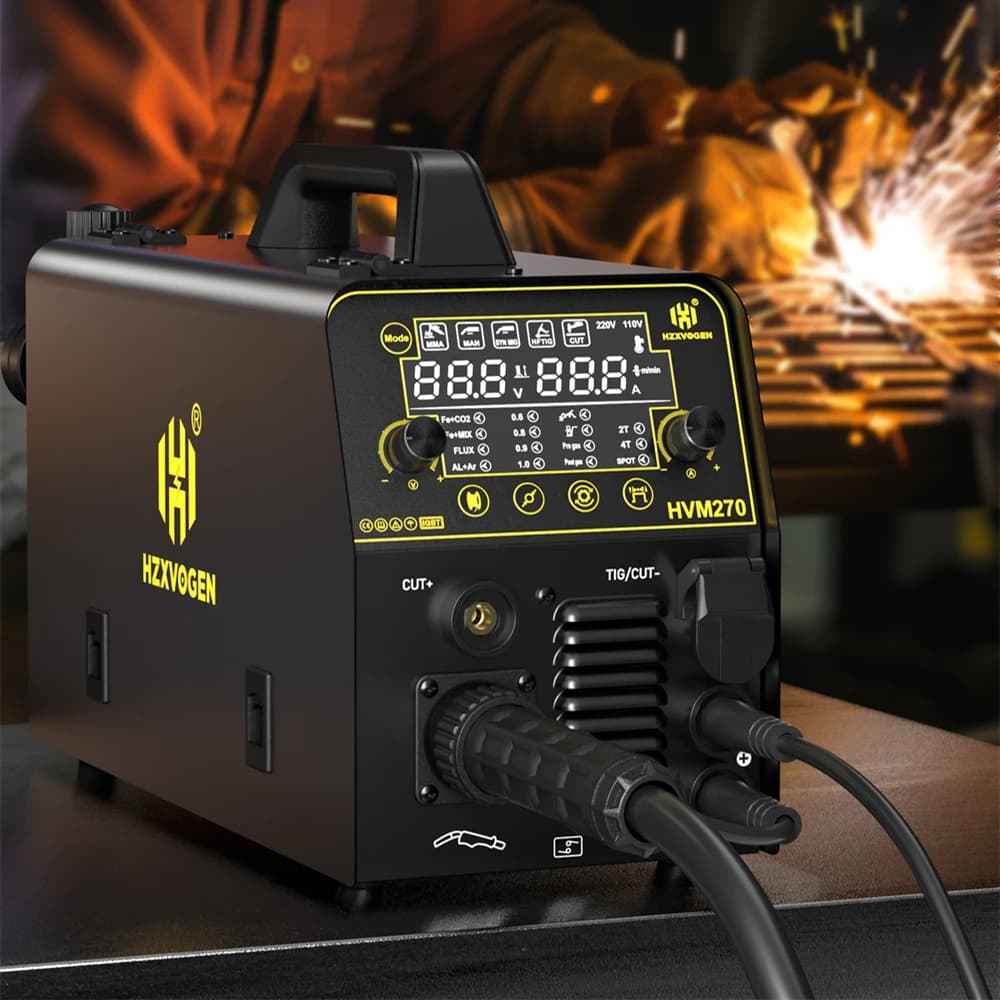

The HZXVOGEN HVM270 6 in 1 Aluminum Welding Machine delivers professional-grade versatility in a single inverter. This 270-amp digital welder handles MIG, TIG, and MMA processes for steel, stainless, and aluminum, featuring a clear digital screen for precise control and a 2/4T function for automated welding sequences. Features and Benefits
- 6-in-1 Multi-Process Capability - One machine performs Gas MIG, Gasless MIG, HF TIG, MMA, and aluminum welding, eliminating the need for multiple dedicated units.
- 270-Amp Inverter Power Source - Provides a stable, concentrated arc for deep penetration on thicker materials and clean, controlled welds on thin sheet metal.

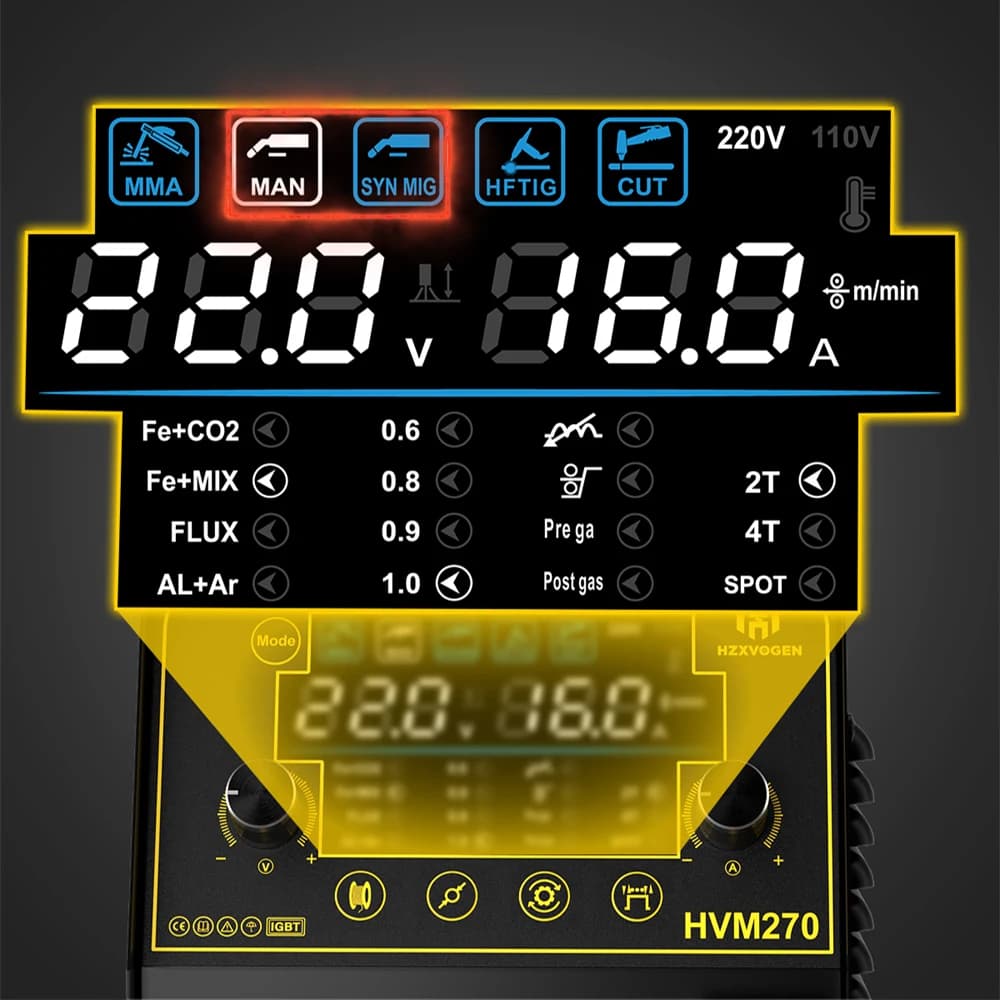

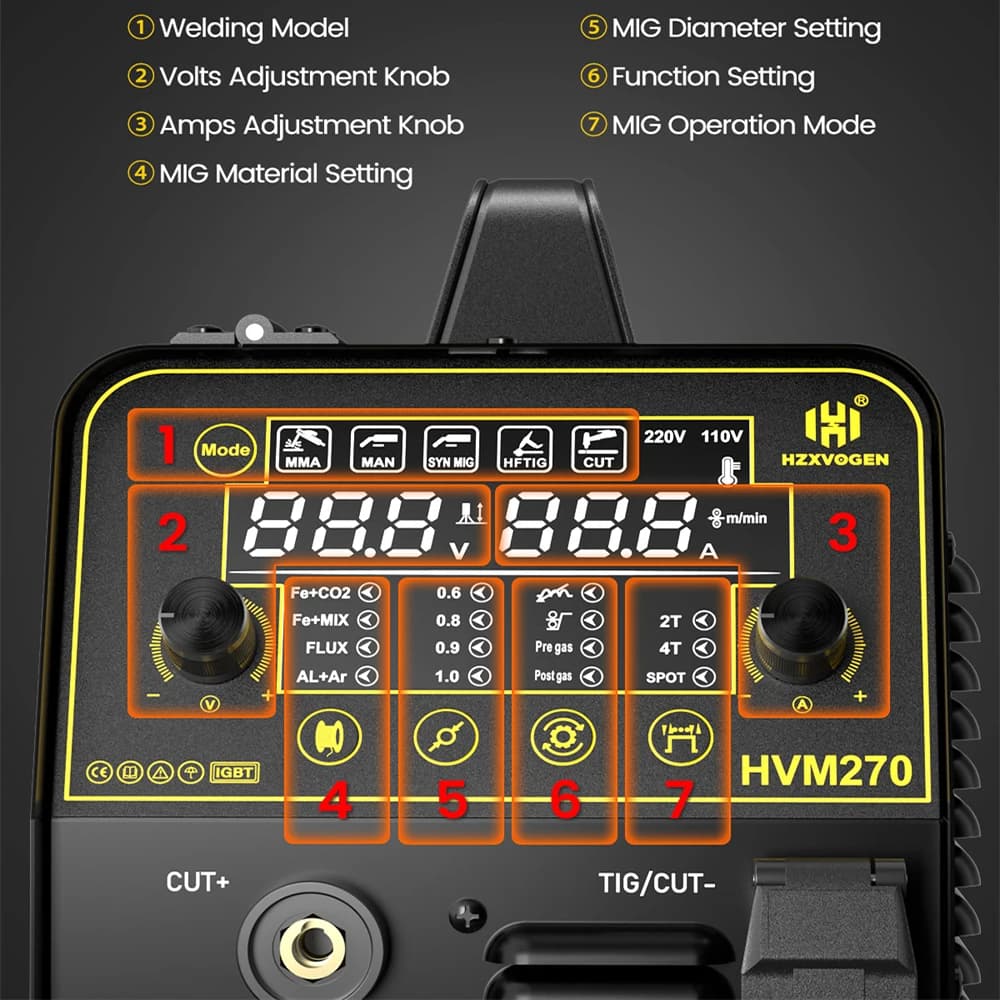

- Digital Display with Memory Function - Allows for exact, repeatable settings and simplifies operation by storing your most-used parameters.
- High-Frequency (HF) TIG Start - Enables non-contact arc ignition for TIG welding, preventing tungsten contamination and producing cleaner, higher-quality welds.
- 2T/4T Trigger Modes - The 4T mode allows for hands-free welding of long runs, while 2T is ideal for standard tack welds and short seams, improving efficiency.

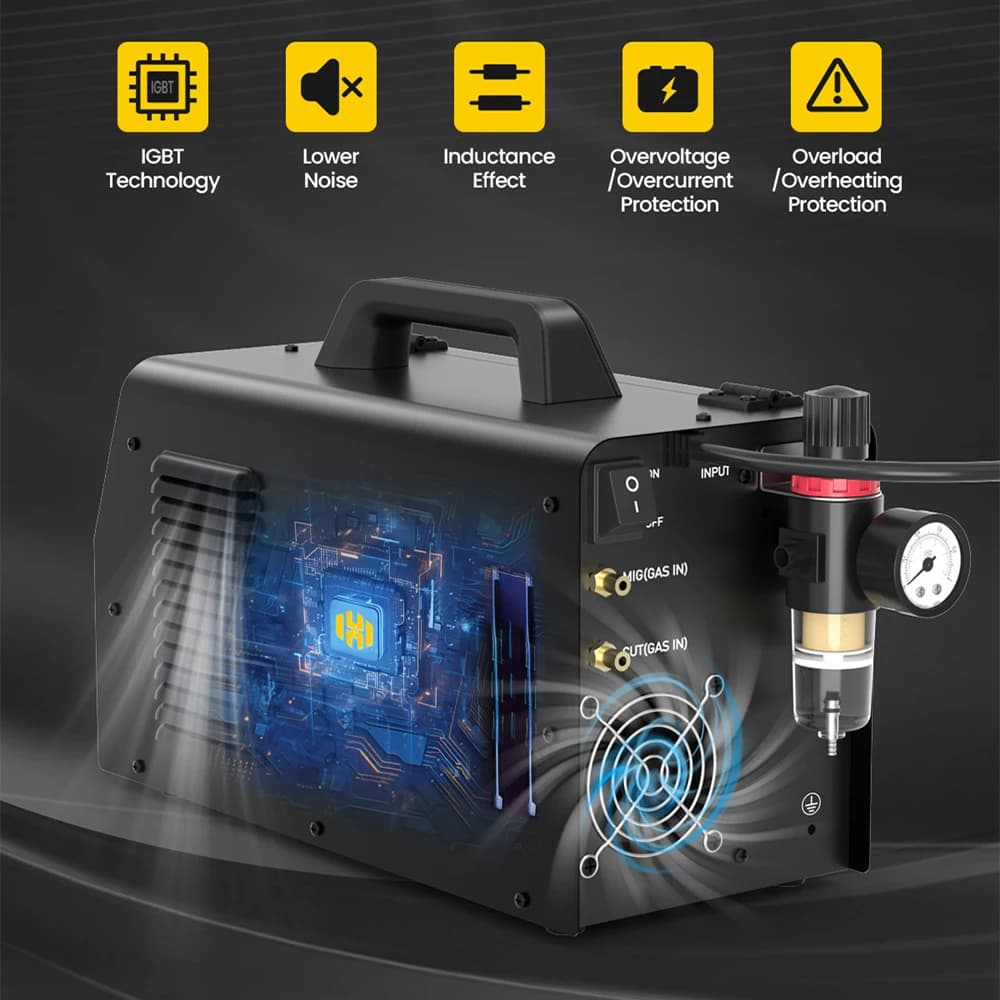

- Industrial Aluminum Alloy Housing - Offers superior heat dissipation and durability compared to plastic enclosures, ensuring reliable performance in demanding environments. Applications
- Automotive Repair and Fabrication - Perfect for body panel work, exhaust systems, and custom frame modifications using MIG and TIG processes.
- Home Workshop and DIY Projects - Tackle everything from building steel furniture and gates to repairing farm equipment with the versatile MMA and gasless MIG functions.
- Metal Art and Sculpture Creation - The precise control of the HF TIG mode is ideal for welding delicate stainless steel and aluminum artwork with minimal cleanup.
- Light Industrial Maintenance - A reliable all-in-one solution for on-site repairs, fabrication of brackets, and maintaining stainless steel equipment in workshops. Note
Always consult the user manual for proper setup, use appropriate personal protective equipment (PPE), and ensure your workspace is well-ventilated when welding.
Dimensions: 700 x 300 x 500 mm (Approx.). Weight: 15 kg (Approx.). Plasma Cutting Capacity (Steel): 12 mm. Input Voltage: 220V AC. Open Circuit Voltage: 68 V. Display Type: Digital Screen. Control Interface: 2T/4T. Cooling Method: Forced Air. Duty Cycle (MIG/MMA @ 270A): 60%. Duty Cycle (TIG @ 200A): 60%. Electrode Diameter (MMA): 1.6 - 5.0 mm. Input Frequency: 50/60 Hz. Input Phase: Single-Phase. Inverter Technology: IGBT. Maximum Input Current: 32 A. MIG Wire Diameter: 0.8 - 1.2 mm. Model: HZXVOGEN HVM270. Output Current Range (MIG/MMA): 20 - 270 A. Output Current Range (TIG): 20 - 200 A. Protection Class: IP21S. TIG Electrode Diameter: 1.6 - 4.0 mm. Welding Processes: MIG (Gas), MIG (Gasless), TIG (HF), MMA (Stick), Plasma Cutter. Wire Feed Speed Range: 2 - 18 m/min. Dimensions (Approx.): 500mm x 200mm x 350mm (Estimated for class). Electrode Diameter Range (MMA): 1.6mm - 5.0mm (Estimated). Ground Clamp Cable Length: 3 meters (Estimated). Input Power Cord Length: 2.5 meters (Estimated industry standard). MMA Electrode Holder Cable Length: 3 meters (Estimated). TIG Electrode Diameter Range: 1.6mm - 4.0mm (Estimated). TIG Torch Cable Length: 3 meters (Estimated). Weight (Approx.): 12-15 kg (Estimated for class). Case Material: Aluminum Alloy. Primary Material Compatibility: Aluminum, Stainless Steel, Mild Steel. Input Voltage: 110V/220V Dual Voltage (Inferred). Open Circuit Voltage: 70-80V (Estimated for HF TIG start). Maximum Output Current: 270 Amps (Inferred from model). Plasma Cutting Capacity: Up to 10mm mild steel (Estimated). Wire Feed Speed Range: 2-18 m/min (Estimated for MIG). Control Interface: 2T/4T Trigger Mode Selection. Protection Rating: IP21S (Estimated for indoor workshop use). Cooling Method: Fan-Cooled. Display Type: Digital Screen. Duty Cycle: 60% @ 200A (Estimated industry standard). HF Start: Yes (for TIG welding). Inverter Technology: IGBT. Lift TIG Capability: Yes (Inferred from multi-process nature). MIG Torch Connection: Euro Connector. Product Type: Multi-Process Inverter Welding Machine. Thermal Protection: Yes (Overload/Overheat automatic shutdown). Welding Processes: MIG (Gas), MIG (Gasless/Flux-Cored), HF TIG, MMA (Stick), Plasma Cutter. Q: What are the key specifications and dimensions of the HZXVOGEN HVM270 6 in 1 Aluminum Welding Machine? A: The HZXVOGEN HVM270 is a versatile inverter welder with a digital screen, supporting 6 processes: Cut, Gas MIG, Gasless MIG, HF TIG, and MMA. While exact dimensions are not provided, its inverter design typically ensures a compact and portable form factor suitable for workshop or job site use.. Q: Is the HZXVOGEN HVM270 inverter welder built to last for regular use? A: Yes, the HZXVOGEN HVM270 is constructed with a durable aluminum housing and features a robust inverter design for reliable performance. It is engineered to handle the demands of regular DIY projects and professional tasks, offering consistent welding output.. Q: Can the HZXVOGEN HVM270 6 in 1 welder handle aluminum welding projects effectively? A: Absolutely. This machine is specifically designed for aluminum welding with its HF TIG function, which is essential for starting an arc on aluminum without contamination. Its multi-process capability makes it a great choice for automotive repair, fabrication, and other projects involving aluminum.. Q: What is the warranty coverage for the HZXVOGEN HVM270 welding machine? A: Warranty details for this product should be confirmed with the seller at the time of purchase. It is standard for welding equipment to come with a manufacturer's warranty covering defects in materials and workmanship for a specified period.. Q: Does the HZXVOGEN HVM270 offer good value compared to other multi-process welders? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, packing six welding and cutting functions into a single, cost-effective digital inverter welder..
