Hall Effect Sensors

Selecting Output Configuration: Digital Switch or Linear Output

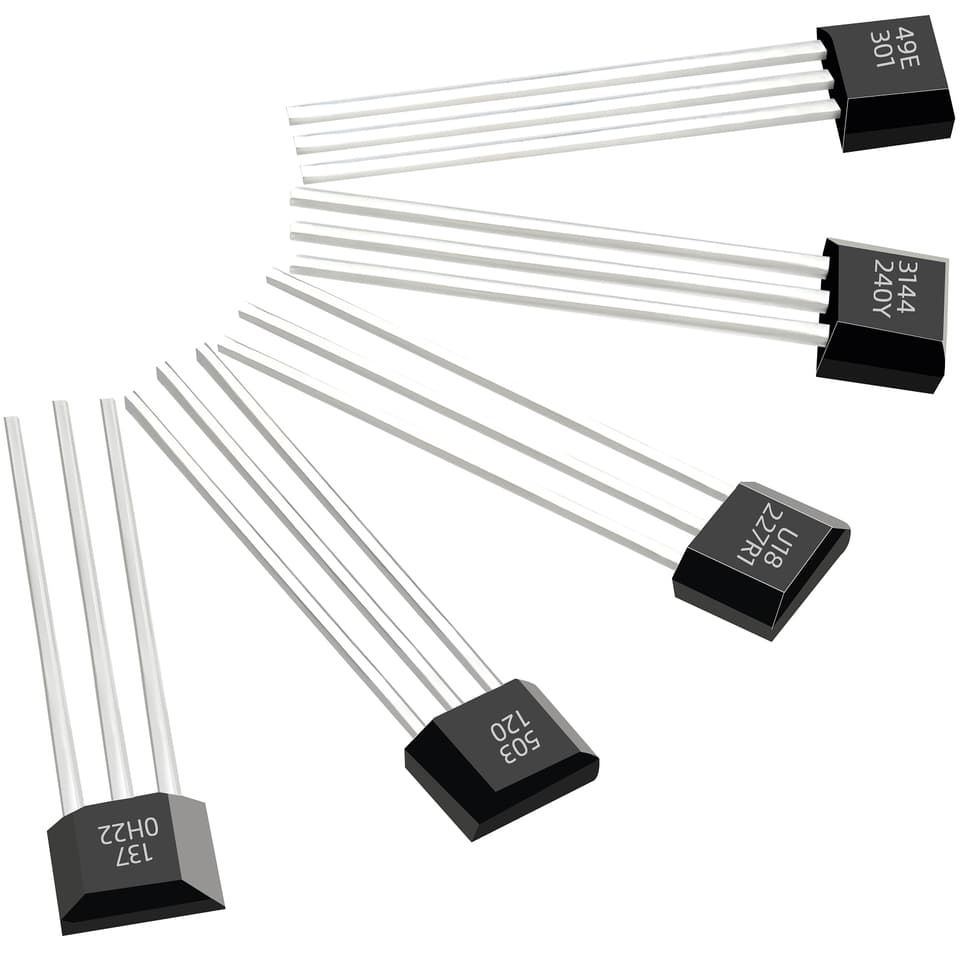

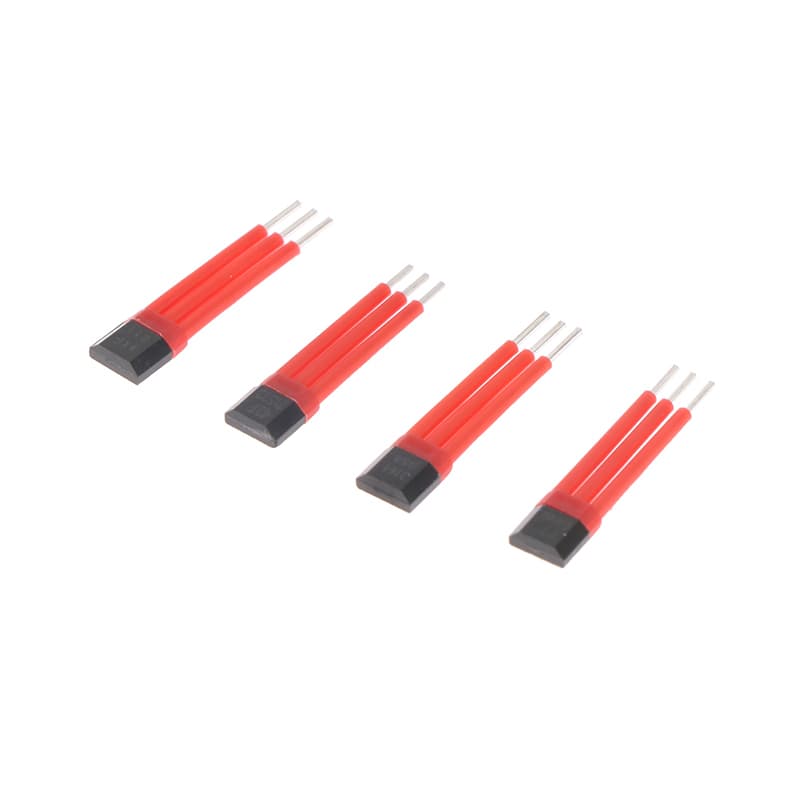

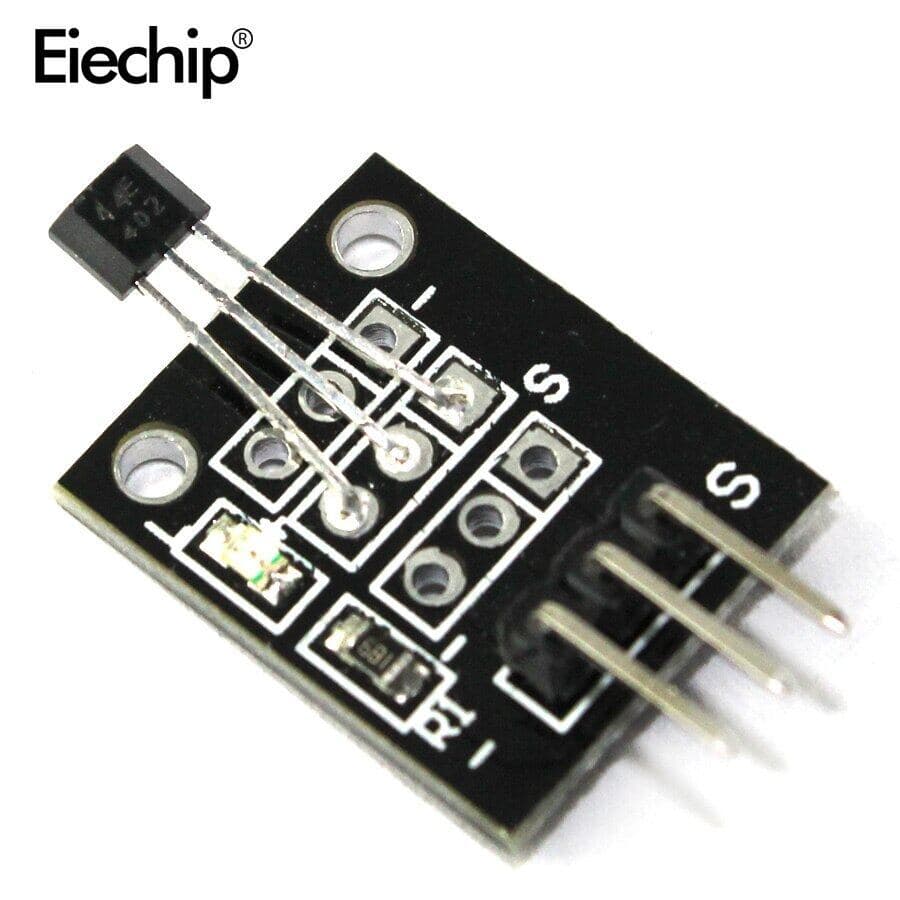

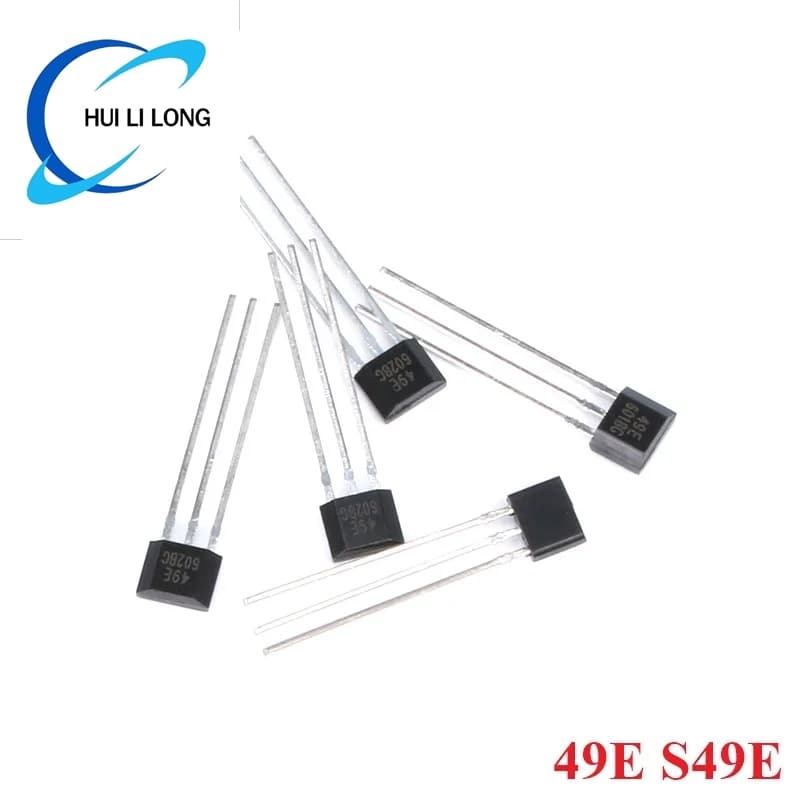

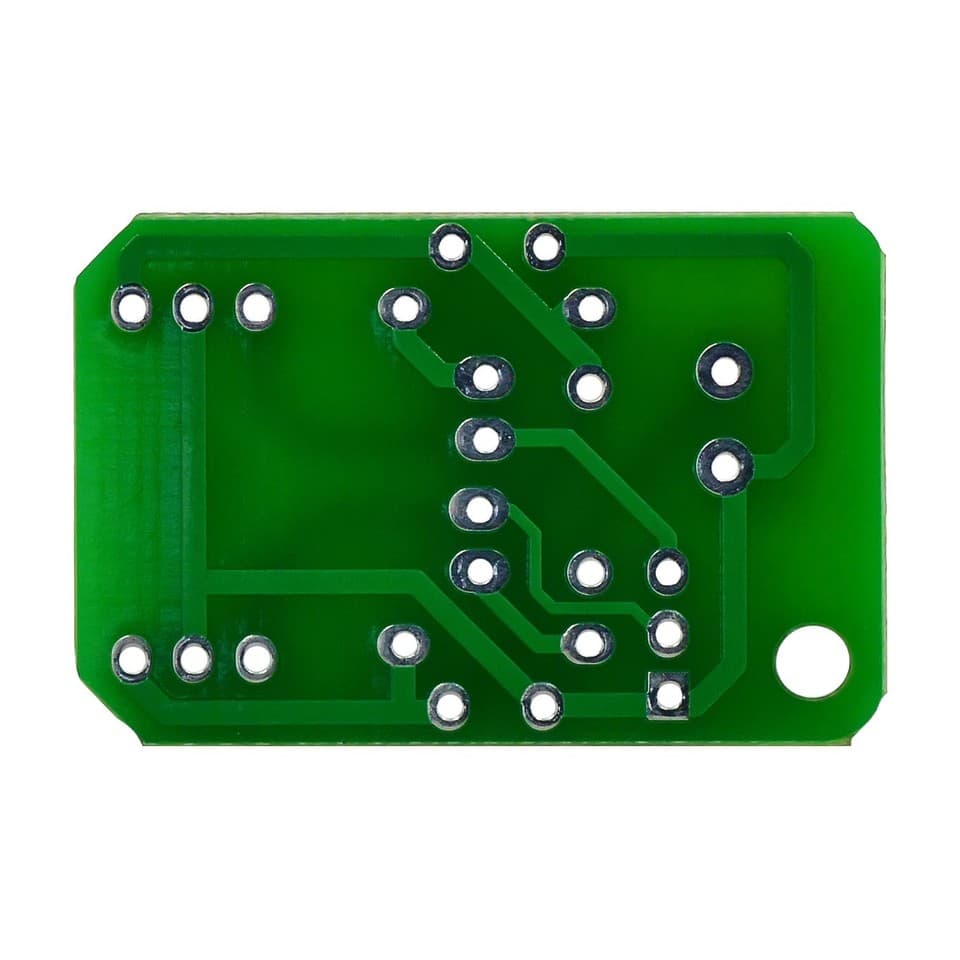

Industrial magnetic sensor hardware falls into discrete digital switching or variable linear sensing. A hall effect switch switches on or off when magnetic flux passes a set threshold. These switches provide clean square-wave signals for motor speed tachometers and end-of-stroke detection. Common digital models include 3144, 41F, 43F, and SS41F. In contrast, a linear hall sensor generates an output voltage proportional to magnetic field strength. The 49E hall sensor, alongside OH49E and SS49E, serves analog throttle, displacement, and fine position measurement tasks.

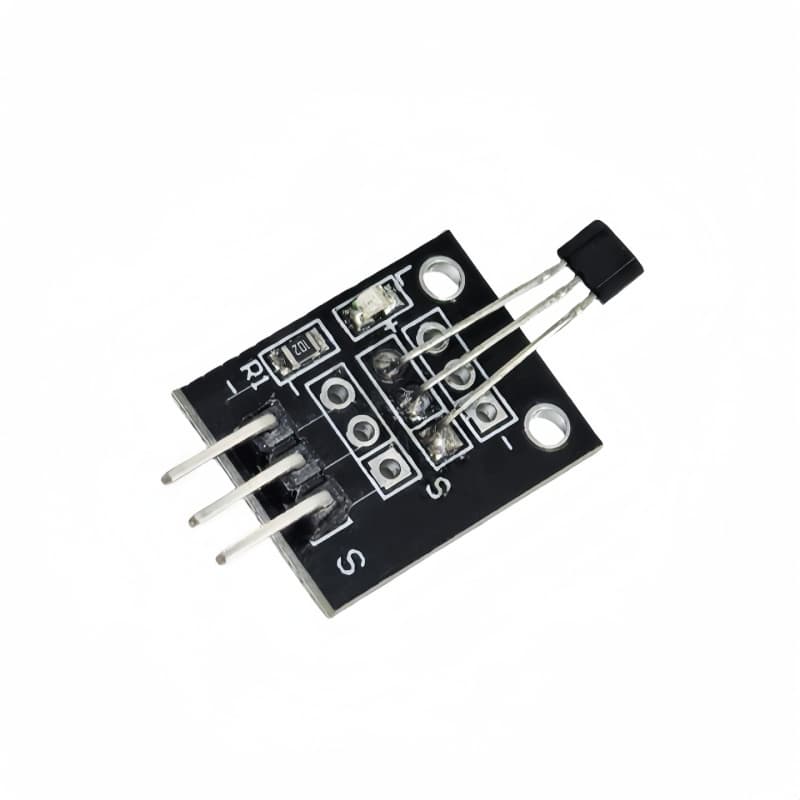

• Digital hall switches: Provide NPN or PNP discrete logic for counting, index detection, and motor commutation.
• Linear analog units: Provide continuous proportional voltage output for position tracking and current monitoring.
• Output states: Verify normally open operation, pull-up resistor requirements, and NPN versus PNP controller compatibility.

Sizing Hall Effect Current Sensor Modules

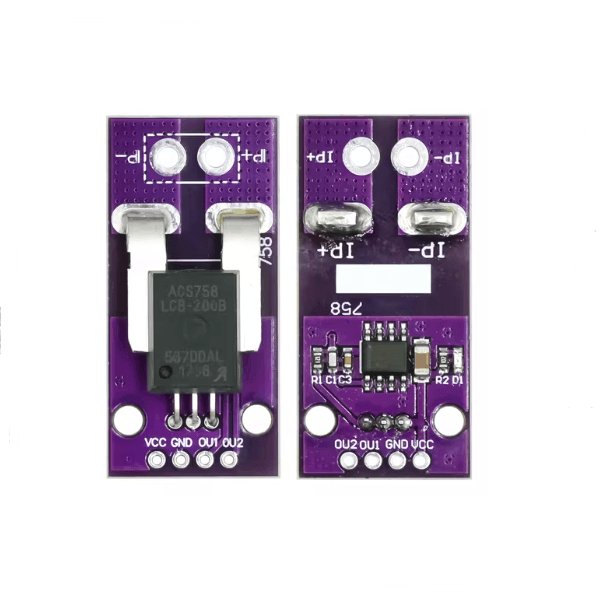

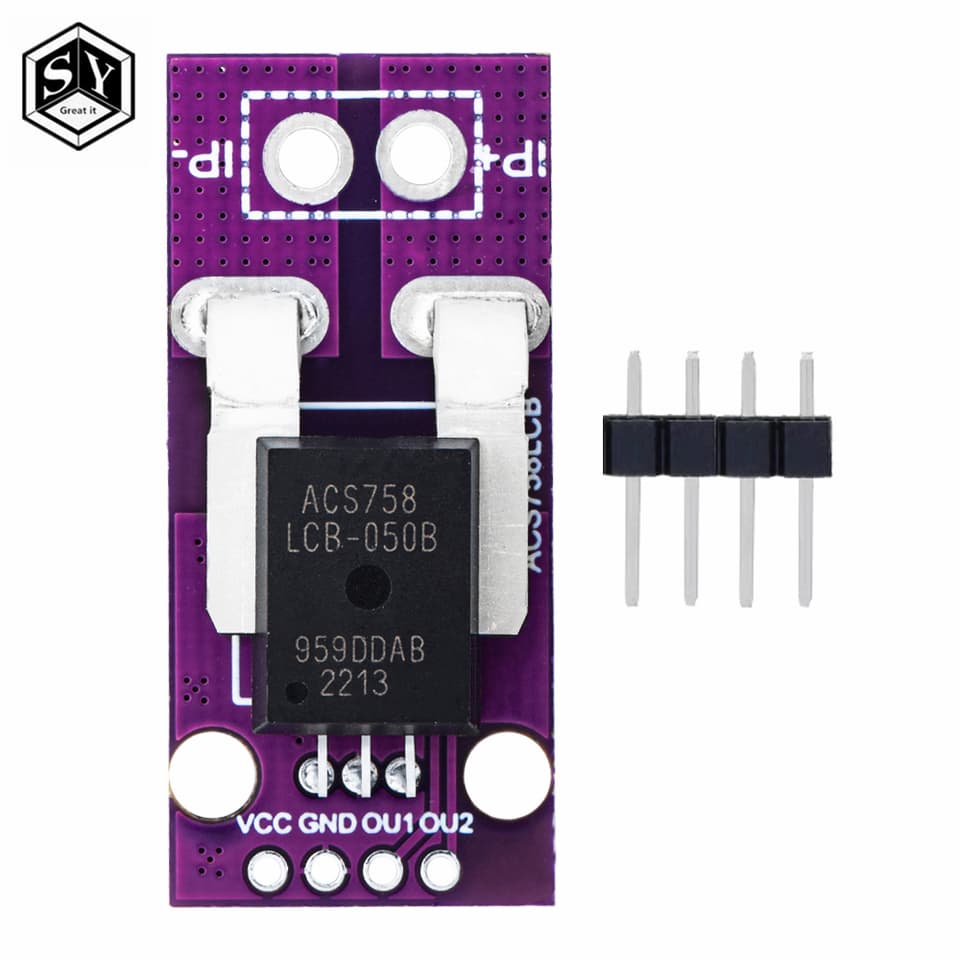

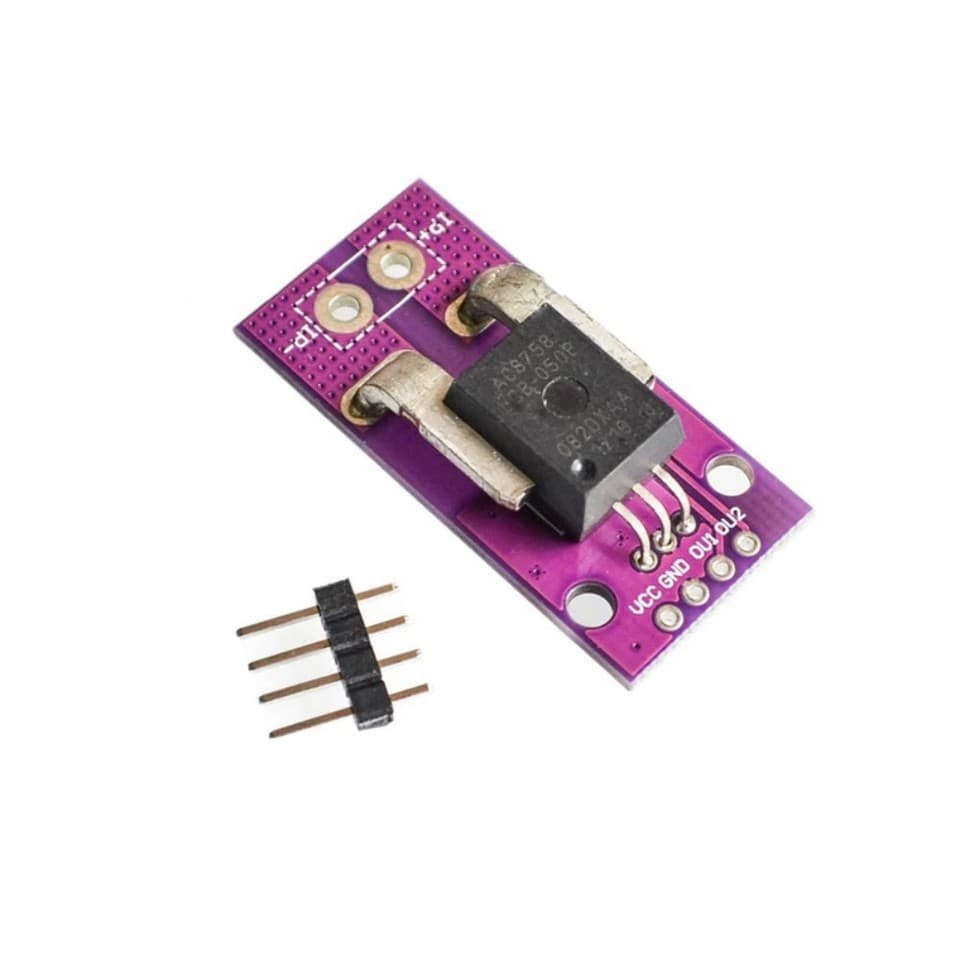

Hall current modules provide isolated amperage measurement for AC and DC circuits. Because the conductor passes through or beside the internal sensing element, the sensor needs no direct electrical contact with high-voltage lines. Models like the ACS758 and ACS758LCB-050B-PFF-T monitor high loads with galvanically isolated paths. Over-current protection modules like WCS1800 provide adjustable setpoints for equipment safety shutdowns.

• ACS758 series: Linear analog output spanning 50A and 100A bidirectional current detection in power conversion.

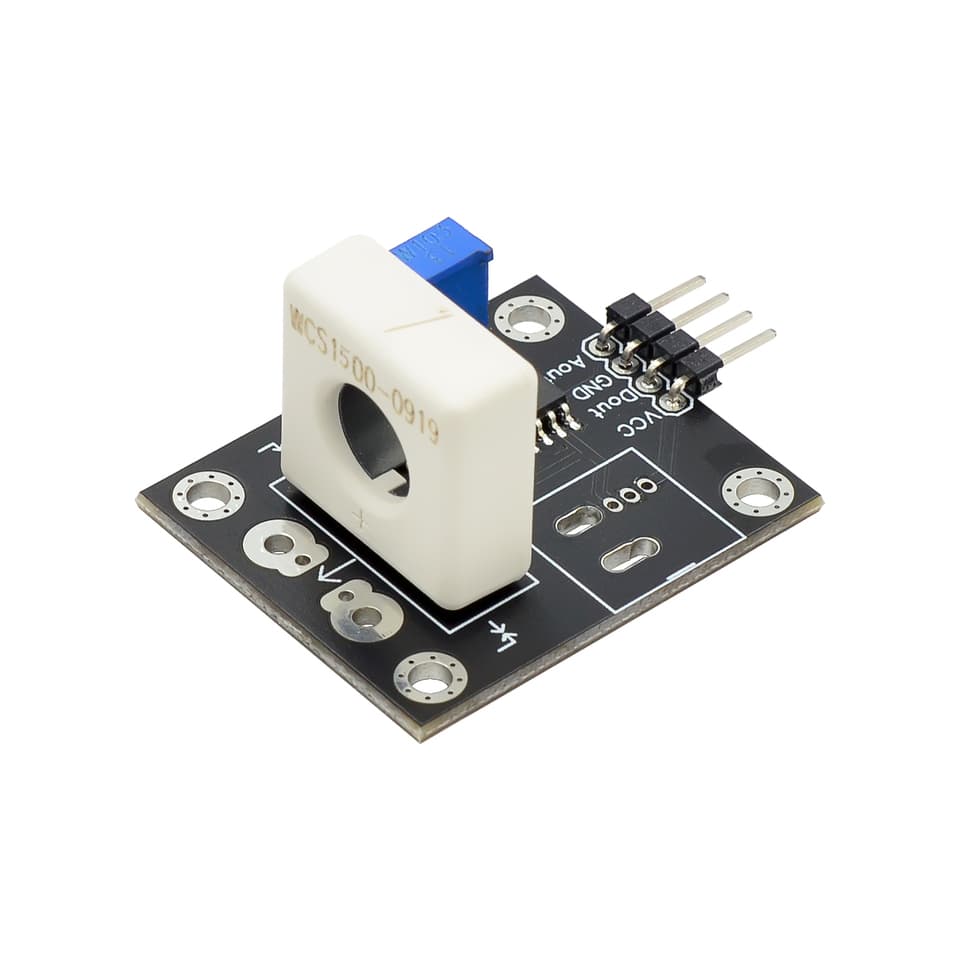

• WCS modules: Threshold detection spanning 35A, 70A, and 100A for adjustable short-circuit and over-current protection.
• Low-amperage boards: ACS712 options covering 5A, 20A, and 30A current loops in control cabinets.

Environmental Ratings and Enclosure Form Factors

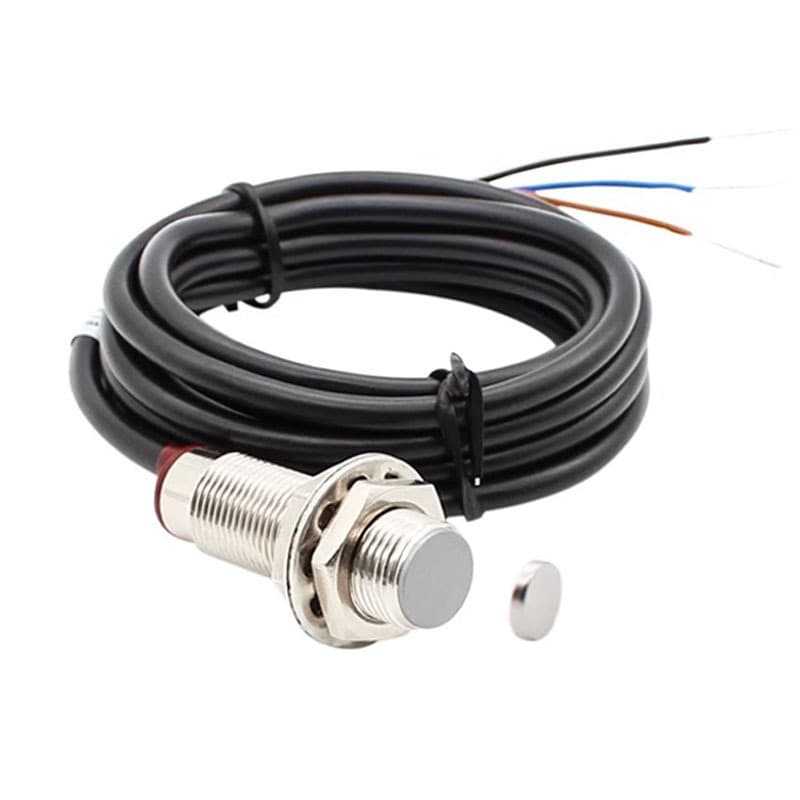

Mechanical mounting dictates selection among discrete IC styles, bare boards, and threaded industrial housings. Discrete TO-92, SMD, and DIP packages solder directly onto printed circuit boards inside motor end-bells. For exposed industrial machinery, threaded barrel sensors with 15mm or 20mm diameter mount directly to machine frames. When coolant or washdown spray contacts the installation, select sealed bodies with an IP68 protection rating to prevent liquid ingress.

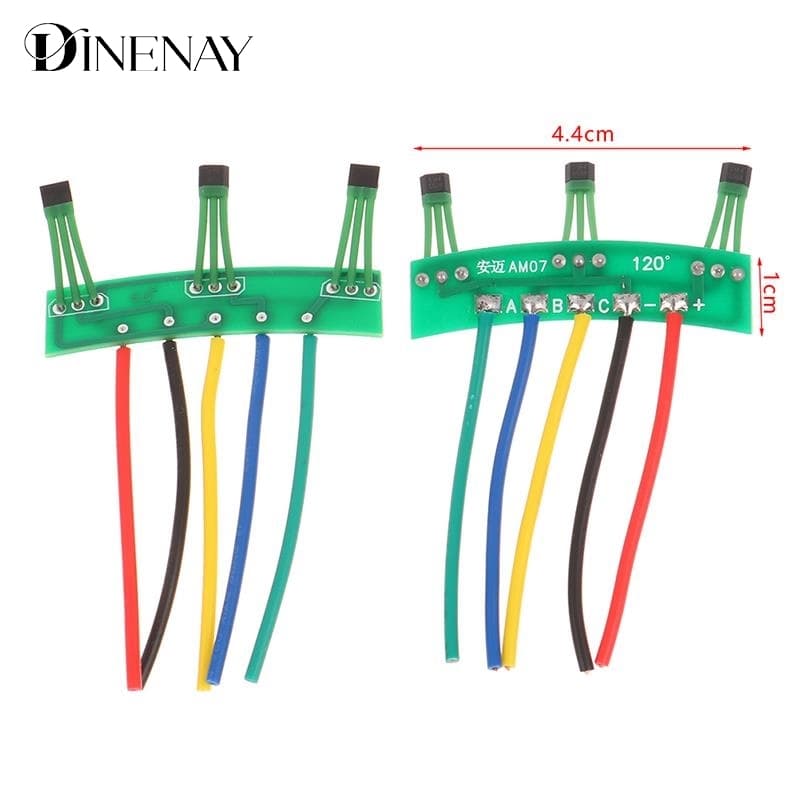

• Discrete TO-92 and DIP: Compact semiconductor packages for custom motor boards and tight electronics enclosures.

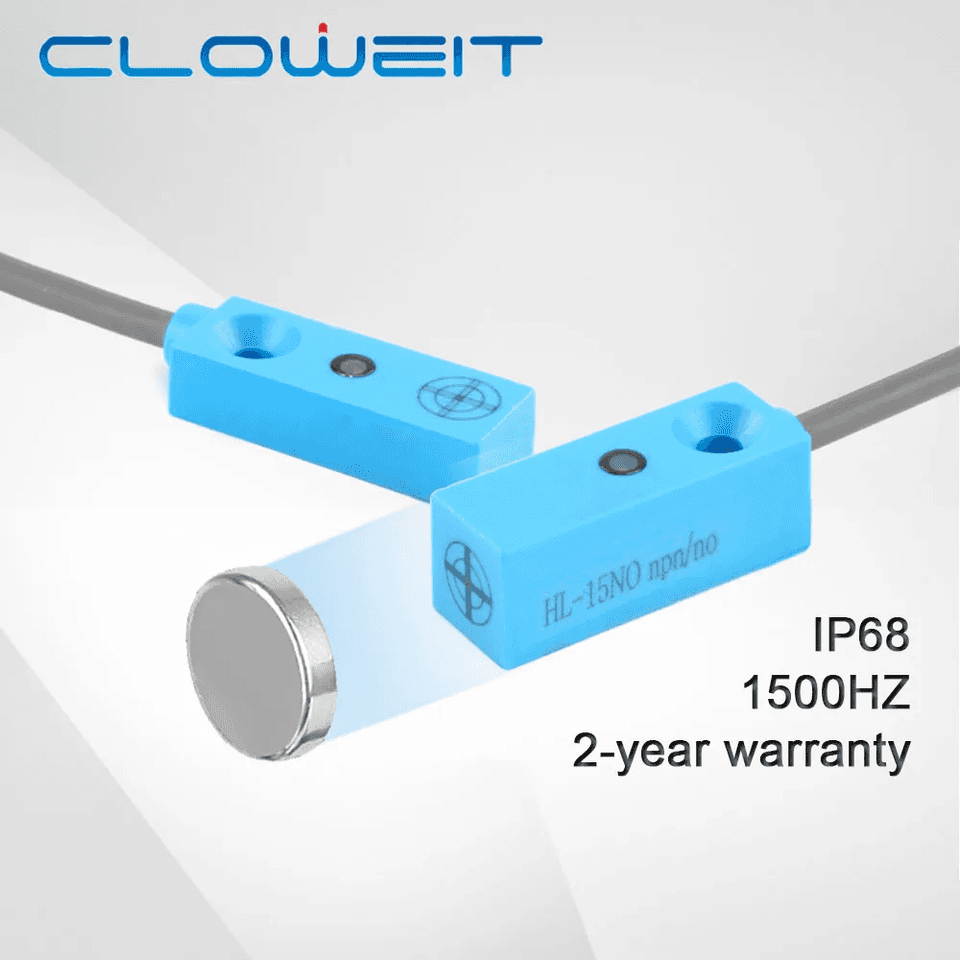

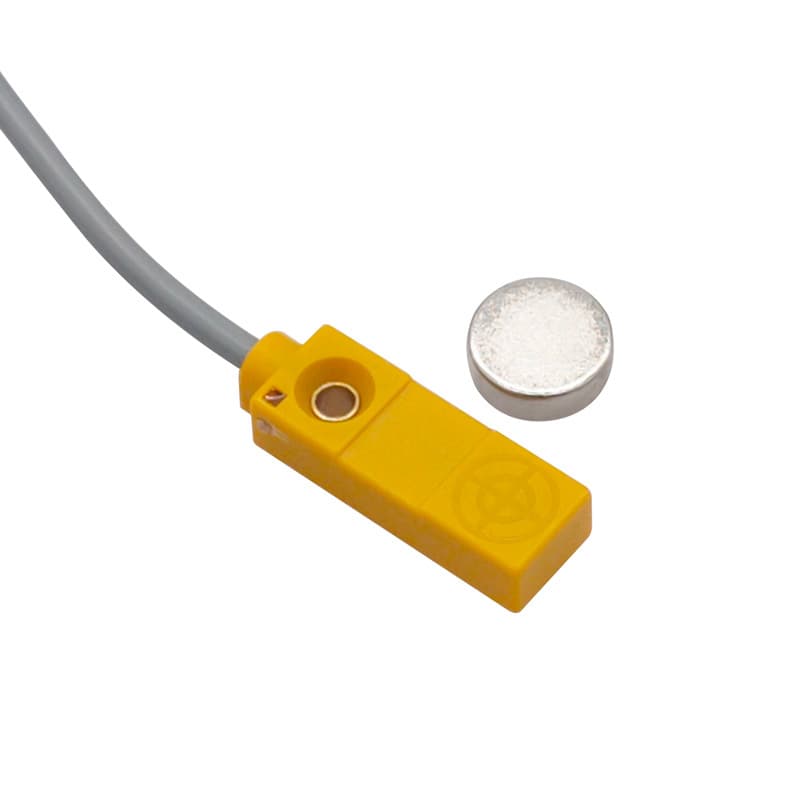

• Square and barrel proximity housings: Threaded bodies with an IP68 ingress protection rating for harsh factory environments.
• Voltage supplies: Check line limits, from 3.3V-5V logic levels up to operating windows below 50Vac or 75Vdc.
