The XT60 parallel battery connector cable provides a reliable and efficient solution for powering high-performance RC models. This 10cm Y-splitter features a single female XT60 input to two male outputs, enabling you to safely connect two batteries in parallel. Constructed with 14AWG silicone wire, it ensures minimal voltage drop and robust current handling for extended flight times and consistent power delivery. Features and Benefits
- 14AWG High-Grade Silicone Wire - Offers superior flexibility and heat resistance while minimizing power loss under high current loads common in RC applications.

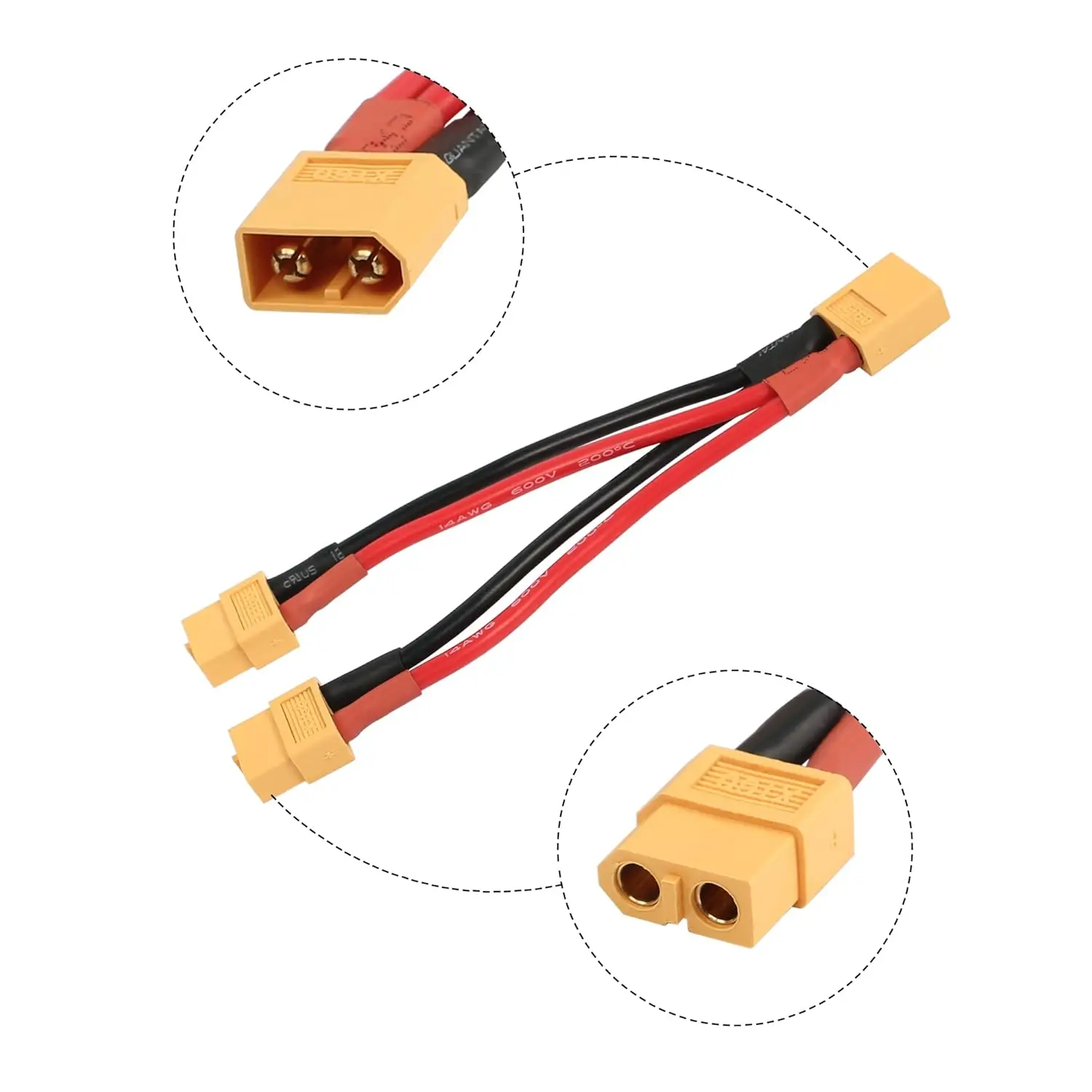

- Precision-Molded XT60 Connectors - Ensures a secure, low-resistance connection that prevents accidental disconnection and arcing during operation.
- Parallel Battery Configuration - Safely combines the capacity of two batteries for longer run times without increasing system voltage.

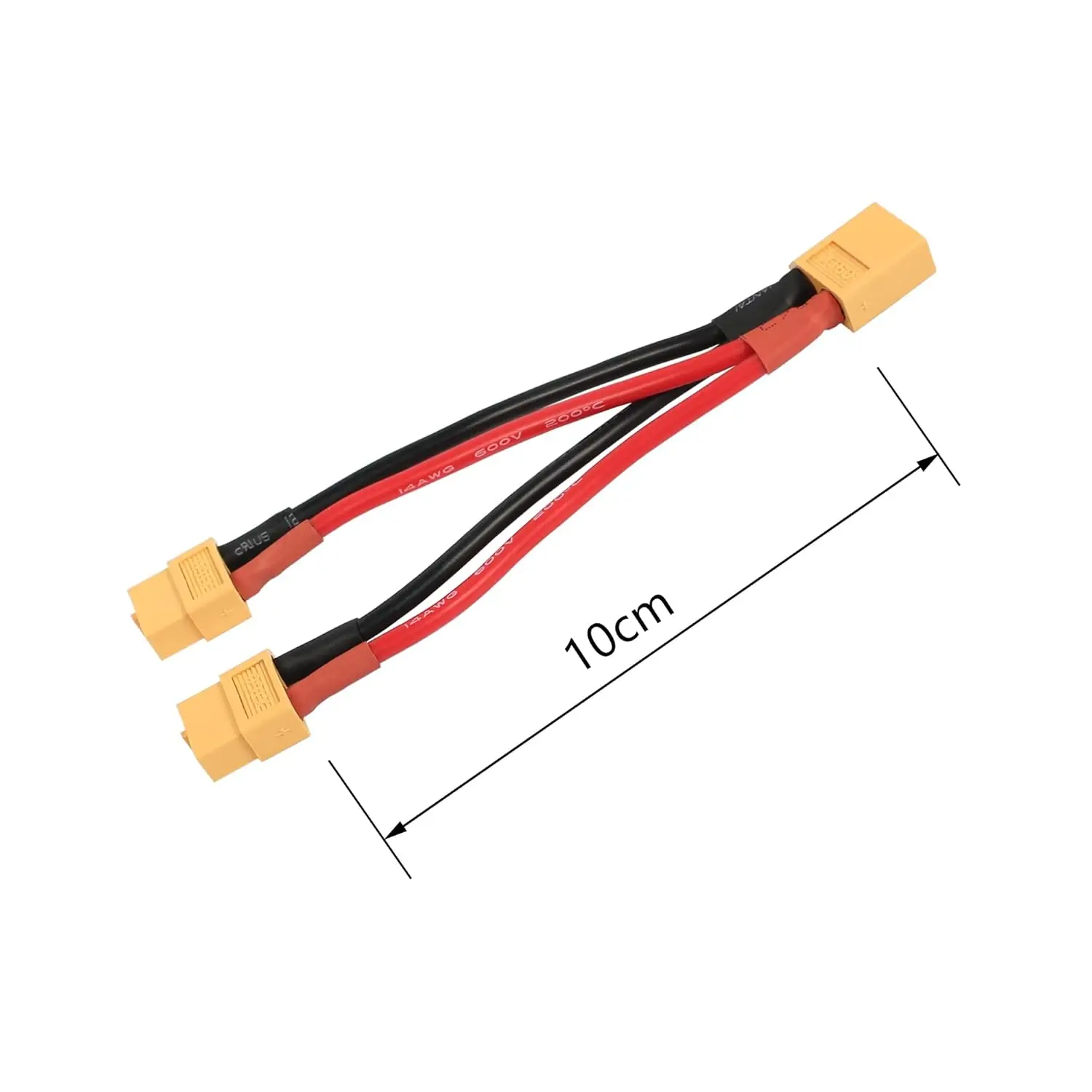

- Compact 10cm (3.93") Length - Provides a tidy, strain-relieved connection that keeps wiring organized within tight multicopter frames.
- Gold-Plated Contacts - Enhances conductivity and provides corrosion resistance for reliable performance over many charge cycles. Applications

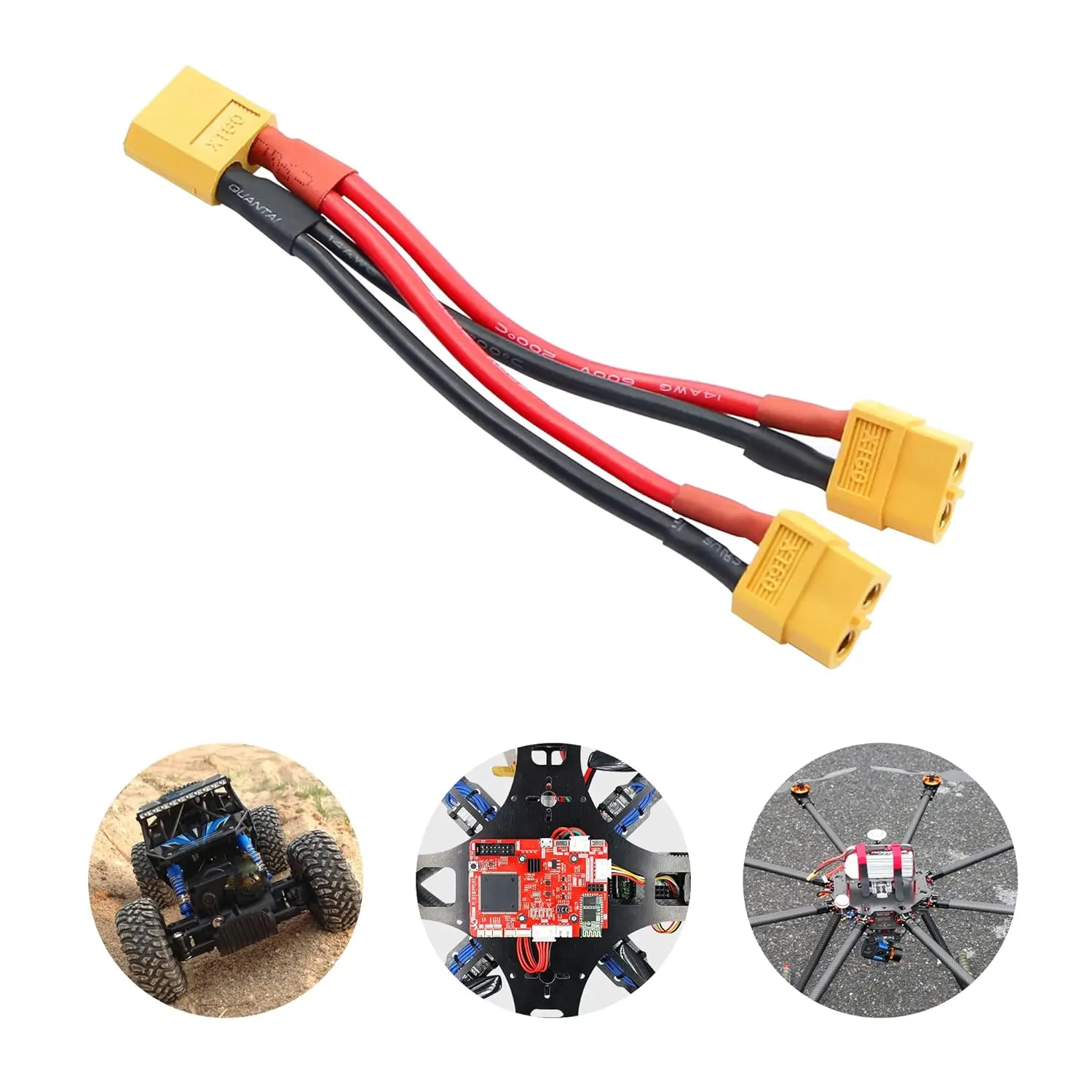

- FPV Racing Drones and Quadcopters - Parallel two LiPo batteries to significantly extend flight duration for longer practice sessions or races.
- Large Scale RC Models - Distribute stable, high-current power to demanding electronics in aerial photography platforms or heavy-lift multicopters.
- DIY Power Systems - Create custom parallel battery packs for various high-current projects requiring a stable DC power source. Note
Always ensure batteries connected in parallel are of the same voltage, chemistry, and similar capacity and charge state for safe operation.
Insulation Color: Black. Cable Length: 10 cm. Configuration: Parallel Y-Splitter. Connector Gender: 1 Female, 2 Male. Connector Type: XT60. Intended Application: RC Multicopter, Quadcopter. Wire Gauge: 14 AWG. Cable Length: 10 cm / 3.93 inch. Connector Contact Material: Brass, Gold-plated. Connector Housing Material: Glass-filled Nylon (PA66-GF). Insulation Material: High-temperature Silicone Rubber. Voltage Rating: Up to 60V DC. Operating Temperature Range: -30°C to 200°C (Silicone Insulation). Current Rating (Estimated per Wire): ~32 Amps continuous. Current Rating (Estimated Total Assembly): ~60 Amps continuous. Safety Standard: Connector design conforms to common RC industry practice. Application: RC Multicopter, Quadcopter, Drone, FPV, LiPo Battery Systems. Connector Gender Configuration: 1x Female Input, 2x Male Output. Connector Purpose: Parallel Battery Connection. Connector Type: XT60. Crimp Termination Type: High-pressure crimped and soldered. Polarity Keying: Yes, via XT60 connector shape. Resistance (Estimated per 10cm 14AWG): < 0.0025 Ohms. Wire Gauge: 14 AWG. Wire Strand Count: High-count (e.g., 19/0.41mm typical for 14AWG). Wire Type: Silicone-insulated Stranded Copper. Q: What are the specifications of this XT60 parallel connector cable? A: This AOKIN XT60 Y splitter cable is 10cm (3.93 inches) long and uses 14AWG wire. It features one female XT60 connector that splits into two male XT60 connectors for parallel battery connections.. Q: How durable is the 14AWG wire on this Y splitter adapter? A: The 14AWG wire gauge is a standard, robust size for handling high currents in RC applications. It is designed for reliable performance and regular use with LiPo batteries in drones and other high-power models.. Q: Is this XT60 parallel cable compatible with my quadcopter batteries? A: Yes, this cable is specifically designed for RC applications like multicopters and quadcopters. It is compatible with any device or battery that uses standard XT60 connectors for parallel charging or power distribution.. Q: Does this AOKIN connector cable come with a warranty or guarantee? A: Warranty information is not specified for this product. We recommend checking the seller's specific policy at the time of purchase for details on any guarantees or return options.. Q: Is this XT60 splitter a good value for the price? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in parallel battery setups..
