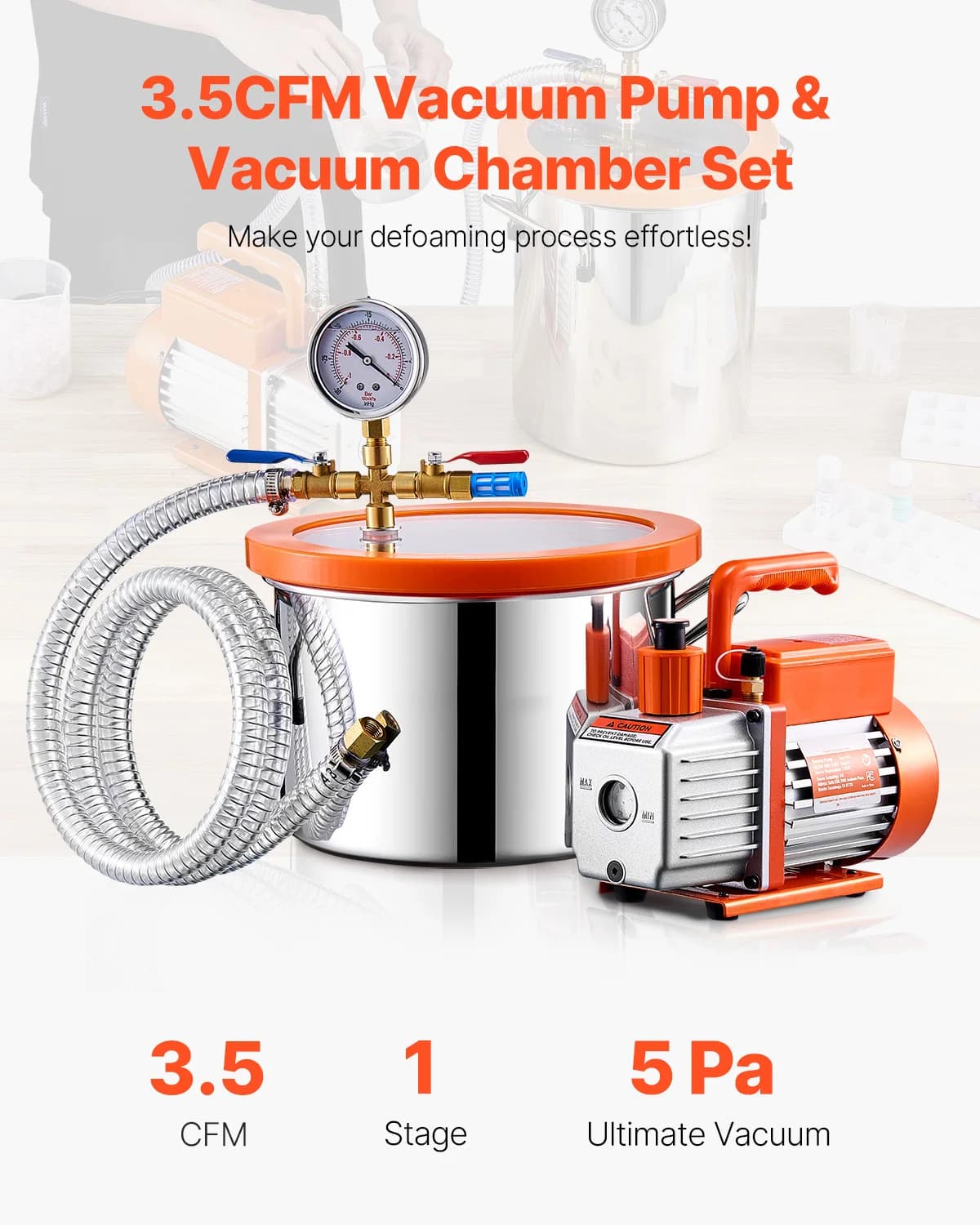

The SucceBuy vacuum chamber kit delivers reliable degassing performance with a 3.5 CFM single-stage pump and a durable 1.5, 3, or 5-gallon chamber. This system efficiently removes air bubbles from viscous materials, achieving a deep vacuum to ensure flawless, professional-grade results in your casting and molding projects. Features and Benefits
- 3.5 CFM Single-Stage Vacuum Pump - Provides rapid air evacuation, significantly reducing cycle time for degassing resins and silicones.
- Heavy-Duty Acrylic Chamber (1.5/3/5 Gal) - Offers clear visibility during the degassing process and robust construction to withstand repeated vacuum pressure.
- 4.92ft Reinforced PVC Hose with Quick-Connect - Ensures a secure, leak-free connection between the pump and chamber for consistent vacuum performance.

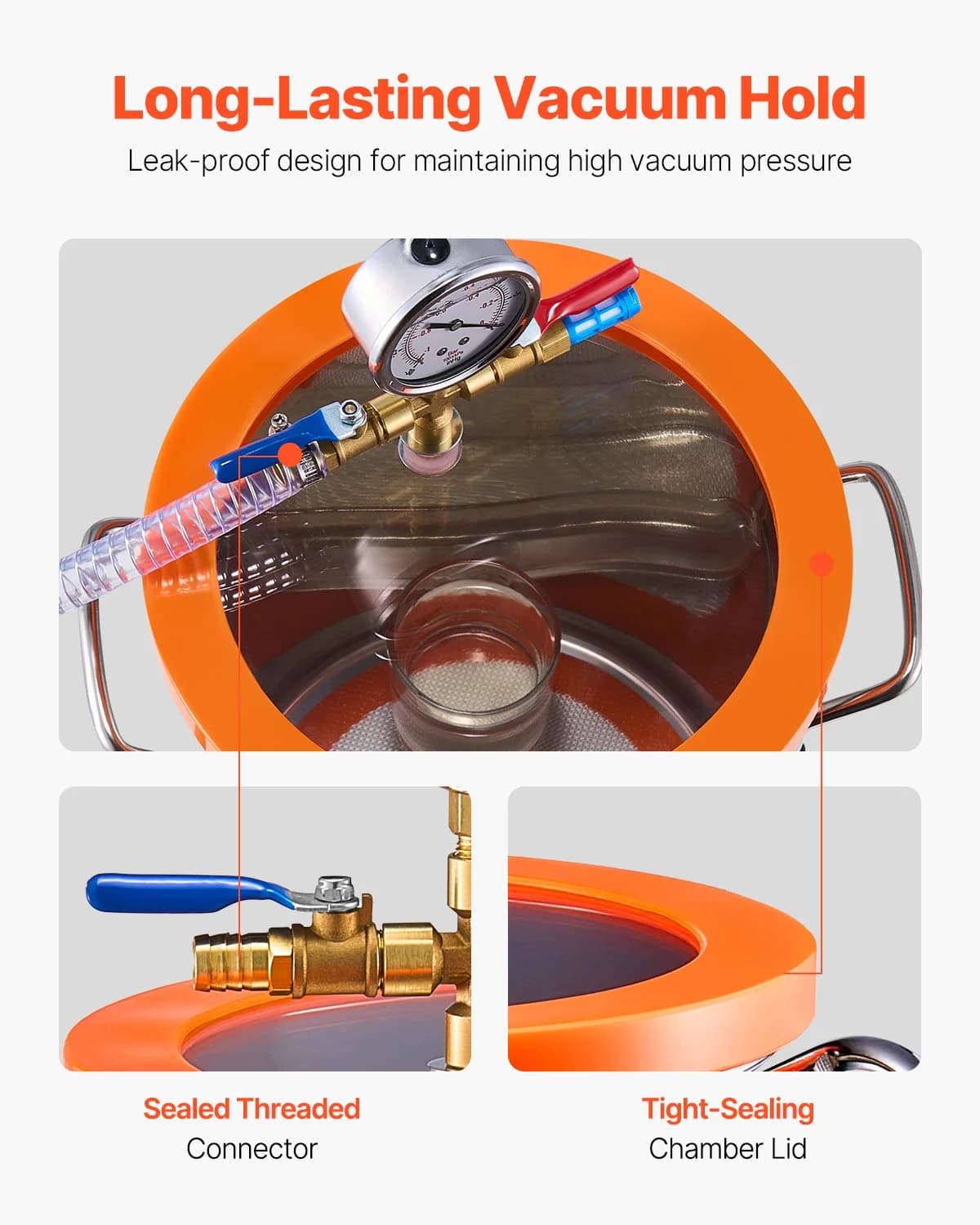

- Integrated Vacuum Gauge - Allows for precise monitoring of chamber pressure, giving you control over the degassing process.

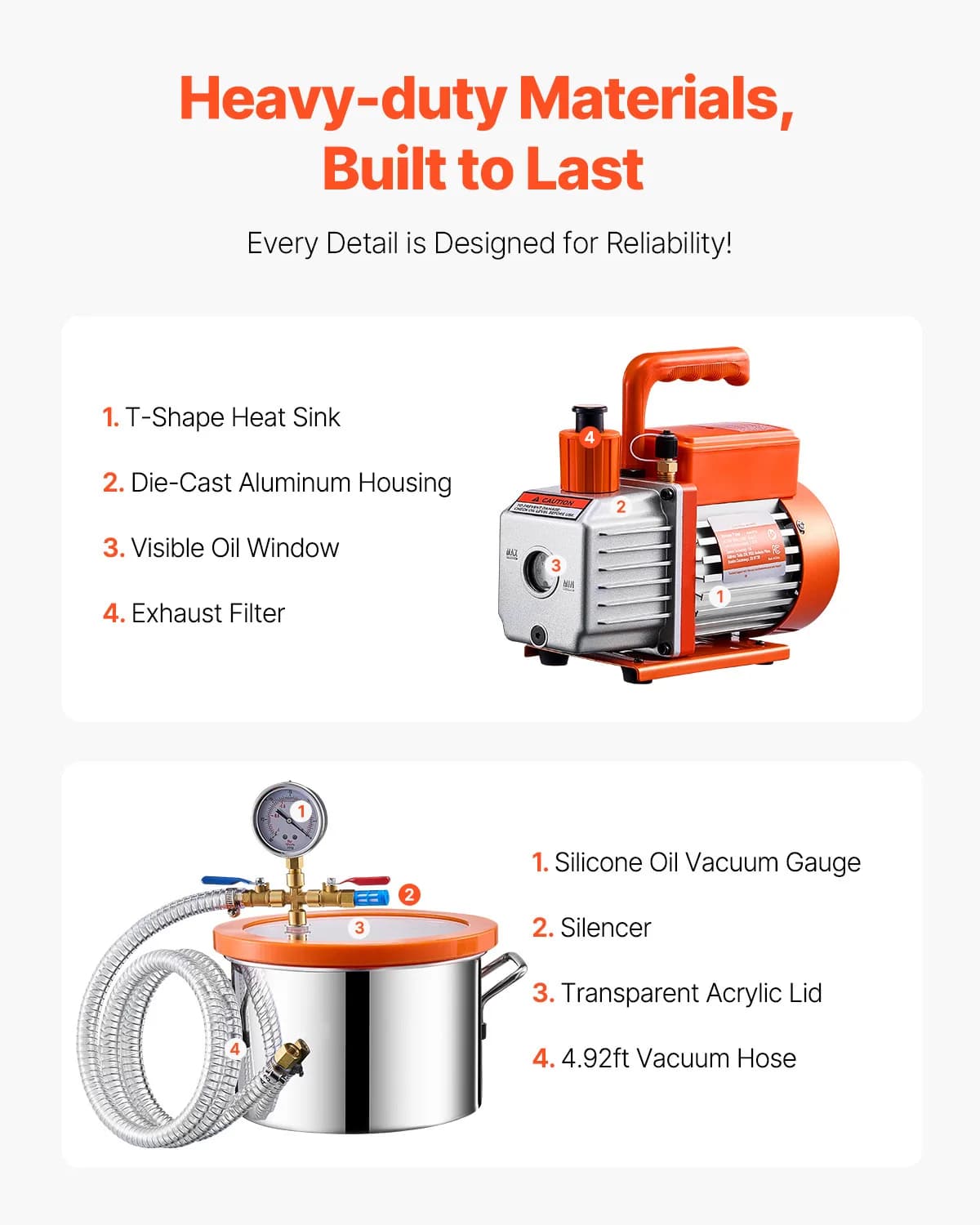

- Oil-Filled Rotary Vane Pump Design - Promotes quieter operation, cooler running temperatures, and extended pump lifespan with proper maintenance.
- Complete Kit Configuration - Includes everything needed to start degassing immediately, offering excellent value and convenience. Applications

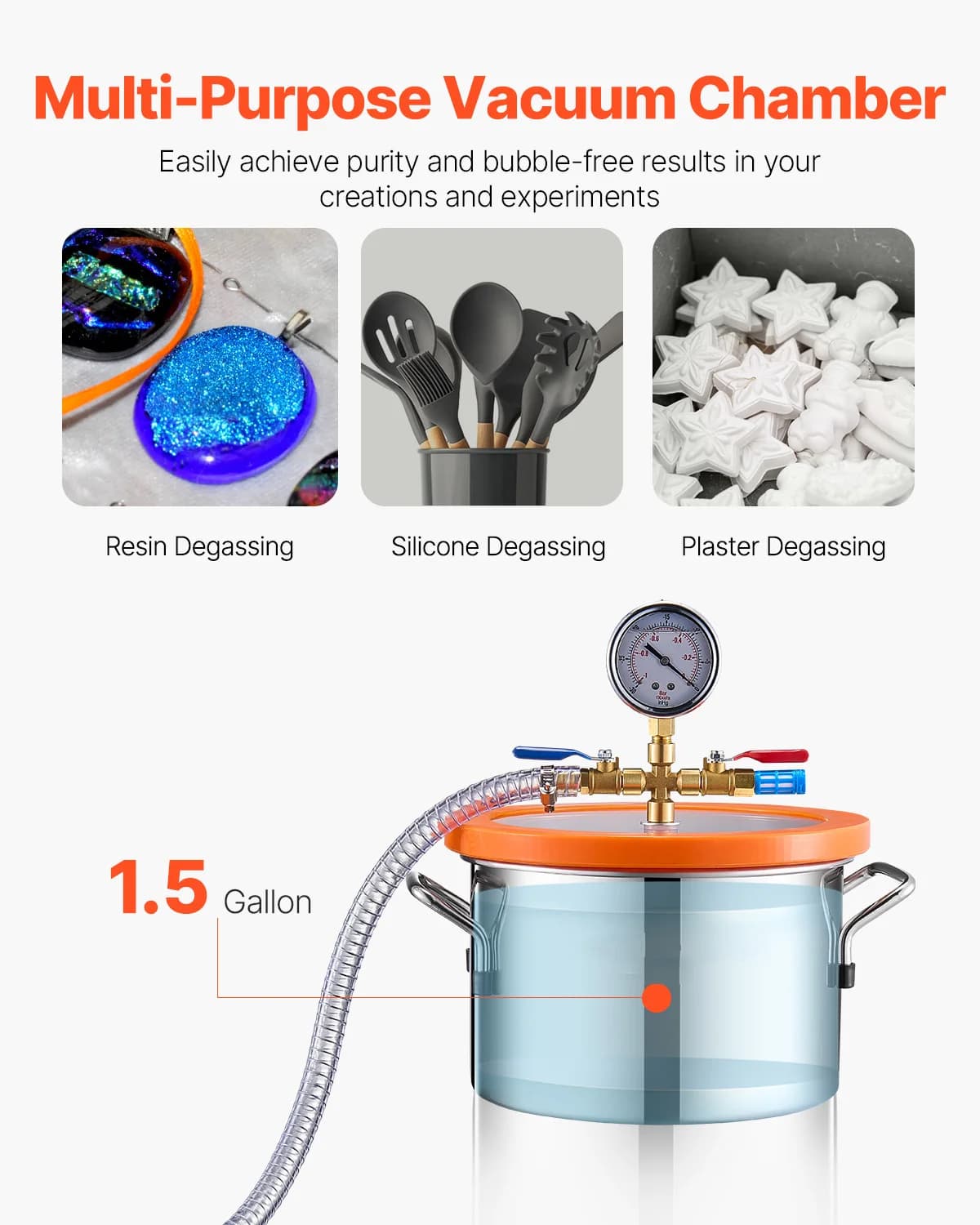

- Degassing Epoxy Resin and Casting Silicone - Eliminates microbubbles for crystal-clear epoxy river tables and bubble-free silicone molds.
- Preparing Polyurethane and Other Compounds - Removes trapped air from dense casting resins to prevent voids and weaknesses in finished parts.
- Stabilizing Wood with Resin - Draws resin deep into porous wood blanks for pen turning or knife scales, creating a solid, stable material.
- Laboratory and Small-Batch Processing - Ideal for R&D, prototyping, or small-scale production where removing dissolved gases is critical. Note
For optimal performance and longevity, use only fresh, high-quality vacuum pump oil and follow all operational guidelines included with your kit.
Chamber Material: Acrylic. Chamber Lid Material: Acrylic. Chamber Base Material: Aluminum. Vacuum Chamber Capacity: 1.5 / 3 / 5 Gallon. Pump Oil Capacity: 150 ml. Motor Power: 1/3 HP. Certification: CE. Electrical Rating: 110-120V, 60Hz. Hose Inner Diameter: 8 mm. Hose Length: 1.5 m. Pump Inlet Port: 1/4" NPT. Vacuum Gauge Range: -30 inHg to 0 inHg. Vacuum Pump Flow Rate: 3.5 CFM. Vacuum Pump Type: Single Stage. Vacuum Hose Inner Diameter: 3/8 inch (Approximately 9.5 mm). Vacuum Hose Length: 4.92 ft (1.5 meters). Overall System Weight (Approx. 5 Gallon Kit): 35 lbs (15.9 kg). Vacuum Chamber Lid Material: Cast Acrylic (PMMA) or Polycarbonate (PC) with Reinforced Flange. Vacuum Chamber Material: Cast Acrylic (PMMA) or Polycarbonate (PC). Vacuum Hose Material: Reinforced PVC or Polyurethane. Vacuum Pump Motor Power: 1/4 HP (Approximately 186 Watts). Vacuum Pump Motor Voltage: 110-120V AC, 60Hz. Oil Capacity (Pump): Approximately 0.35 Liters (12 fl oz). Operating Ambient Temperature Range: 50°F to 104°F (10°C to 40°C). Vacuum Chamber Capacity Options: 1.5 Gallon, 3 Gallon, 5 Gallon. Electrical Certification: CE (Conformité Européenne). Noise Level: < 60 dB(A) at 1 meter. Product Title: SucceBuy 1.5 / 3 / 5 Gallon Vacuum Chamber & 3.5CFM Single Stage Pump Kit with 4.92ft Hose for Degassing Resin Silicone Epoxies. Vacuum Chamber Lid Closure: Manual Swing-Bolt or Quick-Release Clamps. Vacuum Chamber Seal Type: Silicone O-Ring Gasket. Vacuum Gauge Type: Analog Dial Gauge (0 to -30 inHg / 0 to -760 mmHg). Vacuum Port Connection: 1/4 inch NPT (National Pipe Thread) Female. Vacuum Pump Free Air Displacement: 3.5 CFM (Cubic Feet per Minute). Vacuum Pump Oil Type: ISO VG 100 (SAE 30) Vacuum Pump Oil. Vacuum Pump Type: Single Stage Rotary Vane. Vacuum Pump Ultimate Vacuum: < 100 mTorr (< 0.1 mbar / < 0.0013 psi). Q: What are the dimensions and specifications of the SucceBuy vacuum chamber kit? A: This kit includes a vacuum chamber available in 1.5, 3, or 5-gallon sizes, paired with a 3.5 CFM single-stage vacuum pump. The setup comes with a 4.92-foot hose for convenient operation. The product is CE certified, indicating it meets specific safety standards.. Q: Is the SucceBuy vacuum chamber durable enough for regular use with resins and silicones? A: Yes, this vacuum chamber kit is built for reliable performance with degassing resins, silicones, and epoxies. The construction is designed to withstand the chemical exposure and pressure changes involved in these processes. It offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing.. Q: Can I use this vacuum chamber kit for degassing other materials besides resin? A: Absolutely. While ideal for degassing resin, silicone, and epoxy to remove bubbles, this vacuum chamber is also suitable for other applications like food preservation (e.g., sous vide), stabilizing wood, or degassing liquids in various hobbyist and workshop projects. Always ensure the material is compatible with the chamber.. Q: Does the SucceBuy vacuum chamber and pump come with a warranty or guarantee? A: The product listing does not specify a warranty period. We recommend checking the seller's detailed product page or contacting customer service directly for the most current information on any warranty, guarantee, or return policy that applies to your purchase.. Q: How does this SucceBuy kit compare to more expensive vacuum chamber systems? A: This SucceBuy kit offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular degassing tasks with its capable 3.5 CFM pump and range of chamber sizes. You get core functionality for a fraction of the cost of high-end industrial systems..
