What's the main purpose of this Y connector?

This Y connector lets you connect multiple solar panels in parallel. This helps maintain the voltage in your solar power system. It's essential for expanding existing setups or building new solar arrays.

How many solar panels can I connect with one of these?

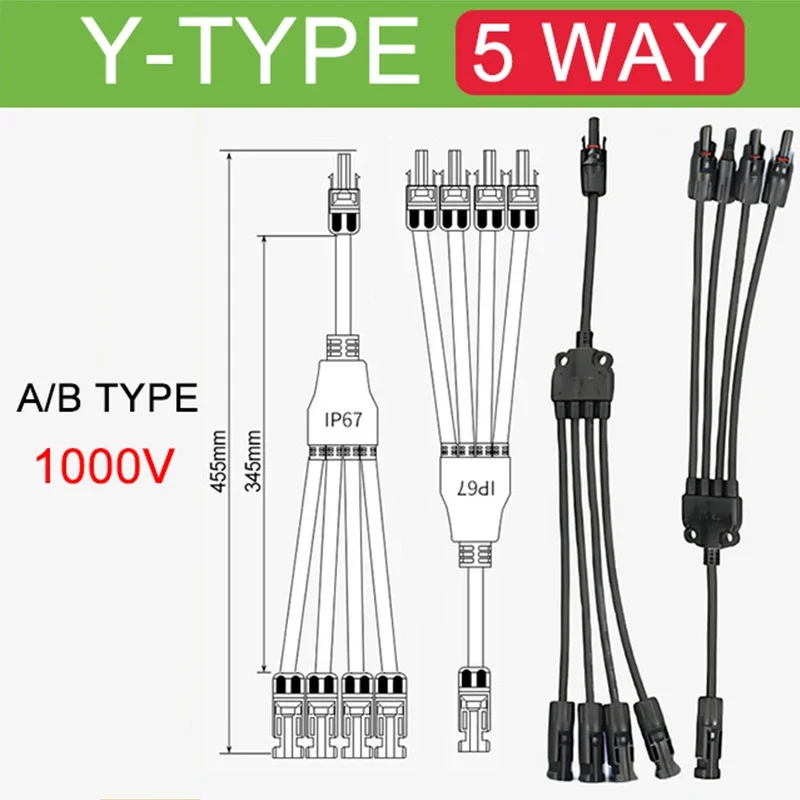

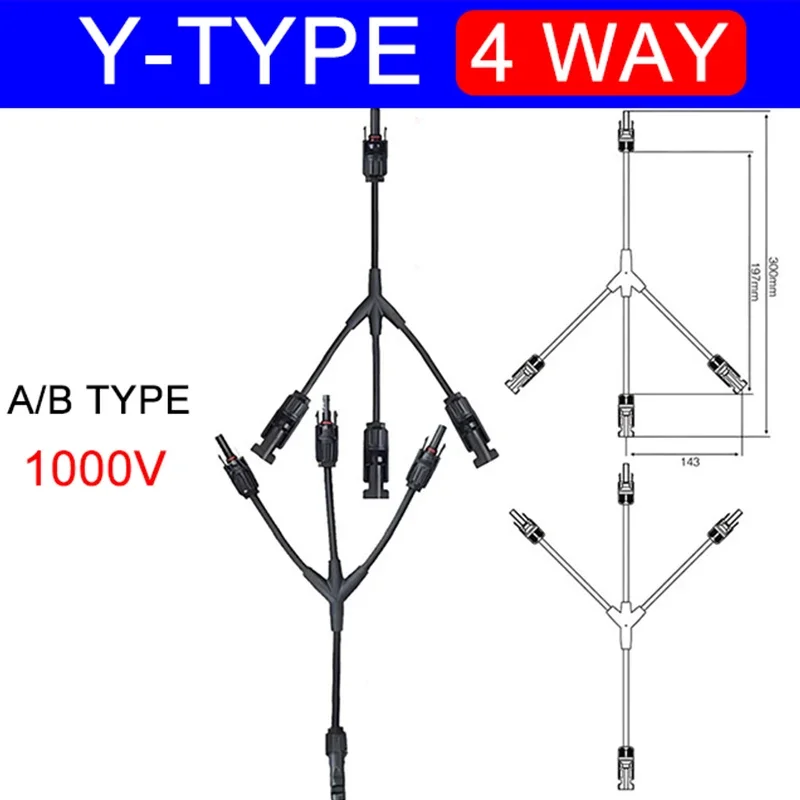

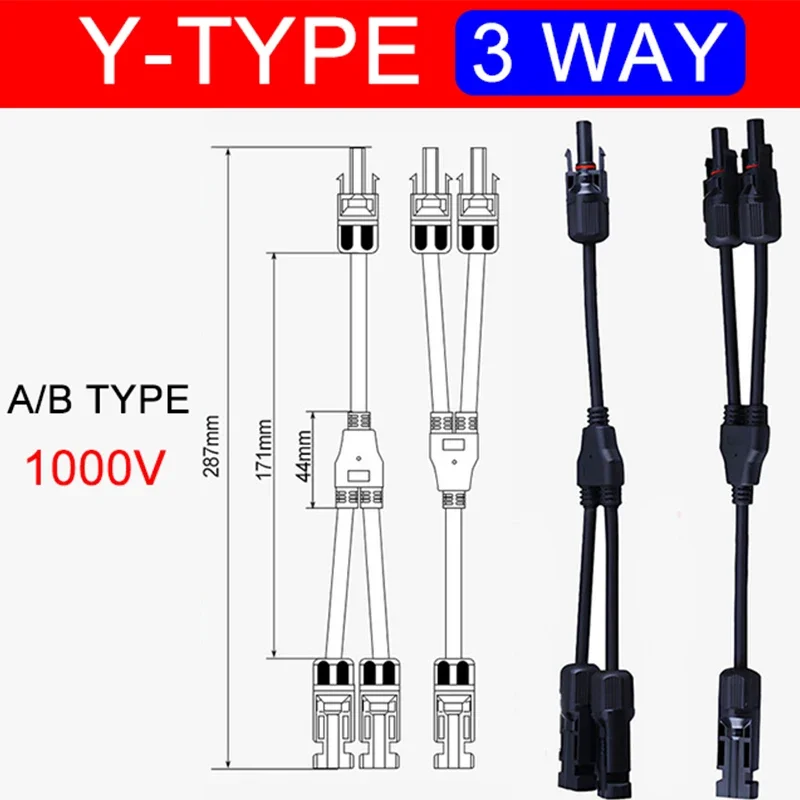

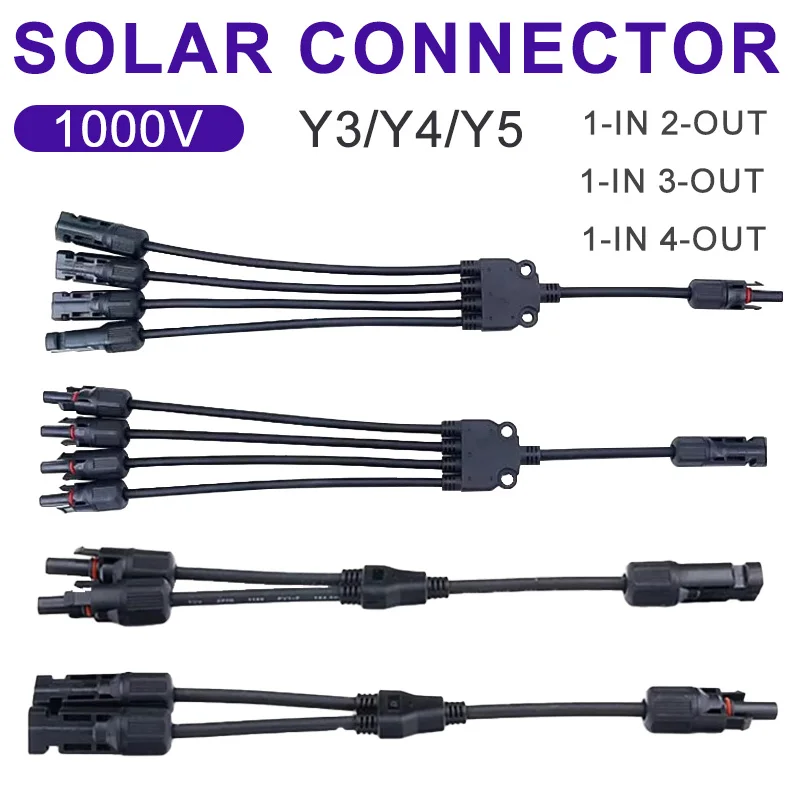

This specific Y connector is available in configurations for 1 to 2, 1 to 3, or 1 to 4 parallel connections. It can handle a maximum current of 30 Amps and a voltage of 1000 Volts DC.

What kind of solar cables can I use with this connector?

This Y connector is compatible with solar cables that have a cross-section of 2.5 mm², 4 mm², or 6 mm². This corresponds to 14 AWG, 12 AWG, and 10 AWG cable sizes.

Solar Panel Y Connector | 1000V Parallel Adapter | 30A 1-to-4 Plug Splitter

Name: Solar Panel Y Connector | 1000V Parallel Adapter | 30A 1-to-4 Plug Splitter
Brand: Compel
SKU: SPAR-00035
Price: 5.95 USD
Availability: InStock
Rating: 4.9 (11 reviews)

Stock #:CMP-02061

SKU:SPAR-00035

Solar Panel Y Connector | 1000V Parallel Adapter | 30A 1-to-4 Plug Splitter - Image 1

1 / 6

$5.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Color9 optionsSelect an option

Package QuantitySelect an option

Quantity

Solar Panel Y Connector | 1000V Parallel Adapter | 30A 1-to-4 Plug Splitter

$5.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What's the main purpose of this Y connector?: This Y connector lets you connect multiple solar panels in parallel. This helps maintain the voltage in your solar power system. It's essential for expanding existing setups or building new solar arrays.
How many solar panels can I connect with one of these?: This specific Y connector is available in configurations for 1 to 2, 1 to 3, or 1 to 4 parallel connections. It can handle a maximum current of 30 Amps and a voltage of 1000 Volts DC.
What kind of solar cables can I use with this connector?: This Y connector is compatible with solar cables that have a cross-section of 2.5 mm², 4 mm², or 6 mm². This corresponds to 14 AWG, 12 AWG, and 10 AWG cable sizes.

Spark Plug Sockets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Compare options

More Spark Plug Sockets

All Spark Plug Sockets

Explore the range

Popular in Automotive & Powersports

Browse Automotive & Powersports

-57%

Brake Caliper Piston Rewind Tool | Disc Brake Pad Replacement Kit | Heavy-Duty Service Cube

5.0

$8.95$20.68

Motorcycle Chain Maintenance Kit | Mess-Free Lubricator & Cleaner | 1-3 Set Options

5.0

$4.49

Professional-Grade 3M Double-Sided Mounting Tape | 300cm Heavy-Duty | No-Residue Removal

4.9

$6.95

TB2 PRO Mini Tyre Inflator | 120PSI Cordless Pump | Fast Charge, Screen Display

4.9(3.5K)

$88.99

OBD2 Scanner Diagnostic Tool | Voltage & Battery Test | V500 Code Reader

4.9

$26.95

Car Air Pump for Car | 150PSI Portable Tyre Inflator | Motorcycle & Bicycle

4.9(3.7K)

$46.95

Pads and Rotors Themed Car Vent Clips | Mini Drum Cymbals | Universal

4.9(775)

$16.99

12V Car Battery Charger & Maintainer | Pulse Repair Mode | Moto & Truck

4.9(1.5K)

$16.99

12V Car Battery Charger | 2A Pulse Repair for Moto & Truck | LED Display

4.9(1.3K)

$47.95

Plug Gap Tool | Double Hole Spanner | Engine Repair Socket Wrench

4.9(726)

$42.95

Microfiber Cloths | 40x40cm Thick Car Detailing Towels | Auto Wash Drying

4.9(5.8K)

$11.99

Brake Bleeder Kit | 1L & 0.75L Capacity | Car & Motorcycle Use

4.7(1.9K)

$39.95

Complete the set

Accessories & add-ons

-24%

Marine-Grade Switch Panel | 4/6/8-Gang Digital Display with USB Port | 12V Waterproof for Boats & RVs

5.0

$84.99$112.15

-59%

6-Gang Marine-Grade Switch Panel | 12V Waterproof Rocker Switches with Red LED Illumination

5.0

$5.95$14.47

-48%

Marine-Grade Rocker Switch Panel | 2-8 Circuit Control | Waterproof Toggle Panel for Boats & RVs

5.0

$41.95$80.35

-54%

8-Gang Marine Switch Panel | 12V/24V Power Distribution | USB Charging for RV, Boat & Van

5.0

$8.95$19.57

Tesla Jack Pads | 4-Piece Set for Model 3, Y, S, X | Protective Chassis Lift Adapters

4.9

$29.95

20A Marine-Grade Joystick Switch | 12V Waterproof Panel for Boats, RVs & Trucks

4.9

$7.95

-4%

Marine & RV Touch Switch Panel | 12V/24V Relay System | 6-12 Gang Slim Control Box

5.0

$166.99$173.79

Marine-Grade Rocker Switch Panel | 1-4 Gang Toggle | 12V/USB Power | Blue LED Backlit

4.9

$19.99

Tesla Jack Pad Set | 4-Pack Rubber Pucks with Protective Storage Case

4.9

$55.99

Wireless Winch Remote Control Electric Winch Controller with 434MHZ Receiver for Truck ATV Winch Remote Control

5.0

$40.95

-28%

Marine-Grade Switch Panel | 12V/24V Touchscreen Control with USB Charger & Voltmeter

5.0

$61.99$86.63

Heavy-Duty Tyre Pressure Gauge | 10-150 PSI | Dual Head Truck Tool

4.9(172)

$21.95

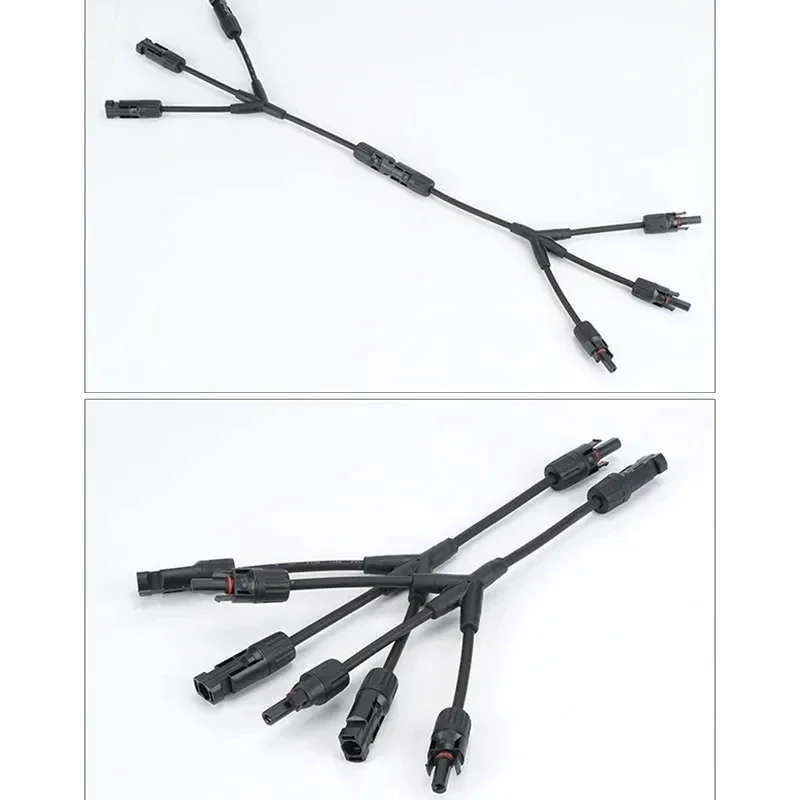

This 30A MC4 solar connector simplifies wiring multiple panels together. The Y-branch design lets you create a parallel connection, which is key for maintaining voltage in your system. It's a fundamental part of a solar array. Features and Benefits - IP67 Waterproof Rating - Protects connections from dust and water, ensuring reliable outdoor use. - Tinned Copper Terminals - Offer low resistance for minimal power loss and efficient energy transfer. - PPO Insulation - Resists UV radiation and handles temperatures from -40°C to 90°C. - Locking Mechanism - Snaps securely into place for a stable, vibration-proof connection. Applications - Connecting two or more solar panels in parallel for an RV or off-grid cabin. - Expanding an existing residential solar power system with additional panels. - Building custom portable solar setups for camping or emergency backup power.

Socket Size: Not Applicable. Material: PV Plug. Voltage Rating: 1000 V. Connectivity: 1 to 2/3/4 Parallel. Compatibility: Photovoltaic PV Systems. Connector Type: Y Type Adapter. Current Rating: 30 A. Terminal Diameter: 4.0 mm. Contact Material: Tinned Copper. Insulation Material: PPO/PC. Rated Voltage: 1000 V DC. Temperature Range: -40°C to +90°C. Connection Configuration: 1 to 2, 1 to 3, 1 to 4 Parallel Connection. Connector Type: Y Type Adapter (MC4 Compatible). Flame Class: UL94-V0. High-Concerned Chemical: None. Insertion Force: ≤50N. Product Name: 30A Photovoltaic PV Connector Y Type Adapter 1000V Parallel Connection Solar Panel 1 To 2/3/4 PV Plug Solar Cell Connector. Protection Degree: IP67. Rated Current: 30 A. Suitable Cable Cross Section: 2.5 mm², 4 mm², 6 mm² (14 AWG, 12 AWG, 10 AWG). Withdrawal Force: ≥50N. Q: What's the voltage and current rating for these Y connectors? A: These are rated for a maximum of 1000V DC and can handle up to 30A of current. They are designed for connecting solar panels in a parallel circuit.. Q: What's the voltage and current rating for these Y connectors? A: These are rated for a maximum of 1000V DC and can handle up to 30A of current. They are designed for connecting solar panels in a parallel circuit.. Q: What are the connectors made of? I need something that will last outdoors. A: The housing is made from PPO insulation material, which resists UV rays and aging. They also have an IP67 waterproof rating, so they're built to withstand rain, snow, and sun.. Q: What are the connectors made of? I need something that will last outdoors. A: The housing is made from PPO insulation material, which resists UV rays and aging. They also have an IP67 waterproof rating, so they're built to withstand rain, snow, and sun.. Q: Will these connectors work with the standard MC4 cables I already have for my solar setup? A: Yes, they are fully compatible with standard MC4 type solar connectors. They fit wire gauges from 2.5mm² to 6mm², which covers the most common solar cable sizes.. Q: Will these connectors work with the standard MC4 cables I already have for my solar setup? A: Yes, they are fully compatible with standard MC4 type solar connectors. They fit wire gauges from 2.5mm² to 6mm², which covers the most common solar cable sizes.. Q: Is there a warranty if one of the connectors is faulty? A: We offer a 12-month warranty that covers any defects in materials or workmanship. If you have any problems, just let us know and we'll help you out.. Q: Is there a warranty if one of the connectors is faulty? A: We offer a 12-month warranty that covers any defects in materials or workmanship. If you have any problems, just let us know and we'll help you out.. Q: I'm looking for an alternative to a spark plug socket for my project. Could these connectors be used in an automotive application? A: These are specifically designed for high-voltage DC solar panel systems, not for automotive engines. Using them as a spark plug socket or for other engine parts isn't recommended as they aren't built for that environment or purpose.. Q: I'm looking for an alternative to a spark plug socket for my project. Could these connectors be used in an automotive application? A: These are specifically designed for high-voltage DC solar panel systems, not for automotive engines. Using them as a spark plug socket or for other engine parts isn't recommended as they aren't built for that environment or purpose..
