What can I use this pump for around my home or garden?

This 1 HP shallow well pump is ideal for automating garden irrigation, boosting water pressure for taps and appliances, and supplying water for livestock or general farm use. It delivers a high volume of water for demanding residential and garden applications.

How much water can this pump move, and what's its tank size?

This pump has a maximum flow rate of 1000 GPH (gallons per hour). It comes with an integrated 5-gallon (18.9 L) pre-pressurised tank. This helps reduce pump cycling and provides steady water pressure.

What's the maximum depth this pump can draw water from?

The SucceBuy shallow well pump has a maximum suction depth of 25 feet (7.6 metres). It is designed for automatic operation with a pressure switch range of 20-40 PSI cut-in and 40-60 PSI cut-out.

SucceBuy 1 HP Shallow Well Pump with Pressure Tank 1000 GPH 5 Gal Tank Automatic Irrigation Water Booster Pump for Home Garden

Name: SucceBuy 1 HP Shallow Well Pump with Pressure Tank 1000 GPH 5 Gal Tank Automatic Irrigation Water Booster Pump for Home Garden
Brand: Compel
SKU: GENE-00107
Price: 329.99 USD
Availability: InStock

Stock #:TBS-05318

SKU:GENE-00107

SucceBuy 1 HP Shallow Well Pump with Pressure Tank 1000 GPH 5 Gal Tank Automatic Irrigation Water Booster Pump for Home Garden - Image 1

1 / 6

$329.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

VoltageSelect an option

Quantity

SucceBuy 1 HP Shallow Well Pump with Pressure Tank 1000 GPH 5 Gal Tank Automatic Irrigation Water Booster Pump for Home Garden

$329.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What can I use this pump for around my home or garden?: This 1 HP shallow well pump is ideal for automating garden irrigation, boosting water pressure for taps and appliances, and supplying water for livestock or general farm use. It delivers a high volume of water for demanding residential and garden applications.
How much water can this pump move, and what's its tank size?: This pump has a maximum flow rate of 1000 GPH (gallons per hour). It comes with an integrated 5-gallon (18.9 L) pre-pressurised tank. This helps reduce pump cycling and provides steady water pressure.
What's the maximum depth this pump can draw water from?: The SucceBuy shallow well pump has a maximum suction depth of 25 feet (7.6 metres). It is designed for automatic operation with a pressure switch range of 20-40 PSI cut-in and 40-60 PSI cut-out.

SucceBuy 1 HP Shallow Well Pump with Pressure Tank 1000 GPH 5 Gal Tank Automatic Irrigation Water Booster Pump for Home Garden spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular right now

Digital Vernier Caliper | 0-150mm Measuring Tool | Plastic Body

4.9

$6.95

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

$7.95

-21%

Damage-Free Picture Hanging Strips | Assorted Sizes | Removable Wall Mounting for Frames & Posters

4.9

$14.99$18.89

Digital Tire Pressure Gauge | Backlit LCD Display | Car & Truck Auto Monitoring

4.9

$14.99

Door & Window Magnetic Sensor | Zigbee Wireless | App Alert Security Alarm

4.9(496)

$12.99

Clutch Alignment Tool | Plastic Dismantle & Correction Kit | Car Repair Accessories

4.9

$29.99

Power Adapter AC 100-240V Input DC Output Supply Charger EU/US 12V Universal Adapter Converter Plug for Camera DVR LED Robot LED

4.9

$15.99

Desoldering Braid | Solder Remover Wick | 2.0mm & 3.5mm x 1.5M

4.9

$5.95

USB-C Endoscope Camera | 5.5mm Lens for Android & PC | Flexible Inspection Borescope with 6 LEDs

4.9

$10.99

Quick-Connect Wire Terminals | 10-75 Pc Assortment | 250V/32A Electrical Connectors

4.9

$8.95

Tool Set 4pc | Tile Grout & Sealant Remover | For Shower, Kitchen & Bathroom Cleaning

4.9

$17.99

Non-Contact Voltage Tester Pen | AC Voltage Detector | 12-1000V Breakpoint Finder

4.9

$6.95

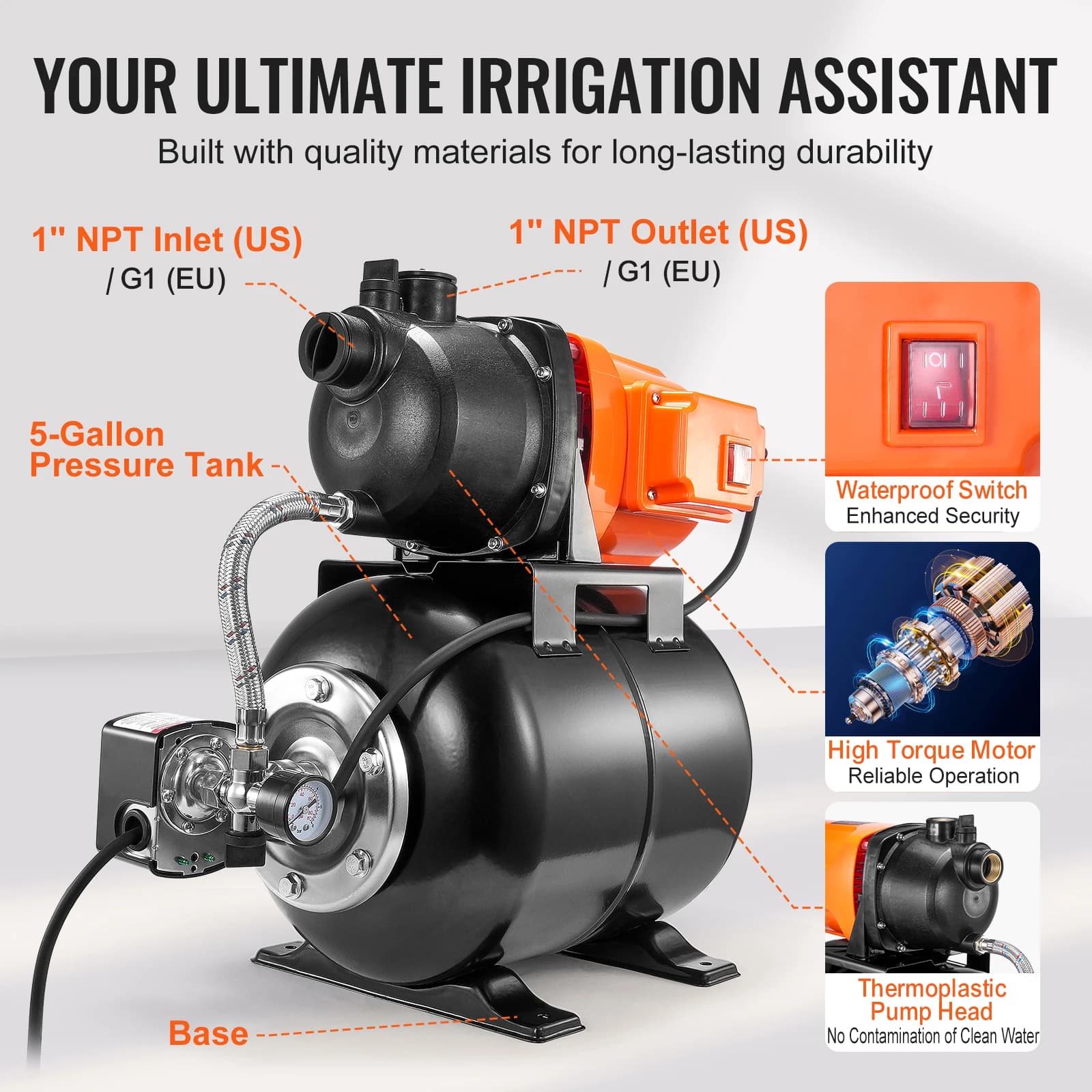

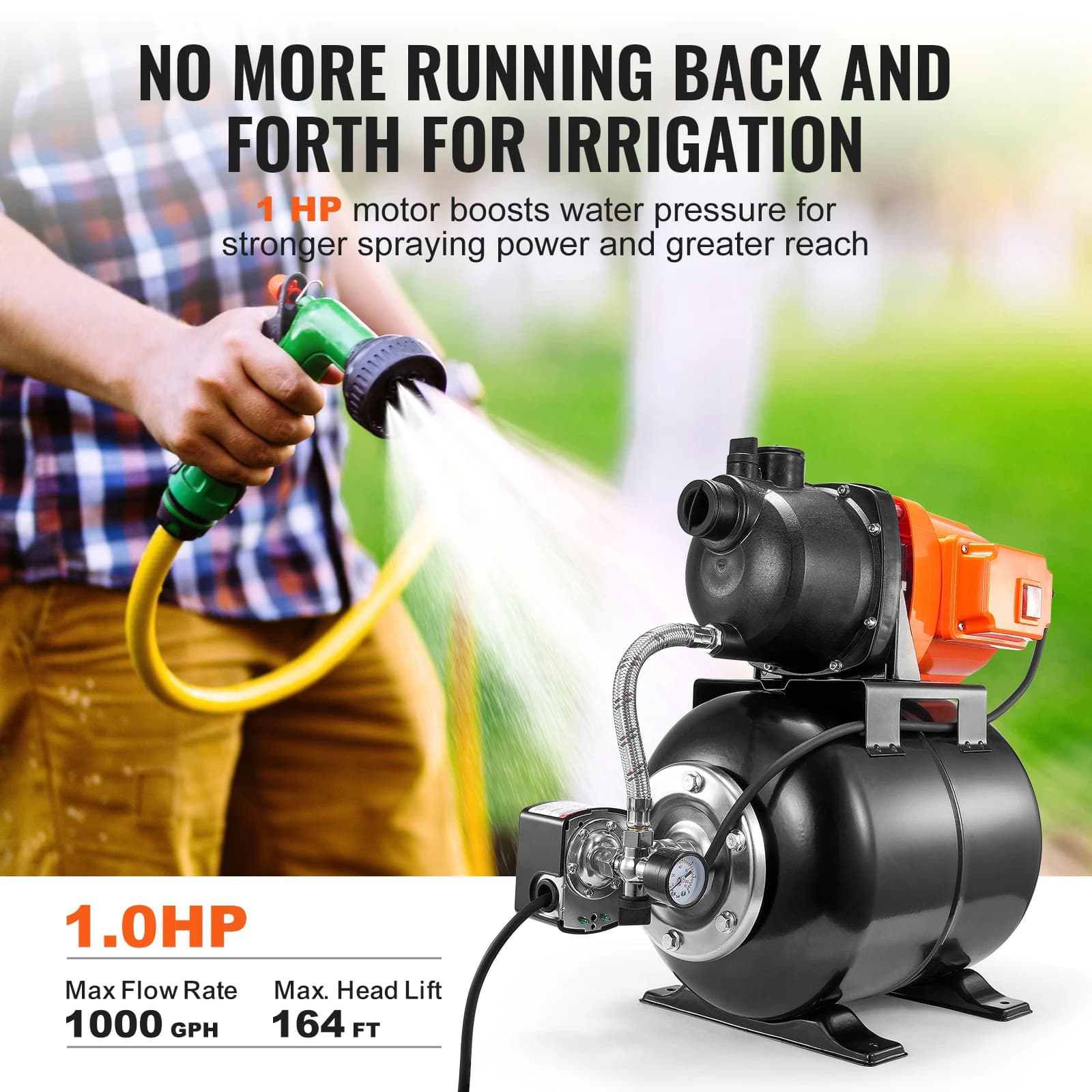

The SucceBuy 1 HP shallow well pump delivers reliable, high-volume water flow for demanding residential and garden applications. This automatic system features a 5-gallon pressure tank for consistent water pressure and a robust 1000 GPH capacity, ensuring efficient irrigation and water supply without constant cycling. Features and Benefits - 1 HP motor with 1000 GPH flow rate - Provides powerful water delivery for quick filling and efficient irrigation of larger areas. - Integrated 5-gallon pre-pressurized tank - Reduces pump cycling for longer motor life and delivers steady, on-demand water pressure. - Automatic pressure switch operation - Offers hands-free convenience by automatically maintaining optimal system pressure. - Corrosion-resistant construction - Ensures long-term durability and reliable performance in various water conditions. Applications - Automating home garden and lawn irrigation systems - Boosting water pressure for residential faucets and appliances - Supplying water to livestock or for general farmstead use

Dimensions: Not Specified. Weight: Not Specified. Material: Not Specified. Pressure Tank Capacity: 5 Gal (18.9 L). Motor Power: Not Specified. Motor Power (HP): 1 HP. Voltage: Not Specified. Control: Automatic. Inlet/Outlet Diameter: Not Specified. Maximum Flow Rate: 1000 GPH (3785 LPH). Maximum Head: Not Specified. Pump Type: Shallow Well Pump. Inlet/Outlet Size: 1 inch NPT. Housing Material: Cast Iron/Stainless Steel. Impeller Material: Thermoplastic. Motor Power: 1 HP (746 W). Power Supply: 230V/60Hz (single-phase). Pressure Switch Range: 20-40 PSI cut-in, 40-60 PSI cut-out. Pressure Tank Capacity: 5 Gallons (18.9 L). Operating Temperature: 32°F to 104°F (0°C to 40°C). Duty Cycle: Continuous duty. Flow Rate: 1000 GPH (3.79 m³/h). Maximum Pressure: High Pressure (typically 40-60 PSI). Maximum Suction Depth: 25 feet (7.6 m). Motor Type: Capacitor-start induction motor. Pump Type: Automatic Shallow Well Pump. Thermal Protection: Built-in overload protection. Q: What are the key specifications of this shallow well pump? A: This pump has a 1 horsepower motor, delivers up to 1000 gallons per hour (GPH), and includes a 5-gallon pressure tank. It's designed for automatic operation, making it suitable for home irrigation and garden use.. Q: What are the key specifications of this shallow well pump? A: This pump has a 1 horsepower motor, delivers up to 1000 gallons per hour (GPH), and includes a 5-gallon pressure tank. It's designed for automatic operation, making it suitable for home irrigation and garden use.. Q: How is the build quality and durability of this pump? A: The pump is constructed with robust materials for reliable performance in shallow well applications. Its automatic pressure switch and corrosion-resistant components are designed for long-term use in residential settings.. Q: How is the build quality and durability of this pump? A: The pump is constructed with robust materials for reliable performance in shallow well applications. Its automatic pressure switch and corrosion-resistant components are designed for long-term use in residential settings.. Q: What water sources is this pump compatible with? A: It's specifically designed for shallow wells with a maximum suction depth typically around 25 feet. The pump is compatible with standard residential plumbing and irrigation systems for garden and home water supply.. Q: What water sources is this pump compatible with? A: It's specifically designed for shallow wells with a maximum suction depth typically around 25 feet. The pump is compatible with standard residential plumbing and irrigation systems for garden and home water supply.. Q: What warranty coverage does this product include? A: The manufacturer provides a standard warranty against defects in materials and workmanship. Specific warranty duration and terms are detailed in the product documentation included with purchase.. Q: What warranty coverage does this product include? A: The manufacturer provides a standard warranty against defects in materials and workmanship. Specific warranty duration and terms are detailed in the product documentation included with purchase.. Q: Does this pump offer good value for residential use? A: Yes, with its 1000 GPH capacity, integrated pressure tank, and automatic operation, it provides efficient water delivery for home and garden irrigation needs at a competitive price point for its performance class.. Q: Does this pump offer good value for residential use? A: Yes, with its 1000 GPH capacity, integrated pressure tank, and automatic operation, it provides efficient water delivery for home and garden irrigation needs at a competitive price point for its performance class..
