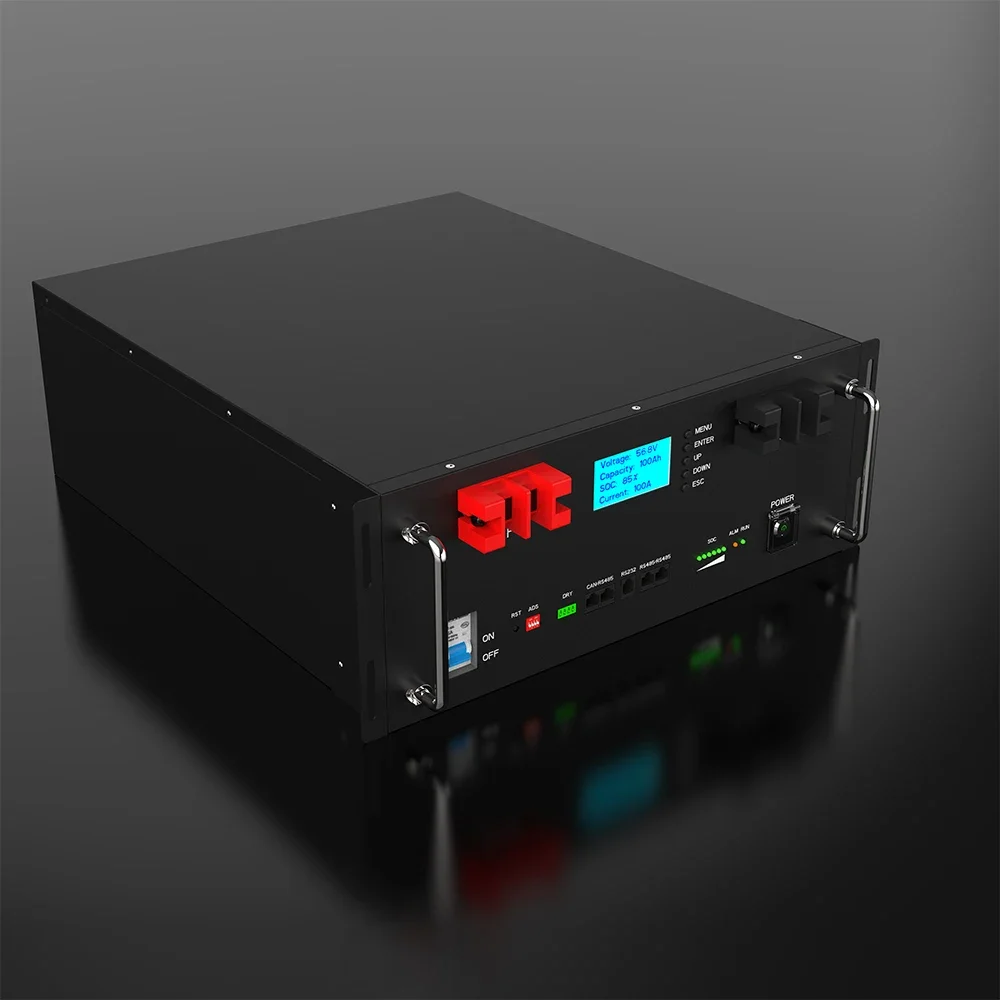

Engineer a resilient and scalable energy storage solution with the 2024 HTE server rack lifepo4 solar batteries. Available in capacities from 5kWh to 40kWh, these 48V/51.2V rack-mounted units deliver exceptional cycle life and stable power for demanding home and commercial applications. Their modular design allows for seamless capacity expansion to meet your growing energy needs. Features and Benefits
- Advanced LiFePO4 (LFP) Chemistry - Provides superior safety, a longer lifespan of 6000+ cycles, and stable performance across a wide temperature range compared to traditional battery types.

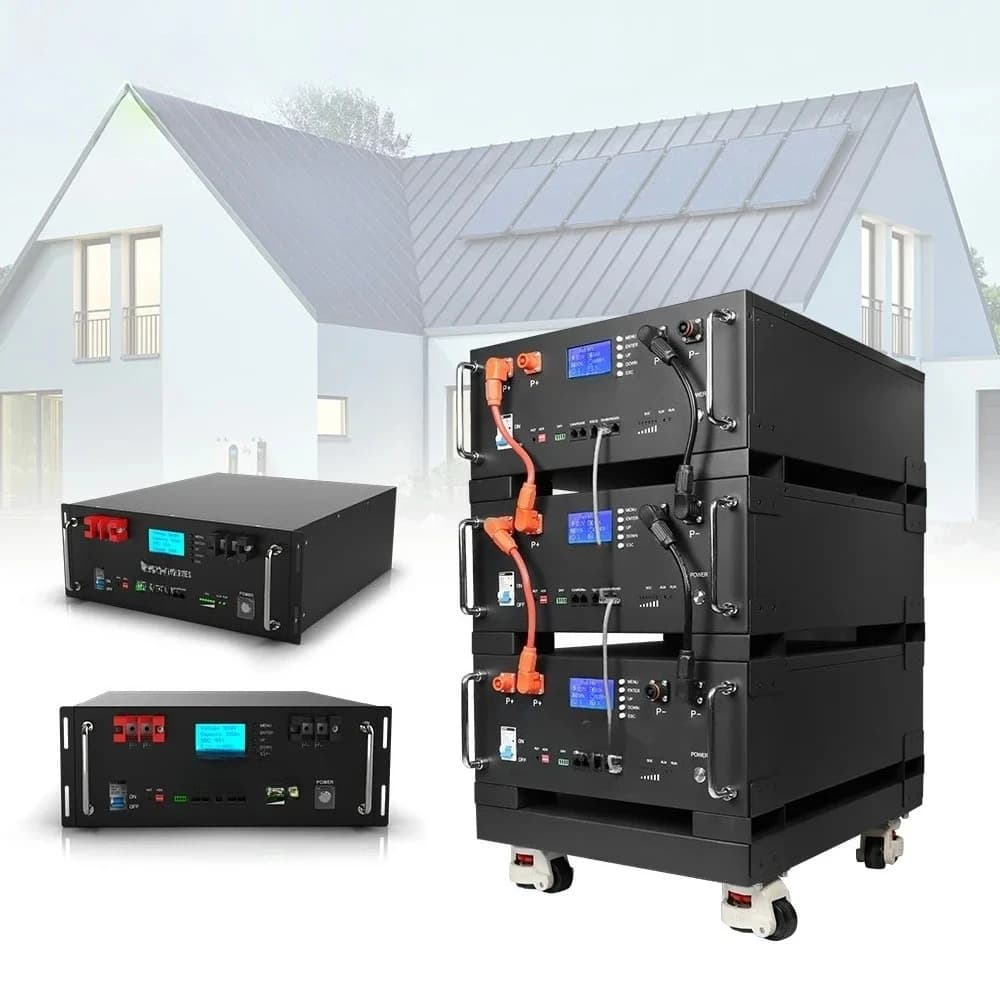

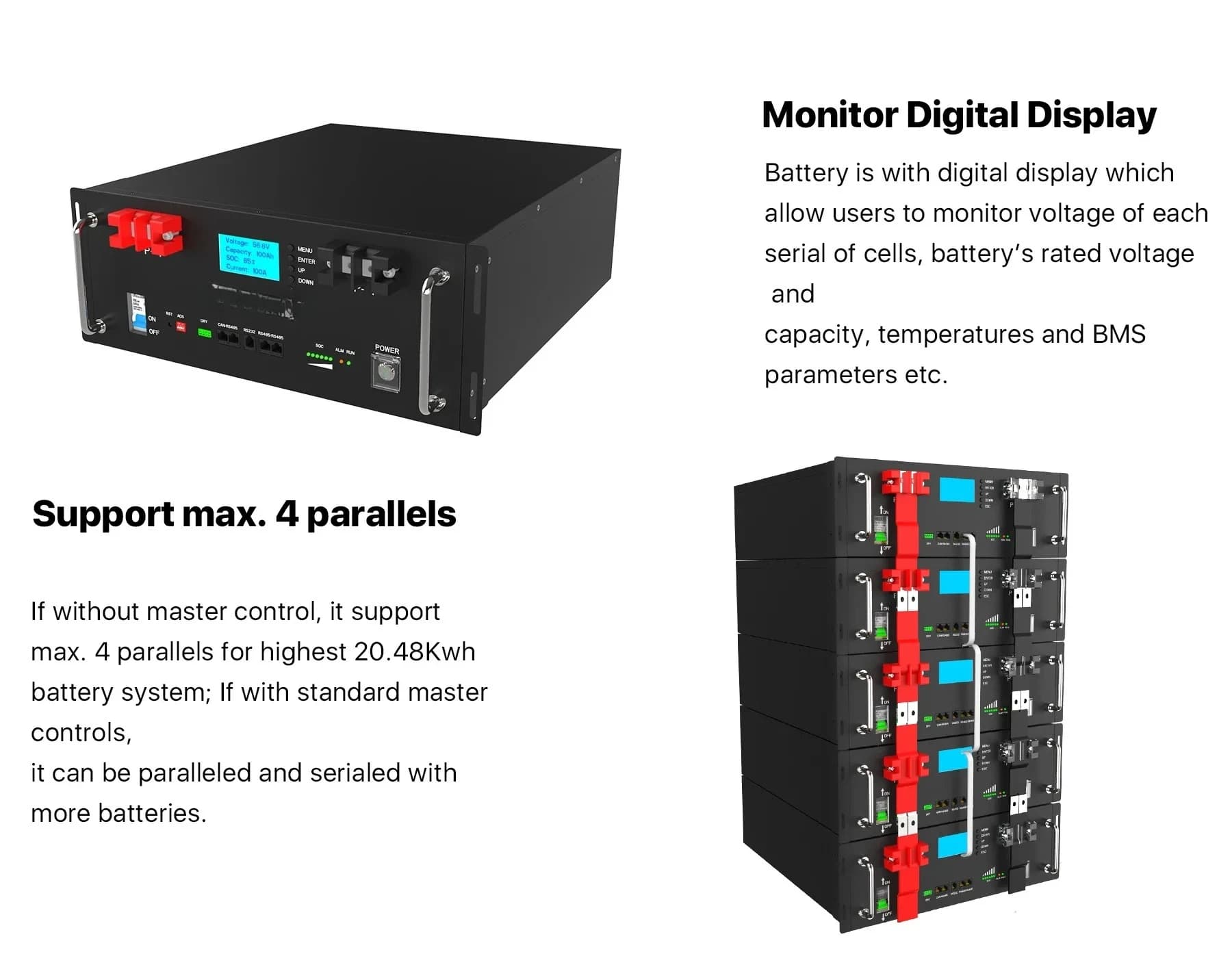

- Modular Server Rack Design - Enables easy installation, streamlined cable management, and simple capacity expansion by adding additional battery units to the rack.
- High Energy Density in a Compact Form - The rack-mounted configuration maximizes storage capacity per square foot, saving valuable floor space in utility rooms or garages.

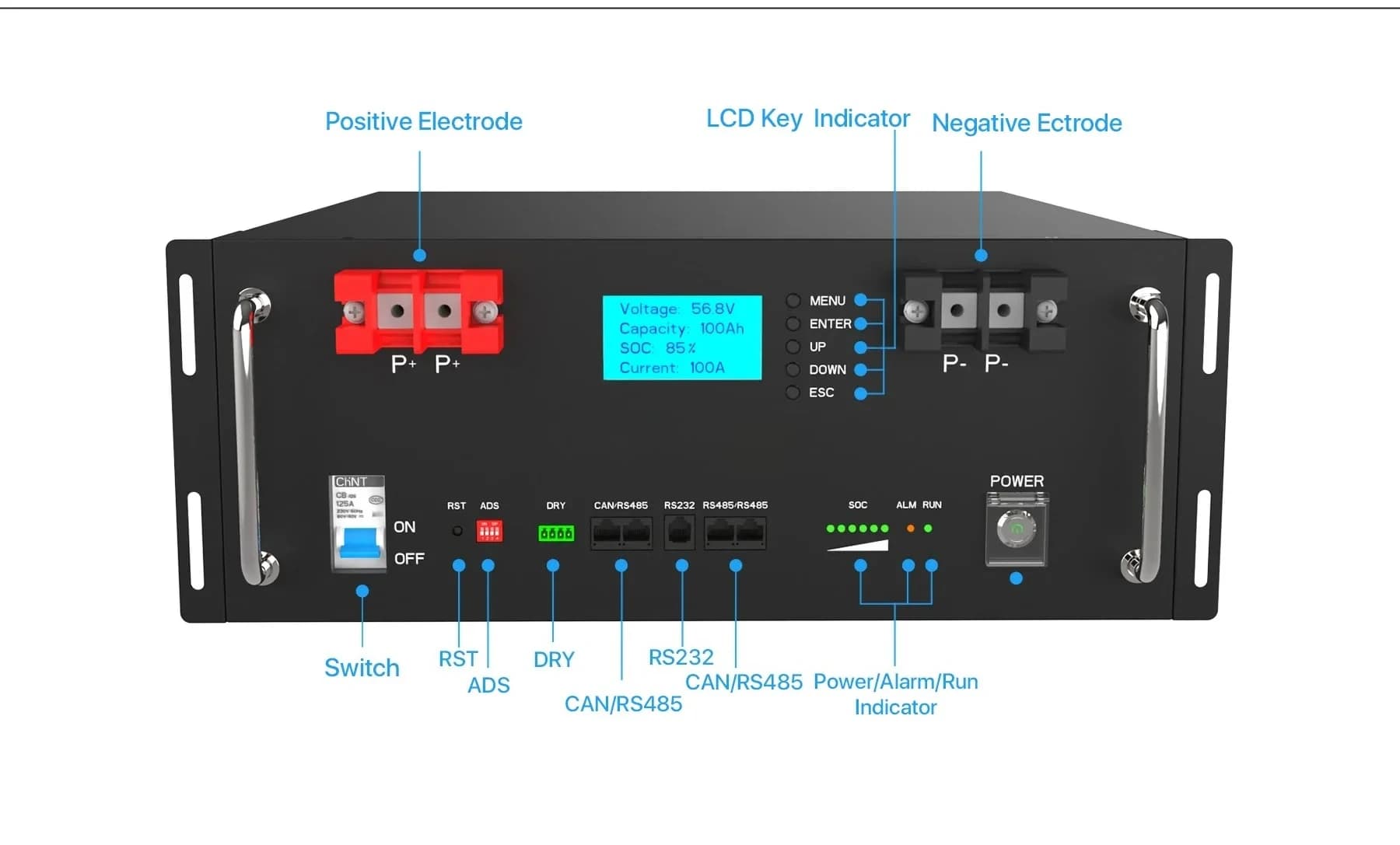

- Built-in Battery Management System (BMS) - Continuously monitors cell voltage, temperature, and current to ensure optimal performance, prevent overcharge/discharge, and enhance safety.
- Wide Operating Voltage Range (48V/51.2V) - Ensures high compatibility with most modern solar inverters and off-grid power systems for reliable integration. Applications

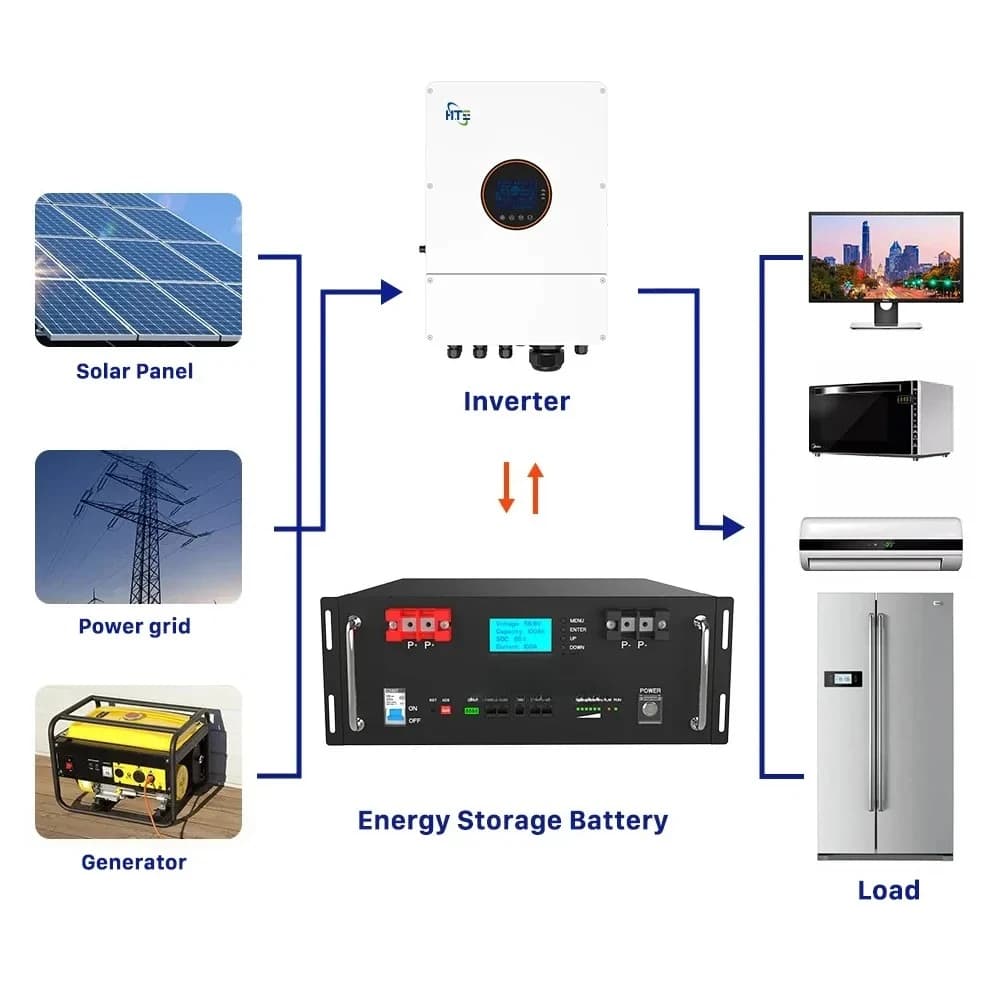

- Whole-Home Solar Backup - Create a robust energy reserve to power essential circuits and appliances during grid outages, increasing your energy independence.
- Off-Grid Power Systems - Serve as the core storage component for cabins, remote worksites, or telecommunications equipment where reliable power is critical.
- Commercial Energy Management - Reduce peak demand charges and optimize energy usage for small businesses, workshops, or agricultural operations.
- EV Charging Support - Supplement your home's electrical capacity to support Level 2 electric vehicle charging without costly panel upgrades. Note
Specifications such as cycle life, exact dimensions, communication protocols, and warranty terms should be verified with the manufacturer or supplier for your specific model and configuration. Professional installation is recommended.
Energy Capacity (Options): 5 kWh, 10 kWh, 15 kWh, 20 kWh, 30 kWh, 40 kWh. Nominal Capacity (5 kWh): 100 Ah. Nominal Capacity (10 kWh): 200 Ah. Nominal Capacity (15 kWh): 300 Ah. Nominal Capacity (20 kWh): 400 Ah. Nominal Capacity (30 kWh): 600 Ah. Nominal Capacity (40 kWh): 800 Ah. Battery Chemistry: LiFePO4 (Lithium Iron Phosphate). Nominal Voltage: 48 V. Nominal Voltage (Alternative): 51.2 V. Compatible Inverter Voltage: 48 V. Warranty: 10 years. Cell Configuration: 16S. Communication Protocol: CAN, RS485. Cooling Method: Natural Convection. Cycle Life: ≥6000 cycles (80% Depth of Discharge). Form Factor: Rack Mountable. Maximum Continuous Charge Current: 0.5C. Maximum Continuous Discharge Current: 0.5C. Mounting Standard: 19-inch Rack. Operating Temperature (Charge): 0°C to 55°C. Operating Temperature (Discharge): -20°C to 60°C. Protection Class: IP20. Standard Rack Unit (U) Height: Configurable (e.g., 5kWh ~ 3U, 40kWh ~ 15U+). Battery Chemistry: LiFePO4 (Lithium Iron Phosphate). Battery Management System (BMS): Integrated with Cell Balancing, Overcharge/Discharge Protection. Nominal Voltage: 48 V DC. Voltage Range (Nominal): 51.2 V. Modular Capacity Options: 5 kWh, 10 kWh, 15 kWh, 20 kWh, 30 kWh, 40 kWh. Operating Temperature Range: 0°C to 45°C (Charge), -20°C to 55°C (Discharge). Round-Trip Efficiency: ≥95%. Certifications: UL 1973, UN 38.3, IEC 62619 (Inferred industry standard compliance). Ingress Protection (IP) Rating: IP20 (typical for indoor rack-mounted equipment). Cell Configuration: 16S (16 cells in series for 51.2V nominal). Communication Protocol: CAN, RS485, or RS232 (Standard for BMS communication). Cooling Method: Passive or Forced Air (dependent on rack configuration). Cycle Life: ≥6000 cycles at 80% Depth of Discharge (DoD). Form Factor: 19-inch Server Rack Mountable. Maximum Continuous Charge/Discharge Current: Configurable per capacity (e.g., 100A for 5kWh module). Parallel Capability: Yes, for capacity expansion to meet higher kWh requirements. Product Type: Lithium Iron Phosphate (LiFePO4) Energy Storage System. Recommended Depth of Discharge (DoD): 90%. Warranty: 10 years (typical for premium LiFePO4 systems). Q: What are the dimensions and weight of the 2024 HTE server rack lifepo4 solar batteries? A: The 2024 HTE rack-mounted batteries are designed for standard 19-inch server racks. While exact dimensions vary by capacity, they are engineered for efficient space utilization, allowing you to stack multiple 5kWh to 40kWh units securely in a single rack.. Q: How durable and long-lasting are these HTE lifepo4 rack-mounted batteries? A: These batteries are built with high-quality LiFePO4 cells known for exceptional cycle life and thermal stability. The robust server rack enclosure provides physical protection, making them a durable, long-term energy storage solution for home or commercial use.. Q: Can the 2024 HTE 48V battery system be used with my existing solar inverter? A: Yes, the 2024 HTE 48V/51.2V battery system is designed for broad compatibility with most modern 48V solar inverters. It's crucial to verify your specific inverter's communication protocol and voltage requirements to ensure seamless integration.. Q: Does the HTE server rack lifepo4 battery come with a warranty? A: Yes, this product includes a standard manufacturer's warranty. The warranty period and specific coverage details are provided by the seller, so we recommend reviewing the warranty information at the point of purchase for full terms.. Q: Is the 2024 HTE rack-mounted battery a good value compared to other brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, providing scalable energy storage from 5kWh to 40kWh at a competitive cost per kilowatt-hour..
