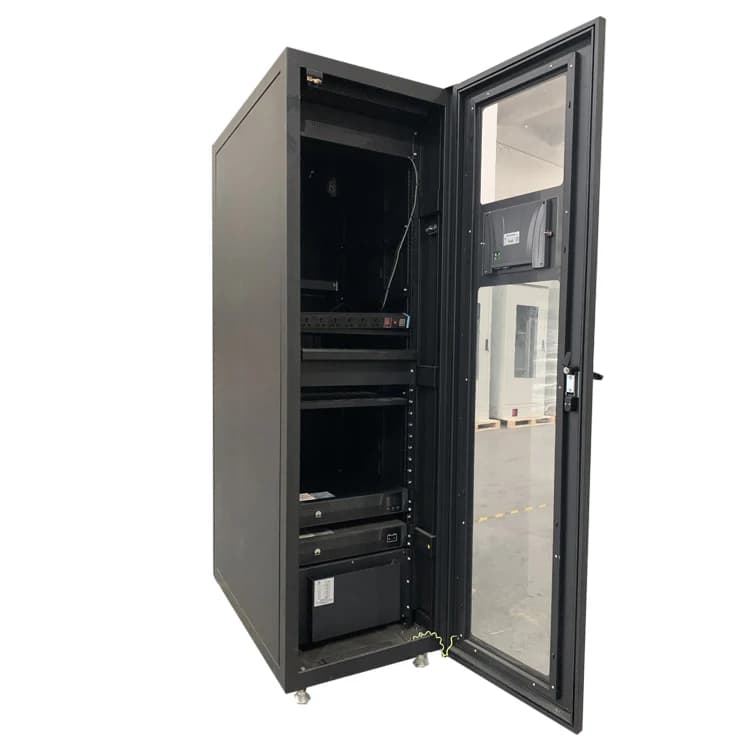

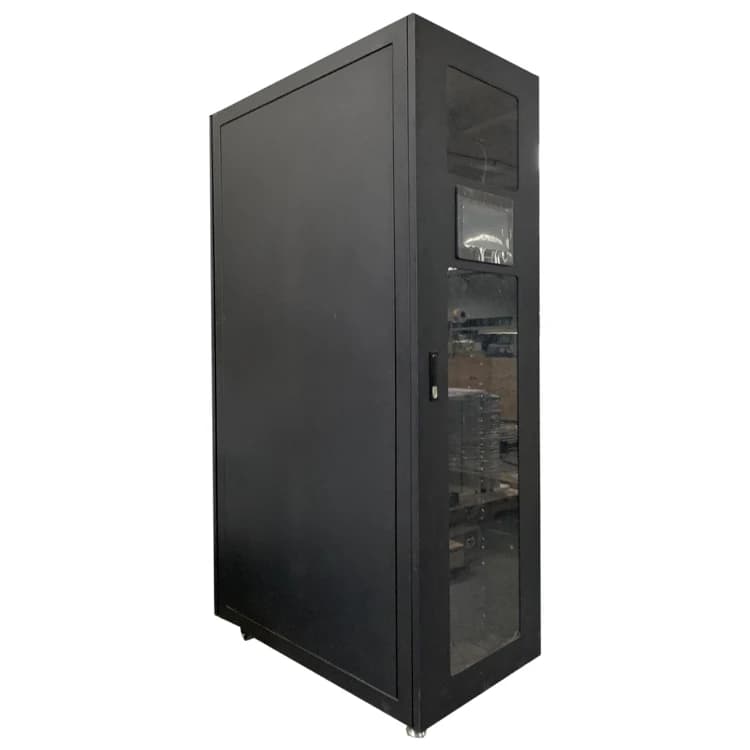

Engineered for demanding environments, this 36U, 42U, and 47U network server rack provides robust, scalable infrastructure for critical IT hardware. Its heavy-duty steel construction and versatile indoor/outdoor design ensure reliable protection and thermal management for servers, switches, and UPS systems in any deployment scenario. Features and Benefits
- Heavy-Duty Cold-Rolled Steel Frame - Provides exceptional structural integrity and vibration resistance for protecting sensitive enterprise equipment.
- Adjustable Mounting Rails with Universal Hole Pattern - Offers complete compatibility with all standard 19-inch rack-mount gear for effortless installation and future expansion.
- Perforated Front and Rear Doors with Integrated Ventilation - Ensures optimal passive airflow to prevent equipment overheating and maintain peak performance.
- Removable Side Panels and Adjustable Leveling Feet - Facilitates easy access for maintenance and provides stable installation on uneven surfaces.
- Integrated Cable Management Channels - Organizes power and data cables to reduce clutter, improve airflow, and simplify troubleshooting.
- Multiple Locking Options for Front and Rear Doors - Enhances physical security for valuable hardware in shared or accessible locations. Applications
- Data Center and Server Room Consolidation - Houses and organizes multiple servers, network switches, and storage arrays in a centralized, professional enclosure.
- Telecommunications and Network Closet Build-Out - Provides a secure, ventilated home for routing and patching equipment in office buildings or remote sites.
- Industrial IoT and Edge Computing Deployments - The durable outdoor-rated option protects computing hardware in manufacturing plants, warehouses, or remote monitoring stations.
- AV/Media Rack Installation - Neatly organizes audio-visual components, amplifiers, and signal processors for commercial or high-end residential systems. Note: Specifications such as exact gauge steel, weight capacity, and outdoor rating specifics (e.g., IP rating) should be verified with the manufacturer's detailed datasheet for your specific model and application requirements.

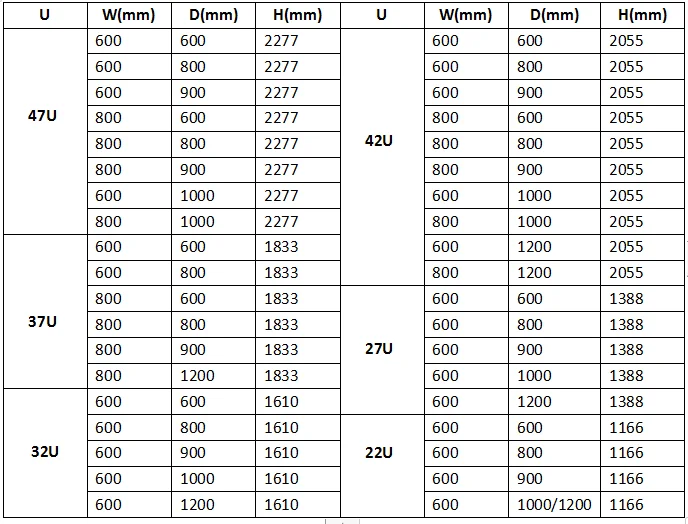

Frame Material: Cold-rolled steel. Side Panel Material: Steel. Door Material: Perforated steel. Color: Black (typical). Static Load Capacity: 1000 kg. Power Distribution Unit (PDU) Mounting: Yes. Application: Indoor, Outdoor. Cable Management: Vertical and horizontal channels. Cooling: Front-to-rear airflow. External Depth: 1100 mm, 1300 mm (typical). External Width: 600 mm. Finish: Powder-coated. Grounding: Integrated grounding point. Height Options: 36U, 42U, 47U. Locking: Central locking system. Mounting Depth: 1000 mm, 1200 mm (typical). Mounting Standard: EIA-310-D. Type: Network Server Rack, Data Center Cabinet. Rack Unit (U) Height Options: 36U, 42U, 47U. Standard Rack Unit Height: 1.75 inches (44.45 mm) per U. Typical External Width: 600 mm or 800 mm (inferred from standard cabinet widths). Typical Internal Mounting Width: 19 inches (482.6 mm). Material: Powder-coated steel (inferred for structural integrity and corrosion resistance). Power Distribution Unit (PDU) Mounting: Provisions for vertical or horizontal PDUs. Static Load Capacity: ≥ 1500 kg (inferred for full equipment loading). Cooling Compatibility: Provisions for top-mounted exhaust fans or side-mounted air conditioners. Ingress Protection (IP) Rating: IP55 or higher (inferred for outdoor environmental protection). Seismic Rating: Zone 4 compliant (inferred for data center and outdoor stability). Standards Compliance: ANSI/EIA-310-D, IEC 60297-1 (inferred for rack mounting standards). Cable Management: Vertical and horizontal cable management channels. Corrosion Resistance: Enhanced for outdoor deployment (inferred from "Outdoor" designation). Door Configuration: Front and rear lockable doors (inferred for security and access). Finish Color: Black (inferred as industry standard). Grounding: Integrated grounding points for electrical safety. Lock Type: Keyed or combination locks (inferred for security). Mounting Rails: Adjustable depth with threaded or square hole mounting patterns. Product Type: Indoor and Outdoor Network Server Rack Data Center Cabinet. Side Panels: Removable (inferred for serviceability). Typical External Depth: 1000 mm or 1200 mm (inferred from standard cabinet depths). Ventilation: Perforated doors and/or integrated fan panels (inferred for thermal management). Q: What are the exact dimensions and specifications for the 36U, 42U, and 47U server rack options? A: This product is available in three standard heights: 36U, 42U, and 47U, which refer to the number of rack units of vertical mounting space. The exact dimensions for each model are not provided, but these are common sizes for data center cabinets designed to house servers, networking gear, and other rack-mounted equipment.. Q: How durable is this indoor and outdoor network server rack cabinet for long-term use? A: This cabinet is built for durability, featuring a robust steel construction suitable for both indoor and outdoor environments. It is designed to protect sensitive equipment from dust, physical impact, and environmental factors, ensuring reliable long-term performance in a data center or workshop setting.. Q: Can this data center cabinet accommodate standard 19-inch rack-mount servers and networking equipment? A: Yes, this is a standard 19-inch wide server rack, making it fully compatible with virtually all industry-standard rack-mount servers, switches, patch panels, and power distribution units (PDUs). The adjustable mounting rails ensure a secure and precise fit for your equipment.. Q: Does this network server rack come with any warranty or guarantee? A: Warranty details for this specific product are not provided. We recommend contacting the seller directly for information regarding any manufacturer's warranty, return policy, or guarantee that applies to your purchase.. Q: Is this server rack a good value compared to premium brand cabinets? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, providing the essential features and robust construction needed for organizing and protecting network hardware in a cost-effective package..
