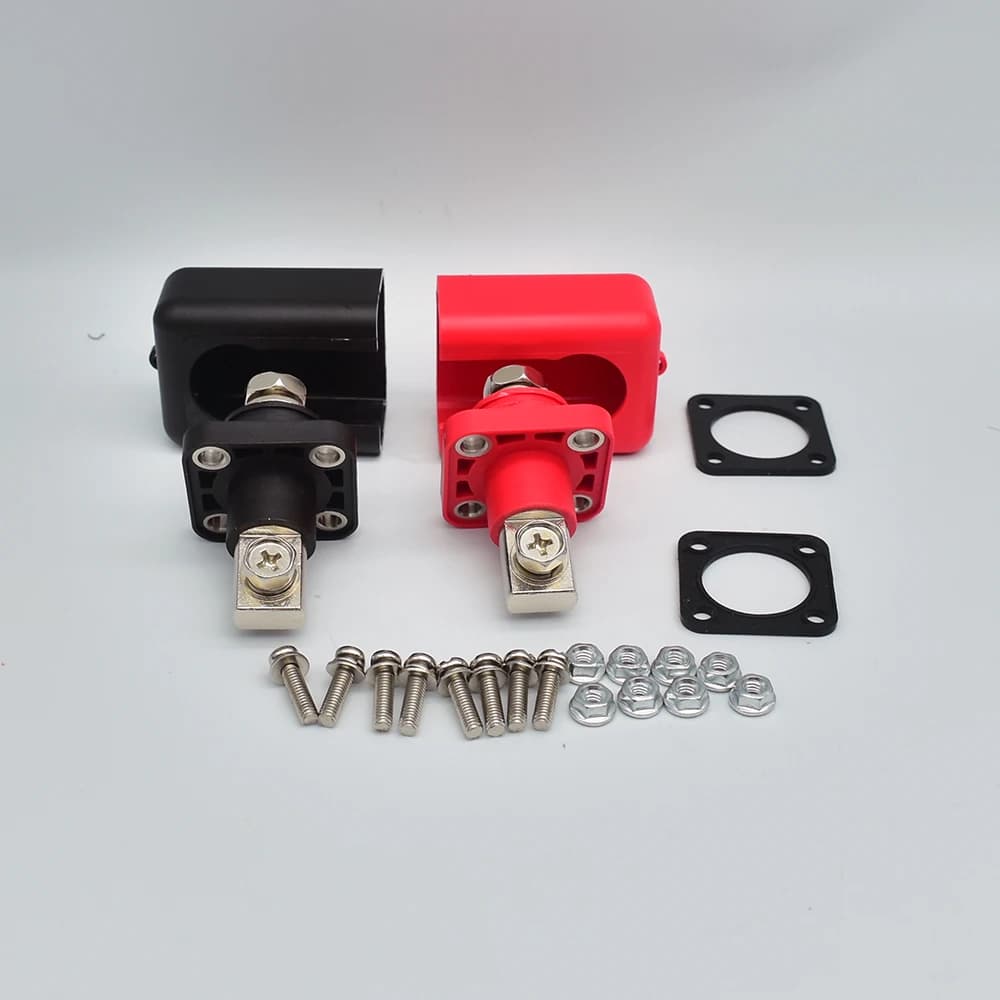

High-Current Copper Battery Terminals | 120A-200A Energy Storage Connector | Premium Power Transfer
ULUL listed - US safety certificationCertified - manufacturer-declared
Stock Nr:
SKU:
£52.99inc VAT
Engineered for high-current energy systems, these 120A, 150A, and 200A lithium battery terminal connectors deliver maximum conductivity and reliability. Featuring high-purity copper construction, they...
Select an option
- Secure checkout
- All major cards
- Tracked delivery
£52.99
Fast Shipping
Secure Payment
Easy Returns
Good to know
Questions about this product
- What cable sizes and stud sizes do these battery terminals work with?
- These terminals fit cables ranging from 8 AWG to 4/0 AWG. They feature an 8.5mm mounting hole designed to secure onto standard M8 studs.
- What are the maximum current and voltage limits for these connectors?
- You can get these connectors in 120A, 150A, or 200A ratings depending on the model. They handle operating voltages up to 60V DC safely. They also withstand temperatures from -40°C up to +120°C.
- What materials are used to prevent these terminals from overheating under heavy loads?
- The connectors are made of oxygen-free high conductivity copper with tin or silver plating to resist corrosion. This design keeps contact resistance under 0.2 mΩ, which minimizes heat. The outer housing uses flame-retardant polyamide insulation for extra safety.
Tool Accessories spec sheet (PDF)
Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.
