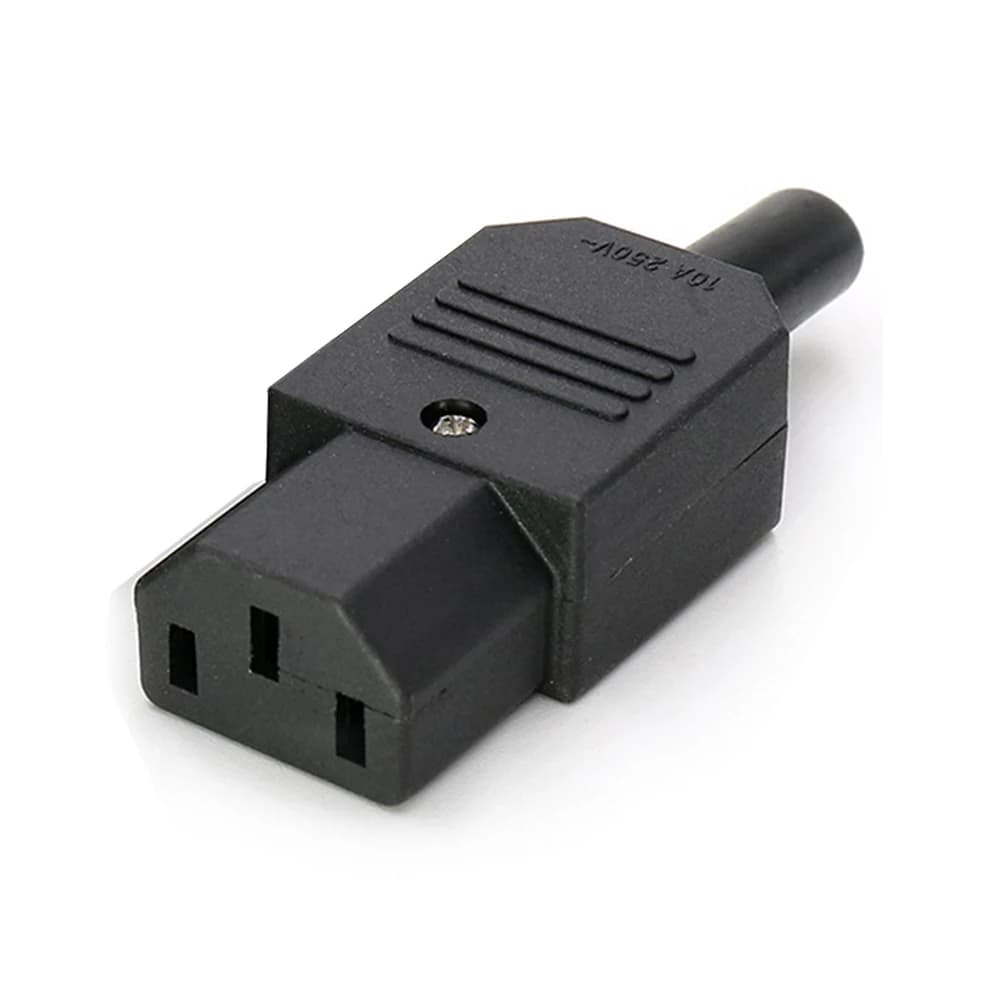

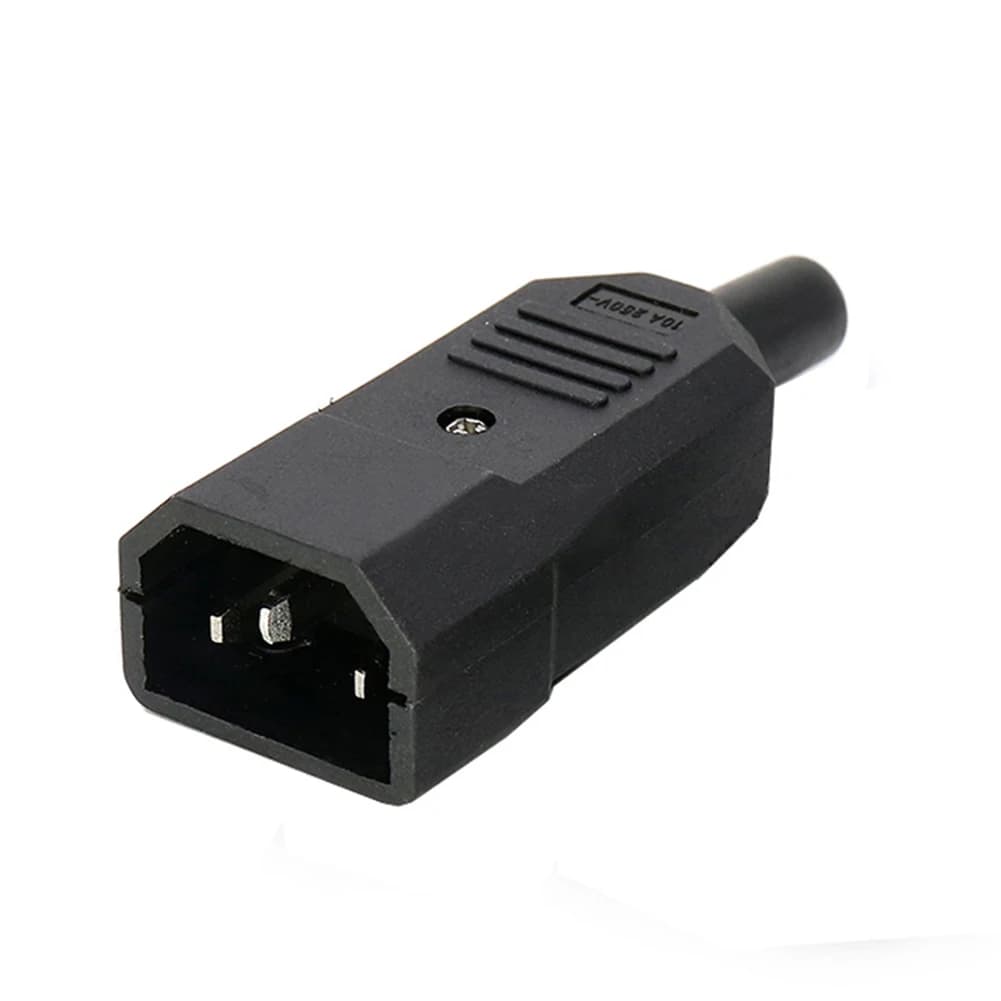

Ensure reliable power distribution with this IEC320 C14 to C13 coupling socket. Rated for 250V and 10A, it features robust screw terminals for a secure, vibration-resistant connection that outperforms standard push-in terminals. This connector is engineered for stable, long-term performance in demanding technical environments. Features and Benefits
- 250V 10A Rated Screw Terminals - Provide a superior, gas-tight connection that resists loosening over time, ensuring consistent power delivery and safety.

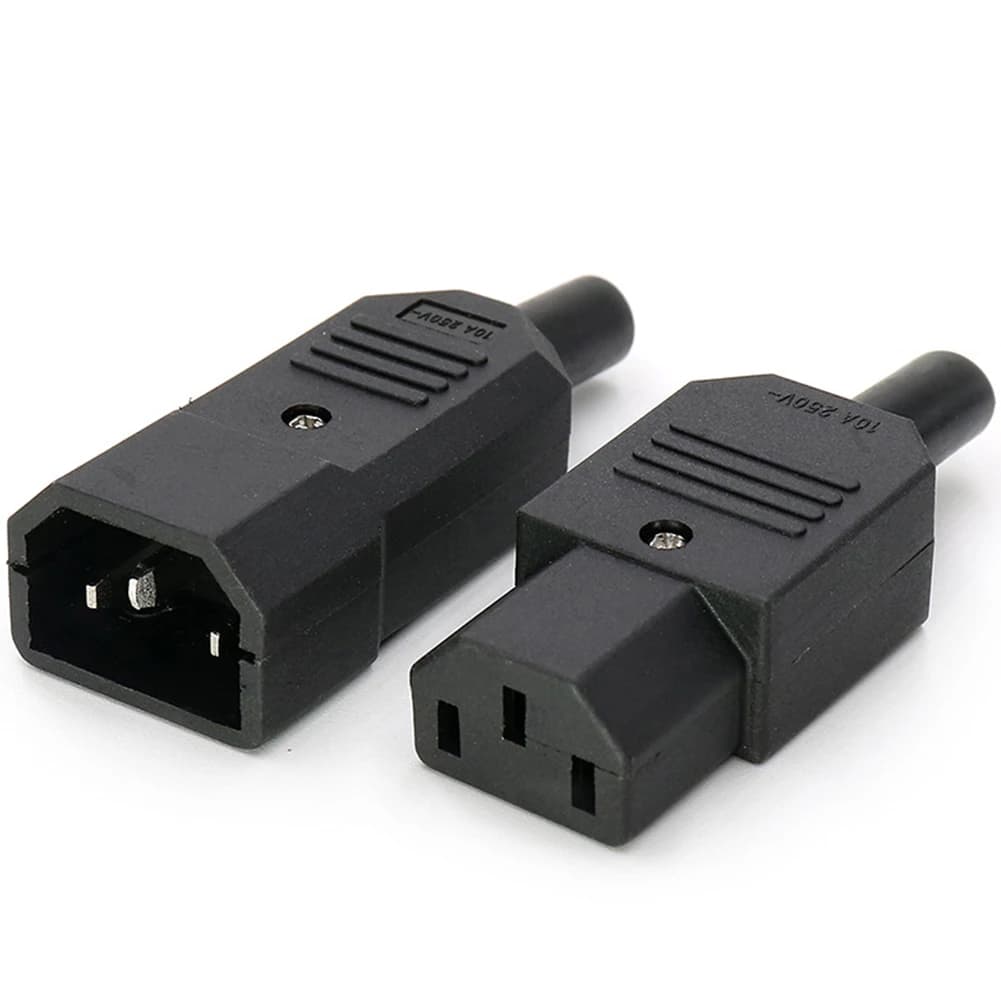

- IEC320 C14 Male to C13 Female Coupling - Creates a secure, standardized link between power cords and equipment for professional-grade installations.
- Durable Flame-Retardant Housing - Withstands high temperatures and physical stress, offering enhanced protection and longevity in rack-mounted or industrial settings.
- Reinforced Strain Relief - Protects internal wiring from pull and twist damage, increasing the overall durability and reliability of your power setup. Applications
- Printer and Peripheral Power Links - Extend or securely couple power cords for printers, scanners, and monitors in office or workshop configurations.
- PDU (Power Distribution Unit) Integration - Build custom power strips or connect PDUs in server racks, data cabinets, and AV installations with a reliable, hardwired connection.
- Equipment Repair and Testing - Replace damaged inlet connectors on appliances or create a secure test bench connection for electrical diagnostics and prototyping. Note: For optimal safety and performance, ensure all wiring is completed by a qualified individual in accordance with local electrical codes.
Panel Cutout Dimensions: 30.5 mm x 20.5 mm. Overall Dimensions: 40 mm x 30 mm x 25 mm. Contact Material: Brass. Housing Material: Thermoplastic (PBT). Rated Voltage: 250 V AC. Connector Type: IEC 60320 C14 Inlet to C13 Outlet Coupling Socket. Contact Resistance: <10 mΩ. Dielectric Strength: 2000 V AC for 1 minute. Flammability Rating: UL94 V-0. Insulation Resistance: >100 MΩ at 500 V DC. Mounting Type: Panel Mount. Operating Temperature: -25°C to +85°C. Rated Current: 10 A. Safety Approvals: IEC 60320-1, UL 498, CSA C22.2. Terminal Type: Screw Terminals. Wire Gauge Range: 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG). Overall Dimensions (Approx.): 45 mm x 30 mm x 25 mm (L x W x D). Panel Cutout Dimensions: 30.5 mm x 20.5 mm (Standard for IEC C14). Contact Material: Brass, Tin-Plated. Housing Material: Thermoplastic (UL94 V-0 or equivalent inferred). Maximum Power Rating: 2500 Watts (250V * 10A). Rated Voltage: 250 Volts AC. Operating Temperature Range: -25°C to +70°C (Inferred for thermoplastic). Conductor Gauge Compatibility: Up to 14 AWG (2.08 mm²). Flammability Rating: UL94 V-0 (Inferred for connector housing). Safety Standards: IEC 60320-1, UL 498 (Inferred for rated components). Application: Printer Power Distribution, PDU (Power Distribution Unit) Interconnect. Connector Type: IEC 60320 C14 Inlet to C13 Outlet Coupling Socket. Contact Retention: Screw-clamp wire termination. Mechanical Life: >10,000 mating cycles (Inferred for commercial grade). Mounting Type: Panel Mount. Polarization: Non-polarized (Standard IEC C13/C14). Rated Current: 10 Amperes. Terminal Type: Screw Terminals. Q: What are the exact specifications and dimensions of this IEC320 C14 to C13 coupling socket? A: This IEC320 C14 to C13 coupling socket is rated for 250 volts and 10 amps, making it suitable for standard power applications. It features a standard IEC320 form factor with screw terminals for secure wire connections.. Q: How durable is the construction of this IEC320 power connector? A: The connector is built with a robust housing designed to withstand regular use in demanding environments like server racks and workshops. The screw terminals provide a strong, vibration-resistant connection for long-term reliability.. Q: Is this IEC320 C14 to C13 connector compatible with my printer or PDU? A: Yes, this is a standard IEC320 C14 inlet to C13 outlet connector, making it universally compatible with devices like printers, PDUs, monitors, and servers that use this common power cord interface. It's ideal for creating custom power cables or extensions.. Q: Does this power connector come with any warranty or guarantee? A: This product is backed by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty duration and claim details, please refer to the seller's product page or contact customer service directly.. Q: Is this IEC320 C14 C13 connector a good value for the price? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in home offices, workshops, and server setups..
