The SucceBuy 10T Hydraulic Shop Press delivers a full 10-ton pressing force in a robust H-frame design. Its heavy-duty steel construction and H-shaped base provide exceptional stability for demanding tasks like bearing removal, bushing pressing, and straightening, making it a reliable, value-focused workhorse for any serious workshop. Features and Benefits
- 10-Ton Hydraulic Ram - Generates ample force for the most common automotive, fabrication, and repair jobs without overwhelming a home or professional shop.

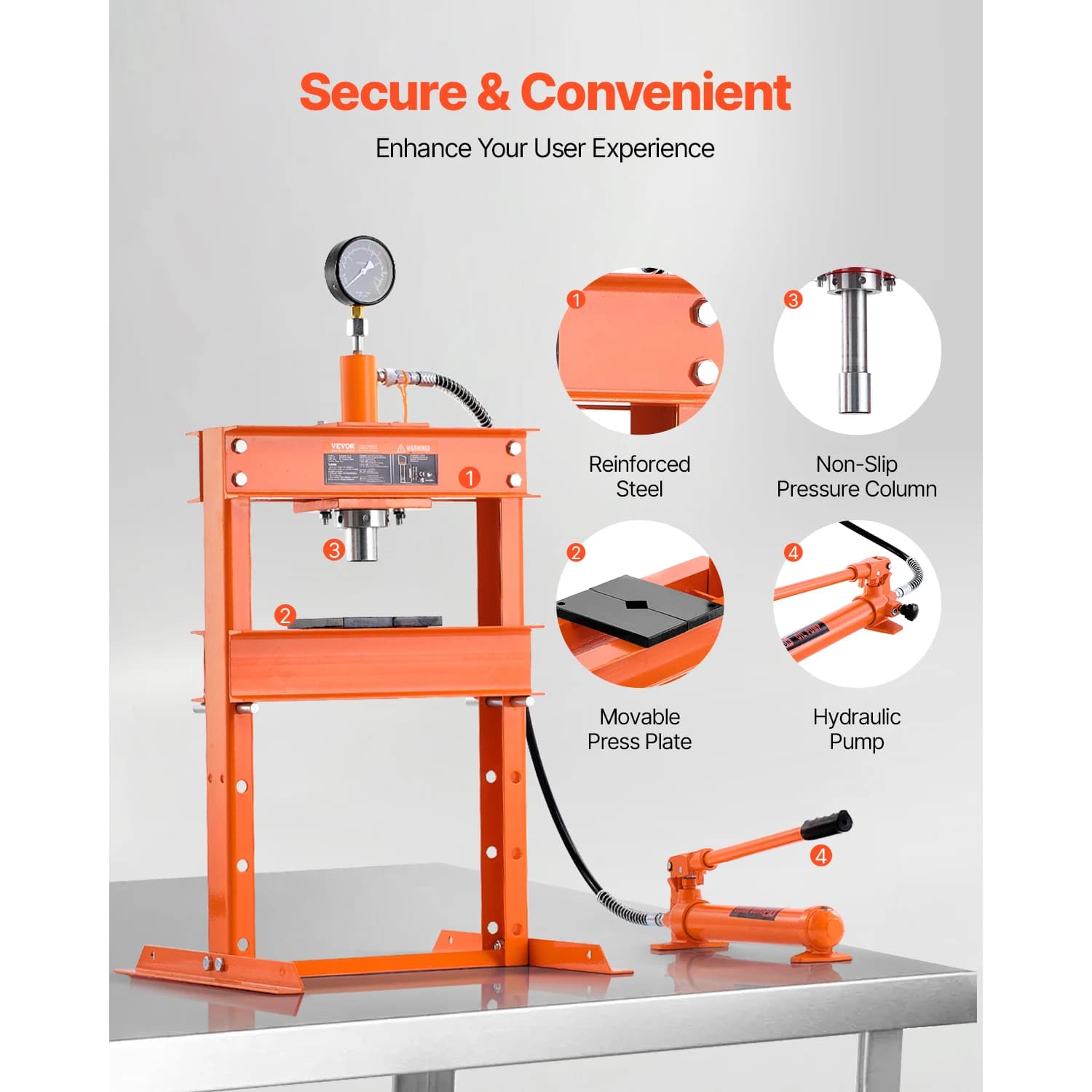

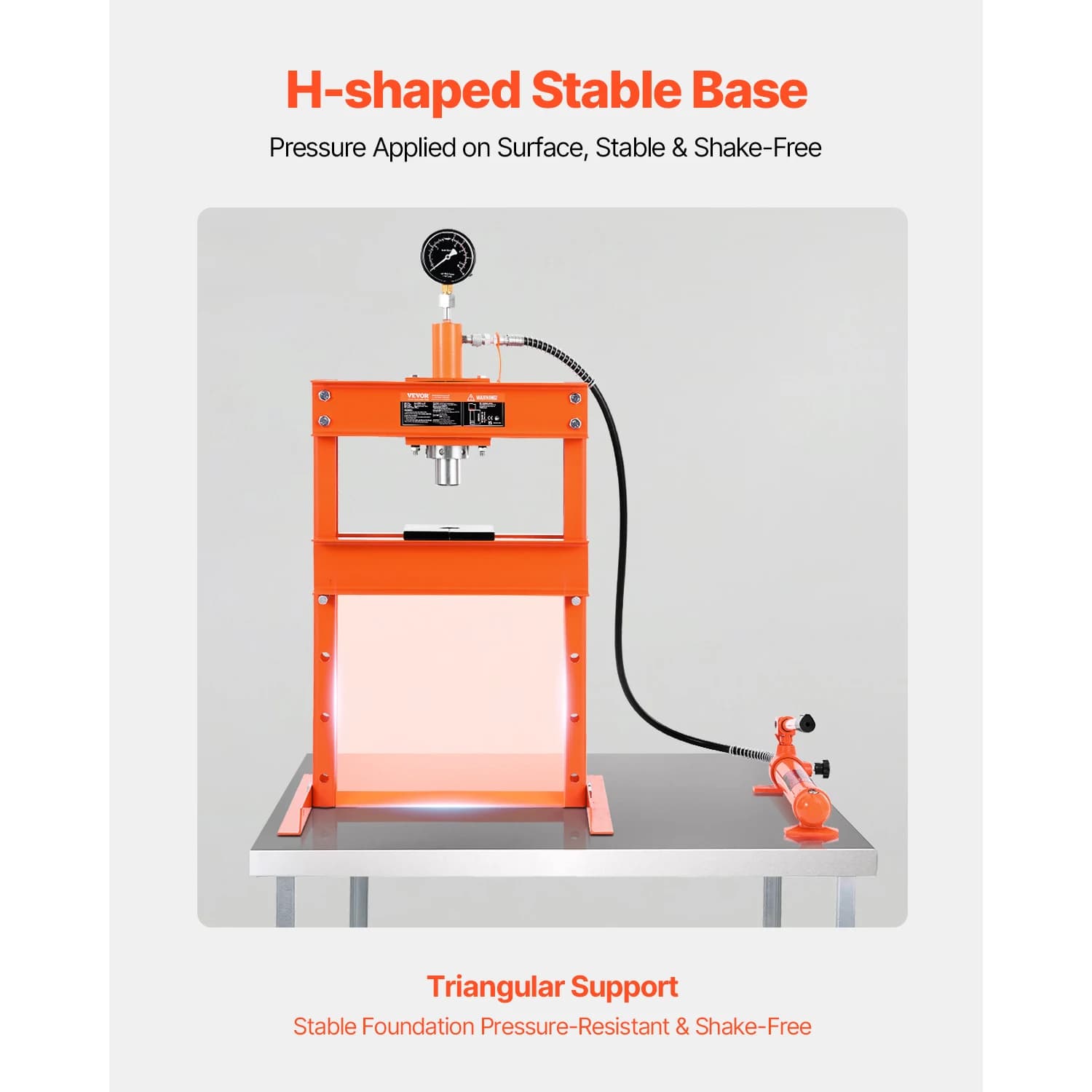

- Reinforced H-Frame & H-Shaped Base - Offers superior structural rigidity and resistance to deflection under full load, ensuring precise, safe operation.

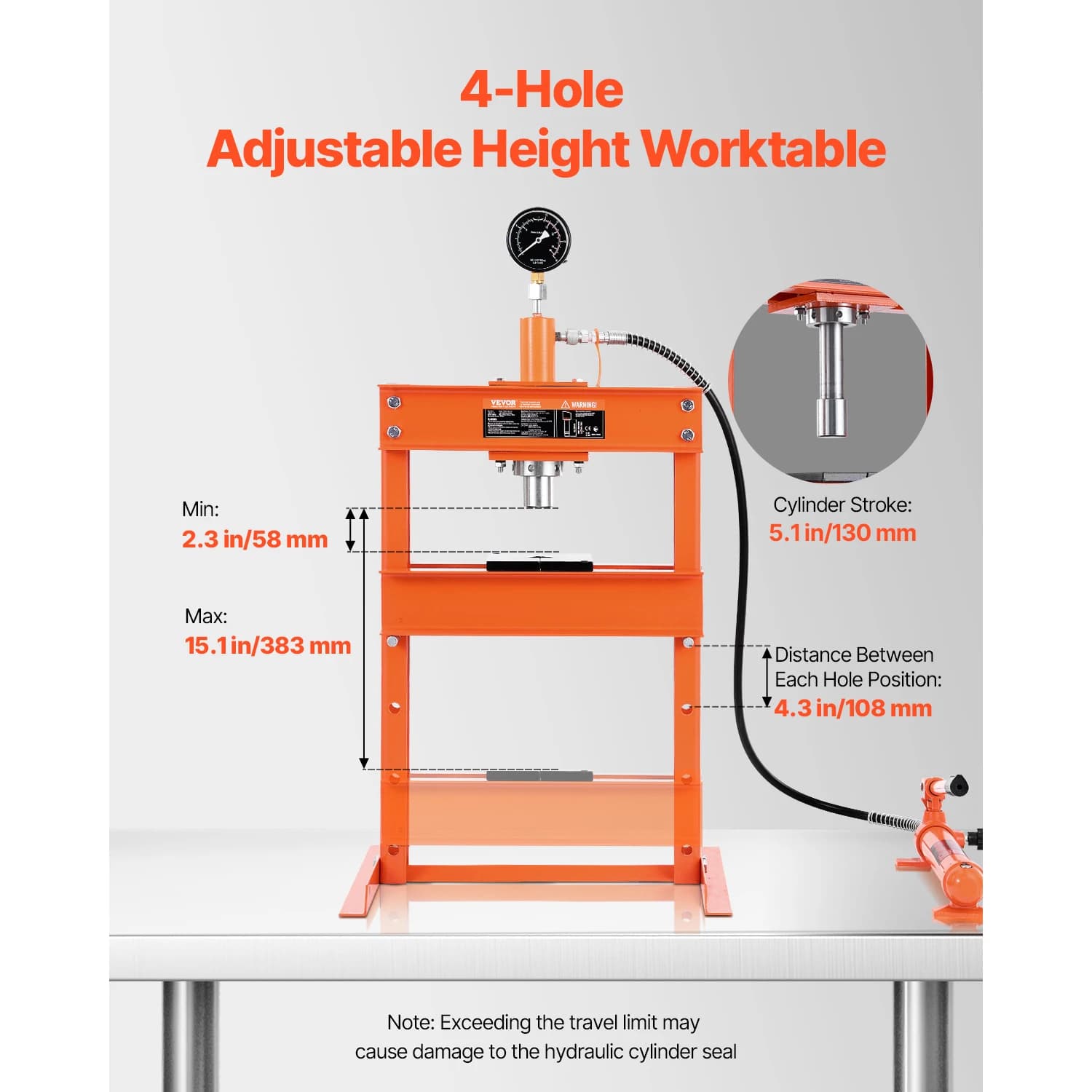

- Adjustable Press Plate & Worktable - Allows for quick height and positioning adjustments to accommodate a wide variety of workpiece sizes and shapes.
- Included Press Plates - The standard plate set provides immediate functionality for pressing operations right out of the crate.
- Manual Hydraulic Pump - Delivers consistent, controlled pressure application for precision work and operator safety. Applications

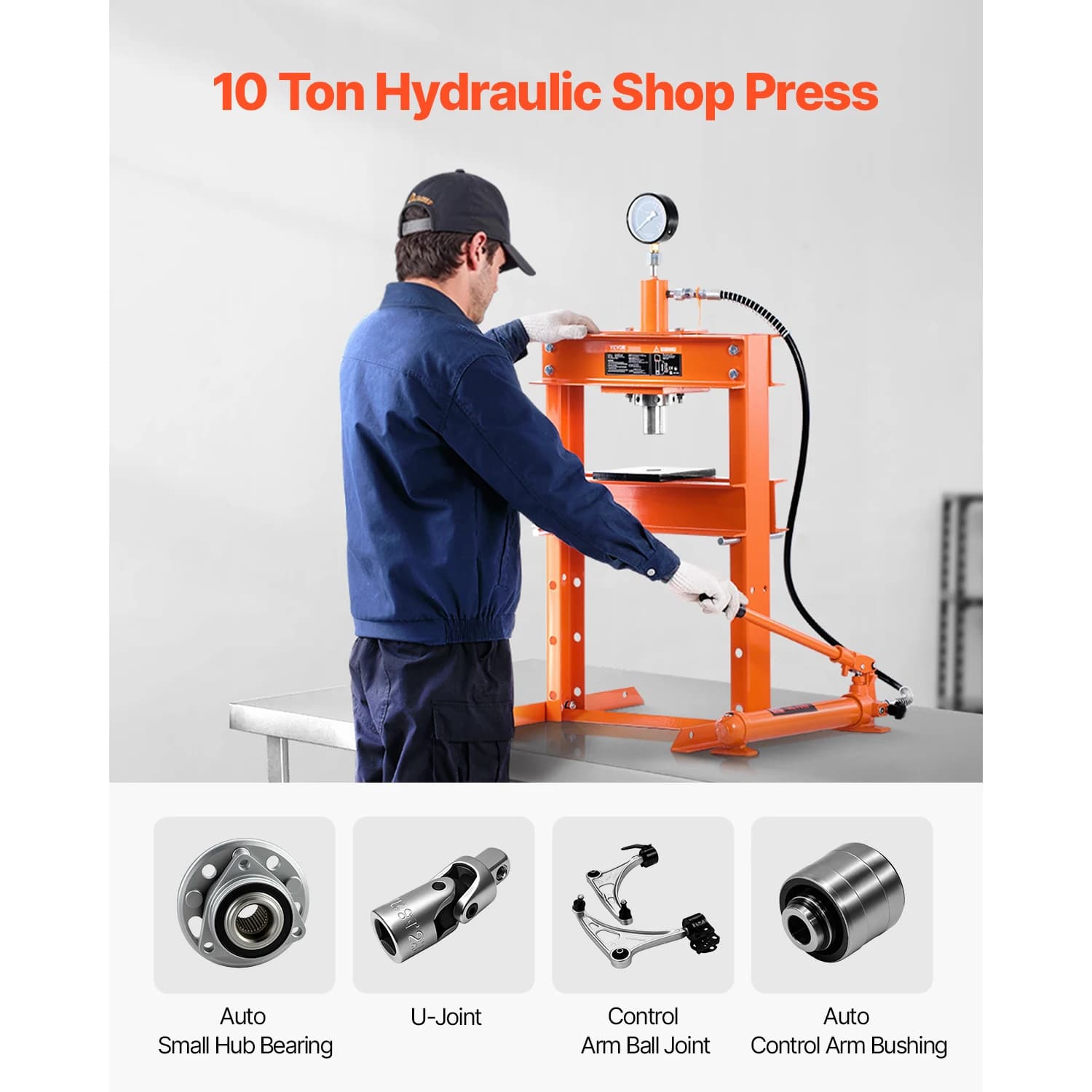

- Automotive Repair - Perfect for pressing out and installing wheel bearings, ball joints, U-joints, and bushings on cars, trucks, and trailers.
- Metal Fabrication - Ideal for bending, straightening, and forming metal stock, as well as assembly tasks requiring controlled pressure.
- General Machine Shop - Essential for pressing gears, pulleys, and pins, or for disassembling stubborn, seized components.
- DIY and Restoration Projects - A versatile tool for pressing in bushings on machinery, straightening parts, or other forceful assembly tasks in home workshops. Note
Always consult the manual for proper setup and safe operating procedures. Use appropriate safety gear, including eye protection, and never exceed the rated 10-ton capacity.

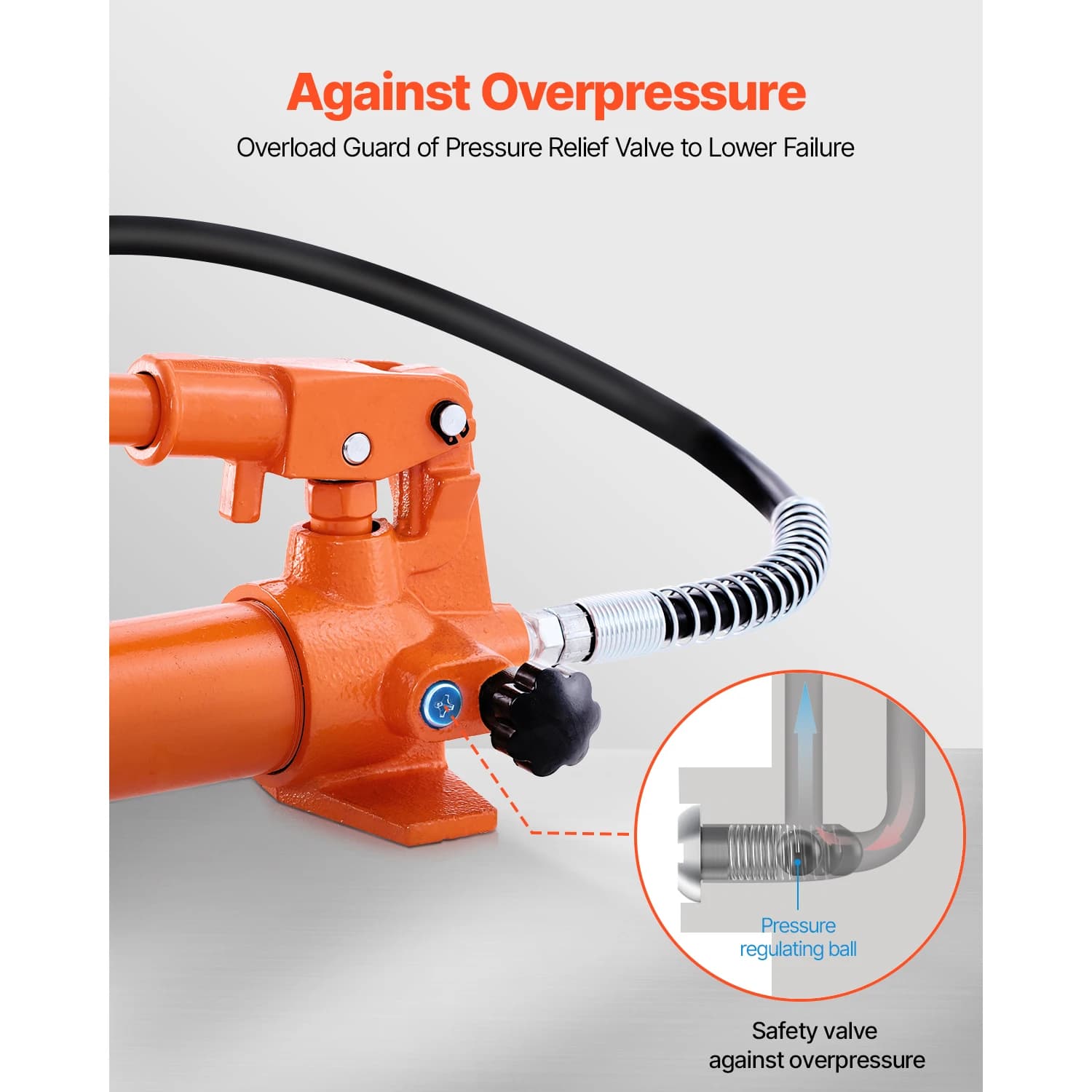

Frame Material: Steel. Ram Material: Steel. Press Plate Material: Steel. Base Plate Material: Steel. Frame Design: H-shaped base. Ram Stroke: Adjustable. Bed Height: Adjustable. Features: Press plate, Adjustable. Hydraulic System Type: Manual pump. Intended Use: Bending, Press fitting. Maximum Force: 10 Tonnes. Model: Hydraulic Shop Press. Pump Handle: Single-acting. Safety Features: Pressure relief valve. Type: H-Frame. Bed Dimensions (Approximate): 24 x 12 inches (610 x 305 mm). Bed Height Adjustment: Manual (via Pin and Hole System). Base Material: Reinforced Steel. Frame Material: High-Strength Structural Steel. Press Plate Material: Hardened Steel. Maximum Rated Capacity: 10 Tons (100 kN). Pump Oil Capacity: Approximately 200-300 ml. Operating Pressure: Up to 10,000 PSI (689 bar). Frame Design: H-Frame (Four-Post) Construction. Gauge: Hydraulic Pressure Gauge (PSI/Bar). Hydraulic System Type: Manual Hydraulic Pump. Included Accessories: Press Plate, H-Shaped Base. Maximum Daylight (Approximate): 40 inches (1016 mm). Minimum Daylight (Approximate): 20 inches (508 mm). Primary Function: Pressing (Bearing, Bushing, U-Joint). Product Type: Hydraulic H-Frame Shop Press. Ram Stroke: Adjustable (via Manual Pump Control). Ram Type: Hydraulic. Safety Feature: Pressure Relief Valve. Secondary Function: Bending (Metal, Bar Stock). Q: What are the key specifications and dimensions of the SucceBuy 10T H-Frame Hydraulic Shop Press? A: This SucceBuy shop press is a 10-ton capacity H-frame press. It features an H-shaped base for stability and includes a press plate, making it suitable for bending, pressing, and other workshop tasks. The adjustable design allows for versatile handling of different sized workpieces.. Q: How durable is the construction of this H-frame hydraulic shop press? A: The press is built with a robust H-frame design and a heavy-duty H-shaped base to withstand the full 10-ton force. The hydraulic system is designed for reliable performance, making it a durable tool for both regular DIY projects and professional workshop use.. Q: Can this 10-ton hydraulic press be used for bending metal or other specific tasks? A: Yes, this hydraulic shop press is specifically designed for bending, as mentioned in the product name. It is also ideal for pressing bearings, bushings, U-joints, and straightening metal. The included press plate and adjustable frame make it versatile for various fabrication and repair jobs.. Q: Does the SucceBuy Hydraulic Shop Press come with a warranty or guarantee? A: Warranty details are typically provided by the seller at the point of purchase. We recommend checking the specific product listing or contacting customer service directly for the most accurate and up-to-date warranty information for this shop press.. Q: Is the SucceBuy 10T H-Frame Press a good value compared to other shop presses? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, providing essential features like a 10-ton capacity, adjustable frame, and included press plate at a competitive price point..
