Heat Shrink Wire Connectors | 50-Piece Kit | Waterproof Solder Seal for AWG 22-18

Name: Heat Shrink Wire Connectors | 50-Piece Kit | Waterproof Solder Seal for AWG 22-18
Brand: Compel Group
SKU: ELEC-00114
Price: 8.99 GBP
Availability: InStock

Stock Nr:

SKU:

Heat Shrink Wire Connectors | 50-Piece Kit | Waterproof Solder Seal for AWG 22-18 - Image 1

1 / 6

£8.99inc VAT

Color9 optionsSelect an option

Quantity

Heat Shrink Wire Connectors | 50-Piece Kit | Waterproof Solder Seal for AWG 22-18

£8.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

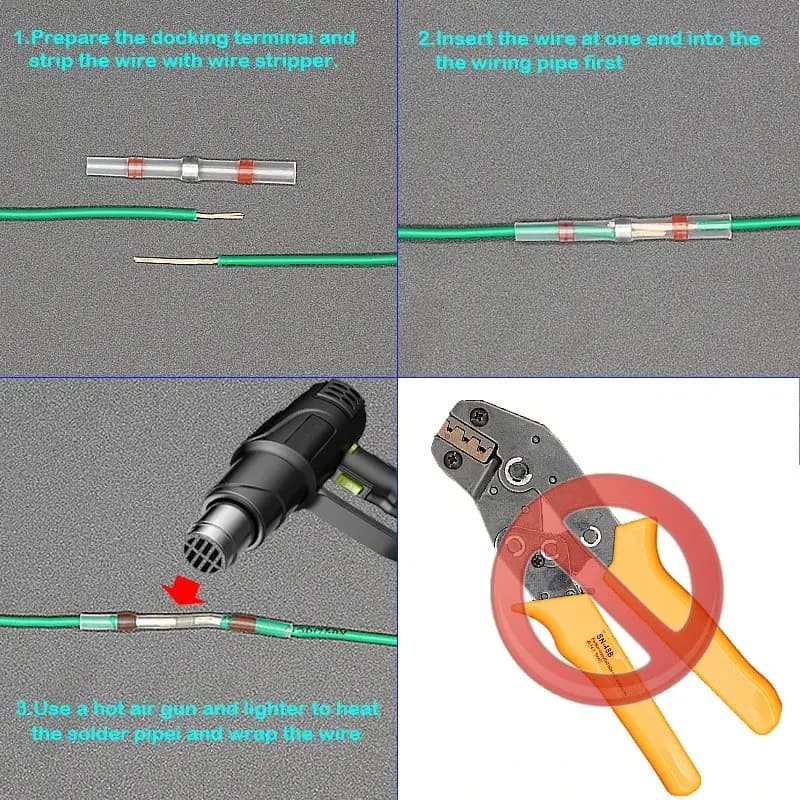

Do I need a crimper to use these solder seal connectors, and how do I heat them?: You can use an AWG 22-18 insulated terminal crimper to secure the connection first. Then, apply heat with a heat gun or controlled flame to melt the solder and shrink the sleeve. The internal adhesive activates at around 110°C, while the solder fully melts at 135°C.
What wire sizes do these red connectors fit, and how many come in the pack?: This kit includes 50 red connectors designed specifically for AWG 22 to AWG 18 wire gauges. They have an unshrunk outer diameter of about 4.8 mm and shrink down to roughly 3.2 mm. This size is ideal for common thin-gauge electronics and automotive wiring.
Can I use these wire connectors in wet outdoor areas or marine environments?: Yes, these connectors are perfect for wet environments because they have an IP67 waterproof rating. The internal adhesive melts to seal out moisture, salt, and corrosion. They also withstand extreme temperatures ranging from -55°C up to 125°C.

Connectors & Wiring spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare connectors & wiring

This product

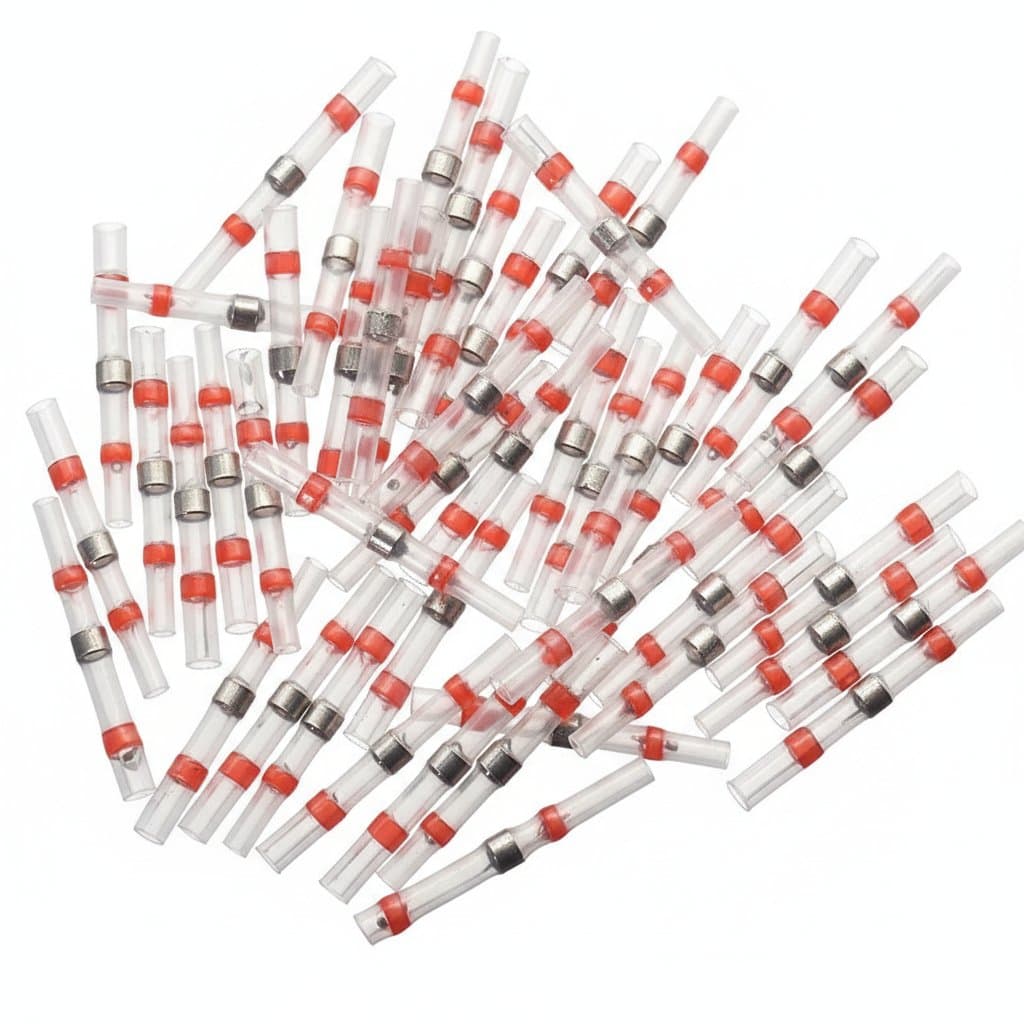

50PCS Heat Shrink Wire Connectors with solder seal for waterproof electrical splices on AWG 22-18 gauge wire, tinned terminals.

Heat Shrink Wire Connectors | 50-Piece Kit | Waterproof Solder Seal for AWG 22-18

Price£8.99

Rating4.8

Sold5,000+

Stock In stock

You're viewing this

Alternative

Heat shrink tube assortment with a 2:1 shrink ratio, made from polyolefin.

Heat Shrink Tube Assortment | 2:1 Shrink Ratio | Polyolefin, 127-1060 pcs

Price£8.99

Rating4.9

Sold50,000+

Stock In stock

View

Alternative

A heat shrink tubing kit with 164 pieces in five colours and eight sizes.

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

Price£6.99

Rating4.9

Sold100,000+

Stock In stock

View

Alternative

Heat shrink tubing with a 4:1 shrink ratio for electrical wire insulation.

Heat Shrink Tubing | 4:1 Shrink Ratio with Adhesive | Electrical Wire & Cable Insulation

Price£4.99

Rating4.9

Sold2,000+

Stock In stock

View

Alternative

Super Soft flexible silicone insulated copper wire roll, 30 to 20 AWG, tinned stranded for heat resistant DIY electronics and wiring projects.

Super Soft Copper Wire 1 Roll Heat Resistant Flexible Silicone 30/28/26/24/22/20AWG Electric DIY Stranded Tinned Copper Cable

Price£8.99

Rating5.0

Sold155+

Stock In stock

View

Compare options

5.0

£12.99

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£8.99

Smartlife WiFi Miniature Circuit Breaker 63A | Energy Meter & Timer | Voltage & Leakage Protection

4.9(906)

£51.99

AC to DC Switching Power Supply | 12V 24V 36V 48V Output | 1A-9A Step-Down Converter Module

4.9

£6.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£39.99

Hard Drive Enclosure | Clear Case for 2.5 SSD | USB-C & 3.0 UASP

4.8(2.0K)

£15.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£7.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£8.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£4.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£13.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£10.99

HDD Caddy | Replaces 9.5mm/12.7mm DVD Bay | SATA 3.0 SSD Adapter

4.9(444)

£6.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£15.99

Cable Set | 7 Pin to SAS 12Gbps | For Server & NAS Hard Drives

4.9(123)

£23.99

Bay 2.5 to 3.5 Bracket | Includes SATA Cable Set | Metal SSD Mount

4.9(327)

£12.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£8.99

M.2 2230 NVMe SSD to CFexpress Adapter | Drive Accessory for Pro Cameras

4.9(148)

£41.99

SATA 22-Pin Angled Adapter | 90 Degree for SSD & HDD

4.9(27)

£4.99

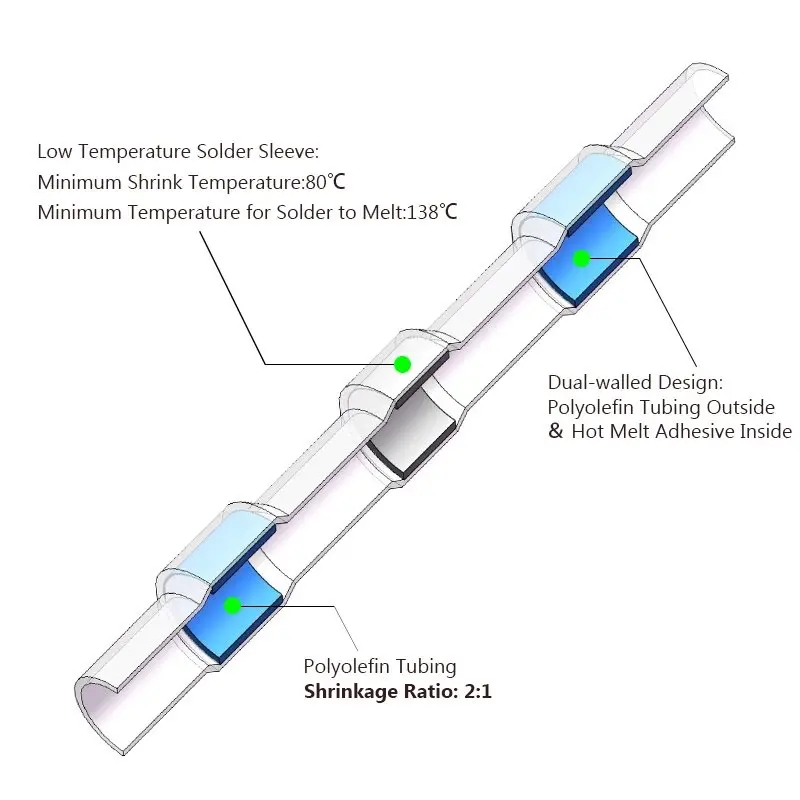

Achieve permanent, waterproof electrical connections with these 50PCS Heat Shrinkable Wire Connectors. The SST21 sleeves feature a pre-installed solder ring and adhesive sealant, creating a strong, insulated splice rated for AWG 22-18 wire. This professional-grade solution ensures superior conductivity and long-term reliability in demanding environments. Features and Benefits - Tinned Solder Ring & Adhesive Lining - Melts and flows during heating to create a strong mechanical and electrical bond while the adhesive forms a waterproof, corrosion-resistant seal. - High-Quality Polyolefin Sleeve - Provides excellent insulation, flame retardancy (UL VW-1 certified), and resistance to abrasion, chemicals, and UV exposure for durable protection. - Wide Compatibility for AWG 22-18 - Accommodates a common range of wire gauges, making this 50-piece kit versatile for various projects without needing multiple connector sizes. - Color-Coded Sleeves (Red) - Allows for quick visual identification of connector size and ensures you select the correct sleeve for the wire gauge you are working with. - Simple Heat Application - Using a standard heat gun, the sleeve shrinks uniformly in seconds, activating the solder and sealant for a fast, professional finish every time. Applications - Automotive & Marine Wiring Repairs - Ideal for splicing wires in vehicles, boats, or RVs where vibration and moisture resistance are critical for safety and longevity. - Outdoor Lighting & Irrigation Systems - Create waterproof splices for low-voltage landscape lighting, sprinkler system solenoids, and other exterior electrical installations. - DIY Electronics & Appliance Repair - Perfect for securing connections in home projects, repairing small appliances, or building custom cables with a clean, insulated finish. - Professional Electrical Maintenance - A reliable, time-saving solution for electricians and technicians performing field repairs on control wiring, sensors, and low-voltage circuits.

Conductor Material: Tinned copper. Insulation/Sleeve Material: Heat shrinkable polyolefin. Insulation Color: Red (standard for AWG 22-18). Crimp Tool Compatibility: AWG 22-18 insulated terminal crimper. Heat Source Requirement: Heat gun or controlled flame. Maximum Operating Temperature: 135 °C. Minimum Operating Temperature: -40 °C. Model: SST21. Nominal Shrunk Diameter: ~3.2 mm (estimated for AWG 18). Nominal Unshrunk Diameter: ~4.8 mm (estimated). Product Name: Heat Shrinkable Butt Splice Connector. Quantity: 50 pieces. Sealing Method: Internal adhesive sealant. Shrink Ratio: 3:1 (typical for adhesive-lined tubing). Type: Butt splice terminal. Waterproof Rating: IP67 (typical for adhesive-lined heat shrink). Wire Gauge Range: AWG 22 to 18. Barrel Dimensions (approx.): 21mm length, 2.5mm internal diameter (for AWG22-18). Barrel Material: Tinned Copper Alloy. Insulation Material: Polyolefin Heat-Shrinkable Sleeve. Operating Temperature Range: -55°C to 125°C (inferred for polyolefin). Wire Gauge Compatibility: AWG 22 to AWG 18. Adhesive Activation Temperature: ~110°C (inferred). Full Shrinkage Temperature: ~135°C (inferred). Waterproof Rating: IP67 (inferred from "Waterproof Sleeve"). Color: Translucent (typical for solder seal connectors). Connector Type: SST21 (Solder Seal Terminal). Dielectric Strength: ≥15 kV/mm (inferred for polyolefin). Flame Retardancy: UL224 VW-1 (inferred standard). Insulation Recovery: ≥70% (inferred for waterproof seal). Internal Conductor: Tinned Copper Barrel. Internal Sealant: Thermoplastic Adhesive (inferred). Primary Function: Electrical Splice and Insulation. Product Type: Heat Shrinkable Butt Splice Connector. Quantity per Package: 50 pieces. Shrink Ratio: 3:1 (typical for polyolefin sleeves). Splice Method: Crimp and Heat-Shrink. Q: What are the specifications for these heat shrinkable wire connectors? A: These SST21 waterproof butt splice connectors are designed for AWG 22-18 gauge wire. The pack contains 50 pieces, and each connector features a pre-installed solder ring and adhesive-lined heat shrink sleeve for a secure, waterproof seal.. Q: How durable and waterproof are these electrical splice connectors? A: These connectors are highly durable and provide a waterproof seal when properly heated. The adhesive-lined sleeve melts and seals out moisture, while the tinned solder ring creates a strong, corrosion-resistant electrical connection.. Q: Can I use these solder seal terminals for automotive wiring repairs? A: Yes, these heat shrinkable wire connectors are excellent for automotive, marine, and outdoor applications. Their waterproof and vibration-resistant properties make them ideal for repairing wiring in vehicles, trailers, and other environments exposed to the elements.. Q: Does this product come with a warranty or guarantee? A: Yes, this product is backed by a satisfaction guarantee. If you have any issues with the quality or performance of the SST21 waterproof sleeves, you can contact the seller for support or a replacement.. Q: Is this a good value compared to other heat shrink connectors? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. The 50-piece pack of tinned solder seal terminals delivers reliable performance for regular use at a competitive price point..
