How do I install these expansion bolts in concrete?

Drill a hole matching the anchor diameter, so an M10 bolt needs a 10 mm hole. Insert the anchor, then tighten the external hex head with a wrench or socket. As you tighten, the sleeve expands against the hole walls for a firm, vibration-resistant hold.

Will these rust if used outdoors?

They are made from 304 stainless steel, which resists corrosion well in outdoor and damp settings. That makes them a good fit for railings, barriers, and brackets exposed to weather. They also stand up to general atmospheric and mild chemical exposure.

What sizes are available and what can they hold?

They come in M6, M8, M10, M12, M14, and M16 to match different load needs and hole sizes. Bigger diameters carry heavier structural loads. They are rated for permanent, heavy-duty fastening into concrete, masonry, and stone.

Concrete Expansion Bolts | External Hex M6-M16 | 304 Stainless Steel Sleeve Anchors

Name: Concrete Expansion Bolts | External Hex M6-M16 | 304 Stainless Steel Sleeve Anchors
Brand: Compel
SKU: FAST-00224
Price: 5.95 USD
Availability: InStock

Stock #:CMP-00380

SKU:FAST-00224

Concrete Expansion Bolts | External Hex M6-M16 | 304 Stainless Steel Sleeve Anchors - Image 1

1 / 4

$5.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

SizeSelect an option

Quantity

Concrete Expansion Bolts | External Hex M6-M16 | 304 Stainless Steel Sleeve Anchors

$5.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

How do I install these expansion bolts in concrete?: Drill a hole matching the anchor diameter, so an M10 bolt needs a 10 mm hole. Insert the anchor, then tighten the external hex head with a wrench or socket. As you tighten, the sleeve expands against the hole walls for a firm, vibration-resistant hold.
Will these rust if used outdoors?: They are made from 304 stainless steel, which resists corrosion well in outdoor and damp settings. That makes them a good fit for railings, barriers, and brackets exposed to weather. They also stand up to general atmospheric and mild chemical exposure.
What sizes are available and what can they hold?: They come in M6, M8, M10, M12, M14, and M16 to match different load needs and hole sizes. Bigger diameters carry heavier structural loads. They are rated for permanent, heavy-duty fastening into concrete, masonry, and stone.

Fasteners spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare fasteners

This product

External hex expansion bolts in 304 stainless steel for concrete anchoring, available in sizes M6 through M16.

Concrete Expansion Bolts | External Hex M6-M16 | 304 Stainless Steel Sleeve Anchors

Price$5.95

Rating4.6

Sold54+

Stock In stock

You're viewing this

Alternative

Heavy-duty carbon steel expansion shield anchors with hex bolts for ground lock installation in concrete walls, sizes M6 to M12.

Concrete Expansion Shield | M6 M8 M10 M12 Carbon Steel | Heavy-Duty Ground Lock Fastener

Price$11.99

Rating5.0

Sold25+

Stock In stock

View

Alternative

Metal expansion bolts and hollow wall plugs in sizes M4 through M8 for fixing pipes and fixtures to gypsum board and plasterboard ceilings.

Anchor Expansion Bolts | M4 M5 M6 M8 for Gypsum Board | Hollow Wall & Ceiling Plugs

Price$5.95

Rating4.5

Sold148+

Stock In stock

View

Compare options

More Fasteners

All Fasteners

Grub Screws | M2-M8 Black Carbon Steel & 304 Stainless Steel | Hexagon Allen Head Cone Point

5.0(21)

$9.95

Brass Butterfly Hinges | 20x17mm 10PCS Kit | For Jewelry Box & Model Making

5.0

$2.49

M8 M10 M12 Flange Bolts | 10.9 Grade Alloy Steel | Hexagon Head Non-Serrated

4.9(5.2K)

$11.99

Polishing Compound | Nano Crystal Wax | Hydrophobic Scratch Repair

4.9(1.7K)

$7.95

-27%

Safety Work Shoes for Men | Anti-Impact & Puncture-Resistant | Professional-Grade Athletic Design

4.7

$60.99$83.73

Laser Level | 2-Line Green Cross-Line | 360° Self-Leveling for Horizontal & Vertical Alignment

4.7

$59.99

Complete the set

Accessories & add-ons

Diamond Drill Bit Set | 18-68mm Hole Saw for Tile, Glass & Stone

5.0

$26.95

Woodworking Spade Drill Bit Set | 10-55mm High-Carbon Steel | Durable Flat Wood Boring Tools

5.0

$12.99

Forstner Drill Bit Set | 14-100mm Self-Centering Wood Boring Kit | Carbide-Tipped Precision

5.0

$5.95

Diamond Core Drill Bit | M14 Thread for Granite, Marble & Tile | Dry Vacuum Brazed Masonry Hole Saw

5.0

$35.95

Air Blow Gun | Heavy-Duty Pneumatic Tool for Engine & Workshop Cleaning

5.0

$17.99

-19%

Diamond Drill Bit Set | 8-Piece for Tile, Glass & Stone | 6-45mm Hole Saws

5.0

$80.99$100.15

TCT Trimming Router Bit | 1/2 Shank 3 Flute | For Plywood, MDF & Chipboard

5.0

$28.95

Table Saw Blade Guard | 4-10 Inch Acrylic Protection Cover for Woodworking Safety

5.0

$83.99

Sanding Belts | P60-P3000 Abrasive | 330x10mm, 457x13mm, 492x6mm

5.0(16)

$19.99

30x 9x533mm Sanding Belts | Aluminium Oxide Abrasive | P36-P600 Grit Assortment

5.0(21)

$38.95

-21%

Diamond Drill Bit Set | 6-Piece M14 Thread | For Porcelain, Granite & Marble

5.0

$95.99$121.65

Paint Spray Gun Kit | 1.3mm Nozzle & 600cc Cup | Easy to Use for Cars, Walls & Home Projects

5.0

$299.99

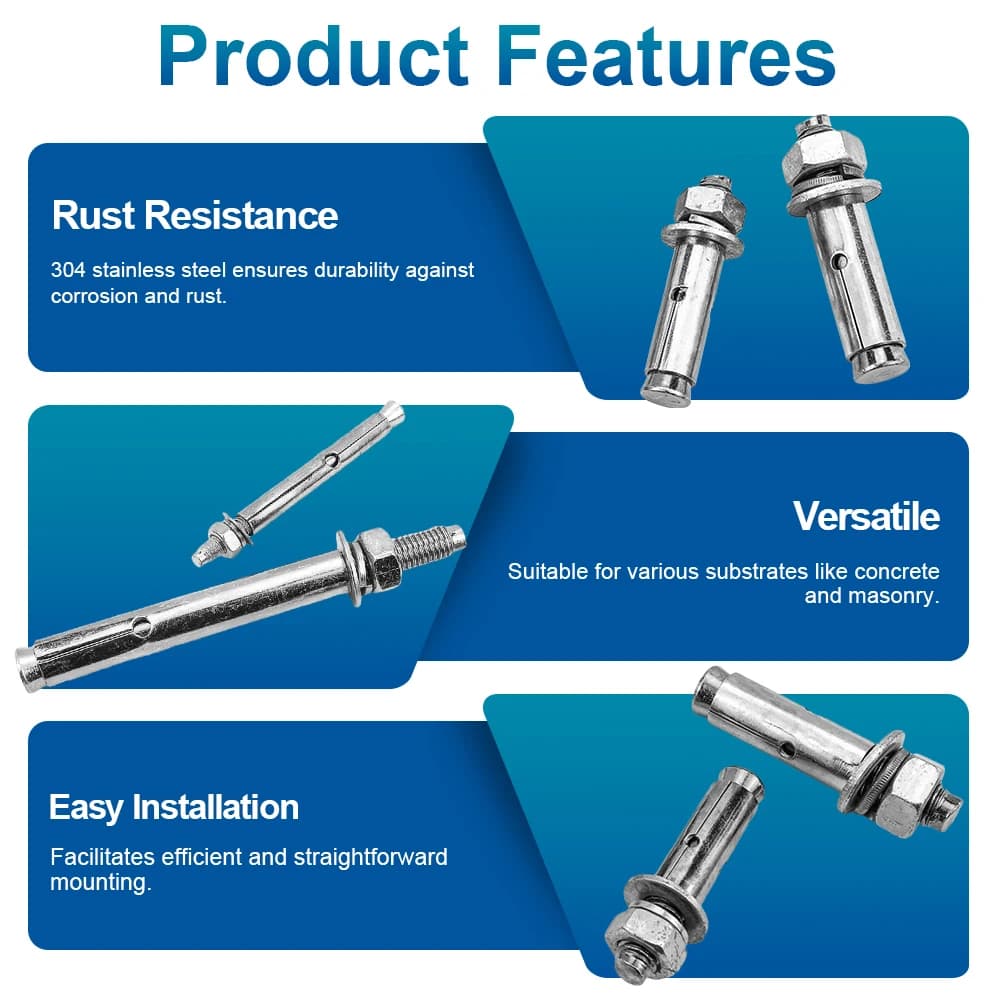

The NINDEJIN External Hex Expansion Bolt is engineered for superior, permanent fastening in solid base materials like concrete. Crafted from corrosion-resistant 304 stainless steel, it offers exceptional tensile strength and durability for demanding structural applications. Its external hex head design ensures easy installation with standard tools. Features and Benefits - 304 Stainless Steel Construction - Provides excellent corrosion resistance and long-term durability in harsh or outdoor environments. - External Hex Head Design - Allows for straightforward installation and high-torque tightening using common wrenches or sockets. - Multi-Size Availability (M6-M16) - Offers versatility to match specific load requirements and hole diameters for various projects. - Sleeve Anchor Mechanism - Creates a powerful, vibration-resistant hold by expanding securely within the drilled hole for reliable load-bearing capacity. Applications - Securing structural steel columns and beams to concrete foundations. - Installing heavy machinery, railings, and safety barriers on concrete floors. - Fastening brackets for shelving units and storage systems into masonry walls.

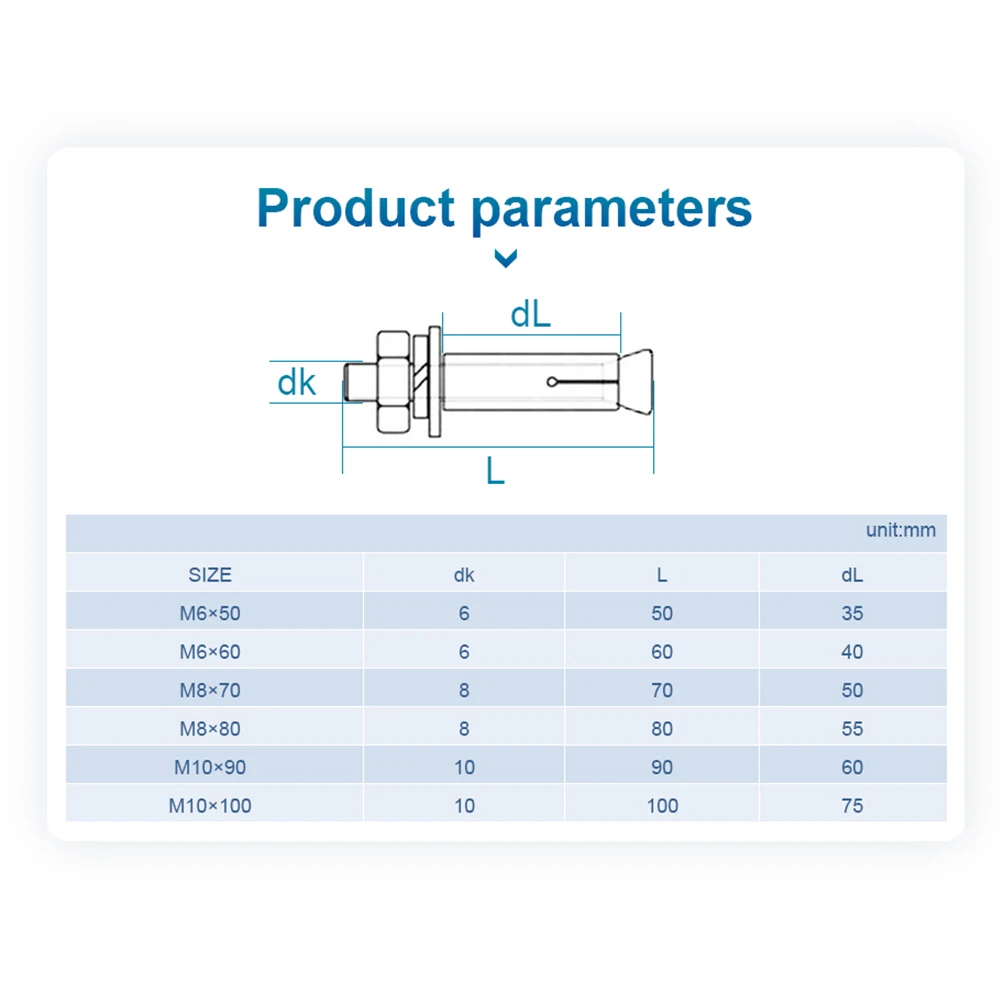

Sizes Available: M6, M8, M10, M12, M14, M16. Package Weight: Varies by size and quantity. Material: 304 Stainless Steel. Anchor Type: Expansion sleeve. Application: Concrete anchoring. Head Type: External Hex. Product Type: External Hex Sleeve Anchor. Hex Size (External) - Approximate: M6: 10 mm, M8: 13 mm, M10: 17 mm, M12: 19 mm, M14: 22 mm, M16: 24 mm. Recommended Hole Diameter (Concrete): Typically equal to anchor diameter (e.g., M10 requires 10 mm hole). Thread Sizes Available: M6, M8, M10, M12, M14, M16. Material: 304 Stainless Steel (A2 Stainless Steel). Thread Pitch (Standard Metric Coarse): M6: 1.0 mm, M8: 1.25 mm, M10: 1.5 mm, M12: 1.75 mm, M14: 2.0 mm, M16: 2.0 mm. Anchor Type: Sleeve Anchor (Expansion Bolt). Application: Concrete Anchoring. Corrosion Resistance: Grade 304 Stainless Steel, suitable for general atmospheric and mild chemical exposure. Drive Style: External Hex. Expansion Mechanism: Sleeve expands against concrete borehole walls upon tightening. Installation Method: Requires pre-drilled hole in concrete, tightened with hex wrench/socket. Primary Use Case: Permanent heavy-duty fastening into concrete, masonry, stone. Product Type: External Hex Expansion Bolt (Sleeve Anchor). Tensile Strength (Typical 304 SS): ≥ 515 MPa. Yield Strength (Typical 304 SS): ≥ 205 MPa. Q: What are the available size specifications for these expansion bolts? A: These external hex expansion bolts are available in metric sizes M6, M8, M10, M12, M14, and M16. They are manufactured from 304 stainless steel and include a sleeve anchor system designed for concrete applications.. Q: How is the quality and durability of the 304 stainless steel? A: The 304 stainless steel construction provides excellent corrosion resistance and durability, making these bolts suitable for both indoor and outdoor applications. The material maintains strength and integrity in various environmental conditions.. Q: What materials are these expansion bolts compatible with? A: These sleeve anchor bolts are specifically designed for use in solid concrete, masonry, and stone. They are not recommended for use in hollow materials or drywall without proper verification of load requirements.. Q: What kind of warranty or guarantee is offered with these fasteners? A: The product is backed by a standard manufacturer's warranty against material defects and workmanship. Specific warranty details regarding coverage period and claims process are provided with the product documentation.. Q: Do these expansion bolts offer good value for their price point? A: These bolts provide solid value with their corrosion-resistant 304 stainless steel construction and multiple size options in a single package. They offer reliable performance for concrete anchoring applications at a competitive price..
