The SIHAO 13500 LBS 12V Electric Winch delivers serious pulling power for demanding recovery and lifting tasks. Engineered with a durable synthetic rope rated for 24 meters (92 feet) and a powerful 12V motor, this winch provides reliable, high-capacity performance for off-road vehicles, trailers, and utility work. Features and Benefits
- 13500 LB Rated Pulling Capacity - Provides the substantial force needed to recover stuck 4x4s, trucks, and large trailers from deep mud, sand, or steep inclines.

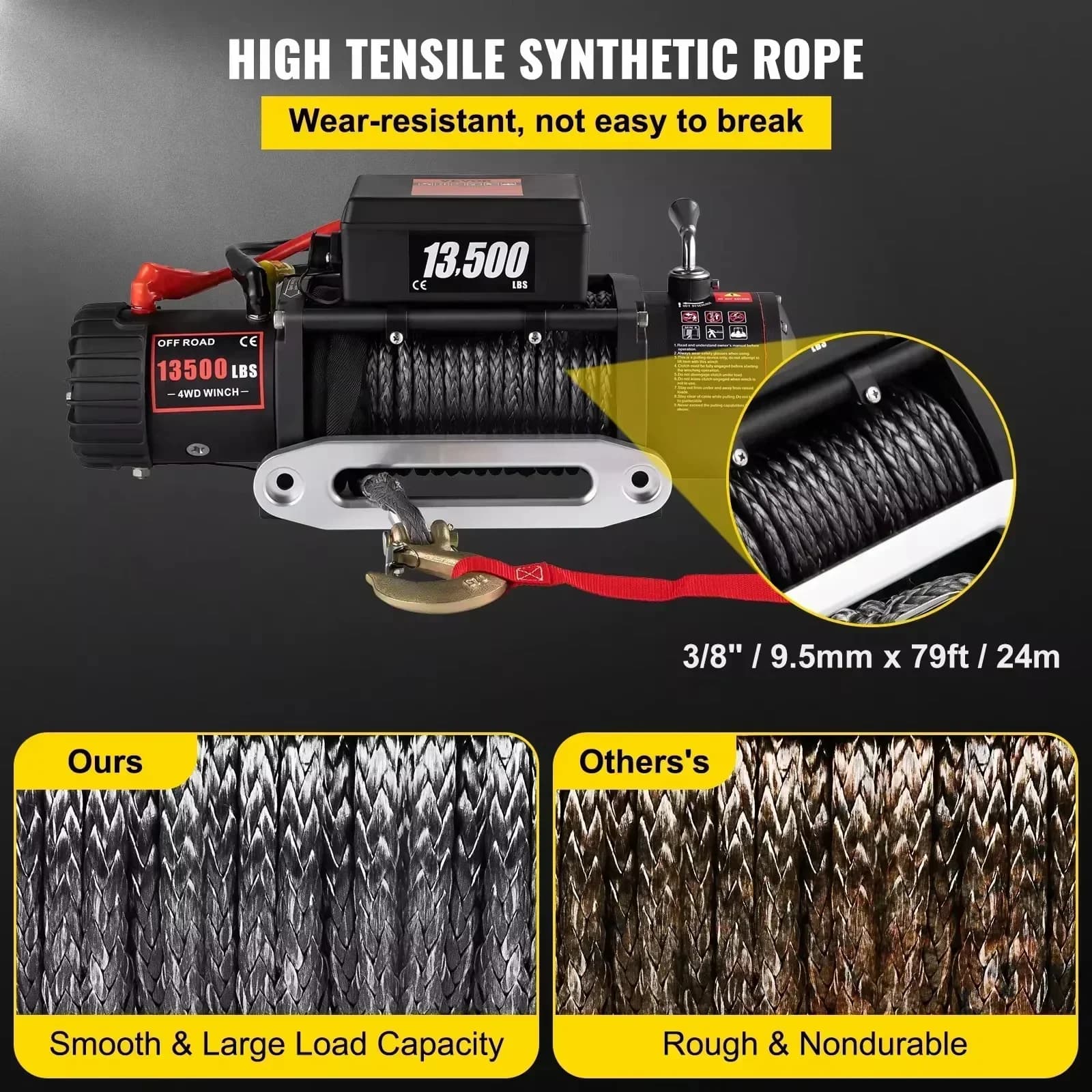

- Synthetic Rope (24M/92FT) - Safer and lighter than steel cable, with no dangerous recoil if it snaps, while offering excellent abrasion resistance and easier handling.

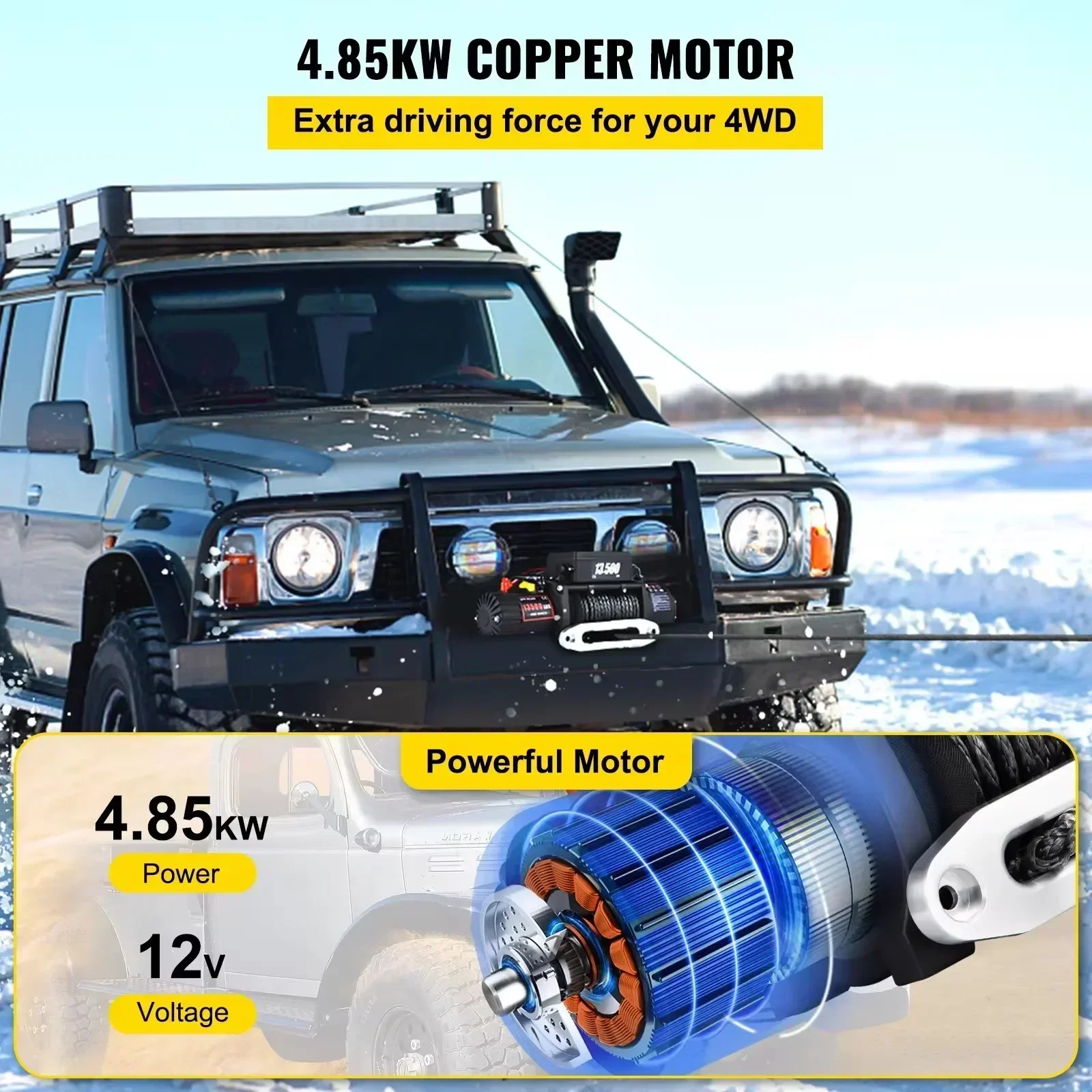

- Powerful 12V DC Permanent Magnet Motor - Delivers consistent, high-torque power directly from your vehicle's battery for reliable operation in remote locations.
- Three-Layer Planetary Gear System - Ensures smooth, efficient power transmission and enhanced durability under heavy load, reducing strain on the motor.

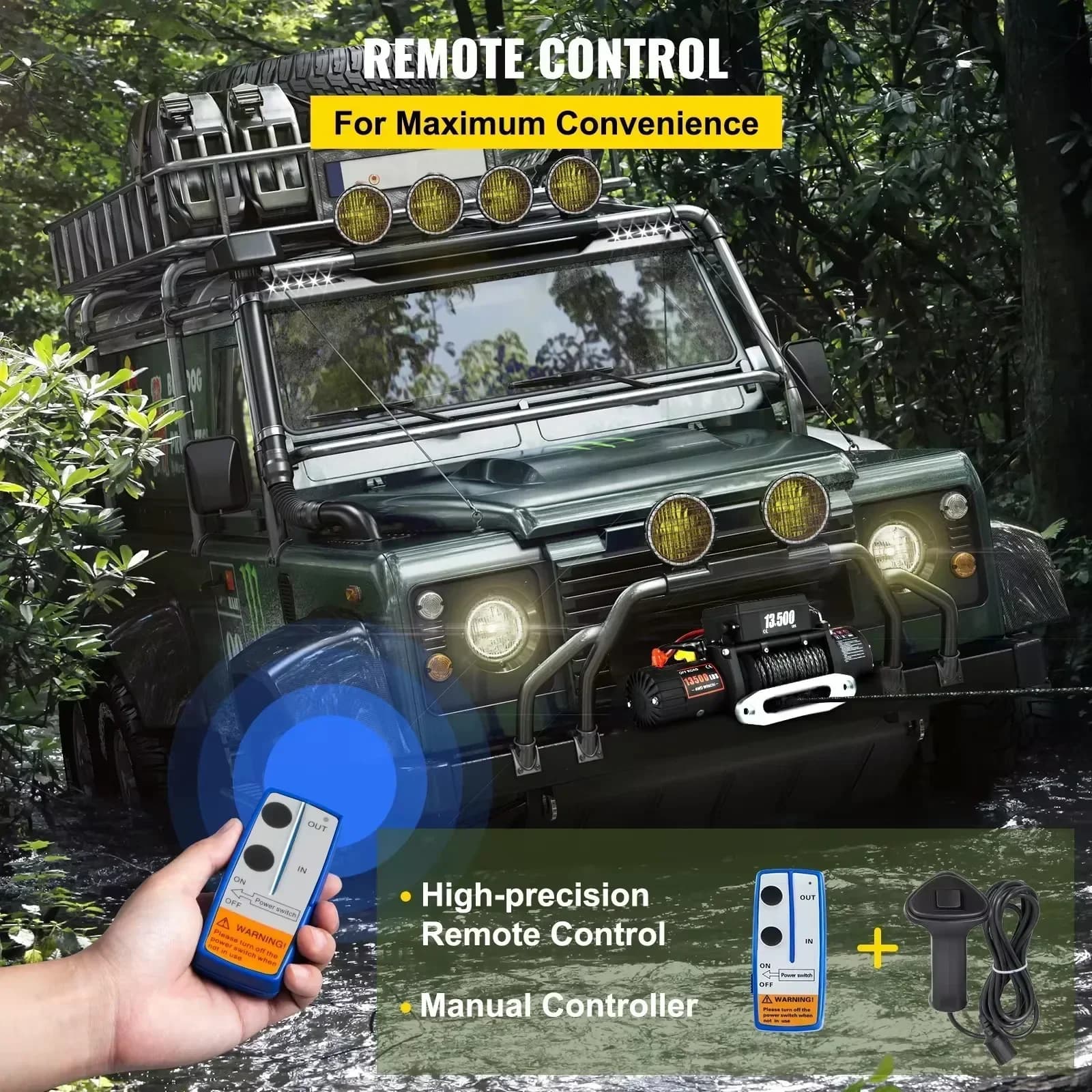

- Integrated Solenoid Contactor and Wireless Remote - Allows for safe, convenient operation from inside your vehicle or a safe distance during tense recovery situations.
- Weather-Resistant Construction - Sealed components help protect against dust, dirt, and moisture for dependable performance in harsh outdoor environments. Applications
- Off-Road Vehicle Recovery - Essential gear for 4x4, Jeep, and truck enthusiasts tackling challenging trails, mud pits, or rocky terrain.
- Utility and Towing Work - Ideal for positioning trailers, pulling boats onto trailers, or moving heavy equipment on farms, construction sites, or workshops.
- Agricultural and Land Management - Useful for clearing fallen trees, moving logs, or repositioning heavy machinery around rural properties.
- Marine Use - A capable tool for boat owners to haul vessels onto trailers or assist with docking and positioning in boatyards. Note
Always consult your vehicle's manual and ensure proper mounting to a reinforced frame or dedicated winch plate. Regular inspection of the rope, fairlead, and electrical connections is recommended for safe operation.
Motor Voltage: 12V DC. Compatible Vehicles: 4x4, Car, Trailer, ATV, Truck, Boat. Intended Use: Lifting, Hoisting, Vehicle Recovery. Motor Type: Permanent Magnet DC. Rated Line Pull: 13,500 lb. Rope Length: 92 ft. Rope Type: Synthetic. Drum Diameter: Approx. 60 mm (2.36 in). Mounting Bolt Size: 4 x M10. Rope Diameter: Approx. 10 mm (3/8 in). Rope Length: 24 m (92 ft). Net Weight: Approx. 25-30 kg (55-66 lbs). Motor Voltage: 12V DC. Recommended Battery: Minimum 650 CCA, 12V Automotive Battery. Drum Capacity: Minimum 24 m of 10 mm synthetic rope. No-Load Line Speed: Approx. 4-5 m/min (13-16 ft/min). IP Rating: IP54 (Dust and water splash resistant). Brake Type: Automatic Load-Holding Brake. Brand Name: SIHAO. Clutch Type: Manual Free-Spooling Clutch. Control Method: Wired Remote Control. Fairlead Type: Aluminum Hawse Fairlead. Gear Ratio: Approx. 150:1. Gear Type: Planetary Gear Reduction. Maximum Amp Draw: Approx. 400-450 A under full load. Motor Type: Series Wound DC Electric Motor. Mounting Pattern: 10 in x 4.5 in (254 mm x 114.3 mm). Product Type: Electric Winch with Synthetic Rope. Rated Line Pull: 13500 lbs (6123 kg). Rope Type: Synthetic Tow Rope. Q: What are the key specifications for the SIHAO 13500 LBS 12V Electric Winch? A: This SIHAO winch is a 12V electric model with a 13,500-pound pulling capacity. It comes equipped with a 24-meter (92-foot) synthetic rope, making it suitable for heavy-duty recovery and lifting tasks on trucks, 4x4s, and trailers.. Q: How durable is the synthetic rope on this 13500 lb electric winch? A: The synthetic rope is designed for durability and safety, offering high strength and resistance to kinking compared to steel cable. It is lighter and floats, making it an excellent choice for off-road recovery and marine applications like boat trailers.. Q: Can this 12V electric winch be installed on my ATV or a standard truck bumper? A: Yes, this 13500 LBS winch is compatible with a wide range of vehicles, including 4x4 trucks, SUVs, ATVs, trailers, and boats. It is designed for standard mounting configurations, but you should verify the fitment with your specific vehicle's bumper or mounting plate.. Q: Does the SIHAO electric winch come with a warranty or guarantee? A: Warranty details are typically provided by the seller at the point of purchase. We recommend checking the product listing or contacting the seller directly for specific information regarding the warranty coverage and terms for this winch.. Q: Is the SIHAO 13500 LBS winch a good value compared to other brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with its high 13,500 lb capacity and long synthetic rope..
