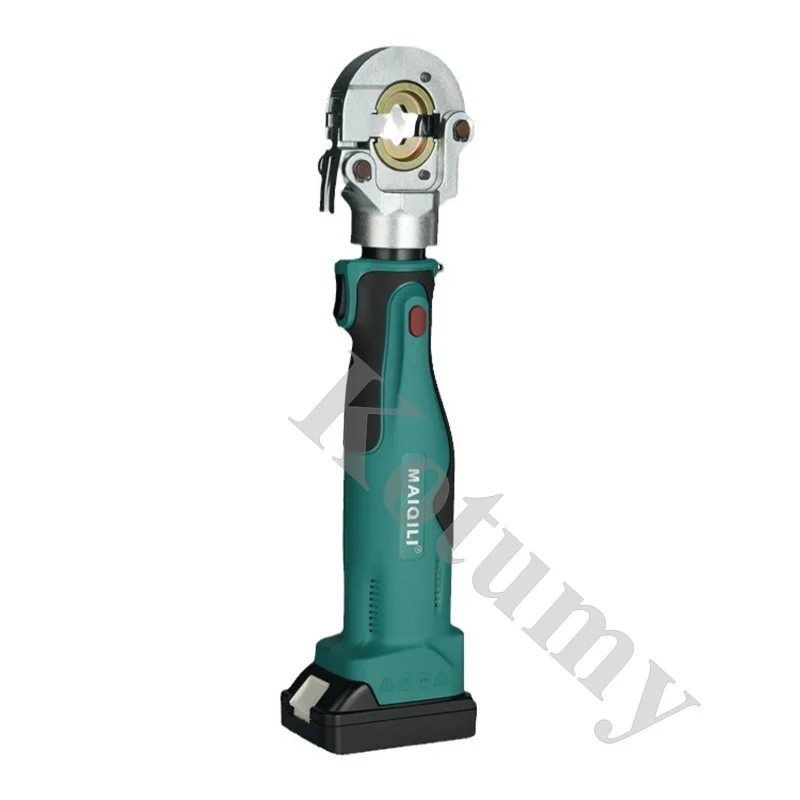

This electric hydraulic plier delivers professional-grade crimping power with a rechargeable battery, eliminating manual effort. It consistently produces 10-12 ton crimping force for perfect, gas-tight connections on copper and aluminum terminals up to 300mm², ensuring reliable electrical performance every time. Features and Benefits
- Rechargeable Lithium-Ion Battery System - Provides cordless freedom for use anywhere on the job site or in the workshop, with consistent power for hundreds of crimps per charge.
- 10-12 Ton Hydraulic Crimping Force - Achieves uniform, high-pressure crimps on heavy-duty lugs and terminals that meet industry standards for conductivity and pull-out resistance.
- Dual-Material Compatibility (Copper & Aluminum) - Versatile tool handles a wide range of common terminal materials without requiring separate dies or adjustments.
- Ergonomic, Lightweight Design - Reduces operator fatigue during extended use, allowing for greater productivity and more precise tool handling.
- Quick-Change Die Sets - Enables fast switching between different terminal sizes and types to maintain workflow efficiency on complex projects. Applications
- Electrical Panel and Switchgear Installation - Perfect for securing large-gauge power cables in commercial and industrial electrical systems.
- Renewable Energy System Wiring - Essential for connecting solar array combiners, battery banks, and inverter terminals with reliable, high-current connections.
- Automotive and Marine Electrical Upgrades - Ideal for installing winches, stereo amplifiers, or auxiliary lighting systems that require robust power cable terminations.
- HVAC and Industrial Equipment Maintenance - Used to repair or replace motor power connections, compressor wiring, and control circuit terminals. Note: Includes a protective storage case for dies and tool. Consult the manual for compatible terminal sizes and proper crimping procedure to ensure optimal results.
Power Source: Rechargeable Battery. Compatible Conductors: Copper, Aluminum. Compatible Terminals: Crimp Terminals. Operation: Electric Hydraulic. Product Type: Hydraulic Crimping Tool. Tool Length: 550 mm to 650 mm. Tool Weight (with battery): 4.5 kg to 6.5 kg. Compatible Conductor Material: Copper, Aluminum. Battery Capacity: 4.0 Ah (Minimum). Battery Voltage: 21.6V (5-cell Li-ion pack). Power Source: Rechargeable Lithium-Ion Battery. Crimping Capacity (Aluminum): 16 mm² to 300 mm² (Approx. 6 AWG to 600 MCM). Crimping Capacity (Copper): 16 mm² to 240 mm² (Approx. 6 AWG to 500 MCM). Safety Features: Two-handed operation trigger, automatic pressure release. Die Set Compatibility: Industry-standard hexagonal dies. IP Rating: IP54 (Dust and water splash resistant). Operating Noise Level: < 85 dB(A). Charging Time: ≤ 90 minutes. Crimping Cycles Per Charge: ≥ 200 cycles (for mid-range conductor size). Crimping Method: Hydraulic Pressure. Die Storage: Integrated die storage compartment. Display: LED battery level indicator, error code display. Maximum Crimping Force: 12 Tons (Approx. 118 kN). Product Type: Electric Hydraulic Plier Crimping Tool. Warranty: 2 years (tool), 1 year (battery). Q: What are the key specifications and dimensions of this electric hydraulic plier? A: This rechargeable battery powered crimping tool is designed for portability and power. While specific dimensions are not provided, it is a handheld tool engineered for crimping copper and aluminum terminals with hydraulic force.. Q: How durable is this battery powered crimping tool for professional use? A: This tool is built with a robust hydraulic system and a durable frame to withstand the demands of regular job site use. It offers reliable performance for crimping both copper and aluminum terminals consistently.. Q: Can this electric crimping tool handle both copper and aluminum wire terminals? A: Yes, this hydraulic crimping tool is specifically designed to crimp both copper and aluminum terminals. Its powerful electric hydraulic system provides the consistent force needed for proper, secure connections on both materials.. Q: Does this rechargeable crimping tool come with a warranty or guarantee? A: Warranty details for this product are not specified. We recommend checking the product listing or contacting the seller directly for information on any included warranty or guarantee coverage.. Q: Is this electric hydraulic plier a good value compared to manual crimpers? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, saving significant time and effort compared to manual crimping tools..
