How do I install these hinges if they do not require drilling?

These hinges mount directly to your cabinet surface using the included M4 screws. You do not need to drill a large cup hole into your cabinet doors. They also feature 3D adjustment so you can align the height, depth, and lateral position easily after mounting.

Will these hinges fit my existing cabinet doors?

These hinges work with cabinet doors that have a thickness between 16mm and 25mm. They are designed for a 90-degree opening angle and a 0mm full overlay setup. They also fit standard 35mm system hole spacing if your cabinets already have them.

How long will these hinges last under daily use?

We test these steel hinges to last for at least 50,000 open and close cycles. The integrated hydraulic damper cushions the door to stop slamming and protect the hardware. For very heavy or oversized doors, we recommend using extra hinges to share the load.

No-Drilling Hydraulic Buffer Hinges | 90 Degree Cabinet Hinges | Soft Close Kitchen Hardware

Name: No-Drilling Hydraulic Buffer Hinges | 90 Degree Cabinet Hinges | Soft Close Kitchen Hardware
Brand: Compel
SKU: FAST-00396
Price: 5.95 USD
Availability: InStock

Stock #:CMP-00952

SKU:FAST-00396

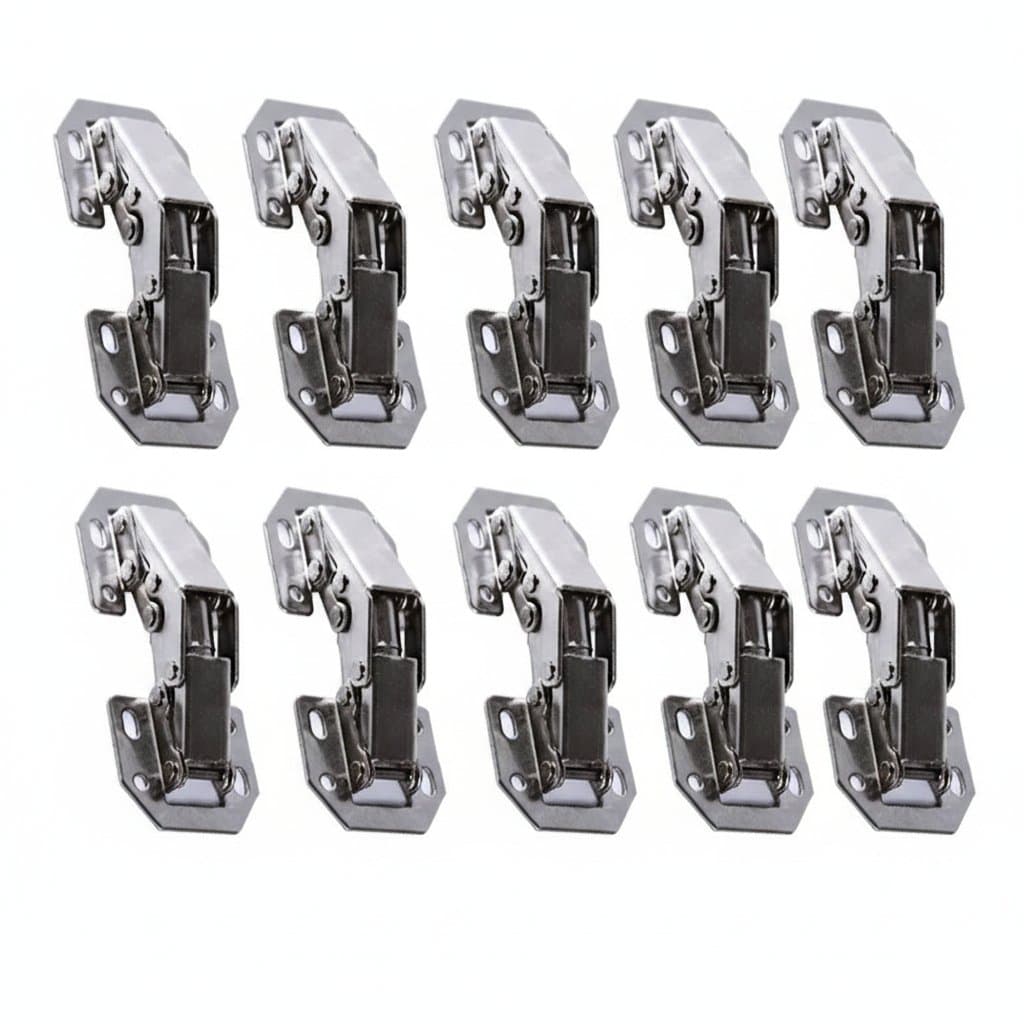

No-Drilling Hydraulic Buffer Hinges | 90 Degree Cabinet Hinges | Soft Close Kitchen Hardware - Image 1

$5.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

ColorSelect an option

Quantity

No-Drilling Hydraulic Buffer Hinges | 90 Degree Cabinet Hinges | Soft Close Kitchen Hardware

$5.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

How do I install these hinges if they do not require drilling?: These hinges mount directly to your cabinet surface using the included M4 screws. You do not need to drill a large cup hole into your cabinet doors. They also feature 3D adjustment so you can align the height, depth, and lateral position easily after mounting.
Will these hinges fit my existing cabinet doors?: These hinges work with cabinet doors that have a thickness between 16mm and 25mm. They are designed for a 90-degree opening angle and a 0mm full overlay setup. They also fit standard 35mm system hole spacing if your cabinets already have them.
How long will these hinges last under daily use?: We test these steel hinges to last for at least 50,000 open and close cycles. The integrated hydraulic damper cushions the door to stop slamming and protect the hardware. For very heavy or oversized doors, we recommend using extra hinges to share the load.

Fasteners spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare fasteners

This product

No-drill 90-degree cabinet hinges with hydraulic buffer for smooth, quiet closing of kitchen cupboards and furniture doors.

No-Drilling Hydraulic Buffer Hinges | 90 Degree Cabinet Hinges | Soft Close Kitchen Hardware

Price$5.95

Rating4.6

Sold800+

Stock In stock

You're viewing this

Alternative

Two stainless steel cabinet hinges with 90-degree opening, no-drilling installation, and integrated door buffer mechanism for smooth closing.

No-Drilling Cabinet Hinges | 12-Pack Stainless Steel | 90° Buffer Hinge for Furniture

Price$5.95

Rating4.5

Sold1,000+

Stock In stock

View

Alternative

Self-drilling metal expansion anchors for easy application in gypsum plasterboard and drywall without pre-drilling.

Drilling Drywall Anchors | Easy Application Expansion Bolts | For Gypsum Plasterboard Dowel

Price$10.99

Rating4.9

Sold472+

Stock In stock

View

Compare options

More Fasteners

All Fasteners

Grub Screws | M2-M8 Black Carbon Steel & 304 Stainless Steel | Hexagon Allen Head Cone Point

5.0(21)

$9.95

Brass Butterfly Hinges | 20x17mm 10PCS Kit | For Jewelry Box & Model Making

5.0

$2.49

M8 M10 M12 Flange Bolts | 10.9 Grade Alloy Steel | Hexagon Head Non-Serrated

4.9(5.2K)

$11.99

Polishing Compound | Nano Crystal Wax | Hydrophobic Scratch Repair

4.9(1.7K)

$7.95

-27%

Safety Work Shoes for Men | Anti-Impact & Puncture-Resistant | Professional-Grade Athletic Design

4.7

$60.99$83.73

Laser Level | 2-Line Green Cross-Line | 360° Self-Leveling for Horizontal & Vertical Alignment

4.7

$59.99

Complete the set

Accessories & add-ons

Diamond Drill Bit Set | 18-68mm Hole Saw for Tile, Glass & Stone

5.0

$26.95

Woodworking Spade Drill Bit Set | 10-55mm High-Carbon Steel | Durable Flat Wood Boring Tools

5.0

$12.99

Forstner Drill Bit Set | 14-100mm Self-Centering Wood Boring Kit | Carbide-Tipped Precision

5.0

$5.95

Diamond Core Drill Bit | M14 Thread for Granite, Marble & Tile | Dry Vacuum Brazed Masonry Hole Saw

5.0

$35.95

Air Blow Gun | Heavy-Duty Pneumatic Tool for Engine & Workshop Cleaning

5.0

$17.99

-19%

Diamond Drill Bit Set | 8-Piece for Tile, Glass & Stone | 6-45mm Hole Saws

5.0

$80.99$100.15

TCT Trimming Router Bit | 1/2 Shank 3 Flute | For Plywood, MDF & Chipboard

5.0

$28.95

Table Saw Blade Guard | 4-10 Inch Acrylic Protection Cover for Woodworking Safety

5.0

$83.99

Sanding Belts | P60-P3000 Abrasive | 330x10mm, 457x13mm, 492x6mm

5.0(16)

$19.99

30x 9x533mm Sanding Belts | Aluminium Oxide Abrasive | P36-P600 Grit Assortment

5.0(21)

$38.95

-21%

Diamond Drill Bit Set | 6-Piece M14 Thread | For Porcelain, Granite & Marble

5.0

$95.99$121.65

Paint Spray Gun Kit | 1.3mm Nozzle & 600cc Cup | Easy to Use for Cars, Walls & Home Projects

5.0

$299.99

Upgrade your cabinetry with these premium hydraulic buffer hinges, designed for effortless installation and superior performance. The innovative no-drilling hole design preserves cabinet integrity, while the integrated hydraulic damper ensures silent, soft-close action every time, preventing door slam and extending hardware life. Features and Benefits - No-Drilling Hole Design - Simplifies installation without damaging cabinet surfaces, ideal for quick upgrades and renovations. - Integrated Hydraulic Buffer - Provides smooth, silent soft-close functionality to prevent door slamming and reduce wear. - Durable Construction - Made from robust materials for reliable, long-lasting performance under daily use. - Adjustable Design - Allows for precise alignment and tension adjustment to ensure a perfect fit and smooth operation. Applications - Modern kitchen cabinet door installations and replacements. - Upgrading existing cupboard doors in bedrooms, bathrooms, or living rooms. - DIY furniture projects requiring reliable, easy-to-install concealed hinges.

Hinge Dimensions: Provide dimensions in mm. Screw Size: Provide screw specifications. Material: Steel (provide specific grade). Load Capacity: Provide weight capacity in kg. Buffer Type: Hydraulic. Finish: Provide finish type. Mounting Type: No-drill hole mounting. Opening Angle: 90 degrees. Plate Thickness: Provide thickness in mm. Product Type: Hydraulic Buffer Hinge. Quantity Options: 2 pieces, 4 pieces, 10 pieces. Door thickness compatibility: 16-25mm. Screw size: M4 mounting screws. Overlay range: 0mm full overlay. Mounting plate compatibility: Standard 35mm system hole. Adjustment type: 3D adjustment (height, depth, lateral). Application: Kitchen cabinet, cupboard, furniture. Buffer type: Integrated hydraulic damper. Closing force: Hydraulic soft-close. Closing mechanism: Hydraulic buffer. Durability cycles: ≥50,000 open/close cycles. Hinge angle: 90 degrees. Installation type: No-drilling hole. Mounting type: Concealed hinge (cup hinge). Opening angle: 90°. Quantity per package: 2/4/10 pieces. Q: What are the specifications of these hydraulic buffer hinges? A: These hinges are available in packs of 2, 4, or 10 pieces. They feature a 90-degree opening angle and include a built-in hydraulic buffer for soft closing. The design requires no drilling for installation.. Q: What is the build quality of these cabinet hinges? A: The hinges are constructed from durable materials designed for kitchen and furniture use. The hydraulic buffer mechanism is engineered for smooth, quiet operation and long-term reliability under regular use.. Q: Are these hinges compatible with standard kitchen cabinets? A: Yes, these no-drill hinges are designed for standard overlay cabinet doors on frameless or face-frame cabinets. It's recommended to check your cabinet's door thickness and overlay measurement for optimal fit.. Q: Is there any warranty on these hydraulic hinges? A: Warranty details are typically provided by the seller or manufacturer. These hinges are generally covered against manufacturing defects for a specified period from the date of purchase.. Q: Do these hinges offer good value for the price? A: Yes, these hinges provide excellent value by combining hydraulic soft-close functionality with no-drill installation. The multi-pack options allow cost-effective upgrading of multiple cabinets at once..
