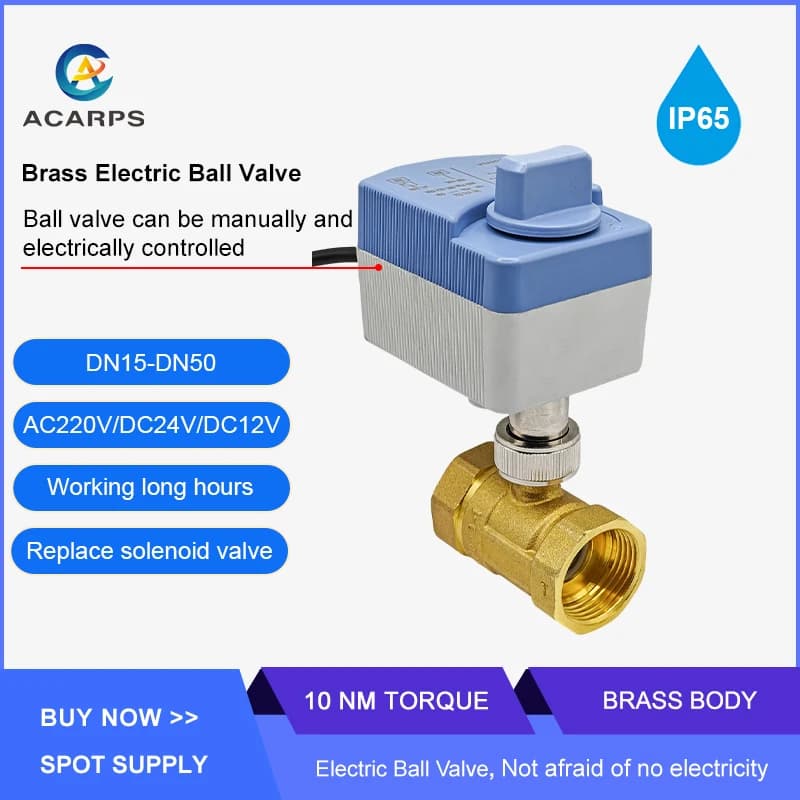

Brass Motorised Gate Valve | IP65 Waterproof | AC/DC 12V/24V/220V with Manual Override

Name: Brass Motorised Gate Valve | IP65 Waterproof | AC/DC 12V/24V/220V with Manual Override
Brand: Compel Group
SKU: PIPE-00098
Price: 129.99 GBP
Availability: InStock
Rating: 4.4 (7 reviews)

Stock Nr:

SKU:

1 / 6

£129.99inc VAT

SpecificationSelect an option

VoltageSelect an option

Wiring ControlSelect an option

Quantity

Secure checkout
All major cards
Tracked delivery

Brass Motorised Gate Valve | IP65 Waterproof | AC/DC 12V/24V/220V with Manual Override

£129.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What are the main specifications of Brass Electric 2-way Ball Valve Waterproof Grade IP65 Motorized Ball Valve With Manual Switch Function AC/DC 12V/24V/220V?: Key figures: High-concerned chemical: None; Actuator Mode: Without Manual And Instruction; Structure: Ball; Port Size: DN15(1/2"). Check the Specs tab for the complete list.
What is Brass Electric 2-way Ball Valve Waterproof Grade IP65 Motorized Ball Valve With Manual Switch Function AC/DC 12V/24V/220V best used for?: It's built for Construction & Building > Pipe Fittings & Connectors work. The description above covers the typical jobs it handles.
Does Brass Electric 2-way Ball Valve Waterproof Grade IP65 Motorized Ball Valve With Manual Switch Function AC/DC 12V/24V/220V come ready to use?: Yes — it ships as listed. Anything included (fittings, accessories, pack counts) is stated in the specification table.

Pipe Fittings & Connectors spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £129.99 · 4.4

This product

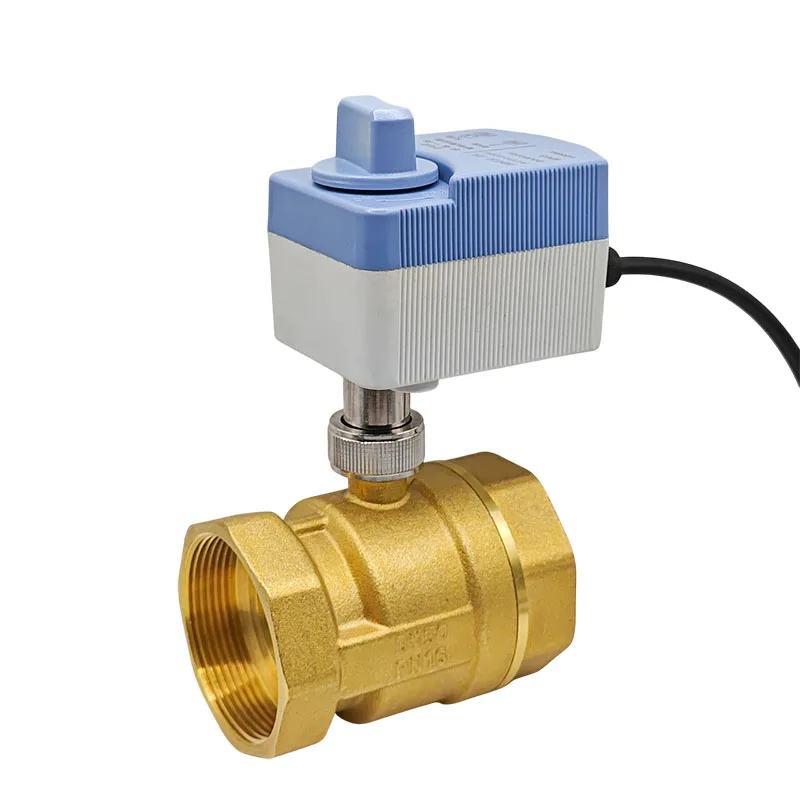

Brass Motorised Gate Valve, full product view.

Brass Motorised Gate Valve | IP65 Waterproof | AC/DC 12V/24V/220V with Manual Override

Price: £129.99
Rating: 4.4(7)
Sold: 84+
Stock: In stock

You're viewing this

Alternative

Brass Gate Valve Valves | 1" Male/Female Thread | Water Pipe Fitting

Price: £52.99
Rating: 4.8(6)
Sold: 23+
Stock: In stock

View

Alternative

Brass Solenoid Gate Valve, a single unit with electrical components.

Brass Solenoid Gate Valve | NC, 12V/24V/220V | DN06-DN25, Full Copper Coil

Price: £52.99
Rating: 4.9(15)
Sold: 200+
Stock: In stock

View

Alternative

DN15-DN32 Brass Gate Valve with Gauge | Pressure Reducing Regulator | Tap Water System

Price: £62.99
Rating: Not rated
Sold: 18+
Stock: In stock

View

Alternative

3 Way Stainless Steel IP65 Motorised Ball Gate Valve, a single unit with actuator.

3 Way Stainless Steel IP65 Motorised Ball Gate Valve | 220V/12V/24V T-Port | Industrial Control

Price: £116.99
Rating: 5.0(2)
Sold: 141+
Stock: In stock

View

Compare options

More Pipe Fittings & Connectors

All Pipe Fittings & Connectors

Black Silicone Flexible Washing Machine Hose | Universal Radiator/Air Intake | ID 16mm-75mm

5.0(50)

£55.99

304 Stainless Steel Solenoid Valve | 0-300 Bar | Car Wash, 1/4" N/C or N/O

5.0(21)

£222.99

Brushed Brass Basin Waste P-Trap | Wall Mounted Bottle Siphon | UK Standard Plumbing

5.0(2)

£177.99

Sanhua DPF Pressure Reducing Valve Symbol | DC12V Inverter | Air Con Electronic Expansion

5.0(14)

£58.99

Hydraulic Pressure Transmitter | 4-20mA 0-10V for Pressure Reducing Valve | G1/4" 12-36V 0-60bar

5.0(4)

£90.99

304 Stainless Steel Pressure Reducing Valve | Adjustable 1/2" - 2" | Lead-Free Water Regulator

5.0(10)

£93.99

Electric Brass Motorised Ball Valve | Normally Open vs Closed | 1/2" to 2" 12-220V

5.0(6)

£88.99

3/4 Pressure Reducing Valve | PP Plastic One-Way Check Valve | 1/4 Spring

5.0(7)

£54.99

KF16-50 High Vacuum Ball Valve | 3-Piece SUS304 ball valve | Industrial Use

5.0(3)

£66.99

Explore the range

Popular in Construction & Building

Browse Construction & Building

Steel Toe Boots | Anti-Smash & Stab-Resistant | Men's Heavy-Duty Work & Biker Boots

4.9

£135.99

Liquid Electrical Tape | Wire Sealing Epoxy | Sealants & Adhesives

4.9(3.9K)

£30.99

Resistant Gloves | ANSI Level 5 Protection | Nitrile Foam Grip

4.9(1.2K)

£43.99

Distribution Box | 200A 220V 12-Port | Single/Three-Phase Junction

4.9(959)

£45.99

Auto-Darkening Welding Helmet | True Color Lens | High Temp Resistant

4.9(933)

£53.99

16A/32A Commando Socket | IP44 Waterproof Plug | 3/4/5 Pin Wall Mount

4.9(782)

£33.99

DIN Rail Power Splitter | Single Pole Terminal Block 250A

4.9(690)

£33.99

EJEAS V4PLUS/V6 PRO+ Earphone | Type-C Plug Motorcycle Helmet Headset | Optional Clip & Base

4.9(1.4K)

£48.99

Defenders for Shooting | Active Noise Reduction | Sound Amplification

4.9(985)

£90.99

Smart ZigBee 3.0 Radiator Valve Thermostatic | Alexa & Google Home Control | Energy Saving

4.9(2.0K)

£106.99

Heavy-Duty Outdoor Extension Cord | 16A 3500W IP54 Waterproof Power Strip | 3-Outlet Weatherproof

4.9

£42.99

$LIBRATON Tube Bender, Pipe Bender, 3-IN-1, 1/4\$

LIBRATON Tube Bender, Pipe Bender, 3-IN-1, 1/4\

4.9

£61.99

The Brass Electric 2-way Ball Valve Waterproof Grade IP65 Motorized Ball Valve With Manual Switch Function AC/DC 12V/24V/220V is designed to provide exceptional performance for discerning customers. Featuring 12v, this premium product delivers reliable results for everyday use in various environments. Features and Benefits - Waterproof design - worry-free use in any weather condition - Durable construction - long-lasting reliable performance - Automatic operation - simplified user experience - Streamlined design - professional-quality results - Easy maintenance design - enhanced user experience Applications - Ideal for everyday use in various environments - Perfect for optimal performance and reliability - Perfect for both professional and personal applications - Perfect for optimal performance and reliability - Suitable for users seeking reliable performance - Perfect for optimal performance and reliability

Port Size: DN15(1/2"), DN20(3/4"), DN25(1"), DN32(1-1/4"), DN40(1-1/2"), DN50(2"). Material: Brass. Power: 6VA (only in the process of valve opening and closing). Power Source: Ac. Drive voltage: 220VAC, 24VDC, 12VDC. Voltage: 12V. Water Resistance: IP65. Actuator Mode: Without Manual And Instruction. Applicable ambient temperature: 0-65°C. Applicable medium: cold water, hot water or 50% glycol solution. Applicable medium temperature: 0-95°C. Brand Name: Acarps. Connection method: G Female thread. Control method: 3-Wire two-control, 2-wire Power-off reset. Drive torque: 10 N.M. High-concerned chemical: None. Lead length: 30 CM. Media: Water. Model Number: With Manual Switch Function Brass Electric 2-way Ball Valve. Pressure: 1.6Mpa. Running Time: 5-15 S. Standard or Nonstandard: Standard. Structure: Ball. Structure Forms: two-port. Temperature of Media: 0-95℃. Type 1: Brass Electric Ball Valve With Manual Switch Function. Type 2: Motorized Ball Valve. Type 3: electric drive crane. Type 4: electric drive crane. Valve body pressure: 1.6MPa. Lead length: 30 CM. Port Size: DN15(1/2"), DN20(3/4"), DN25(1"), DN32(1-1/4"), DN40(1-1/2"), DN50(2"). Material: Brass. Drive voltage: 220VAC, 24VDC, 12VDC. Power: 6VA (only in the process of valve opening and closing). Power Source: Ac. Applicable ambient temperature: 0-65°C. Applicable medium temperature: 0-95°C. Temperature of Media: 0-95℃. Certification: CE. Protection Rating: IP65. Standard or Nonstandard: Standard. Actuator Mode: Without Manual And Instruction. Applicable medium: cold water, hot water or 50% glycol solution. Brand Name: Acarps. Connection method: G Female thread. Control method: 3-Wire two-control, 2-wire Power-off reset. Drive torque: 10 N.M. High-concerned chemical: None. Media: Water. Model Number: With Manual Switch Function Brass Electric 2-way Ball Valve. Origin: Mainland China. Pressure: 1.6Mpa. Running Time: 5-15 S. Structure: Ball. Structure Forms: two-port. Type 1: Brass Electric Ball Valve With Manual Switch Function. Type 2: Motorized Ball Valve. Type 3: electric drive crane. Type 4: electric drive crane. Valve body pressure: 1.6MPa. Q: What are the key features of the Brass Electric 2-way Ball Valve Waterproof Grade IP65 Motorized Ball Valve With Manual Switch Function AC/DC 12V/24V/220V? A: The Brass Electric 2-way Ball Valve Waterproof Grade IP65 Motorized Ball Valve With Manual Switch Function AC/DC 12V/24V/220V offers professional-grade performance with premium construction, designed for reliability and ease of use.. Q: What material is this product made from? A: This product features high-quality materials designed for durability and long-lasting performance.. Q: Is this product suitable for professional use? A: Yes, this product is designed for both professional and home use, meeting high standards for performance.. Q: Does this product come with a warranty? A: Yes, this product includes a manufacturer warranty. Check product documentation for specific terms.. Q: What is included in the package? A: The package includes the Brass Electric 2-way Ball Valve Waterproof Grade IP65 Motorized Ball Valve With Manual Switch Function AC/DC 12V/24V/220V along with any standard accessories. See specifications for complete list..
